Data Table

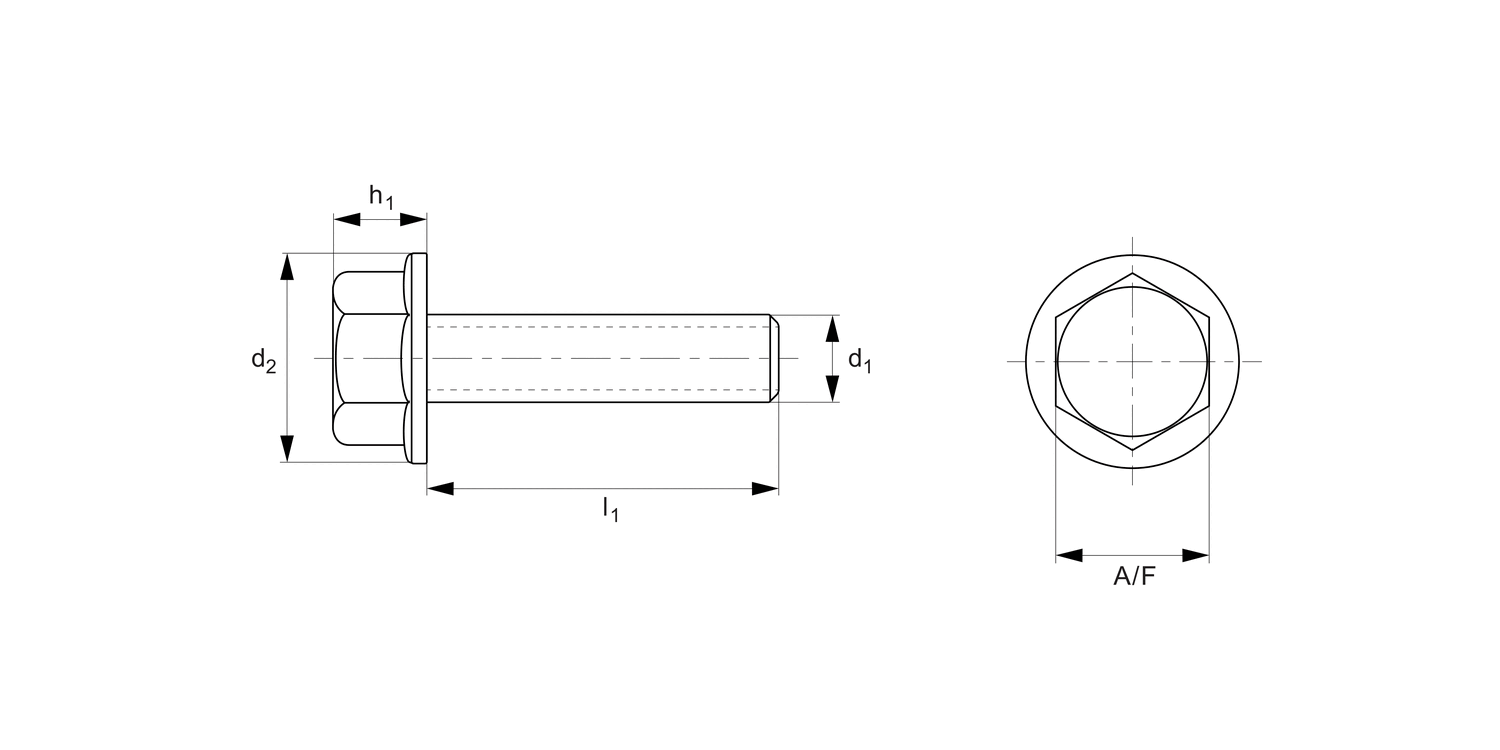

Order No. Order by articlenumber Thread Order by parameter l1 Order by parameter h1 Order by parameter h2 Order by parameter A/F Order by parameter d2 Order by parameter
T0022.050-010 M 5 10,0 5,0 1,5 8,0 10
T0022.050-015 M 5 15,0 5,0 1,5 8,0 10
T0022.050-020 M 5 20,0 5,0 1,5 8,0 10
T0022.050-025 M 5 25,0 5,0 1,5 8,0 10
T0022.050-030 M 5 30,0 5,0 1,5 8,0 10
T0022.050-035 M 5 35,0 5,0 1,5 8,0 10
T0022.050-040 M 5 40,0 5,0 1,5 8,0 10
T0022.050-045 M 5 45,0 5,0 1,5 8,0 10
T0022.050-050 M 5 50,0 5,0 1,5 8,0 10
T0022.050-055 M 5 55,0 5,0 1,5 8,0 10
T0022.050-060 M 5 60,0 5,0 1,5 8,0 10
T0022.060-010 M 6 10,0 5,5 1,5 8,0 11
T0022.060-015 M 6 15,0 5,5 1,5 8,0 11
T0022.060-020 M 6 20,0 5,5 1,5 8,0 11
T0022.060-025 M 6 25,0 5,5 1,5 8,0 11
T0022.060-030 M 6 30,0 5,5 1,5 8,0 11
T0022.060-035 M 6 35,0 5,5 1,5 8,0 11
T0022.060-040 M 6 40,0 5,5 1,5 8,0 11
T0022.060-045 M 6 45,0 5,5 1,5 8,0 11
T0022.060-050 M 6 50,0 5,5 1,5 8,0 11
T0022.060-055 M 6 55,0 5,5 1,5 8,0 11
T0022.060-060 M 6 60,0 5,5 1,5 8,0 11
T0022.060-065 M 6 65,0 5,5 1,5 8,0 11
T0022.060-070 M 6 70,0 5,5 1,5 8,0 11
T0022.060-080 M 6 80,0 5,5 1,5 8,0 11
T0022.060-090 M 6 90,0 5,5 1,5 8,0 11
T0022.060-100 M 6 100,0 5,5 1,5 8,0 11
T0022.060-110 M 6 110,0 5,5 1,5 8,0 11
T0022.080-015 M 8 15,0 7,5 2,0 12,0 17
T0022.080-020 M 8 20,0 7,5 2,0 12,0 17
T0022.080-025 M 8 25,0 7,5 2,0 12,0 17
T0022.080-030 M 8 30,0 7,5 2,0 12,0 17
T0022.080-035 M 8 35,0 7,5 2,0 12,0 17
T0022.080-040 M 8 40,0 7,5 2,0 12,0 17
T0022.080-045 M 8 45,0 7,5 2,0 12,0 17
T0022.080-050 M 8 50,0 7,5 2,0 12,0 17
T0022.080-055 M 8 55,0 7,5 2,0 12,0 17
T0022.080-060 M 8 60,0 7,5 2,0 12,0 17
T0022.080-065 M 8 65,0 7,5 2,0 12,0 17
T0022.080-070 M 8 70,0 7,5 2,0 12,0 17
T0022.080-080 M 8 80,0 7,5 2,0 12,0 17
T0022.080-090 M 8 90,0 7,5 2,0 12,0 17
T0022.100-020 M10x1,25 20,0 8,5 2,0 14,0 20
T0022.100-020 M10 20,0 8,5 2,0 14,0 20
T0022.100-025 M10x1,25 25,0 8,5 2,0 14,0 20
T0022.100-025 M10 25,0 8,5 2,0 14,0 20
T0022.100-030 M10x1,25 30,0 8,5 2,0 14,0 20
T0022.100-030 M10 30,0 8,5 2,0 14,0 20
T0022.100-035 M10x1,25 35,0 8,5 2,0 14,0 20
T0022.100-035 M10 35,0 8,5 2,0 14,0 20
T0022.100-040 M10x1,25 40,0 8,5 2,0 14,0 20
T0022.100-040 M10 40,0 8,5 2,0 14,0 20
T0022.100-045 M10x1,25 45,0 8,5 2,0 14,0 20
T0022.100-045 M10 45,0 8,5 2,0 14,0 20
T0022.100-050 M10x1,25 50,0 8,5 2,0 14,0 20
T0022.100-050 M10 50,0 8,5 2,0 14,0 20
T0022.100-055 M10x1,25 55,0 8,5 2,0 14,0 20
T0022.100-055 M10 55,0 8,5 2,0 14,0 20
T0022.100-060 M10 60,0 8,5 2,0 14,0 20
T0022.100-070 M10 70,0 8,5 2,0 14,0 20
T0022.100-070 M10 70,0 8,5 2,0 14,0 20
T0022.100-080 M10 80,0 8,5 2,0 14,0 20
T0022.100-080 M10 80,0 8,5 2,0 14,0 20
T0022.100-090 M10 90,0 8,5 2,0 14,0 20
T0022.100-090 M10 90,0 8,5 2,0 14,0 20
T0022.100-100 M10 100,0 8,5 2,0 14,0 20
T0022.100-100 M10 100,0 8,5 2,0 14,0 20
T0022.120-020 M12 20,0 11,5
T0022.120-025 M12 25,0 11,5
T0022.120-030 M12 30,0 11,5
T0022.120-035 M12 35,0 11,5
T0022.120-040 M12 40,0 11,5
T0022.120-045 M12 45,0 11,5
T0022.120-050 M12 50,0 11,5
T0022.120-055 M12 55,0 11,5
T0022.120-060 M12 60,0 11,5
T0022.120-065 M12 65,0 11,5
T0022.120-070 M12 70,0 11,5
T0022.120-080 M12 80,0 11,5
T0022.120-090 M12 90,0 11,5
T0022.120-100 M12 100,0 11.5 - -
T0022.160-020 M16 20,0 - - -
T0022.160-025 M16 25,0 - - -
T0022.160-030 M16 30,0 - - -
T0022.160-035 M16 35,0 - - -
T0022.160-040 M16 40,0 - - -
T0022.160-045 M16 45,0 - - -
T0022.160-050 M16 50,0 - - -
T0022.160-055 M16 55,0 - - -
T0022.160-060 M16 60,0 - - -
T0022.160-065 M16 65,0 - - -
T0022.160-070 M16 70,0 - - -
T0022.160-080 M16 80,0 - - -
T0022.160-090 M16 90,0 - - -
T0022.160-100 M16 100,0 - - -

Technical & Application

Material

Titanium 5 (6AL-4V).

CAD & Data Sheets

Product Datasheets

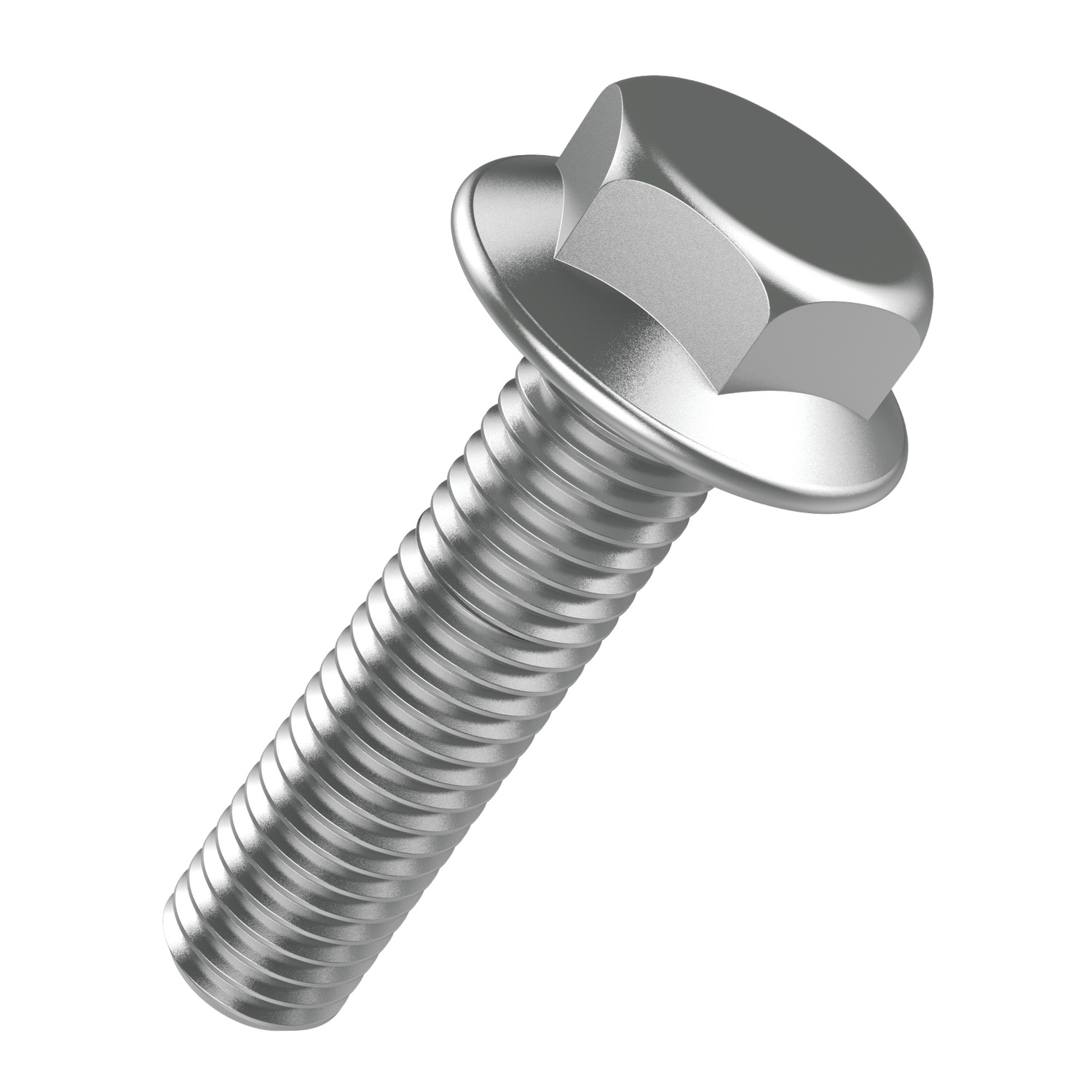

T0022. Hexagon Flange Bolts 431 kB pdf
Machine Screws 9 MB pdf
Titanium 12 MB pdf
