Swing Handles
padlockable - with dust cover
PL0100 Swing Handles - Cam Control
40mm euro cylinder lock - dust cover, material: Zinc
Alternative products you may wish to consider
Type
One
Body
Zinc
Lock type
40 Euro
Handle
Zinc
Padlockable
No
Key type
Keyed Alike
l1
160
w1
34
lh
19
£ 30.51 per unit (click for quantity discounts)
Type
One
Body
Zinc
Lock type
40 Euro
Handle
Zinc
Padlockable
Yes
Key type
Keyed Alike
l1
160
w1
34
lh
19
£ 21.65 per unit (click for quantity discounts)
Type
Two
Body
Polyamide
Lock type
40 Euro
Handle
Zinc
Padlockable
No
Key type
Keyed Alike
l1
160
w1
34
lh
19
£ 31.96 per unit (click for quantity discounts)
Type
Two
Body
Polyamide
Lock type
40 Euro
Handle
Zinc
Padlockable
Yes
Key type
Keyed Alike
l1
160
w1
34
lh
19
£ 21.65 per unit (click for quantity discounts)
Type
Body
Lock type
Handle
Padlockable
Key type
l1
w1
lh
| Price & Availability | Article | Type | Body | Lock type | Handle | Padlockable | Key type | l1 | w1 | lh | ||||||||||||||||||
| PL0100.M0010 | One | Zinc | 40 Euro | Zinc | No | Keyed Alike | 160 | 34 | 19 | |||||||||||||||||||
£ 30.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type One Body Zinc Lock type 40 Euro Handle Zinc Padlockable No Key type Keyed Alike l1 160 w1 34 lh 19 | ||||||||||||||||||||||||||||
| PL0100.M0020 | One | Zinc | 40 Euro | Zinc | Yes | Keyed Alike | 160 | 34 | 19 | |||||||||||||||||||
£ 21.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type One Body Zinc Lock type 40 Euro Handle Zinc Padlockable Yes Key type Keyed Alike l1 160 w1 34 lh 19 | ||||||||||||||||||||||||||||
| PL0100.M0310 | Two | Polyamide | 40 Euro | Zinc | No | Keyed Alike | 160 | 34 | 19 | |||||||||||||||||||
£ 31.96 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
Type Two Body Polyamide Lock type 40 Euro Handle Zinc Padlockable No Key type Keyed Alike l1 160 w1 34 lh 19 | ||||||||||||||||||||||||||||
| PL0100.M0320 | Two | Polyamide | 40 Euro | Zinc | Yes | Keyed Alike | 160 | 34 | 19 | |||||||||||||||||||
£ 21.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Two Body Polyamide Lock type 40 Euro Handle Zinc Padlockable Yes Key type Keyed Alike l1 160 w1 34 lh 19 | ||||||||||||||||||||||||||||
Technical & Application
Material
Type One: Body & Handle: die cast zinc, black powder coated.
Type Two: Body: Polyamide PA6, black. Handle: die cast zinc, black powder coated.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.
Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Tips
90° degree handle rotation combines with rod latch to open or close. All die cast metal construction provides higher strength than standard models. Ideal for electrical cabinets, telecom racks or enclosures max. panel thickness of 1 to 4mm. For use inside of cabinet gasket. Universal left/right.
Product Datasheets

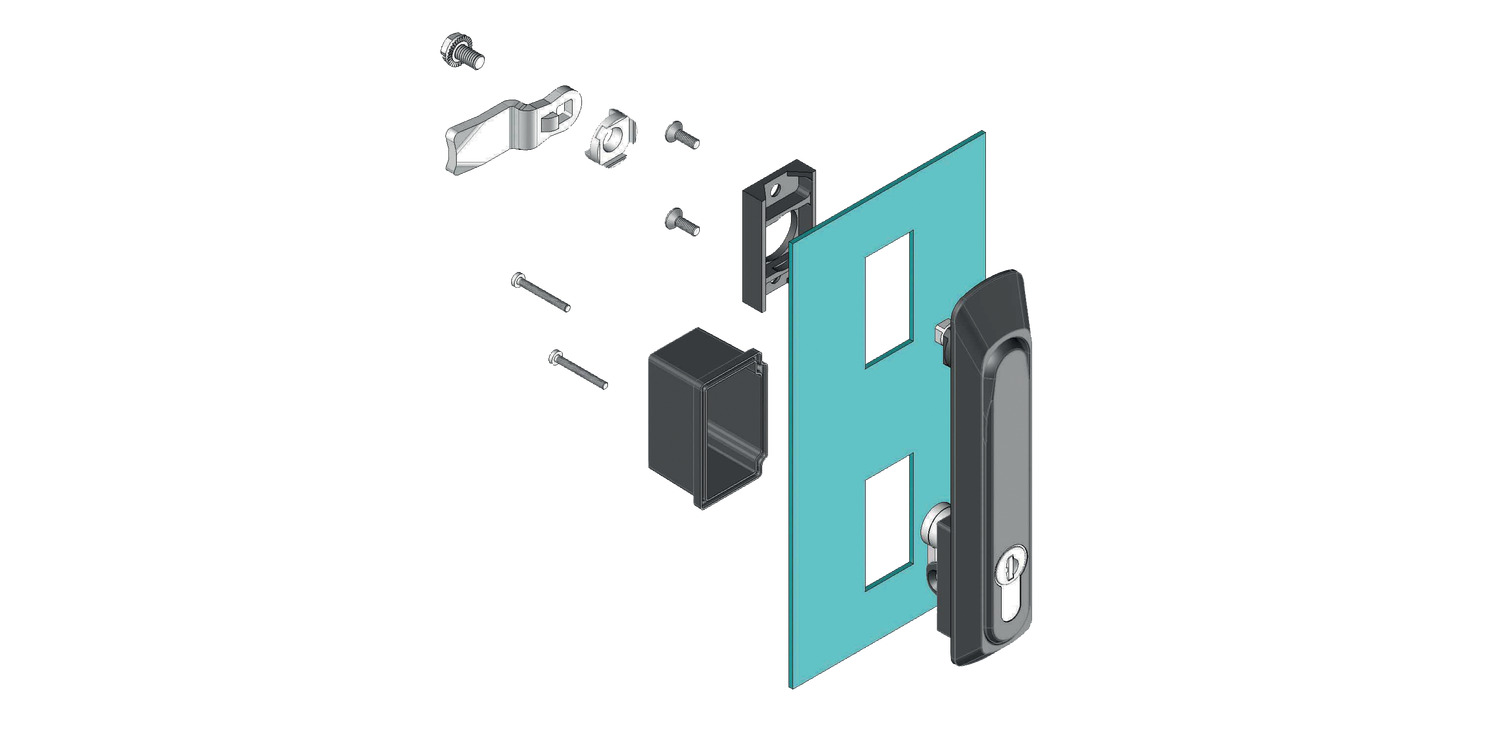

Application images
