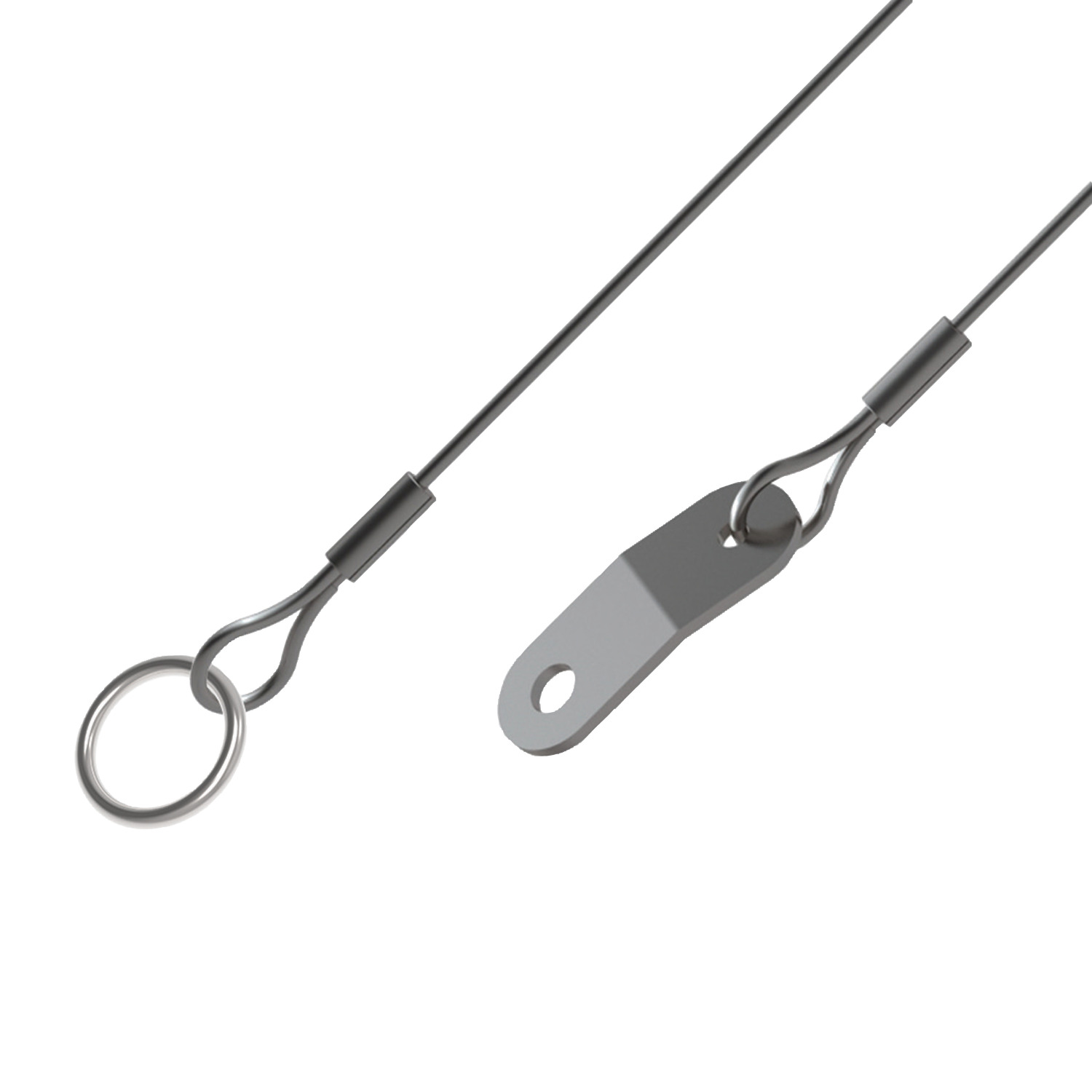

LA1012 Lanyard - Split Ring to Rectangle Tab

Name: LA1012.M024-300G
Brand: WC
SKU: LA1012.M024-300G
Price: 13.09 EUR
Availability: InStock

crimps brass, tab stainless steel, material: Stainless steel

Article properties

Order No.

LA1012.M024-300G

Coating

Green

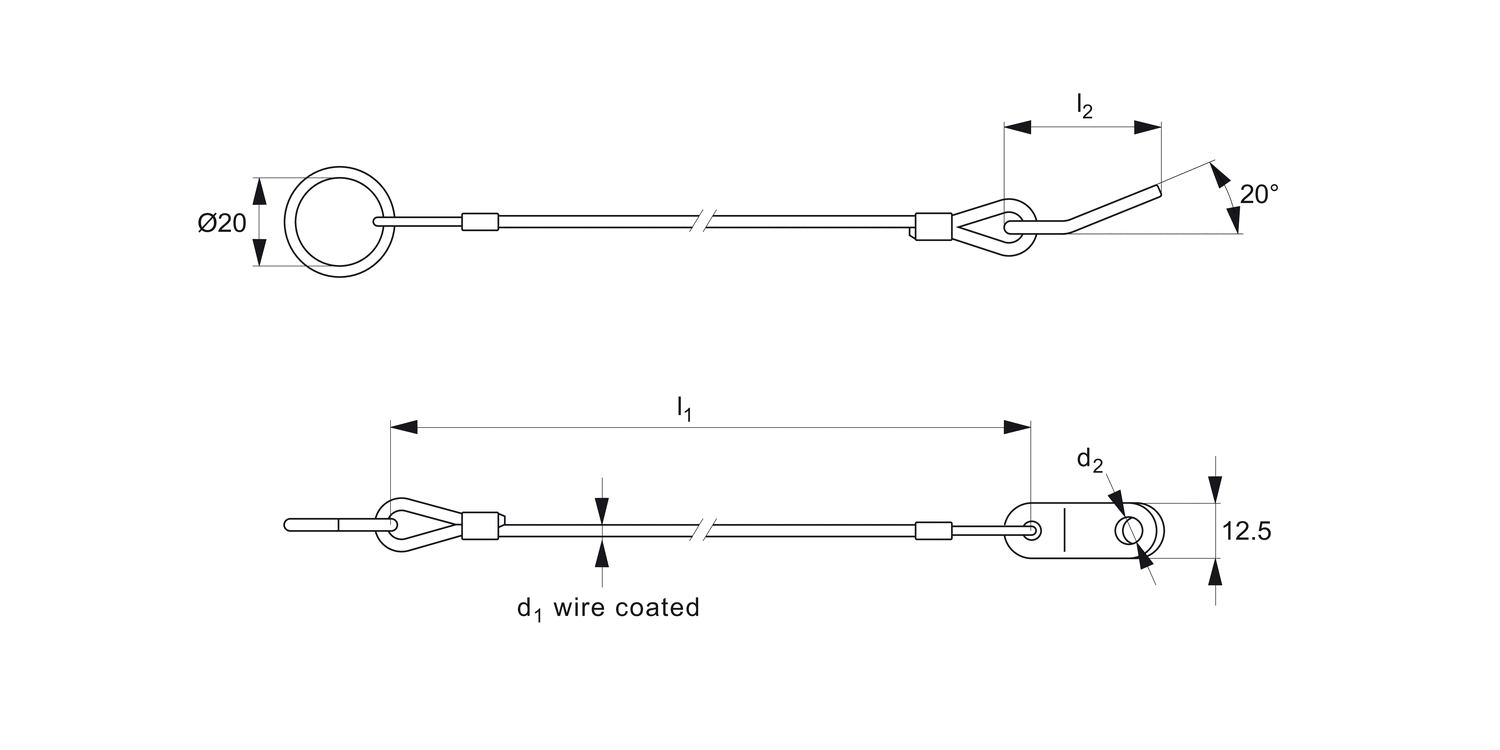

d₁ wire coated

2.4

l₁

300

d₂

4.9

l₂

Weight g

See full product selection

£ 13.09 per unit (click for quantity discounts)

Ready to despatch 25
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 13.09	0%
10-19	£ 11.78	10%
20-49	£ 11.13	15%
50-99	£ 10.47	20%
100+	£ 9.16	30%

Download product datasheet

Technical & Application

Material

ire rope: stainless steel.
Coating: thermoplastic, PVC, green transparent
Crimps: brass, zinc plated.
Tabs: stainless steel
Split ring: stainless steel.

Technical Notes

Temperature range up to 80°C.

Tips

For use in securing components to assemblies, or to avoid items being misplaced. For our wide range of quick release pins nos.33060 through 33226.

Important Notes

Conform to military spec MIL-DTL-83420 specification

Product Datasheets

LA1012 Lanyard - Split Ring to Rectangle TabJanuary 3, 2025, 3:26 PM / 524.71 kB

LanyardsJanuary 3, 2025, 3:34 PM / 583.70 kB

LanyardsJanuary 3, 2025, 3:34 PM / 1.04 MB

LanyardsJanuary 3, 2025, 3:34 PM / 869.09 kB

Quick Release PinsJanuary 3, 2025, 3:34 PM / 4.69 MB
