Locating Bushes
for ball lock pins
LA1315 Flange Bushings - Metric - for Quick Release Pins
stainless steel, material: Stainless steel
Order No.
LA1315.M12-OB

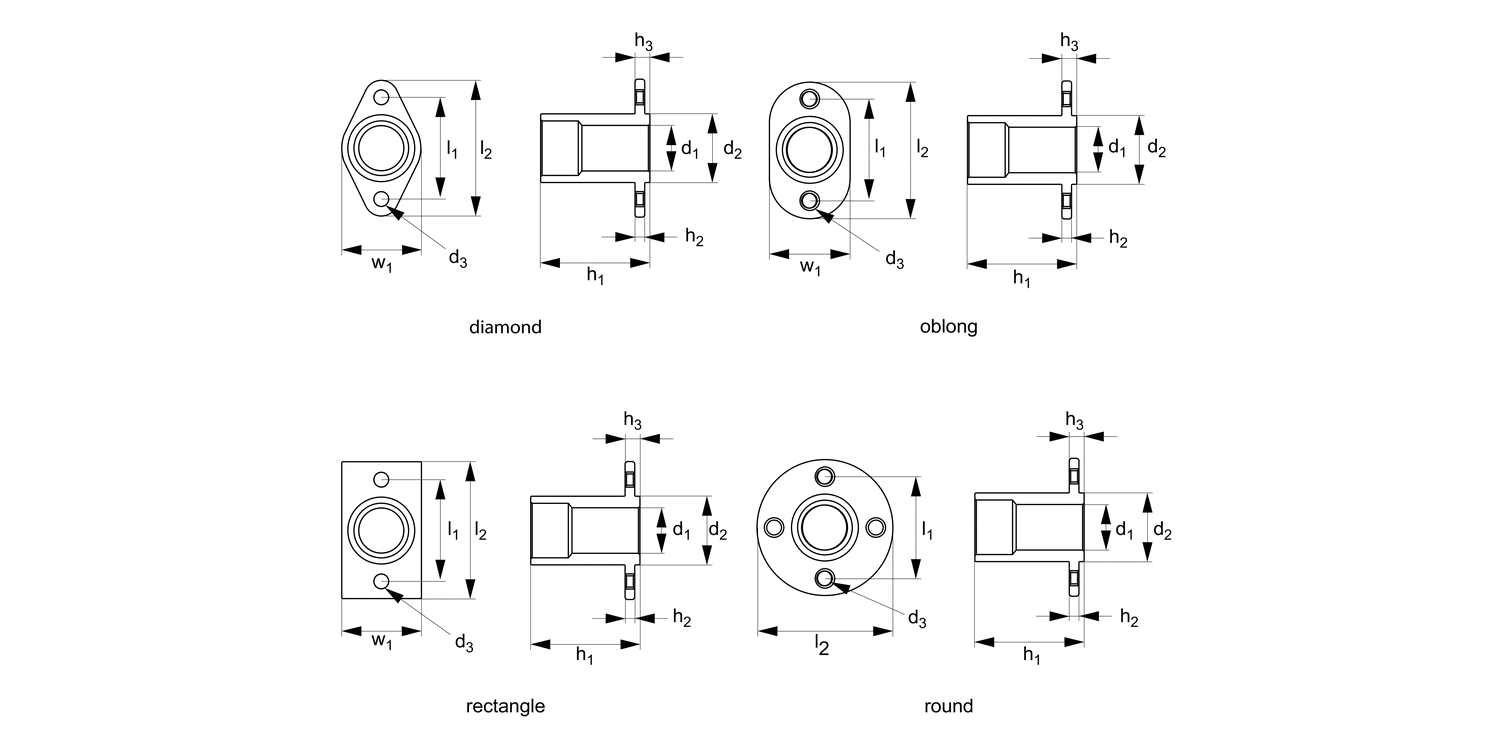

Flange style
Oblong
d1 pin dia.
nom.
12
Grip length reduction
20
d2
±0.13
19.05
d3
M5
h1
+0.0|-0.13
30.35
h2
±0.13
2.54
h3
1.52
l1
±0.13
29
l2
±0.25
38.10
w
±0.25
22.23
£ 59.43 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 59.43 | 0% |
| 10-19 | £ 53.49 | 10% |
| 20-49 | £ 50.51 | 15% |
| 50-99 | £ 47.54 | 20% |
| 100+ | £ 41.60 | 30% |
Technical & Application
Material
Stainless steel, AISI 303.
Technical Notes

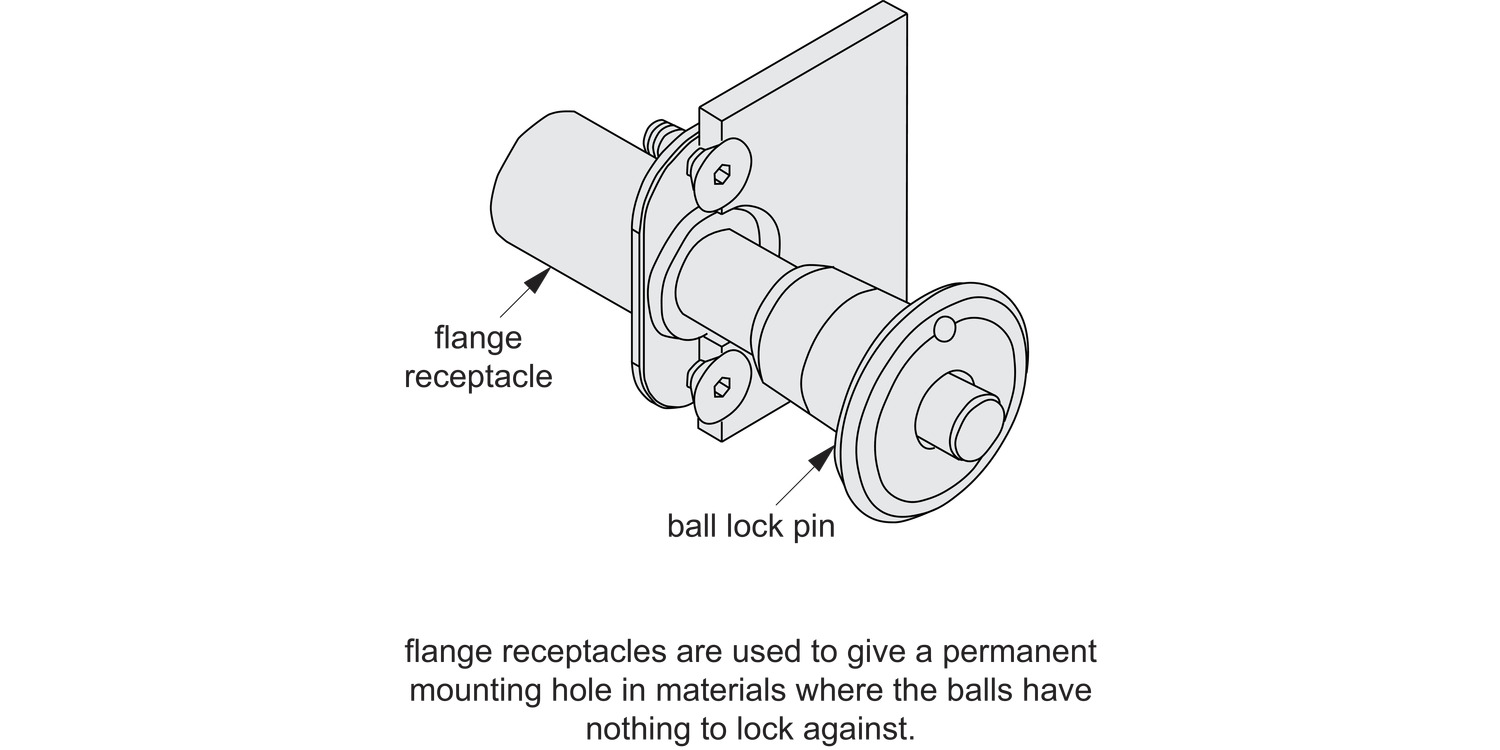

Provide permanent and proper locating hole for quick release pins. For use in applications with soft/weak metals, or where no proper locking surface is available. Ideal for blind hole applications, as pin will not protrude from base of bushing.
Mounted with screws, rivets or bolts.
Important Notes
Quick release pins must be inserted from flanged end. **When used, bushings reduce the usable or grip length of quick release pin. Refer to 'Grip length reduction' value in data table.
