Swing Handles
padlockable - with dust cover

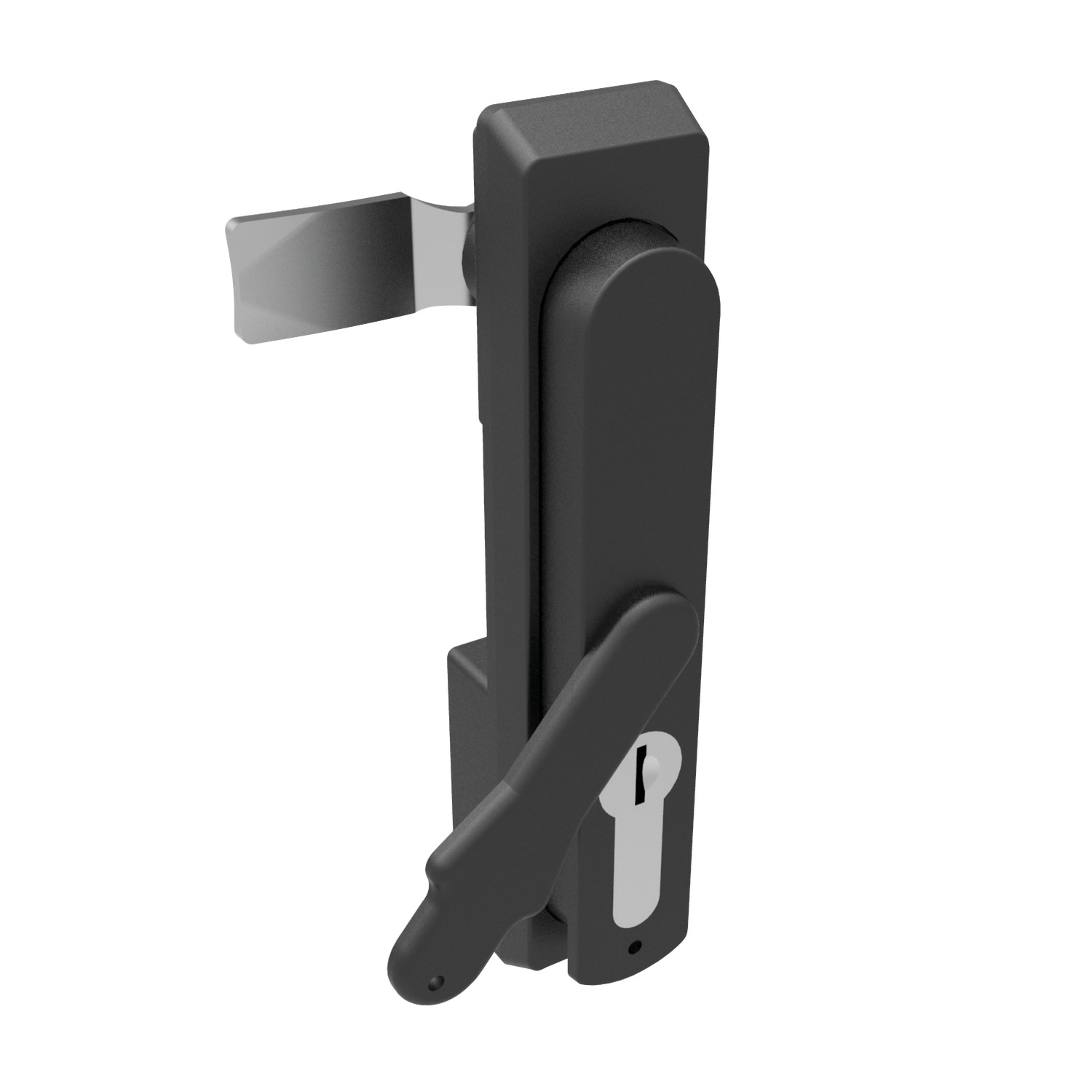

PL0110 Swing Handles - Cam Control
40mm euro cylinder lock - dust cover - polyamide, material: Polyamide
Order No.
PL0110.M0020
Finish
Black, Plastic
Lock type
40 Euro
Key type
Keyed Alike
l1
160
w1
35
lh
16
£ 23.30 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 23.30 | 0% |
| 20-49 | £ 20.97 | 10% |
| 50-99 | £ 19.81 | 15% |
| 100-499 | £ 17.48 | 25% |
| 500+ | £ 15.15 | 35% |
Technical & Application
Material
Body & Handle: polyamide, PA6, black. Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.

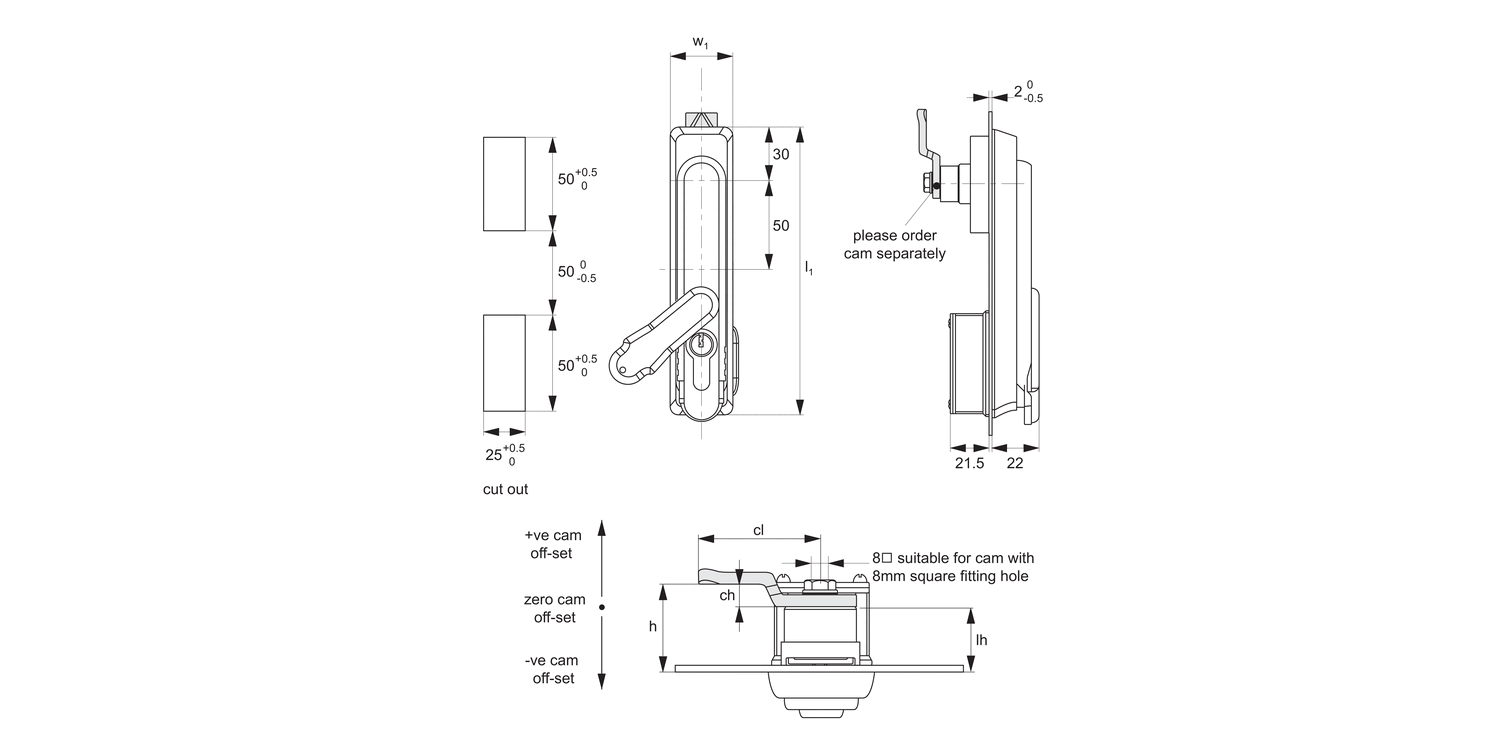

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Tips
Also available with radial pin lock, subject to min. order quantity.
Ideal for electrical cabinets, telecom racks or enclosures max. panel thickness of 2mm. For use inside of cabinet gasket. Universal left/right.
