Swing Handles
with rod control

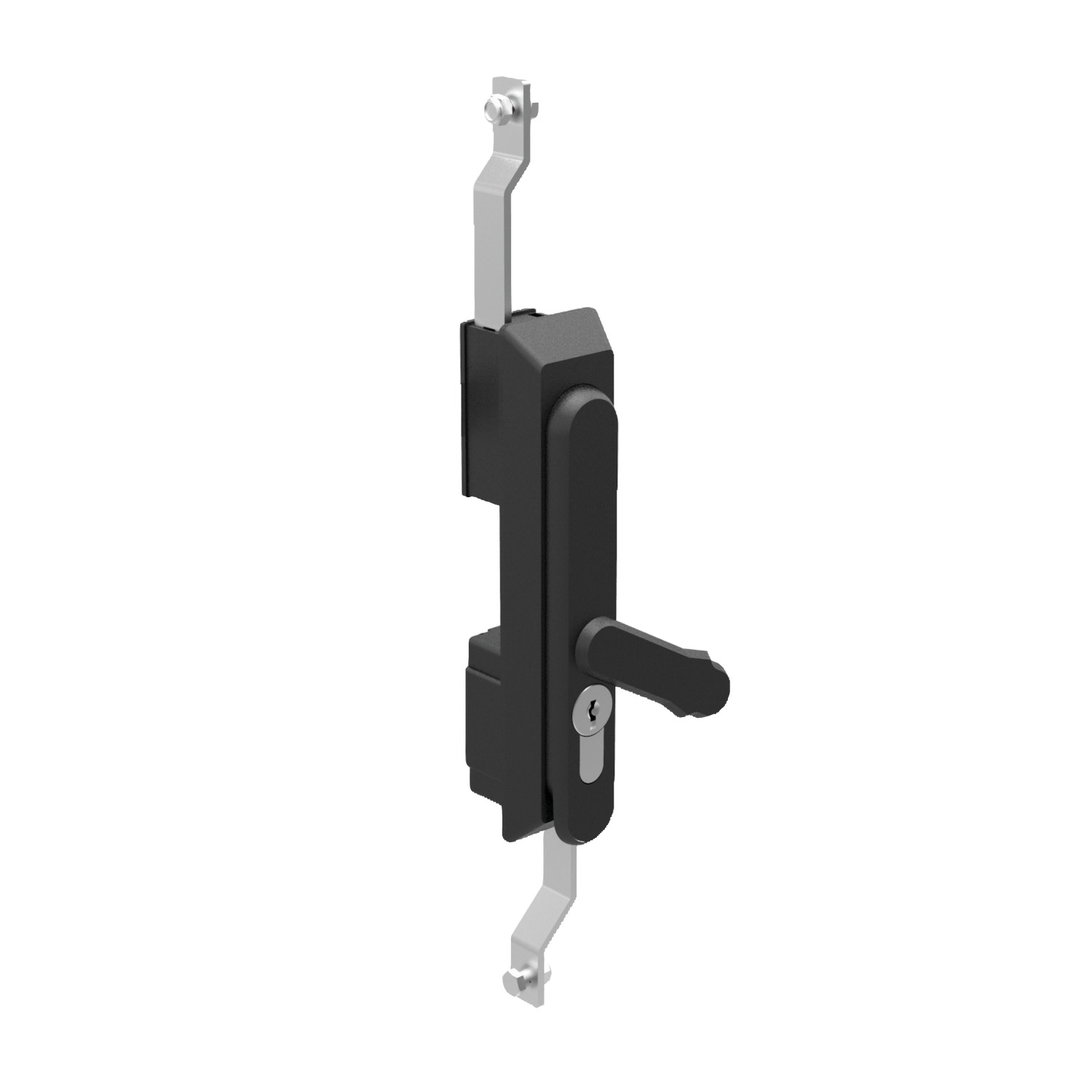

PL0510 Swing Handles - with Rod Control
40mm euro cylinder lock - dust cover - polyamide, material: Polyamide
Order No.
PL0510.M0020
Finish
Black, Plastic
Lock type
40 Euro
Key type
Keyed Alike
l
160
w
35
lh
23
a
123.5
b
223.5
c
173.5
d
173.5
dm stroke
135°
23.5
dm stroke
90°
16
£ 19.56 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 19.56 | 0% |
| 20-49 | £ 17.60 | 10% |
| 50-99 | £ 16.63 | 15% |
| 100-499 | £ 14.67 | 25% |
| 500+ | £ 12.71 | 35% |
Technical & Application
Material
Body & Handle: polyamide (PA), black.
Cylinder lock: die cast zinc, chrome plated.
Rod Control Mechanism: die cast zinc.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Suitable for two point latching.
Not suitable for three point latching.
Tips
Also available with radial pin lock, subject to min. order quantity.
Ideal for electrical cabinets, telecom racks or enclosures max. panel thickness of 2mm. For use inside of cabinet gasket. Universal left/right.
