Swing Handles
with rod control
PL0580 Cam Latch - Flush T-handle - Rod Control
vertical - heavy duty- fixed grip - standard cylinder lock - stainless, material: Stainless steel
Order No.
PL0580.M0010
Mounting type
Hole Fixing
Lock type
Std. Cylinder
Key type
Keyed Alike
£ 30.96 per unit (click for quantity discounts)
Ready to despatch 11
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 30.96 | 0% |
| 10-19 | £ 27.86 | 10% |
| 20-49 | £ 26.32 | 15% |
| 50-99 | £ 24.77 | 20% |
| 100+ | £ 21.67 | 30% |
Technical & Application
Material
Body: stainless steel, AISI 303.
Handle: die cast zinc, chrome plated.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Technical Notes

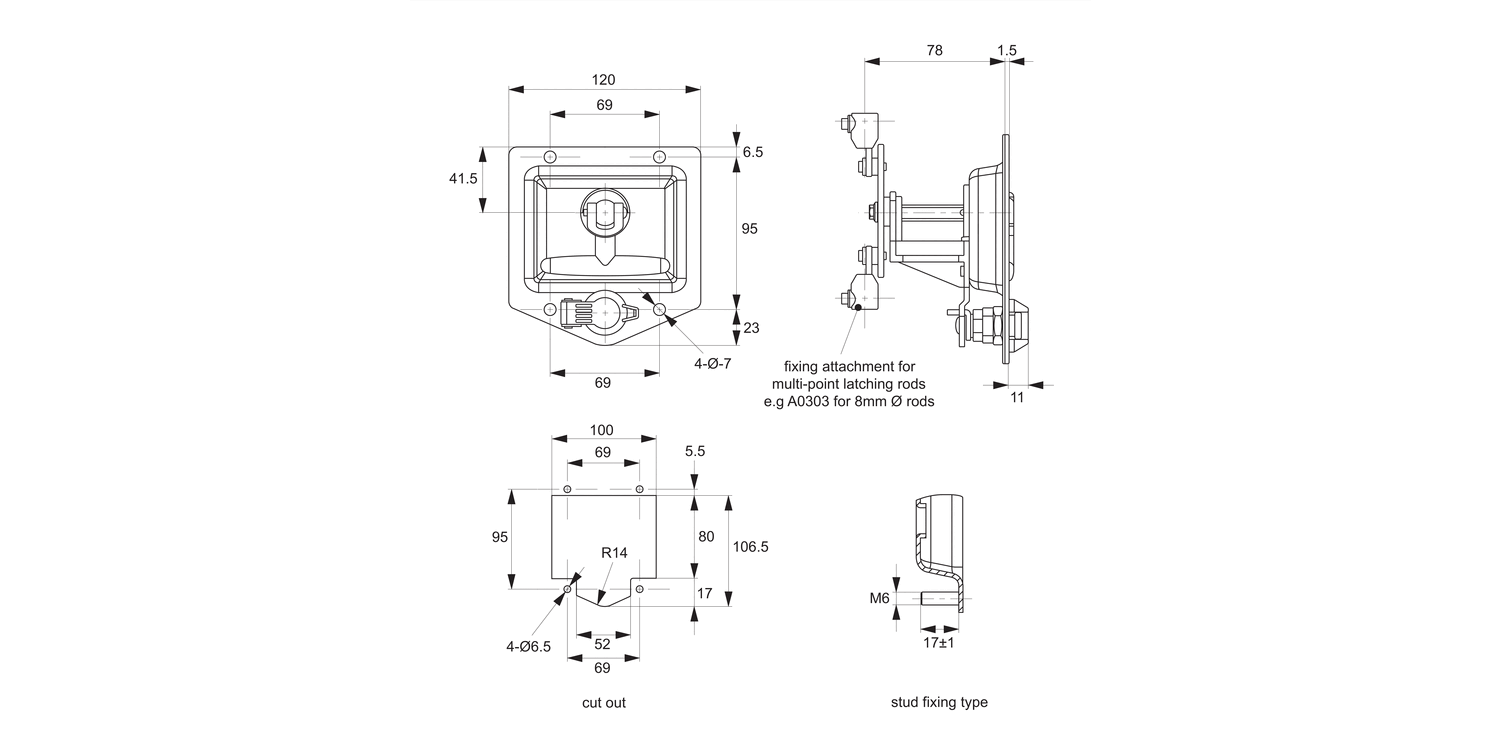

Hole fixing type requires 4 off M 6 screws (not supplied) for front mounting.
Stud fixing type has 4 off M 6 welding studs for rear mounting with M 6 nuts (not supplied).
Use with multi-point latching rods (e.g CC0340), with 8mm Ø rods, to achieve two point latching of larger enclosure panels.
Tips
Ideal for electricity sub-stations, HGVs and other road side vehicles.
T-handle is in the vertical position when locked. Universal left/right. For use inside of cabinet gasket.
