Swing Handles
with rod control

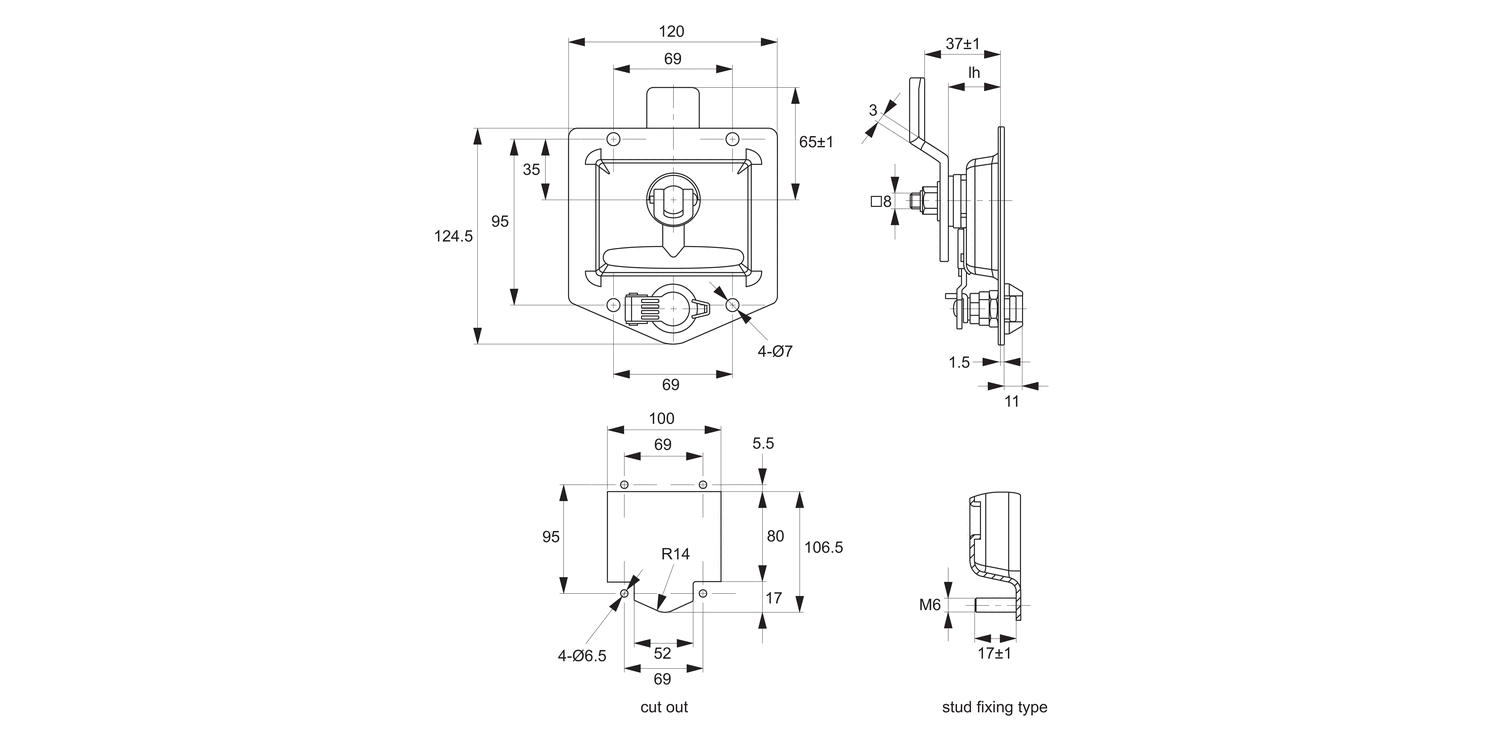

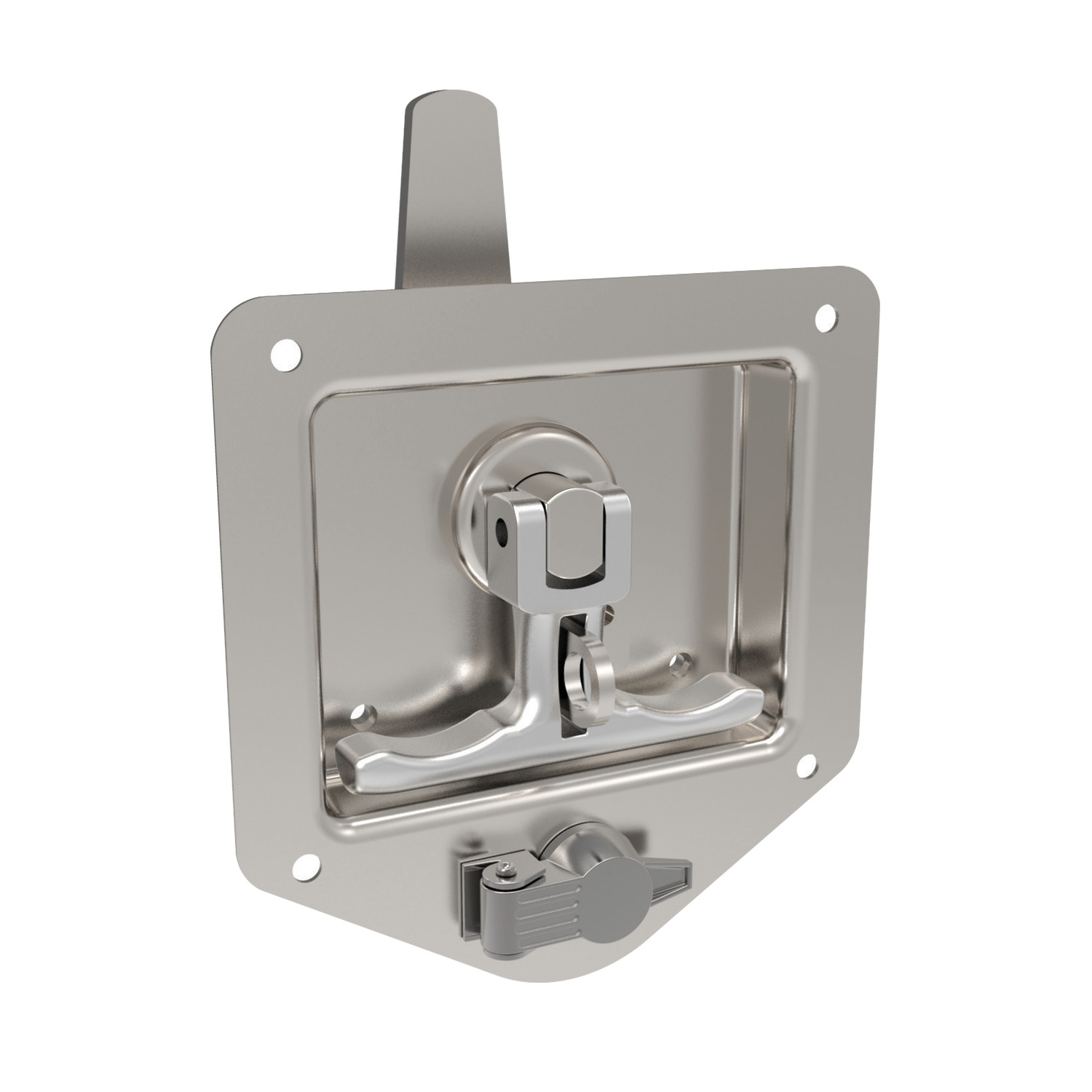

PL0585 Cam Latch - Flush T-handle
vertical - heavy duty - fixed grip - standard cylinder lock - stainless, material: Stainless steel
Order No.
PL0585.M0020
Mounting type
Stud Fixing
Lock type
Std. Cylinder
Key type
Keyed Alike
lh
25
£ 32.23 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 32.23 | 0% |
| 10-19 | £ 29.01 | 10% |
| 20-49 | £ 27.40 | 15% |
| 50-99 | £ 25.78 | 20% |
| 100+ | £ 22.56 | 30% |
Technical & Application
Material
Body: stainless steel, AISI 303.
Handle: die cast zinc, chrome plated.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Cam: stainless steel, AISI 303.
Technical Notes
Hole fixing type requires 4 off M 6 screws (not supplied), for front mounting.
Stud fixing type has 4 off M 6 welded studs for near mounting with M 6 nuts (not supplied).
Tips
Ideal for electricity sub-stations, HGVs and other road side vehicles.
T-handle is in the vertical position when locked. Universal left/right. For use inside of cabinet gasket.
Can be used with cam range CC0020.
