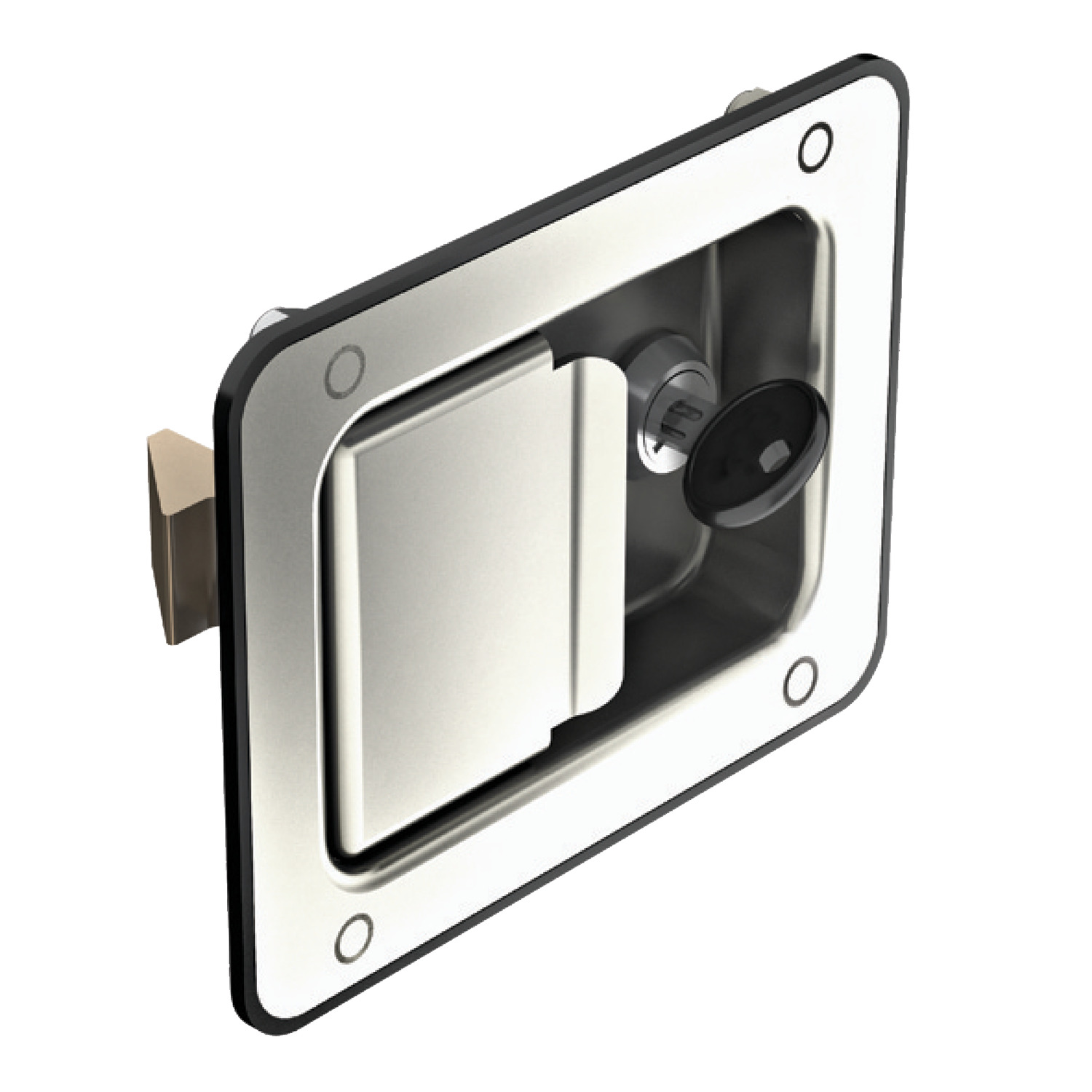

PL0740 Push To Close Paddle Latches
pull to open - slam action -standard cylinder lock - stainless, material: Stainless steel
£ 22.66 per unit (click for quantity discounts)
Ready to despatch 21
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 22.66 | 0% |
| 20-49 | £ 20.39 | 10% |
| 50-99 | £ 19.26 | 15% |
| 100-499 | £ 17.00 | 25% |
| 500+ | £ 14.73 | 35% |
Technical & Application
Material
Body and Handle: stainless steel, AISI 304.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Not Supplied: Catch plate: please order separately.
Technical Notes
Hole fixing type requires 4 off M 6 screws (not supplied) for front mounting.
Spring loaded, slam action handle.
Universal left/right. For use inside of cabinet gasket.
Tips
Fully integrated lock, latch and flush fitting paddle handle, ideal for generators, compressors, electric panels and doors.
