QR1016 Quick Release Pins - Metric - T-handle

Name: QR1016.M10-080-T
Brand: WC
SKU: QR1016.M10-080-T
Price: 84.969 EUR
Availability: OutOfStock

precipitation hardened stainless pin, material: Stainless steel

Article properties

Order No.

QR1016.M10-080-T

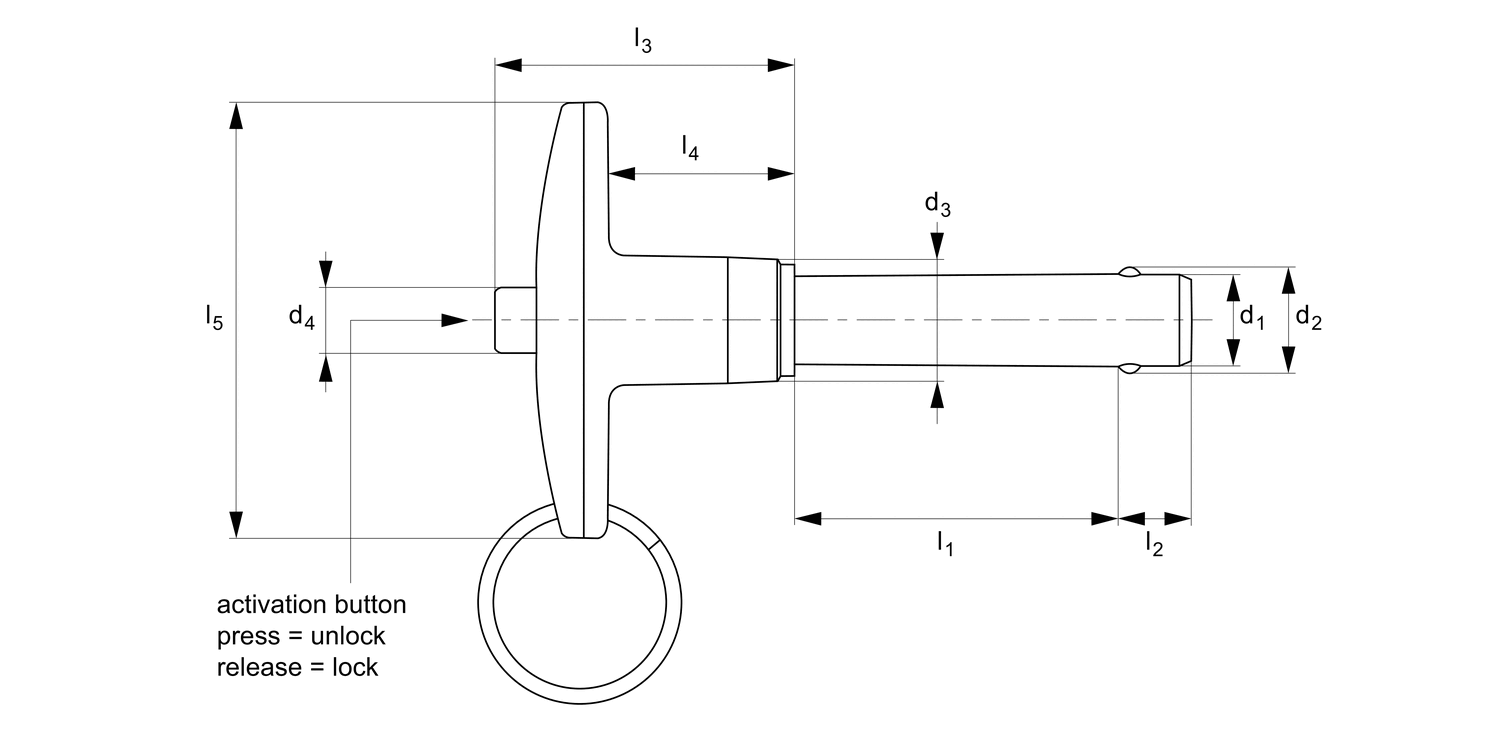

d₁ nom.

l₁ grip +0.5|-0.0

Material

17-4 PH

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

l₃

34.8

l₄

22.1

l₅

50.8

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

See full product selection

£ 84.97 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 84.97	0%
10-19	£ 76.47	10%
20-49	£ 72.22	15%
50-99	£ 67.98	20%
100+	£ 59.48	30%

Download product datasheet

Technical & Application

Material

Pin: stainless steel 17-4PH (DIN 1.4542, AISI 630), precipitation hardened, passivated. Tensile strength 1,300 N/mm² min. HRC 40. RoHS compliant.
Handle: Alu. 380 die cast (DIN AlSi9Cu3), black anodised (RAL 9003).
Actuator button: Alu. 2024-T4 (DIN AlCuMg2), anodised blue or clear.
Internal spindle, balls and split ring (supplied); from stainless steel.

Technical Notes

Pressing = unlocking.
Releasing = locking.
Temperature range -30°C to +150°C
Supplied with split ring.

Tips

For quick fastening and locking frequently repeated connections.
For lanyards & retaining cables see part nos. L to LA1224. For easy install locating bushes and end caps see part nos. LA1260 to LA1355.
