Ball Lock Pins
single-acting

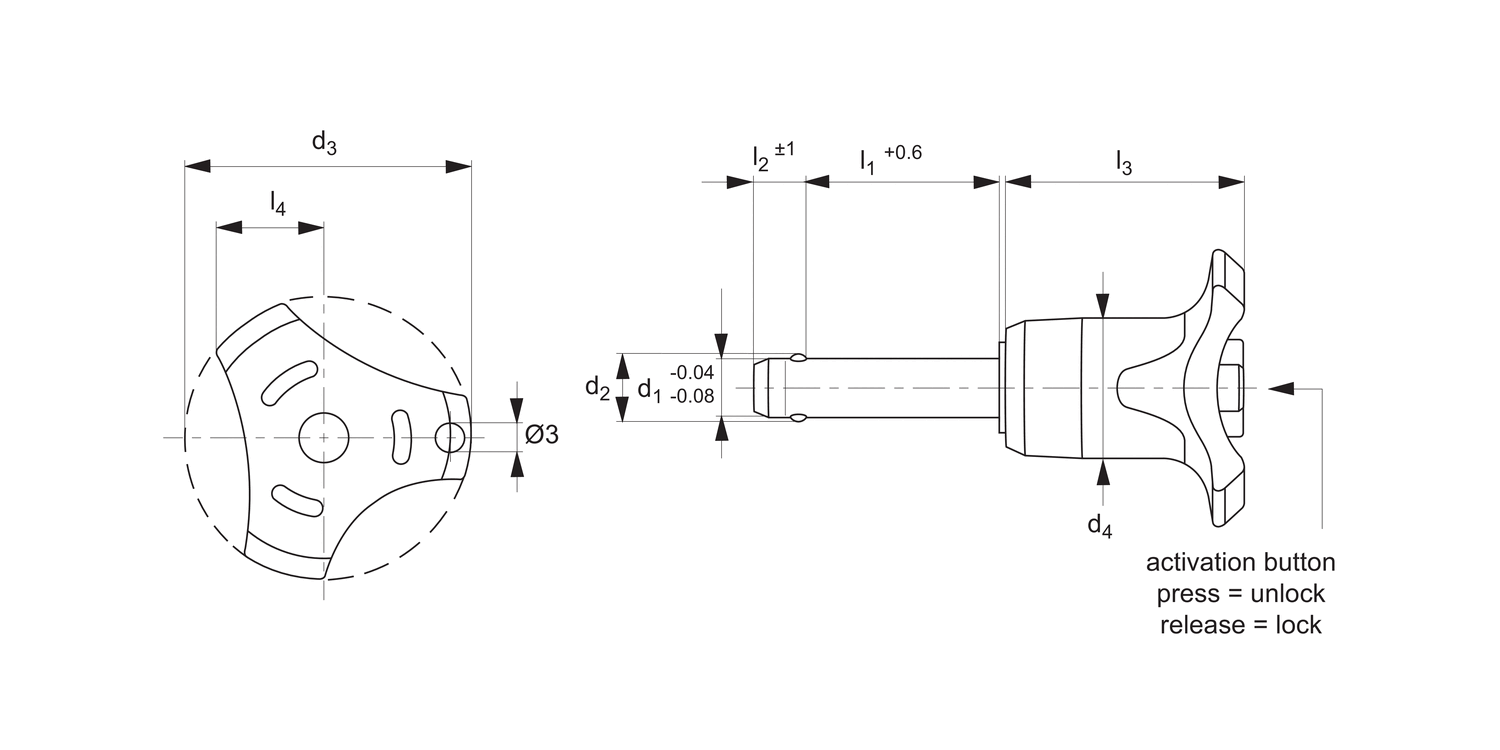

QR1734 Ball Lock Pins - Single Acting - Orange Plastic Handle
self-locking - stainless steel 1.4305 (AISI 303), material: Stainless steel
Order No.
QR1734.M16-040-S
d1
16
l1
40
d2
19.0
d3
47.6
d4
26.3
l2
14.0
l3
39.7
l4
16.7
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
148
£ 75.13 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 75.13 | 0% |
| 10-19 | £ 67.62 | 10% |
| 20-49 | £ 63.86 | 15% |
| 50-99 | £ 60.10 | 20% |
| 100+ | £ 52.59 | 30% |
Technical & Application
Material
Pin: stainless steel 1,4542 (AISI 630)
Ball: stainless steel 1.3541
Spring: stainless steel.
Handle: thermoplastic PA 6.
Available colours: grey/orange, grey/blue, grey/grey.
Technical Notes
Pressing = unlocking.
Releasing = locking.
Temperature resistance -30°C to +80°C.
For quick fastening and locking of frequently repeated connections.
Tips
For lanyards & retaining cables see part no.LA1066-LA1092. Easy install locating bushes available see part no.LA1310 + .
Important Notes
*Shearing resistance similar to DIN 50141.
Also available in stainless grade 1.4542 (AISI 630) for higher shear forces, see part no.33060.
Product Datasheets

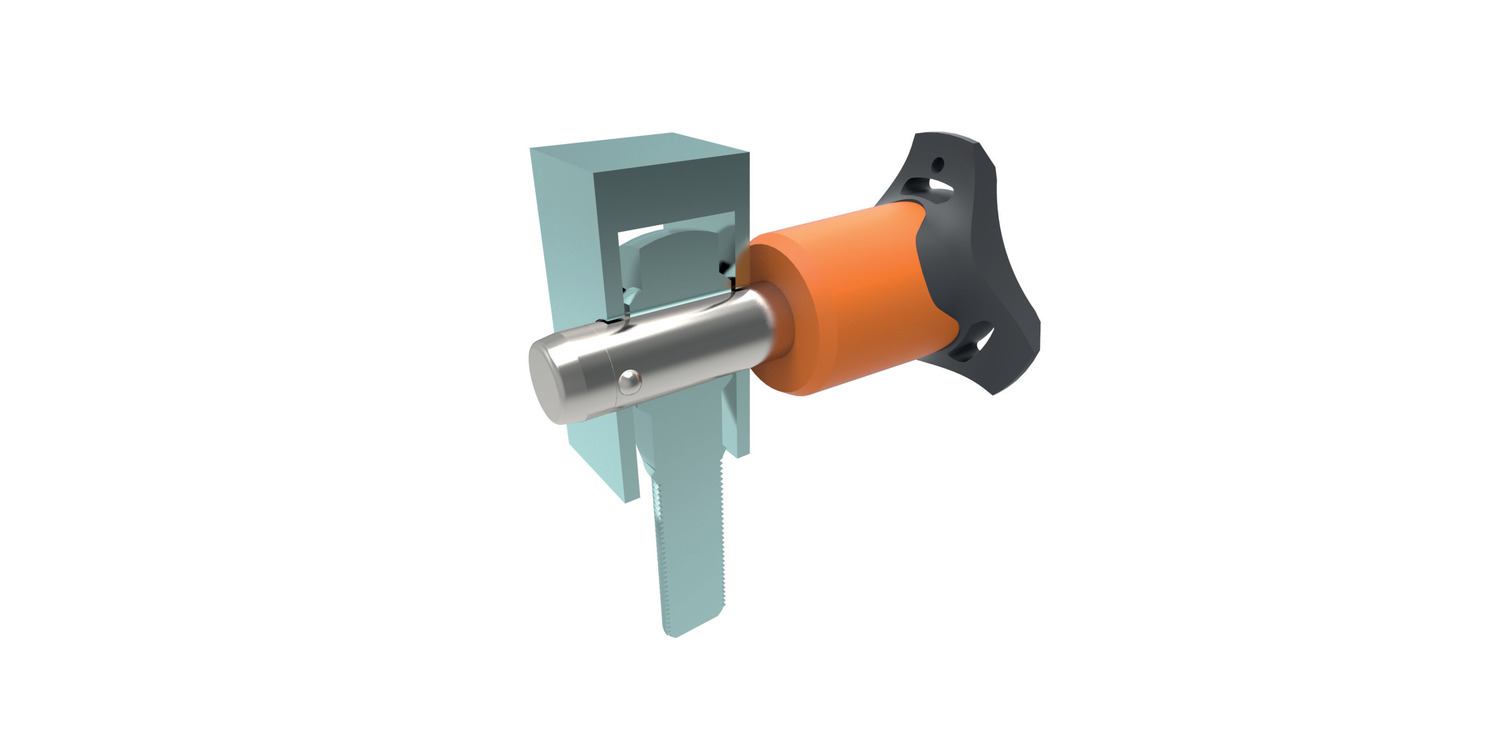

Application images
