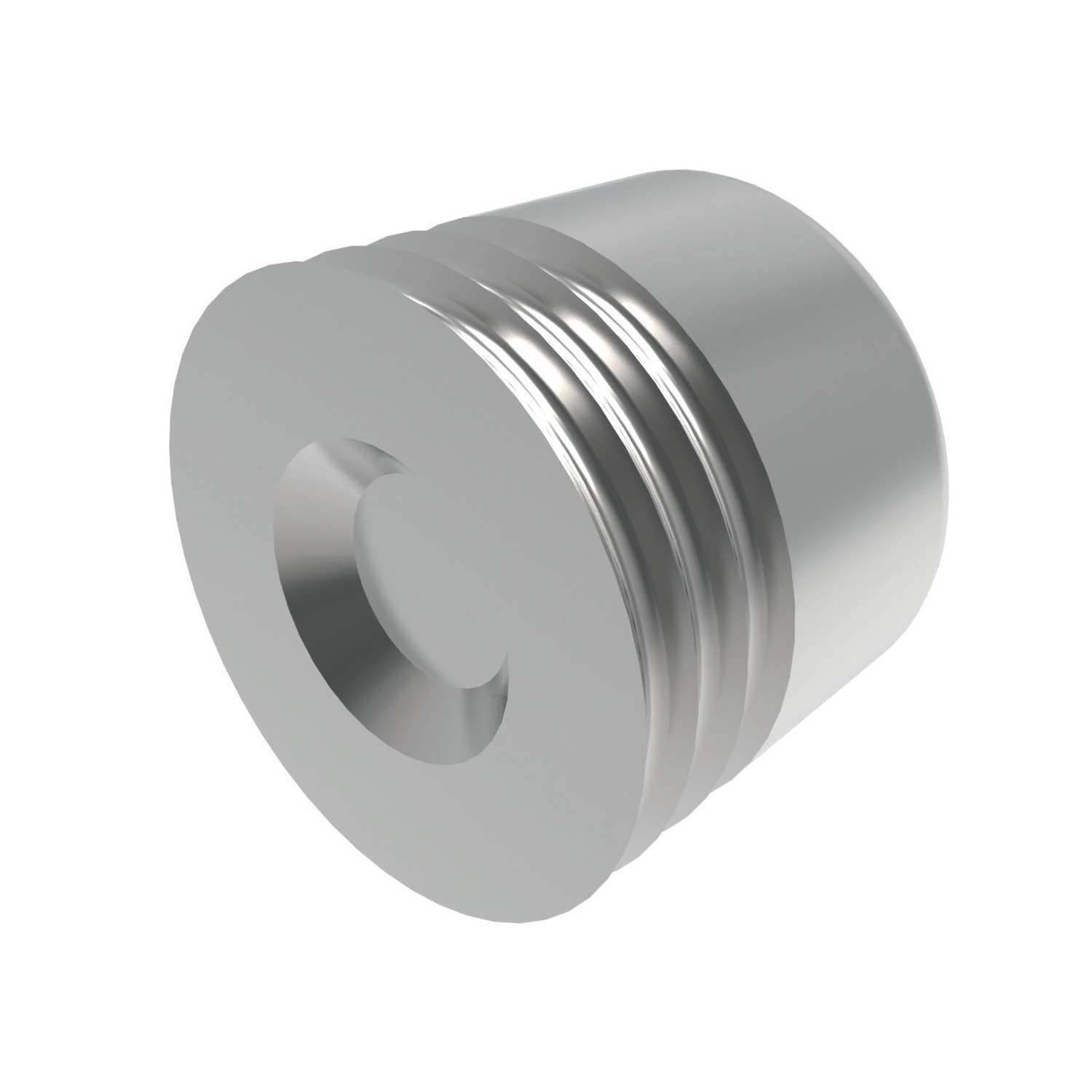

SE0526 Blocker Sealing Plugs

Name: SE0526.090-A
Brand: WC
SKU: SE0526.090-A

Article properties

Order No.

SE0526.090-A

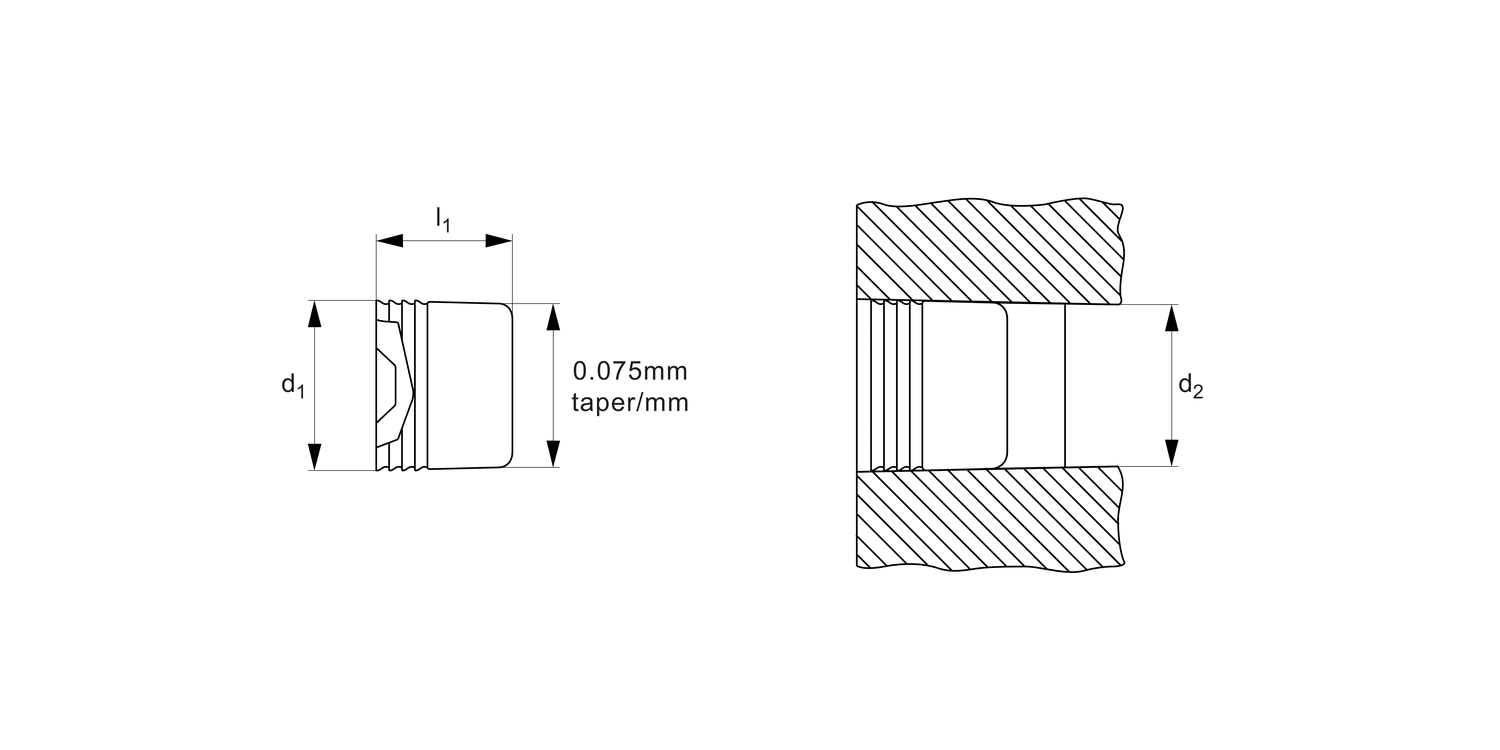

d₁

9.01

d₂ max.

8.38

l₁

5.5

Size

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Aluminium (6061).

These are high pressure sealing plugs with a 0.075mm/mm taper over their length.
Burst pressure 35 bar (500 psi).
