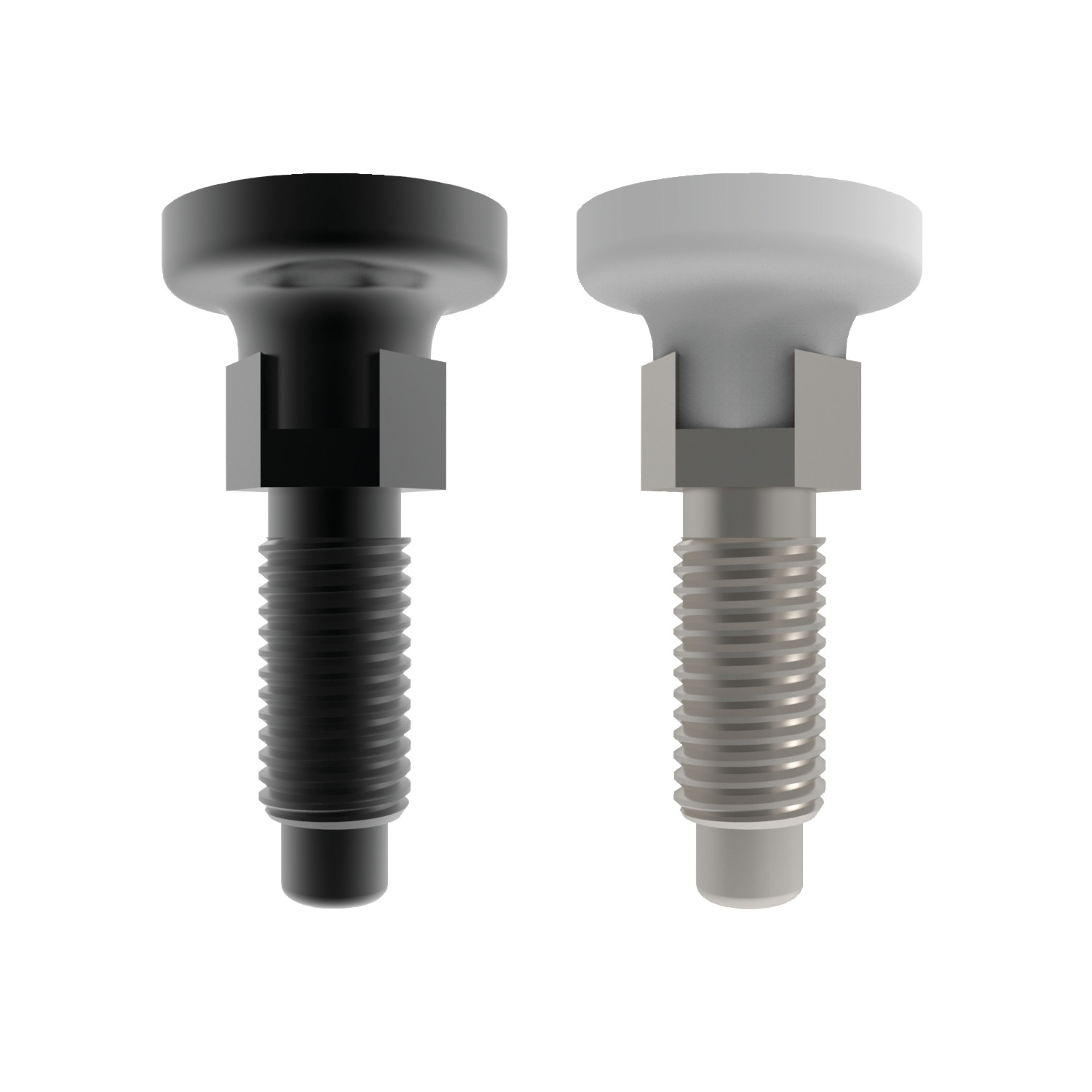

SL1618 Spring Loaded Pin - Inch - Pull Grip
locking, material: Steel or stainless steel
Order No.
SL1618.I25-016-S
Material
Stainless

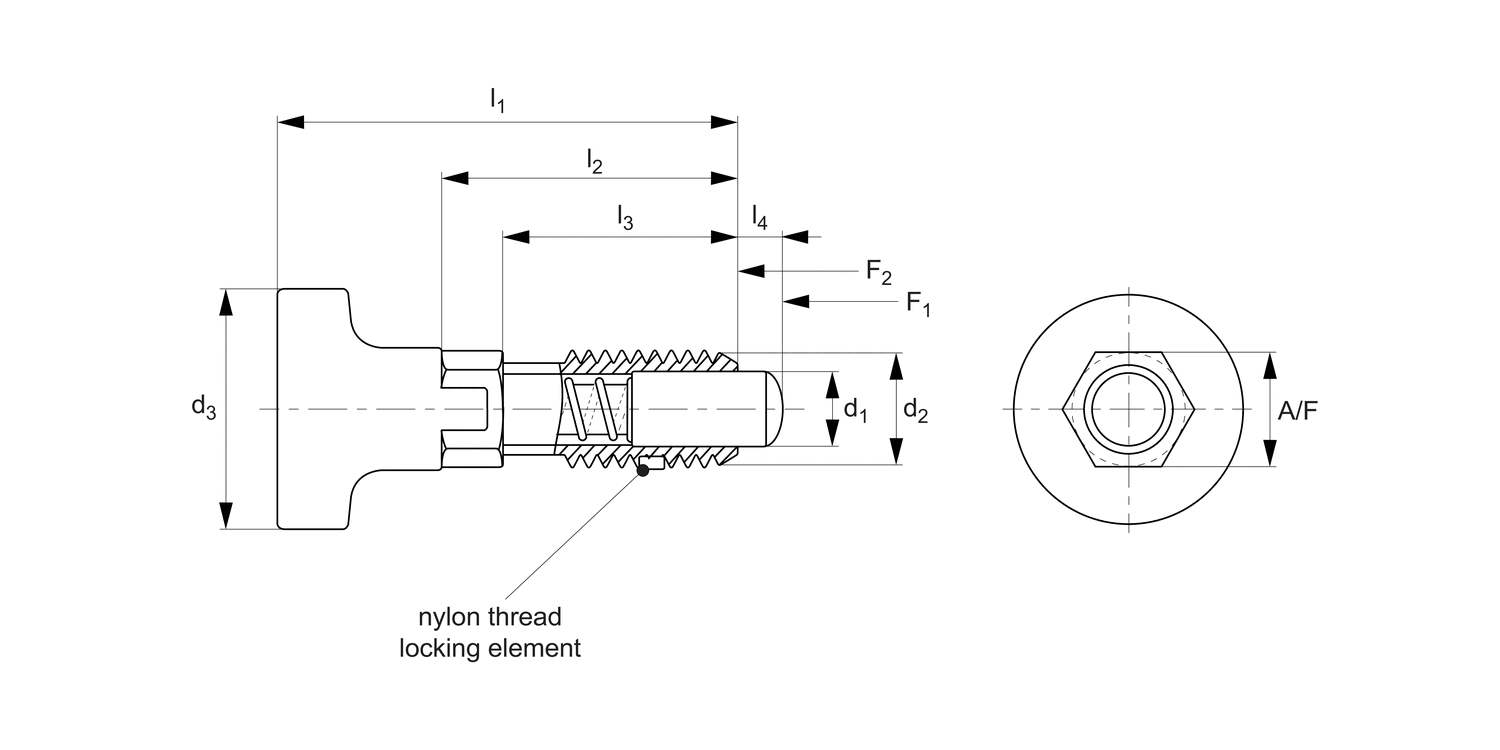

d1
0.16
d2
UNC
1/4-20
l1
0.97
l2
0.75
l3
0.50
l4
0.13
d3
0.50
A/F
1/4
Spring force f1
lb
0.12
Spring force f2
lb
0.36
£ 28.71 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 28.71 | 0% |
| 10-14 | £ 25.84 | 10% |
| 15-24 | £ 24.40 | 15% |
| 25-49 | £ 22.97 | 20% |
| 50+ | £ 20.10 | 30% |
Technical & Application
Material
Steel Type-
Body: Steel 12L14.
Pin: Case hardened steel.
Grip: Thermoplastic, black.
Stainless Steel Type-
Body: 300 series stainless steel.
Pin: 300 stainless steel.
Grip: Thermoplastic, white.
Technical Notes
Spring loaded pin can be 'locked' to enable pin to be held in retracted/ non-projecting position. Pull back grip handle turn 90° to engage 'locking'.
A nylon locking element on thread reduces chance of loosening of thread due to vibration etc.
Tips
Stainless type ideal for food and medical applications.
For suitable locknut, see part no. SL1816.
