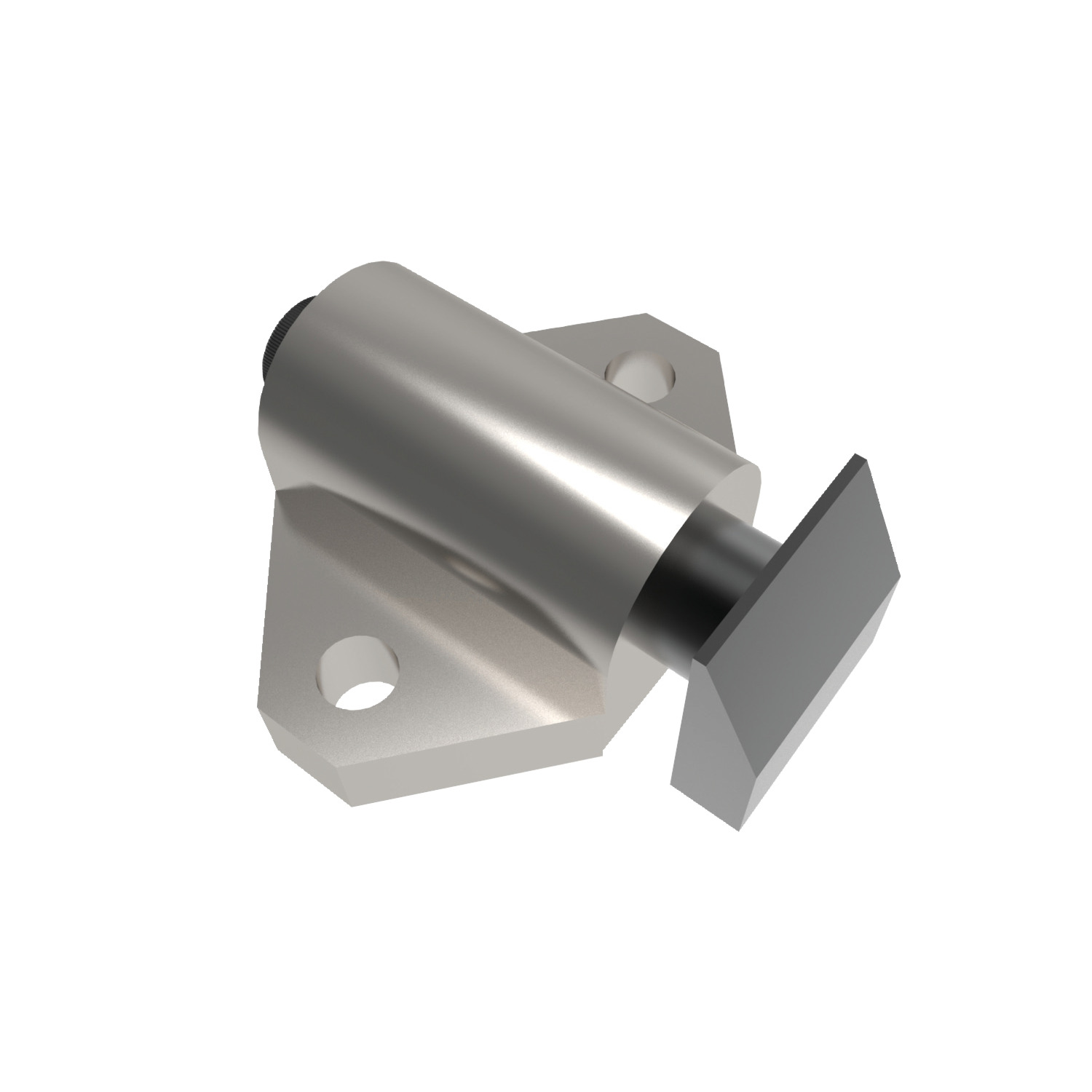

SL2610 Spring Stop - Inch

square nose, material: Aluminium

Article properties

Order No.

SL2610.I12-043-A

Mounting base

Triangle

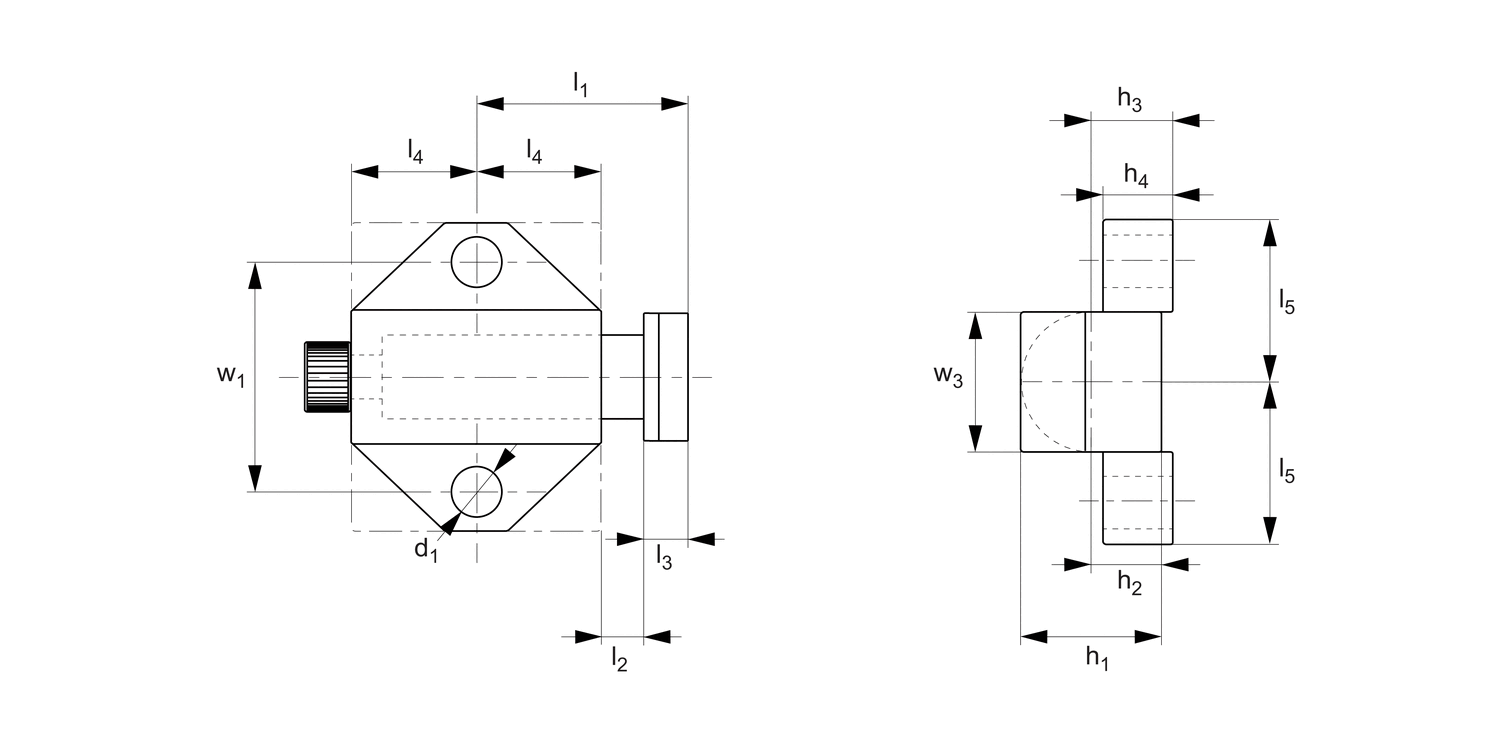

d₁

3.25

l₁

15.1

l₂

3.18

l₃

3.18

l₄

8.73

l₅

11.1

h₁

9.53

h₂

4.76

h₃

5.56

h₄

4.76

w₁

16.7

w₃

9.53

Spring force f₁ N

22.25

Spring force f₂ N

66.80

See full product selection

£ 15.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 15.16	0%
10-14	£ 13.64	10%
15-24	£ 12.89	15%
25-49	£ 12.13	20%
50+	£ 10.61	30%

Download product datasheet
