T0154.ZP Captive Screws - Cap Head

Name: T0154.080-040-ZP
Brand: WC
SKU: T0154.080-040-ZP
Price: 3.8 GBP
Availability: InStock

hex drive - steel, zinc-plated, material: steel, zinc-plated

Article properties

Order No.

T0154.080-040-ZP

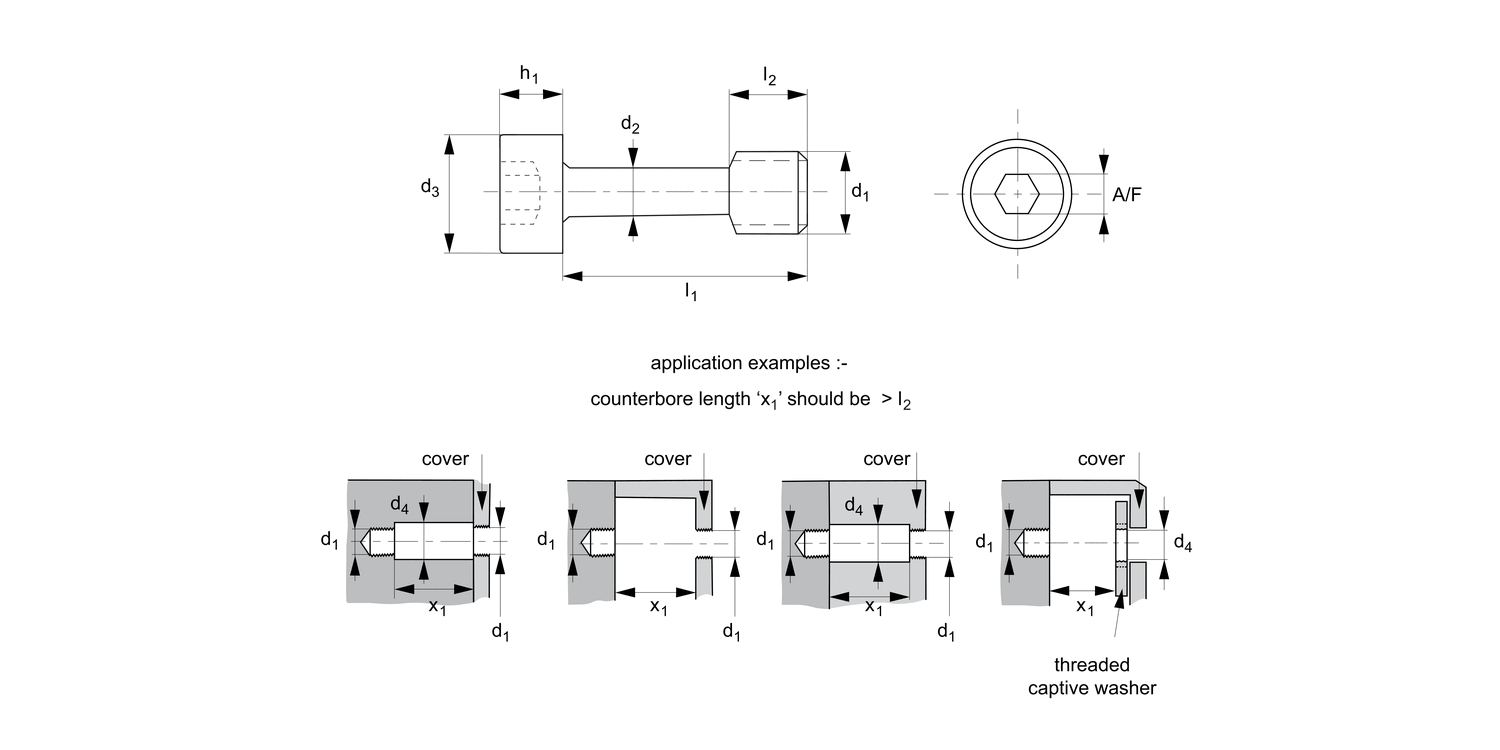

d₁

M 8

l₁ ±0.25

d₂ ±0.12

6.0

l₂ ±0.25

10.0

d₃ max.

13.0

d₄ min.

8.5

h₁ max.

8.0

A/F

See full product selection

£ 3.80 per unit (click for quantity discounts)

Ready to despatch 49
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £6.70.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-99	£ 3.80	0%
100-249	£ 3.42	10%
250-749	£ 3.04	20%
750+	£ 2.66	30%

Download product datasheet

Technical & Application

Material

Steel, white zinc-plated.
Tensile strength 550 N/mm2.
Also available on request in steel (anodised or black oxide), stainless steel (AISI 316, 1.440 or AISI 303, 1.4305), brass, aluminium etc.

Technical Notes

Used to comply with the Machinery Directive 2006/42/EC. Generally to ISO 4762. Often used with our captive washers () or retaining flanges ( - for sheet metal applications). The use of our captive washers should be considered when fitted in panels with unthreaded holes.

Tips

For TX drive style, see .

Important Notes

Please note that these screws have a reduced diameter shank and should not be tightened to the recommended torque for an equivalent machine screw of size d1.
