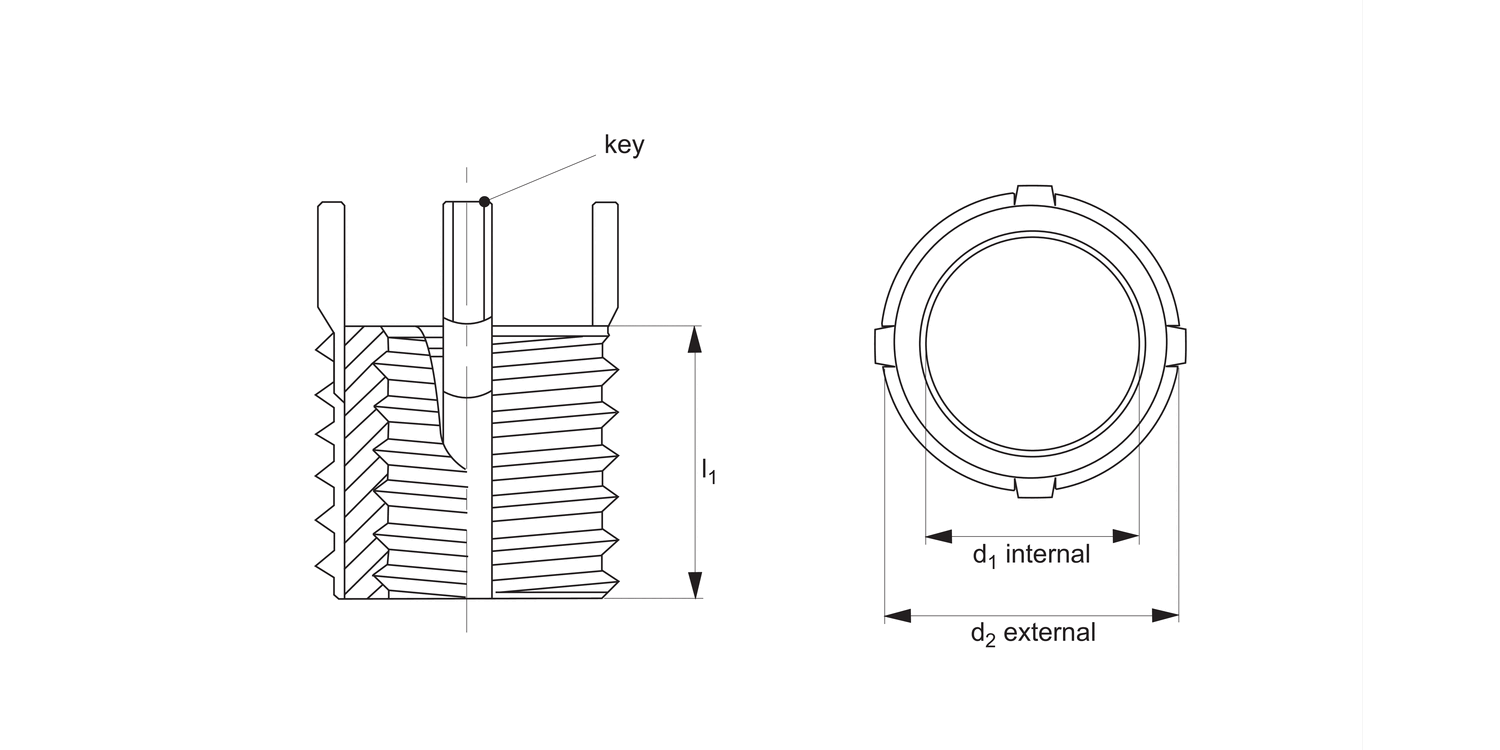

TR1510 Threaded Insert - Metric

Name: TR1510.66352
Brand: WC
SKU: TR1510.66352
Price: 6.91 EUR
Availability: InStock

thinwall - stainless steel, material: Stainless steel

Article properties

Order No.

TR1510.66352

Int. d₁ tol. 6H

M 6x1,00

Int. thread type d₁

Coarse

Ext. d₂ tol. 6g

M10x1,25

Ext. thread type d₂

Fine

l₁

Inst. tap drill size

8.8

Inst. tool ref. 22060

.W0520

Inst. c'sink dia. ±0.25|±0.000

10.3

Inst. thread tap tol. 6H

M10x1,25

Inst. thread depth min.

11.5

Removal drill size

7.5

Removal drill depth

4.8

See full product selection

£ 6.91 per unit (click for quantity discounts)

Ready to despatch 316
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 6.91	0%
10-19	£ 6.22	10%
20-49	£ 5.87	15%
50-99	£ 5.53	20%
100-499	£ 4.49	35%
500-999	£ 4.15	40%
1000+	£ 3.11	55%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Inserts: stainless steel (AISI 303) or equivalent. Passivated.
Keys: stainless steel (302 CRES) or equivalent. Passivated.

Technical Notes

General tolerances:
±0,25, unless specified.
Tap drill hole tolerances:
6,9 to 10,8 = +0,10/-0,025.
12,8 and over = +0,13/-0,025.

Tips

Order installation tool separately, as identified by "Inst. tool ref." in table.

Important Notes

Four locking keys on internal threads M 8 and over. Two locking keys on internal threads smaller than M 8.
Installation (Inst.) drill size, countersink, thread tap and thread depth as specified in table.
Removal drill size and drill depth as specified in table.
