TR1606 Threaded Insert MS/NAS - Mini - Metric

Name: TR1606.80386
Brand: WC
SKU: TR1606.80386
Price: 112.86 EUR
Availability: OutOfStock

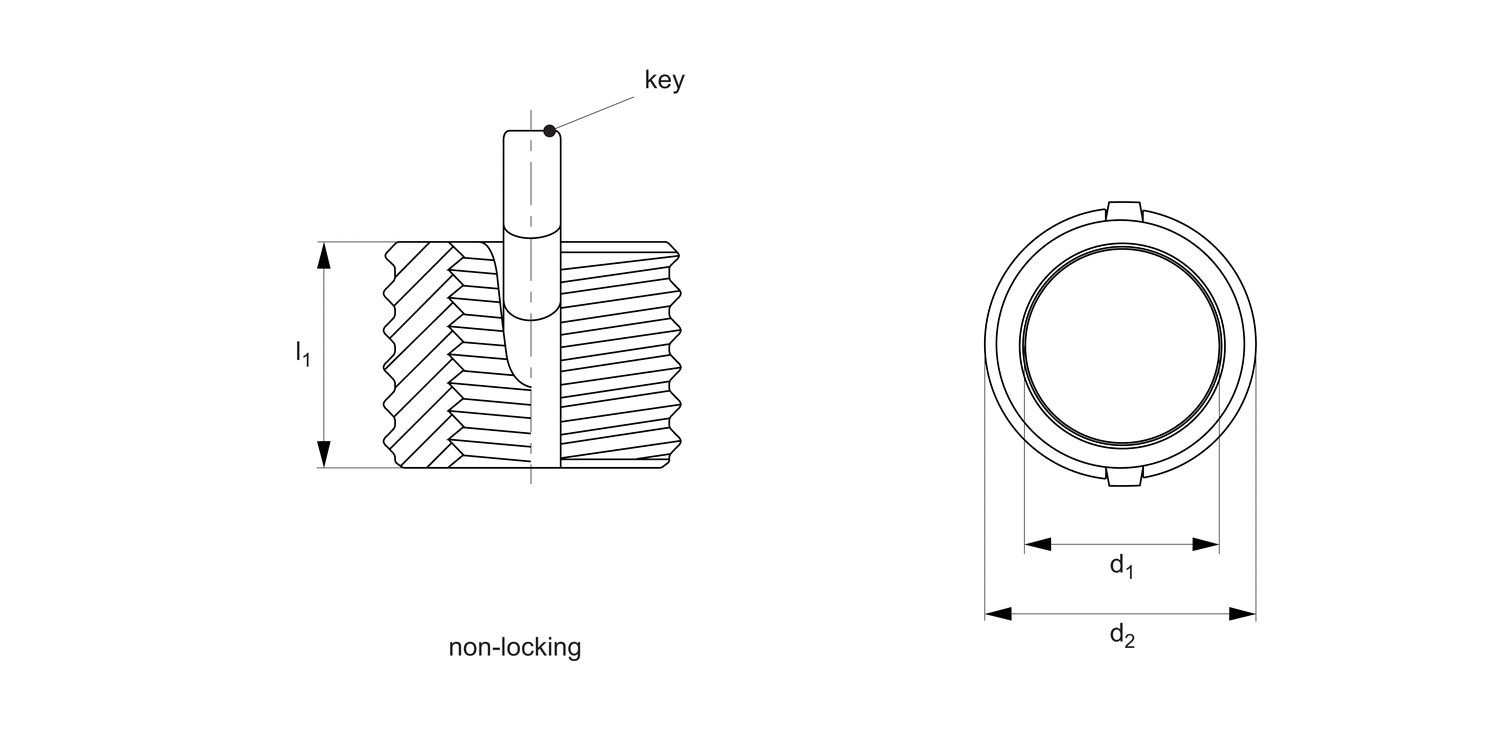

4140 steel - non-locking - MS/NAS grade, material: Steel

Article properties

Order No.

TR1606.80386

Type

d₁ tol. 4H 6H

M 4x0,7

Thread type d₁

Coarse

d₂ tol. 4h

M 6x0,75

Thread type d₂

Fine

l₁

5.25

Inst. c'sink hole size +0.25|-0.00

6.1

Inst. tap drill size +0.080|-0.025

5.5

Inst. thread tap tol. 6H

M 6x0,75

Inst. thread tap depth min.

6.5

Inst. tool ref. TR1710

.0860

Removal drill size

4.6

Removal drill depth

2.50

See full product selection

£ 112.86 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 112.86	0%
10-19	£ 101.57	10%
20-49	£ 95.93	15%
50-99	£ 90.29	20%
100-499	£ 73.36	35%
500-999	£ 67.72	40%
1000+	£ 50.79	55%

Download product datasheet

Technical & Application

Material

Inserts - 4140 alloy steel (160 KSI Min).
Keys - 302 CRES.
Cadmium plate (QQ-P-416 Type II, Cl. 2). Dry film lubrication on self-locking inserts only.

Technical Notes

All dimensions in millimetres.
Internal threads: to Fed. Std. H28/21, MJ Form
General tolerances -
+/- 0,25mm, unless specified.
Tap drill hole tolerances -
6,9 to 10,8 = +0,100/-0,025
12,8 and over = +0,130/-0,025
NL = Non-Locking type.

Tips

Order installation tool separately, as identified by "Inst. Tool ref." in table.

Important Notes

Four locking keys on internal threads M6 and over. Two locking keys on internal threads smaller than M6.
Installation (Inst.) drill size, counter sink, thread tap and thread depth as specified in table.
Removal (Rem.) drill size and drill depth as specified in table.
Perform to standards: NA0148
