TR1681 Floating Threaded Insert - Mini - Inch

Name: TR1681.87586
Brand: WC
SKU: TR1681.87586
Price: 73.4949 EUR
Availability: OutOfStock

303 stainless steel - self-locking, material: Stainless steel

Article properties

Order No.

TR1681.87586

Type

d₁ tol. 3B

8-32

Thread type d₁

UNC

l₁ ±0.015

,36

d₂ tol. 2A

3/8-24

Thread type d₂

UNF

l₄

,08

l₅

,22

c-c float min.

,030

Inst. c'sink dia. +0.010|-0.000

,385

Inst. tap drill size

,332

Inst. thread tap depth min.

,38

Inst. thread tap size class 2B

3/8-24

Inst. tool ref. TR1720

.0860

Removal drill size

9/32

Removal drill depth

1/8

See full product selection

£ 73.49 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 73.49	0%
10-19	£ 66.15	10%
20-49	£ 62.47	15%
50-99	£ 58.80	20%
100-499	£ 47.77	35%
500-999	£ 44.10	40%
1000+	£ 33.07	55%

Download product datasheet

Technical & Application

Material

Inserts - 303 CRES.
Keys and retaining ring - 302 CRES.
Passivated. Dry film lubrication on self-locking inserts only.

Technical Notes

All dimensions in inches.
Internal threads: to SAE AS8879.
General tolerances -
+/- 0,010 unless specified.
Tap drill hole tolerances -
0,130 to 0,233 = +0,003/-0,001

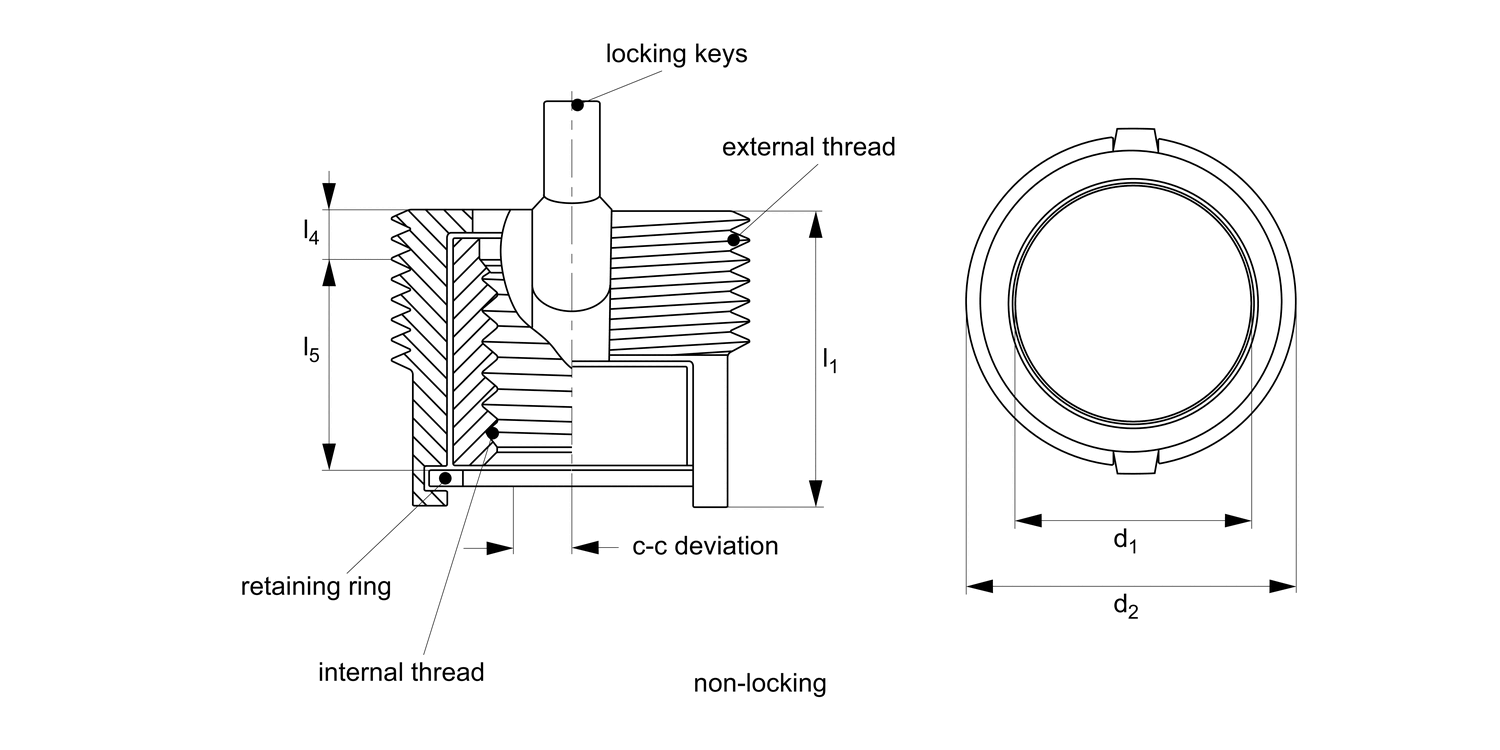

SL = Self-Locking type, deliberate deformity in thread produces self-affect once installed (see technical diagram).

Tips

Order installation tool separately, as identified by "Inst. Tool ref." in table.

Important Notes

Four locking keys on internal threads 5/16 and over. Two locking keys on internal threads smaller than 5/16.
Installation (Inst.) drill size, counter sink, thread tap and thread depth as specified in table.
Removal (Rem.) drill size and drill depth as specified in table.
Perform to standards
