Hexagonal Turnbuckle
Steel
LP1326 Hexagonal Body Turnbuckles
stainless steel, material: Stainless steel
Alternative products you may wish to consider
d1
M 6
l1
30
l2
22.5
A/F
10
Adjustment
15
Weight
kg
0.02
£ 2.35 per unit (click for quantity discounts)
d1
M 8
l1
35
l2
25.0
A/F
13
Adjustment
15
Weight
kg
0.03
£ 7.40 per unit (click for quantity discounts)
d1
M10
l1
45
l2
33.0
A/F
16
Adjustment
21
Weight
kg
0.06
£ 10.58 per unit (click for quantity discounts)
d1
M12
l1
55
l2
40.0
A/F
18
Adjustment
25
Weight
kg
0.09
£ 19.63 per unit (click for quantity discounts)
d1
M16
l1
75
l2
55.0
A/F
24
Adjustment
35
Weight
kg
0.18
£ 24.80 per unit (click for quantity discounts)
d1
M20
l1
95
l2
24.0
A/F
30
Adjustment
47
Weight
kg
0.32
£ 43.45 per unit (click for quantity discounts)
d1
M24
l1
115
l2
29.0
A/F
36
Adjustment
57
Weight
kg
0.53
£ 81.30 per unit (click for quantity discounts)
d1
M30
l1
125
l2
36.0
A/F
46
Adjustment
53
Weight
kg
1.08
£ 77.61 per unit (click for quantity discounts)
d1
l1
l2
A/F
Adjustment
Weight
kg
| Price & Availability | Article | d1 | l1 | l2 | A/F | Adjustment | Weight kg | |||||||||||||||||||||
| LP1326.006 | M 6 | 30 | 22.5 | 10 | 15 | 0.02 | ||||||||||||||||||||||
£ 2.35 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 l1 30 l2 22.5 A/F 10 Adjustment 15 Weight
kg 0.02 | ||||||||||||||||||||||||||||
| LP1326.008 | M 8 | 35 | 25.0 | 13 | 15 | 0.03 | ||||||||||||||||||||||
£ 7.40 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 35 l2 25.0 A/F 13 Adjustment 15 Weight
kg 0.03 | ||||||||||||||||||||||||||||
| LP1326.010 | M10 | 45 | 33.0 | 16 | 21 | 0.06 | ||||||||||||||||||||||
£ 10.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 M10 l1 45 l2 33.0 A/F 16 Adjustment 21 Weight
kg 0.06 | ||||||||||||||||||||||||||||
| LP1326.012 | M12 | 55 | 40.0 | 18 | 25 | 0.09 | ||||||||||||||||||||||
£ 19.63 per unit (click for quantity discounts) Ready to despatch 72 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12 l1 55 l2 40.0 A/F 18 Adjustment 25 Weight
kg 0.09 | ||||||||||||||||||||||||||||
| LP1326.016 | M16 | 75 | 55.0 | 24 | 35 | 0.18 | ||||||||||||||||||||||
£ 24.80 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 75 l2 55.0 A/F 24 Adjustment 35 Weight
kg 0.18 | ||||||||||||||||||||||||||||
| LP1326.020 | M20 | 95 | 24.0 | 30 | 47 | 0.32 | ||||||||||||||||||||||
£ 43.45 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 l1 95 l2 24.0 A/F 30 Adjustment 47 Weight
kg 0.32 | ||||||||||||||||||||||||||||
| LP1326.024 | M24 | 115 | 29.0 | 36 | 57 | 0.53 | ||||||||||||||||||||||
£ 81.30 per unit (click for quantity discounts) Ready to despatch 35 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 115 l2 29.0 A/F 36 Adjustment 57 Weight
kg 0.53 | ||||||||||||||||||||||||||||
| LP1326.030 | M30 | 125 | 36.0 | 46 | 53 | 1.08 | ||||||||||||||||||||||
£ 77.61 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M30 l1 125 l2 36.0 A/F 46 Adjustment 53 Weight
kg 1.08 | ||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (A4).
Technical Notes
To DIN 1479.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes

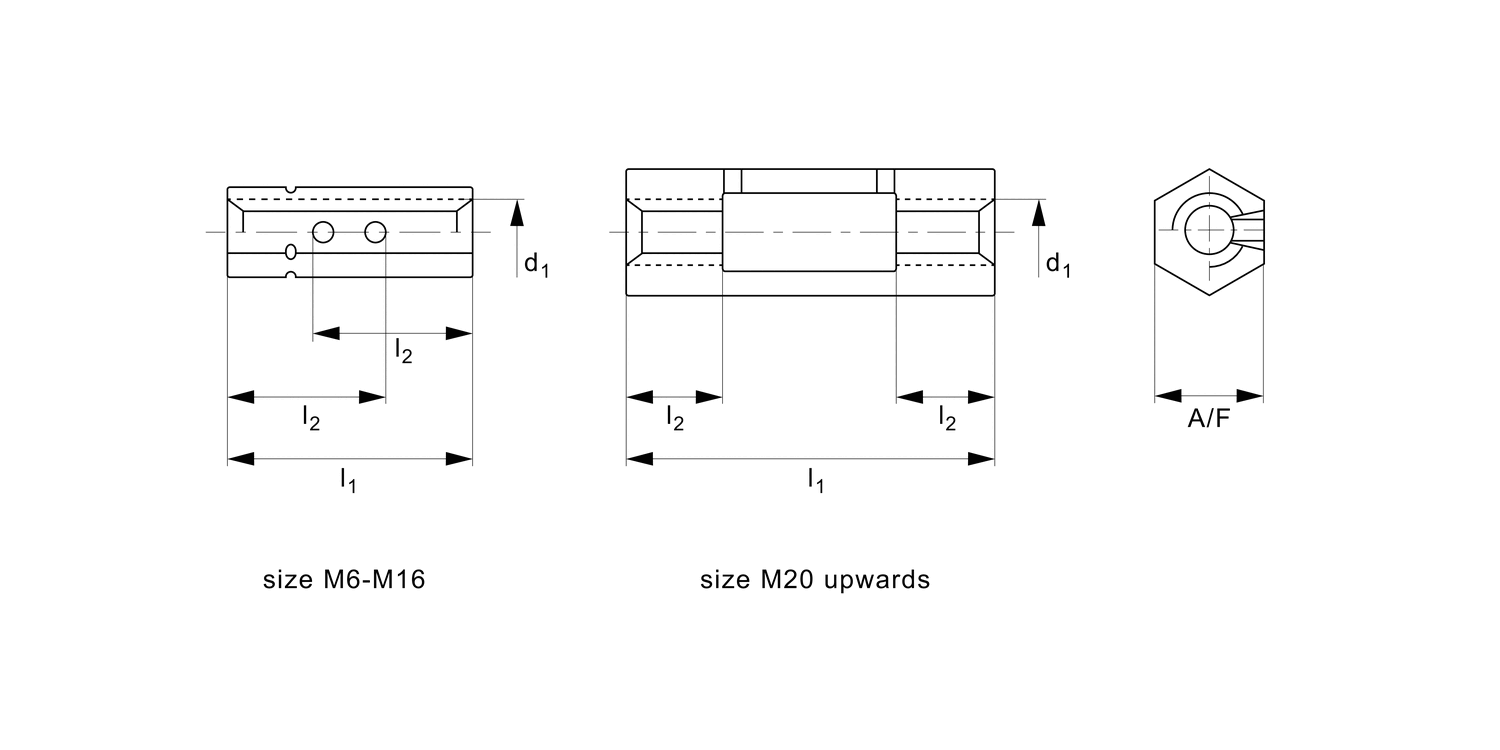

L2 dimension indicates the length of thread from each end that has been overcut.
This means you can screw from one end a total of length l2. Please note if screwing in from both ends the length of thread is half l2.
Sizes M6-M16, have overlapping thread, from M20 middle part is relieved.
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
