Turnbuckles Open Body only
steel
LP1334 Stub End Turnbuckles
steel, material: Steel
Alternative products you may wish to consider

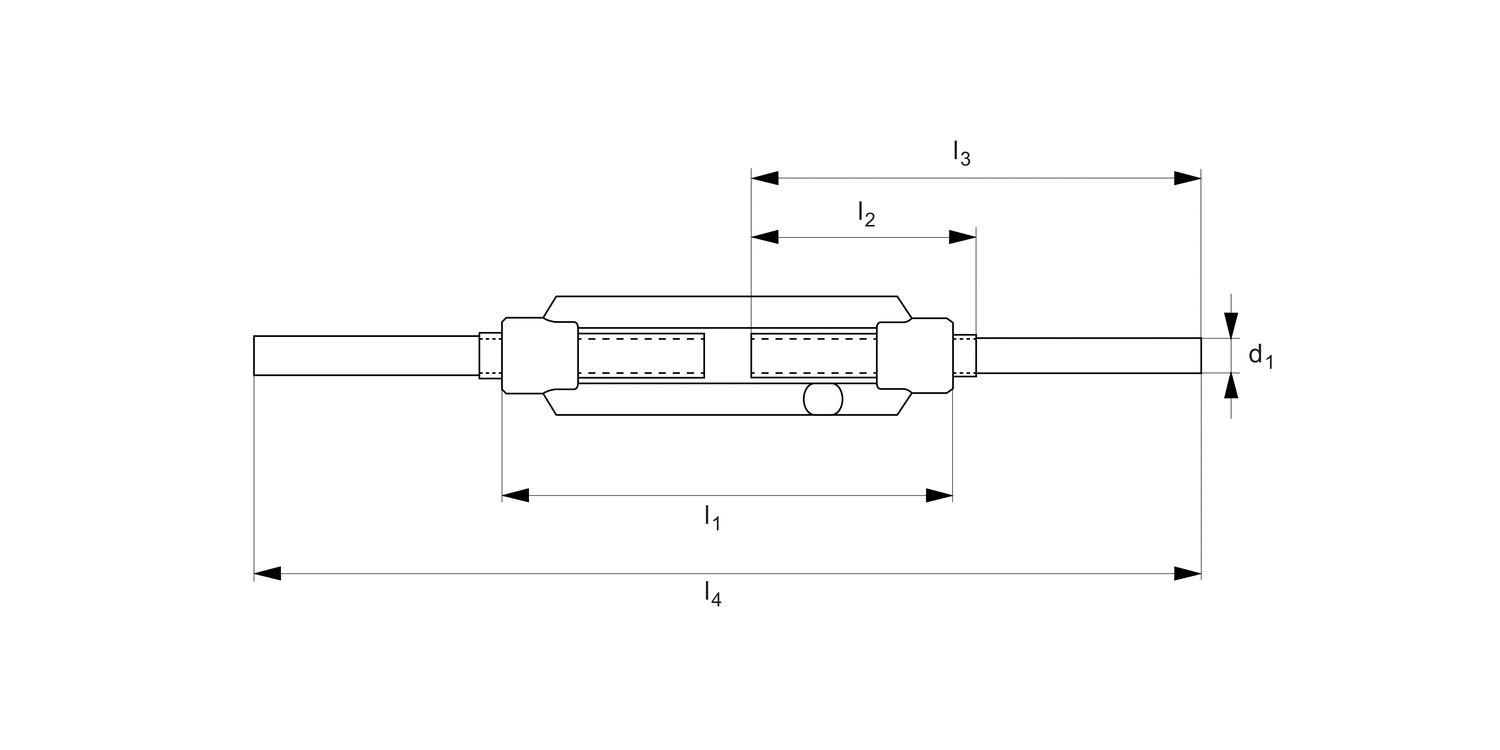

d1
M 6
l1
110
l2
60
l3
120
l4
min.
240
l4
max.
320
Weight
kg
0.10
d1
M 8
l1
110
l2
65
l3
120
l4
min.
240
l4
max.
315
Weight
kg
0.16
£ 2.06 per unit (click for quantity discounts)
d1
M10
l1
125
l2
75
l3
150
l4
min.
301
l4
max.
386
Weight
kg
0.30
£ 3.07 per unit (click for quantity discounts)
d1
M12
l1
125
l2
75
l3
150
l4
min.
301
l4
max.
381
Weight
kg
0.40
£ 3.89 per unit (click for quantity discounts)
d1
M16
l1
170
l2
100
l3
200
l4
min.
400
l4
max.
510
Weight
kg
0.96
£ 8.98 per unit (click for quantity discounts)
d1
M20
l1
200
l2
120
l3
220
l4
min.
440
l4
max.
570
Weight
kg
1.74
£ 13.11 per unit (click for quantity discounts)
d1
M24
l1
255
l2
150
l3
260
l4
min.
521
l4
max.
691
Weight
kg
2.74
£ 20.72 per unit (click for quantity discounts)
d1
M30
l1
255
l2
160
l3
260
l4
min.
521
l4
max.
681
Weight
kg
4.20
£ 69.07 per unit (click for quantity discounts)
d1
M36
l1
295
l2
180
l3
300
l4
min.
601
l4
max.
781
Weight
kg
7.20
£ 88.29 per unit (click for quantity discounts)
d1
M42
l1
330
l2
200
l3
350
l4
min.
700
l4
max.
900
Weight
kg
10.70
£ 107.79 per unit (click for quantity discounts)
d1
M48
l1
355
l2
220
l3
380
l4
min.
761
l4
max.
956
Weight
kg
17.90
d1
M56
l1
355
l2
230
l3
380
l4
min.
761
l4
max.
956
Weight
kg
20.00
d1
l1
l2
l3
l4
min.
l4
max.
Weight
kg
| Price & Availability | Article | d1 | l1 | l2 | l3 | l4 min. | l4 max. | Weight kg | |||||||||||||||||||||
| LP1334.006 | M 6 | 110 | 60 | 120 | 240 | 320 | 0.10 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 l1 110 l2 60 l3 120 l4
min. 240 l4
max. 320 Weight
kg 0.10 | |||||||||||||||||||||||||||||
| LP1334.008 | M 8 | 110 | 65 | 120 | 240 | 315 | 0.16 | ||||||||||||||||||||||
£ 2.06 per unit (click for quantity discounts) Ready to despatch 50 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 110 l2 65 l3 120 l4
min. 240 l4
max. 315 Weight
kg 0.16 | |||||||||||||||||||||||||||||
| LP1334.010 | M10 | 125 | 75 | 150 | 301 | 386 | 0.30 | ||||||||||||||||||||||
£ 3.07 per unit (click for quantity discounts) Ready to despatch 27 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 l1 125 l2 75 l3 150 l4
min. 301 l4
max. 386 Weight
kg 0.30 | |||||||||||||||||||||||||||||
| LP1334.012 | M12 | 125 | 75 | 150 | 301 | 381 | 0.40 | ||||||||||||||||||||||
£ 3.89 per unit (click for quantity discounts) Ready to despatch 54 Need more? Please call us.
d1 M12 l1 125 l2 75 l3 150 l4
min. 301 l4
max. 381 Weight
kg 0.40 | |||||||||||||||||||||||||||||
| LP1334.016 | M16 | 170 | 100 | 200 | 400 | 510 | 0.96 | ||||||||||||||||||||||
£ 8.98 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 170 l2 100 l3 200 l4
min. 400 l4
max. 510 Weight
kg 0.96 | |||||||||||||||||||||||||||||
| LP1334.020 | M20 | 200 | 120 | 220 | 440 | 570 | 1.74 | ||||||||||||||||||||||
£ 13.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 l1 200 l2 120 l3 220 l4
min. 440 l4
max. 570 Weight
kg 1.74 | |||||||||||||||||||||||||||||
| LP1334.024 | M24 | 255 | 150 | 260 | 521 | 691 | 2.74 | ||||||||||||||||||||||
£ 20.72 per unit (click for quantity discounts) Ready to despatch 156 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 255 l2 150 l3 260 l4
min. 521 l4
max. 691 Weight
kg 2.74 | |||||||||||||||||||||||||||||
| LP1334.030 | M30 | 255 | 160 | 260 | 521 | 681 | 4.20 | ||||||||||||||||||||||
£ 69.07 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M30 l1 255 l2 160 l3 260 l4
min. 521 l4
max. 681 Weight
kg 4.20 | |||||||||||||||||||||||||||||
| LP1334.036 | M36 | 295 | 180 | 300 | 601 | 781 | 7.20 | ||||||||||||||||||||||
£ 88.29 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M36 l1 295 l2 180 l3 300 l4
min. 601 l4
max. 781 Weight
kg 7.20 | |||||||||||||||||||||||||||||
| LP1334.042 | M42 | 330 | 200 | 350 | 700 | 900 | 10.70 | ||||||||||||||||||||||
£ 107.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M42 l1 330 l2 200 l3 350 l4
min. 700 l4
max. 900 Weight
kg 10.70 | |||||||||||||||||||||||||||||
| LP1334.048 | M48 | 355 | 220 | 380 | 761 | 956 | 17.90 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M48 l1 355 l2 220 l3 380 l4
min. 761 l4
max. 956 Weight
kg 17.90 | |||||||||||||||||||||||||||||
| LP1334.056 | M56 | 355 | 230 | 380 | 761 | 956 | 20.00 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M56 l1 355 l2 230 l3 380 l4
min. 761 l4
max. 956 Weight
kg 20.00 | |||||||||||||||||||||||||||||
Technical & Application
Material
Steel (1.0037), zinc-plated.
Hot dip galvanized body, available on request providing increased protection against corrosion. Please add -FZ for hot dip galvanized, e.g. LP1304.006-FZ.
Technical Notes
To DIN 1480 stub end.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
