Turnbuckle Pipe Body only
steel
LP1300 Pipe Body Turnbuckles
steel, material: Steel
Alternative products you may wish to consider

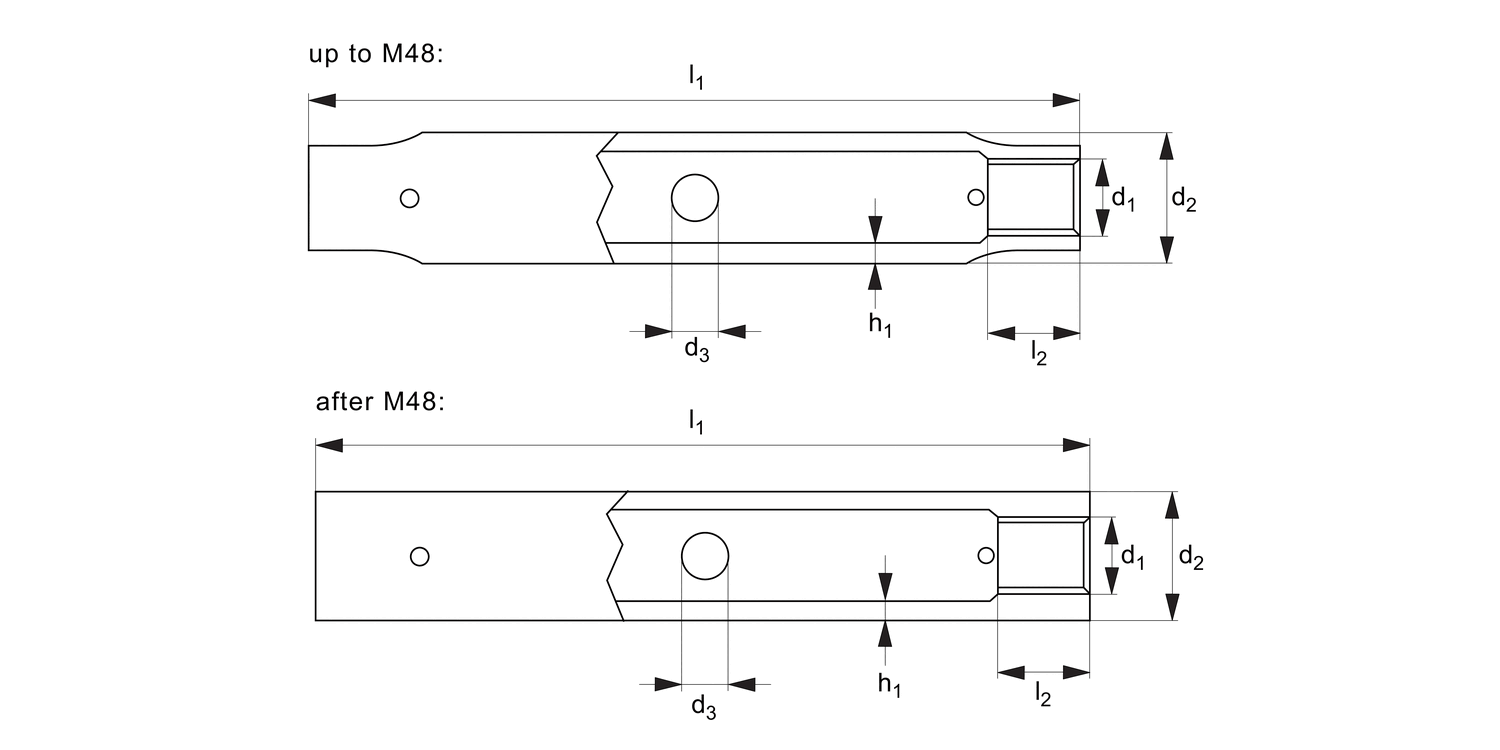

d1
M 6
l1
110
d2
17.2
d3
min.
5.7
d3
max.
6.3
h1
2.9
l2
7.5
Adjustment
90
Weight
kg
0.13
£ 3.76 per unit (click for quantity discounts)
d1
M 8
l1
110
d2
17.2
d3
min.
7.5
d3
max.
8.5
h1
3.6
l2
10
Adjustment
85
Weight
kg
0.13
£ 3.65 per unit (click for quantity discounts)
d1
M10
l1
125
d2
21.3
d3
min.
7.5
d3
max.
8.5
h1
4.0
l2
12
Adjustment
95
Weight
kg
0.18
£ 3.29 per unit (click for quantity discounts)
d1
M12
l1
125
d2
25.0
d3
min.
9.5
d3
max.
10.5
h1
4.0
l2
15
Adjustment
90
Weight
kg
0.25
£ 5.86 per unit (click for quantity discounts)
d1
M16
l1
170
d2
30.0
d3
min.
9.5
d3
max.
10.5
h1
4.5
l2
20
Adjustment
120
Weight
kg
0.45
£ 7.25 per unit (click for quantity discounts)
d1
M20
l1
200
d2
33.7
d3
min.
11.5
d3
max.
12.5
h1
5.0
l2
24
Adjustment
140
Weight
kg
0.56
£ 8.79 per unit (click for quantity discounts)
d1
M24
l1
255
d2
42.4
d3
min.
11.5
d3
max.
12.5
h1
5.6
l2
29
Adjustment
180
Weight
kg
1.08
£ 15.22 per unit (click for quantity discounts)
d1
M30
l1
255
d2
51.0
d3
min.
15.5
d3
max.
16.5
h1
6.3
l2
36
Adjustment
160
Weight
kg
1.61
£ 19.95 per unit (click for quantity discounts)
d1
M36
l1
295
d2
63.5
d3
min.
15.5
d3
max.
16.5
h1
8.0
l2
43
Adjustment
180
Weight
kg
2.35
£ 37.59 per unit (click for quantity discounts)
d1
M42
l1
330
d2
70.0
d3
min.
19.5
d3
max.
20.5
h1
8.8
l2
51
Adjustment
200
Weight
kg
4.30
£ 51.98 per unit (click for quantity discounts)
d1
M48
l1
355
d2
82.5
d3
min.
19.5
d3
max.
20.5
h1
10.0
l2
58
Adjustment
210
Weight
kg
5.50
£ 85.98 per unit (click for quantity discounts)
d1
M56
l1
355
d2
90.0
d3
min.
24.5
d3
max.
25.5
h1
15.0
l2
68
Adjustment
190
Weight
kg
9.60
£ 105.44 per unit (click for quantity discounts)
d1
M64
l1
425
d2
100
d3
min.
24.5
d3
max.
25.5
h1
16
l2
77
Adjustment
240
Weight
kg
14.00
£ 566.95 per unit (click for quantity discounts)
d1
M72x6
l1
425
d2
110
d3
min.
29.5
d3
max.
30.5
h1
17
l2
87
Adjustment
210
Weight
kg
17.00
£ 286.49 per unit (click for quantity discounts)
d1
M80x6
l1
440
d2
120
d3
min.
29.5
d3
max.
30.5
h1
18
l2
96
Adjustment
210
Weight
kg
21.00
£ 154.04 per unit (click for quantity discounts)
d1
l1
d2
d3
min.
d3
max.
h1
l2
Adjustment
Weight
kg
| Price & Availability | Article | d1 | l1 | d2 | d3 min. | d3 max. | h1 | l2 | Adjustment | Weight kg | |||||||||||||||||||||
| LP1300.006 | M 6 | 110 | 17.2 | 5.7 | 6.3 | 2.9 | 7.5 | 90 | 0.13 | ||||||||||||||||||||||
£ 3.76 per unit (click for quantity discounts) Ready to despatch 74 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 l1 110 d2 17.2 d3
min. 5.7 d3
max. 6.3 h1 2.9 l2 7.5 Adjustment 90 Weight
kg 0.13 | |||||||||||||||||||||||||||||||
| LP1300.008 | M 8 | 110 | 17.2 | 7.5 | 8.5 | 3.6 | 10 | 85 | 0.13 | ||||||||||||||||||||||
£ 3.65 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 110 d2 17.2 d3
min. 7.5 d3
max. 8.5 h1 3.6 l2 10 Adjustment 85 Weight
kg 0.13 | |||||||||||||||||||||||||||||||
| LP1300.010 | M10 | 125 | 21.3 | 7.5 | 8.5 | 4.0 | 12 | 95 | 0.18 | ||||||||||||||||||||||
£ 3.29 per unit (click for quantity discounts) Ready to despatch 143 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 l1 125 d2 21.3 d3
min. 7.5 d3
max. 8.5 h1 4.0 l2 12 Adjustment 95 Weight
kg 0.18 | |||||||||||||||||||||||||||||||
| LP1300.012 | M12 | 125 | 25.0 | 9.5 | 10.5 | 4.0 | 15 | 90 | 0.25 | ||||||||||||||||||||||
£ 5.86 per unit (click for quantity discounts) Ready to despatch 64 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12 l1 125 d2 25.0 d3
min. 9.5 d3
max. 10.5 h1 4.0 l2 15 Adjustment 90 Weight
kg 0.25 | |||||||||||||||||||||||||||||||
| LP1300.016 | M16 | 170 | 30.0 | 9.5 | 10.5 | 4.5 | 20 | 120 | 0.45 | ||||||||||||||||||||||
£ 7.25 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 170 d2 30.0 d3
min. 9.5 d3
max. 10.5 h1 4.5 l2 20 Adjustment 120 Weight
kg 0.45 | |||||||||||||||||||||||||||||||
| LP1300.020 | M20 | 200 | 33.7 | 11.5 | 12.5 | 5.0 | 24 | 140 | 0.56 | ||||||||||||||||||||||
£ 8.79 per unit (click for quantity discounts) Ready to despatch 27 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M20 l1 200 d2 33.7 d3
min. 11.5 d3
max. 12.5 h1 5.0 l2 24 Adjustment 140 Weight
kg 0.56 | |||||||||||||||||||||||||||||||
| LP1300.024 | M24 | 255 | 42.4 | 11.5 | 12.5 | 5.6 | 29 | 180 | 1.08 | ||||||||||||||||||||||
£ 15.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 255 d2 42.4 d3
min. 11.5 d3
max. 12.5 h1 5.6 l2 29 Adjustment 180 Weight
kg 1.08 | |||||||||||||||||||||||||||||||
| LP1300.030 | M30 | 255 | 51.0 | 15.5 | 16.5 | 6.3 | 36 | 160 | 1.61 | ||||||||||||||||||||||
£ 19.95 per unit (click for quantity discounts) Ready to despatch 32 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M30 l1 255 d2 51.0 d3
min. 15.5 d3
max. 16.5 h1 6.3 l2 36 Adjustment 160 Weight
kg 1.61 | |||||||||||||||||||||||||||||||
| LP1300.036 | M36 | 295 | 63.5 | 15.5 | 16.5 | 8.0 | 43 | 180 | 2.35 | ||||||||||||||||||||||
£ 37.59 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M36 l1 295 d2 63.5 d3
min. 15.5 d3
max. 16.5 h1 8.0 l2 43 Adjustment 180 Weight
kg 2.35 | |||||||||||||||||||||||||||||||
| LP1300.042 | M42 | 330 | 70.0 | 19.5 | 20.5 | 8.8 | 51 | 200 | 4.30 | ||||||||||||||||||||||
£ 51.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M42 l1 330 d2 70.0 d3
min. 19.5 d3
max. 20.5 h1 8.8 l2 51 Adjustment 200 Weight
kg 4.30 | |||||||||||||||||||||||||||||||
| LP1300.048 | M48 | 355 | 82.5 | 19.5 | 20.5 | 10.0 | 58 | 210 | 5.50 | ||||||||||||||||||||||
£ 85.98 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M48 l1 355 d2 82.5 d3
min. 19.5 d3
max. 20.5 h1 10.0 l2 58 Adjustment 210 Weight
kg 5.50 | |||||||||||||||||||||||||||||||
| LP1300.056 | M56 | 355 | 90.0 | 24.5 | 25.5 | 15.0 | 68 | 190 | 9.60 | ||||||||||||||||||||||
£ 105.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M56 l1 355 d2 90.0 d3
min. 24.5 d3
max. 25.5 h1 15.0 l2 68 Adjustment 190 Weight
kg 9.60 | |||||||||||||||||||||||||||||||
| LP1300.064 | M64 | 425 | 100 | 24.5 | 25.5 | 16 | 77 | 240 | 14.00 | ||||||||||||||||||||||
£ 566.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M64 l1 425 d2 100 d3
min. 24.5 d3
max. 25.5 h1 16 l2 77 Adjustment 240 Weight
kg 14.00 | |||||||||||||||||||||||||||||||
| LP1300.072 | M72x6 | 425 | 110 | 29.5 | 30.5 | 17 | 87 | 210 | 17.00 | ||||||||||||||||||||||
£ 286.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M72x6 l1 425 d2 110 d3
min. 29.5 d3
max. 30.5 h1 17 l2 87 Adjustment 210 Weight
kg 17.00 | |||||||||||||||||||||||||||||||
| LP1300.080 | M80x6 | 440 | 120 | 29.5 | 30.5 | 18 | 96 | 210 | 21.00 | ||||||||||||||||||||||
£ 154.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M80x6 l1 440 d2 120 d3
min. 29.5 d3
max. 30.5 h1 18 l2 96 Adjustment 210 Weight
kg 21.00 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (1.0037), zinc-plated.
Hot dip galvanized, available on request providing increased protection against corrosion. Please add -FZ for hot dip galvanized, e.g. LP1300.006-FZ.
Technical Notes
To DIN 1478.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
