End Caps - Metric
for QRP s/s
LA1355 End Caps -Inch - for Quick Release Pins
stainless steel, material: Stainless steel
Alternative products you may wish to consider

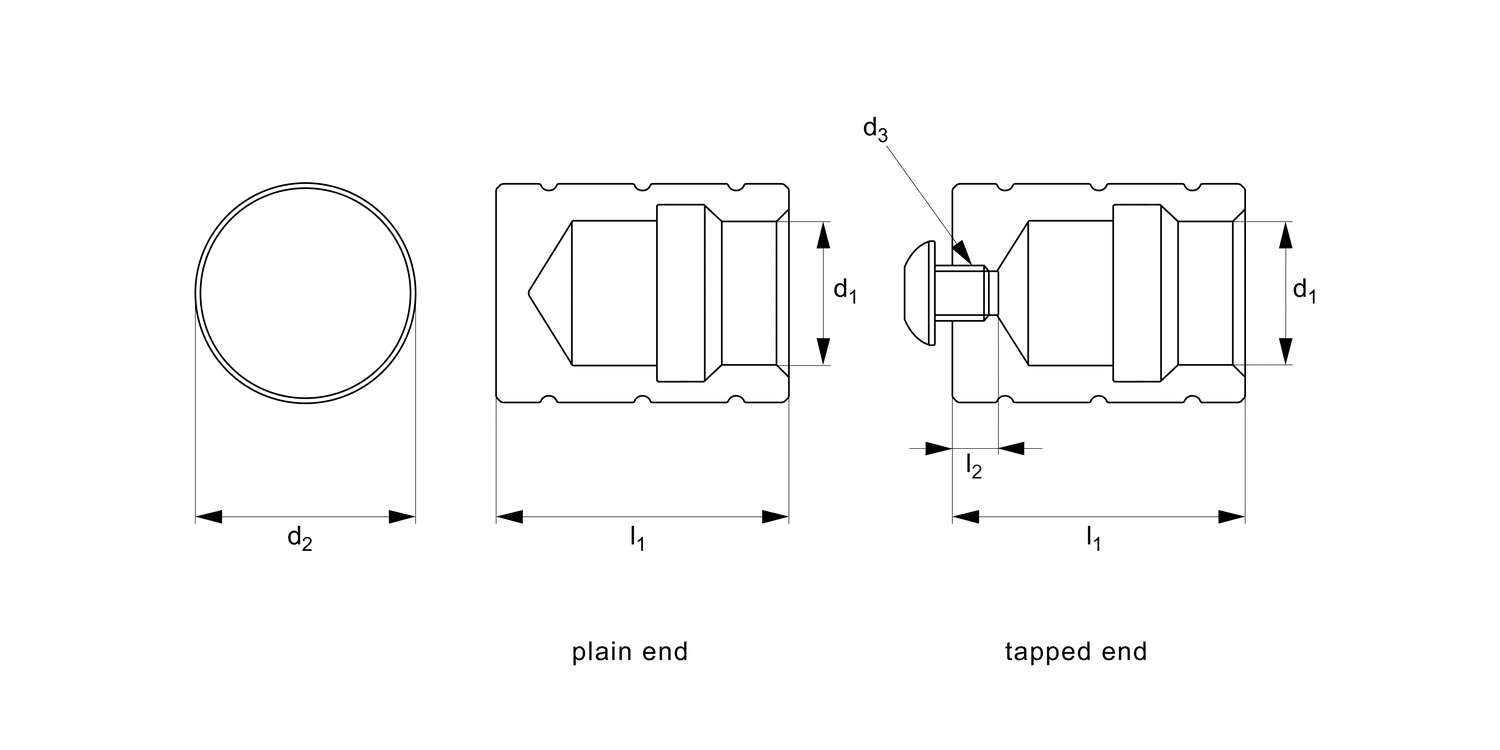

End type
Plain
d1 pin dia.
nom.
3/16
Grip length reduction
,125
d2
,375
d3
-
l1
,580
l2
max.
-
£ 17.52 per unit (click for quantity discounts)
End type
Plain
d1 pin dia.
nom.
1/4
Grip length reduction
,125
d2
,375
d3
-
l1
,580
l2
max.
-
£ 17.52 per unit (click for quantity discounts)
End type
Plain
d1 pin dia.
nom.
5/16
Grip length reduction
,125
d2
,500
d3
-
l1
,625
l2
max.
-
£ 18.18 per unit (click for quantity discounts)
End type
Plain
d1 pin dia.
nom.
3/8
Grip length reduction
,187
d2
,563
d3
-
l1
,730
l2
max.
-
£ 19.14 per unit (click for quantity discounts)
End type
Plain
d1 pin dia.
nom.
1/2
Grip length reduction
,250
d2
,750
d3
-
l1
1000
l2
max.
-
£ 23.09 per unit (click for quantity discounts)
End type
Plain
d1 pin dia.
nom.
5/8
Grip length reduction
,250
d2
1000
d3
-
l1
1250
l2
max.
-
£ 28.69 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
3/16
Grip length reduction
,125
d2
,375
d3
10-32
l1
,580
l2
max.
,12
£ 17.52 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
1/4
Grip length reduction
,125
d2
,375
d3
10-32
l1
,580
l2
max.
,12
£ 21.92 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
5/16
Grip length reduction
,125
d2
,500
d3
10-32
l1
,625
l2
max.
,12
£ 23.49 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
3/8
Grip length reduction
,187
d2
,563
d3
10-32
l1
,730
l2
max.
,18
£ 24.52 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
1/2
Grip length reduction
,250
d2
,750
d3
10-32
l1
1000
l2
max.
,18
£ 27.38 per unit (click for quantity discounts)
End type
Tapped
d1 pin dia.
nom.
5/8
Grip length reduction
,250
d2
1000
d3
1/4-28
l1
1250
l2
max.
,18
£ 31.50 per unit (click for quantity discounts)
End type
d1 pin dia.
nom.
Grip length reduction
d2
d3
l1
l2
max.
| Price & Availability | Article | End type | d1 pin dia. nom. | Grip length reduction | d2 | d3 | l1 | l2 max. | ||||||||||||||||||
| LA1355.I18-P | Plain | 3/16 | ,125 | ,375 | - | ,580 | - | |||||||||||||||||||
£ 17.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 3/16 Grip length reduction ,125 d2 ,375 d3 - l1 ,580 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I25-P | Plain | 1/4 | ,125 | ,375 | - | ,580 | - | |||||||||||||||||||
£ 17.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 1/4 Grip length reduction ,125 d2 ,375 d3 - l1 ,580 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I31-P | Plain | 5/16 | ,125 | ,500 | - | ,625 | - | |||||||||||||||||||
£ 18.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 5/16 Grip length reduction ,125 d2 ,500 d3 - l1 ,625 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I37-P | Plain | 3/8 | ,187 | ,563 | - | ,730 | - | |||||||||||||||||||
£ 19.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 3/8 Grip length reduction ,187 d2 ,563 d3 - l1 ,730 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I50-P | Plain | 1/2 | ,250 | ,750 | - | 1000 | - | |||||||||||||||||||
£ 23.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 1/2 Grip length reduction ,250 d2 ,750 d3 - l1 1000 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I62-P | Plain | 5/8 | ,250 | 1000 | - | 1250 | - | |||||||||||||||||||
£ 28.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Plain d1 pin dia.
nom. 5/8 Grip length reduction ,250 d2 1000 d3 - l1 1250 l2
max. - | ||||||||||||||||||||||||||
| LA1355.I18-T | Tapped | 3/16 | ,125 | ,375 | 10-32 | ,580 | ,12 | |||||||||||||||||||
£ 17.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 3/16 Grip length reduction ,125 d2 ,375 d3 10-32 l1 ,580 l2
max. ,12 | ||||||||||||||||||||||||||
| LA1355.I25-T | Tapped | 1/4 | ,125 | ,375 | 10-32 | ,580 | ,12 | |||||||||||||||||||
£ 21.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 1/4 Grip length reduction ,125 d2 ,375 d3 10-32 l1 ,580 l2
max. ,12 | ||||||||||||||||||||||||||
| LA1355.I31-T | Tapped | 5/16 | ,125 | ,500 | 10-32 | ,625 | ,12 | |||||||||||||||||||
£ 23.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 5/16 Grip length reduction ,125 d2 ,500 d3 10-32 l1 ,625 l2
max. ,12 | ||||||||||||||||||||||||||
| LA1355.I37-T | Tapped | 3/8 | ,187 | ,563 | 10-32 | ,730 | ,18 | |||||||||||||||||||
£ 24.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 3/8 Grip length reduction ,187 d2 ,563 d3 10-32 l1 ,730 l2
max. ,18 | ||||||||||||||||||||||||||
| LA1355.I50-T | Tapped | 1/2 | ,250 | ,750 | 10-32 | 1000 | ,18 | |||||||||||||||||||
£ 27.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 1/2 Grip length reduction ,250 d2 ,750 d3 10-32 l1 1000 l2
max. ,18 | ||||||||||||||||||||||||||
| LA1355.I62-T | Tapped | 5/8 | ,250 | 1000 | 1/4-28 | 1250 | ,18 | |||||||||||||||||||
£ 31.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
End type Tapped d1 pin dia.
nom. 5/8 Grip length reduction ,250 d2 1000 d3 1/4-28 l1 1250 l2
max. ,18 | ||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel, AISI 303
Technical Notes

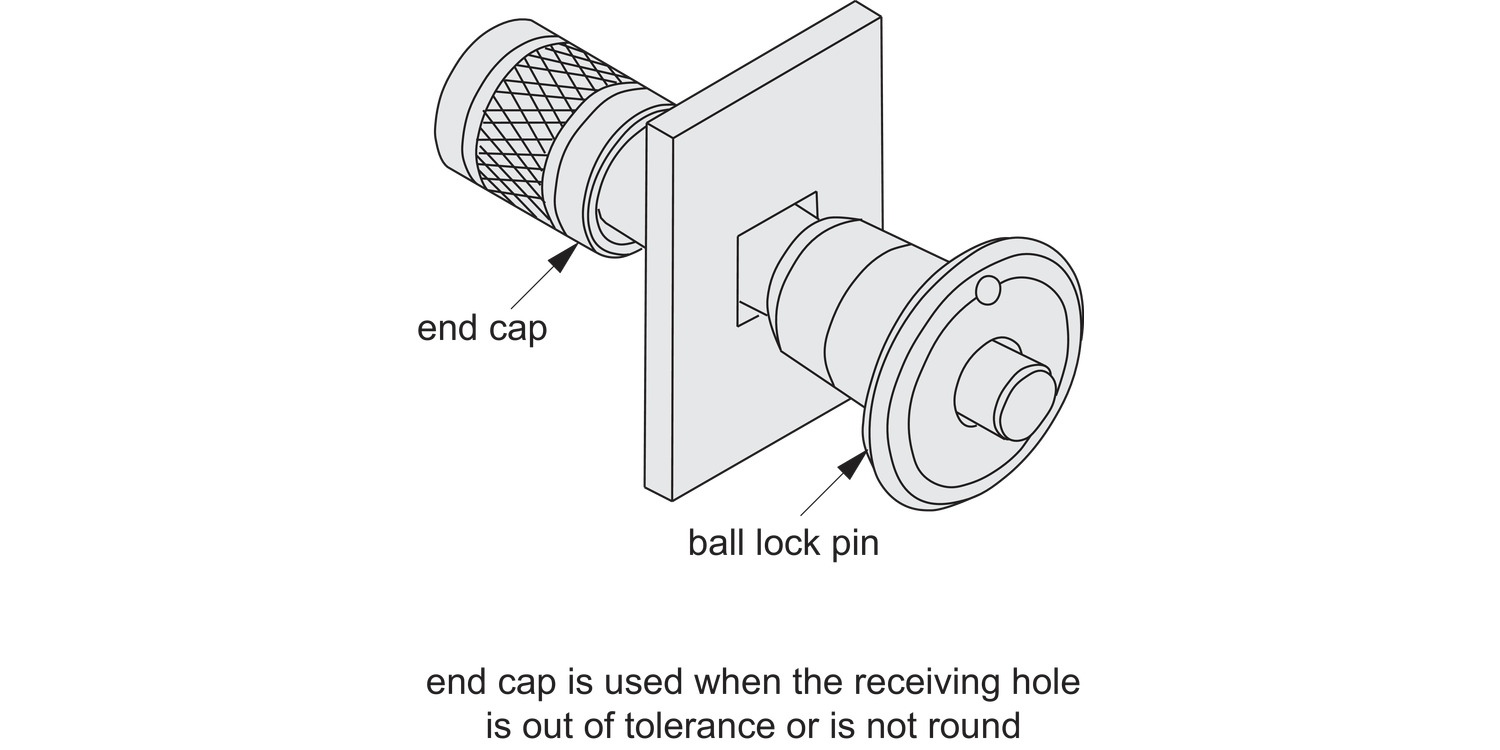

here the material receiving hole is out of tolerance or not round, end caps allow quick release pins still to be used to take advantage of quick component/material change. End caps with tapped end allow fixing of cap to application with lanyard, see part nos. L to LA1224, end caps are otherwise installed loose.
Important Notes
**When used, end cap reduces the usable grip length of quick release pin, refer to 'Grip length reduction' value in data table.
