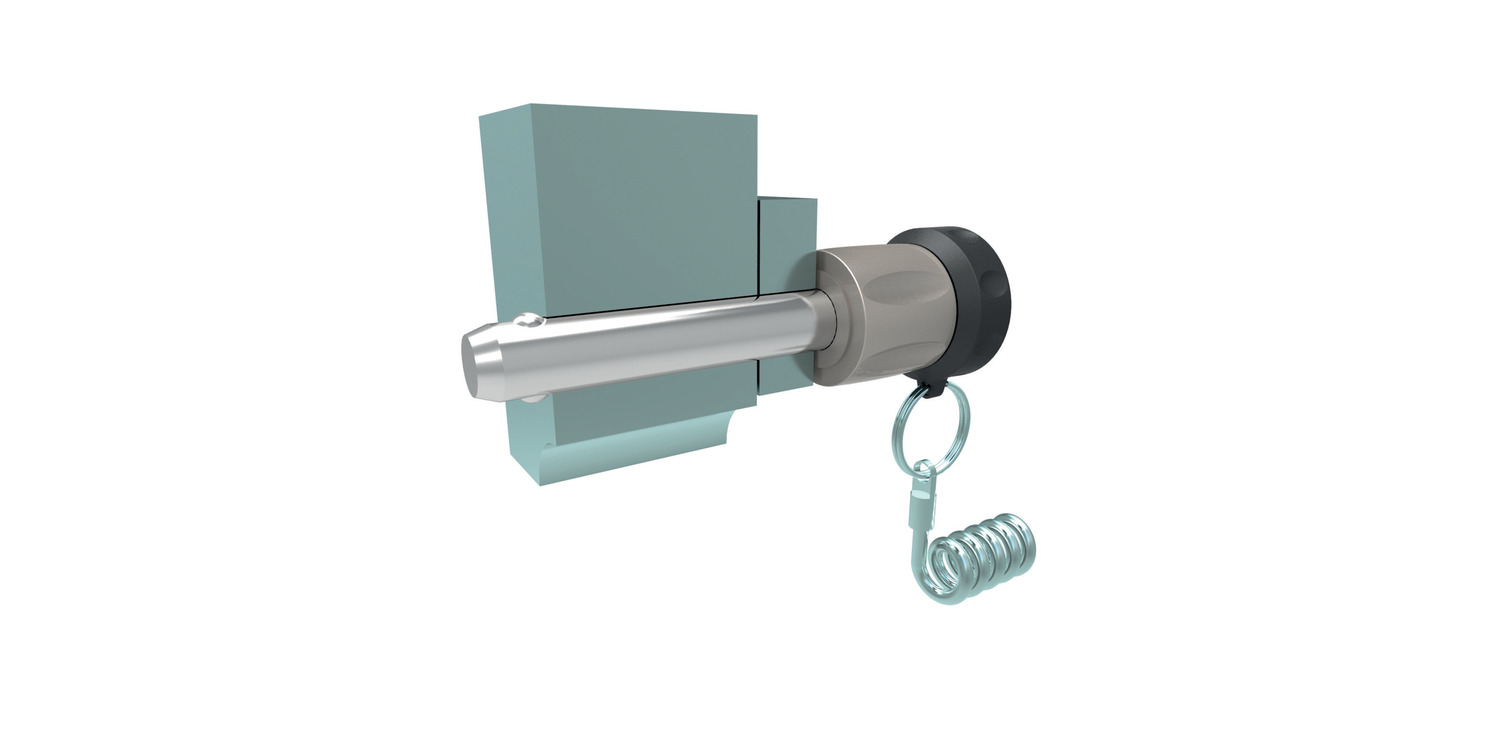

Ball Lock Pin
adj. length
QR1804 Ball Lock Pins - Single Acting
self-locking - adj. length - stainless 1.4305, material: Stainless steel
Alternative products you may wish to consider

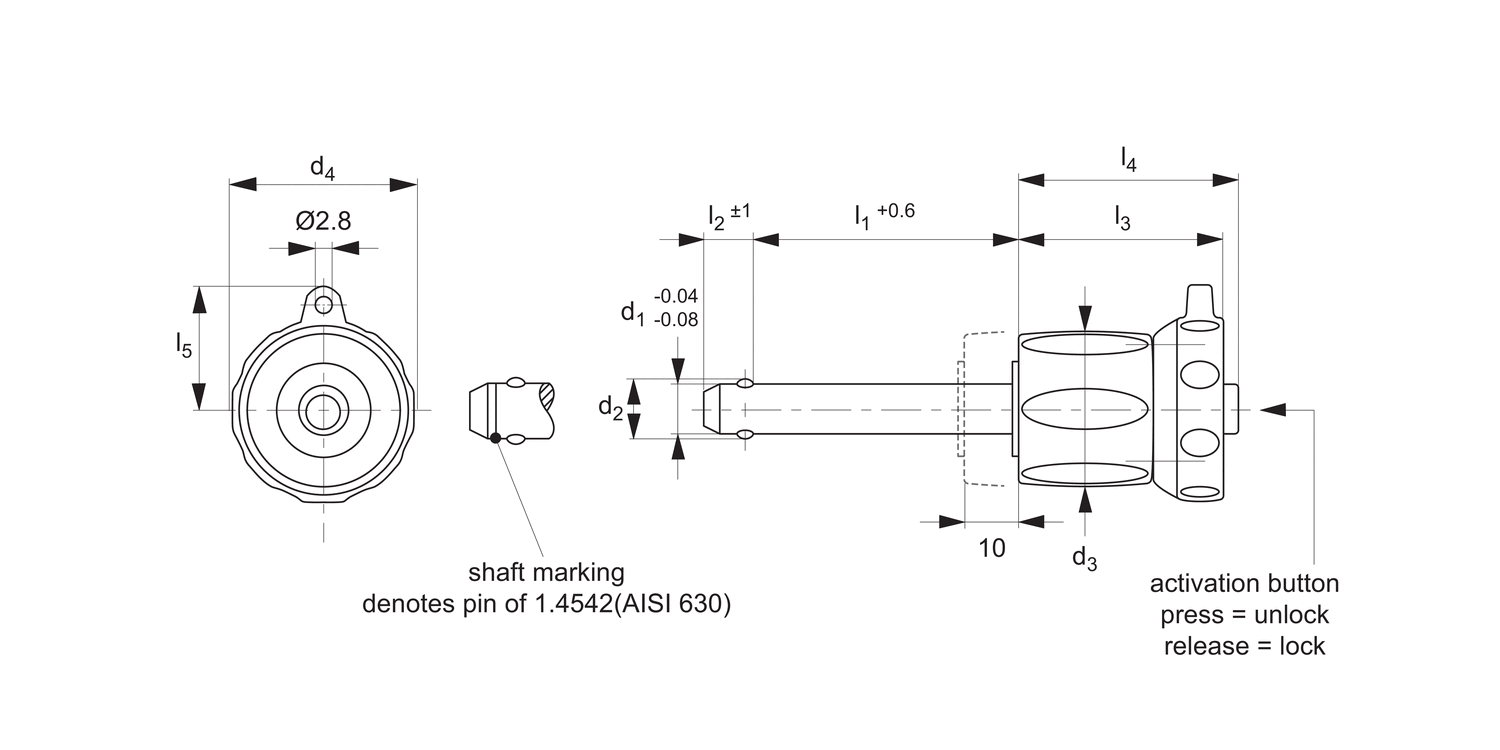

d1
5
l1
0 - 10
Material
Stainless 1.4305
d2
5.5
d3
17.6
d4
23.6
l2
6.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
24
£ 43.82 per unit (click for quantity discounts)
d1
5
l1
5 - 15
Material
Stainless 1.4305
d2
5.5
d3
17.6
d4
23.6
l2
6.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
25
£ 43.82 per unit (click for quantity discounts)
d1
5
l1
10 - 20
Material
Stainless 1.4305
d2
5.5
d3
17.6
d4
23.6
l2
6.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
26
£ 43.82 per unit (click for quantity discounts)
d1
5
l1
15 - 25
Material
Stainless 1.4305
d2
5.5
d3
17.6
d4
23.6
l2
6.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
27
£ 43.82 per unit (click for quantity discounts)
d1
5
l1
20 - 30
Material
Stainless 1.4305
d2
5.5
d3
17.6
d4
23.6
l2
6.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
5
Shearing resistance, double
min.
kN
14
Weight
g
27
£ 45.06 per unit (click for quantity discounts)
d1
6
l1
0 - 10
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
25
£ 44.02 per unit (click for quantity discounts)
d1
6
l1
5 - 15
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
26
£ 44.02 per unit (click for quantity discounts)
d1
6
l1
10 - 20
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
27
£ 44.02 per unit (click for quantity discounts)
d1
6
l1
15 - 25
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
28
£ 44.02 per unit (click for quantity discounts)
d1
6
l1
20 - 30
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
29
£ 46.19 per unit (click for quantity discounts)
d1
6
l1
25 - 35
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
30
£ 46.19 per unit (click for quantity discounts)
d1
6
l1
30 - 40
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
31
£ 46.19 per unit (click for quantity discounts)
d1
6
l1
35 - 45
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
32
£ 46.19 per unit (click for quantity discounts)
d1
6
l1
40 - 50
Material
Stainless 1.4305
d2
7.0
d3
17.6
d4
23.6
l2
7.0
l3
25.7
l4
26.2
l5
15.9
Loc'n hole
tol. H11
6
Shearing resistance, double
min.
kN
21
Weight
g
33
£ 46.19 per unit (click for quantity discounts)
d1
8
l1
10 - 20
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
57
£ 46.63 per unit (click for quantity discounts)
d1
8
l1
15 - 25
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
58
£ 46.63 per unit (click for quantity discounts)
d1
8
l1
20 - 30
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
60
£ 49.17 per unit (click for quantity discounts)
d1
8
l1
25 - 35
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
62
£ 49.17 per unit (click for quantity discounts)
d1
8
l1
30 - 40
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
64
£ 49.17 per unit (click for quantity discounts)
d1
8
l1
35 - 45
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
66
£ 49.17 per unit (click for quantity discounts)
d1
8
l1
40 - 50
Material
Stainless 1.4305
d2
9.6
d3
23.0
d4
27.6
l2
8.2
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
8
Shearing resistance, double
min.
kN
38
Weight
g
68
£ 49.17 per unit (click for quantity discounts)
d1
10
l1
10 - 20
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
63
£ 57.56 per unit (click for quantity discounts)
d1
10
l1
15 - 25
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
66
£ 57.56 per unit (click for quantity discounts)
d1
10
l1
20 - 30
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
69
£ 59.14 per unit (click for quantity discounts)
d1
10
l1
25 - 35
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
72
£ 59.14 per unit (click for quantity discounts)
d1
10
l1
30 - 40
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
75
£ 59.14 per unit (click for quantity discounts)
d1
10
l1
35 - 45
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
78
£ 59.14 per unit (click for quantity discounts)
d1
10
l1
40 - 50
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
81
£ 59.14 per unit (click for quantity discounts)
d1
10
l1
50 - 60
Material
Stainless 1.4305
d2
12.0
d3
23.0
d4
27.6
l2
9.6
l3
31.2
l4
33.1
l5
18.0
Loc'n hole
tol. H11
10
Shearing resistance, double
min.
kN
60
Weight
g
87
£ 61.06 per unit (click for quantity discounts)
d1
12
l1
15 - 25
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
123
£ 60.54 per unit (click for quantity discounts)
d1
12
l1
20 - 30
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
127
£ 62.11 per unit (click for quantity discounts)
d1
12
l1
25 - 35
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
131
£ 62.11 per unit (click for quantity discounts)
d1
12
l1
30 - 40
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
135
£ 62.11 per unit (click for quantity discounts)
d1
12
l1
35 - 45
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
140
£ 62.11 per unit (click for quantity discounts)
d1
12
l1
40 - 50
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
144
£ 62.11 per unit (click for quantity discounts)
d1
12
l1
50 - 60
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
152
£ 63.68 per unit (click for quantity discounts)
d1
12
l1
60 - 70
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
161
£ 63.68 per unit (click for quantity discounts)
d1
12
l1
70 - 80
Material
Stainless 1.4305
d2
14.5
d3
29.0
d4
34.6
l2
10.6
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
12
Shearing resistance, double
min.
kN
87
Weight
g
169
£ 65.26 per unit (click for quantity discounts)
d1
16
l1
20 - 30
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
159
£ 86.06 per unit (click for quantity discounts)
d1
16
l1
25 - 35
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
166
£ 86.06 per unit (click for quantity discounts)
d1
16
l1
30 - 40
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
174
£ 86.06 per unit (click for quantity discounts)
d1
16
l1
35 - 45
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
182
£ 86.06 per unit (click for quantity discounts)
d1
16
l1
40 - 50
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
189
£ 86.06 per unit (click for quantity discounts)
d1
16
l1
50 - 60
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
205
£ 90.53 per unit (click for quantity discounts)
d1
16
l1
60 - 70
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
220
£ 90.53 per unit (click for quantity discounts)
d1
16
l1
70 - 80
Material
Stainless 1.4305
d2
19.0
d3
29.0
d4
34.6
l2
14.0
l3
36.7
l4
39.5
l5
21.8
Loc'n hole
tol. H11
16
Shearing resistance, double
min.
kN
155
Weight
g
235
£ 94.28 per unit (click for quantity discounts)
d1
l1
Material
d2
d3
d4
l2
l3
l4
l5
Loc'n hole
tol. H11
Shearing resistance, double
min.
kN
Weight
g
| Price & Availability | Article | d1 | l1 | Material | d2 | d3 | d4 | l2 | l3 | l4 | l5 | Loc'n hole tol. H11 | Shearing resistance, double min. kN | Weight g | ||||||||||||||||||
| QR1804.M05-000-S | 5 | 0 - 10 | Stainless 1.4305 | 5.5 | 17.6 | 23.6 | 6.0 | 25.7 | 26.2 | 15.9 | 5 | 14 | 24 | |||||||||||||||||||
£ 43.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 5 l1 0 - 10 Material Stainless 1.4305 d2 5.5 d3 17.6 d4 23.6 l2 6.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 24 | ||||||||||||||||||||||||||||||||
| QR1804.M05-005-S | 5 | 5 - 15 | Stainless 1.4305 | 5.5 | 17.6 | 23.6 | 6.0 | 25.7 | 26.2 | 15.9 | 5 | 14 | 25 | |||||||||||||||||||
£ 43.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 5 l1 5 - 15 Material Stainless 1.4305 d2 5.5 d3 17.6 d4 23.6 l2 6.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 25 | ||||||||||||||||||||||||||||||||
| QR1804.M05-010-S | 5 | 10 - 20 | Stainless 1.4305 | 5.5 | 17.6 | 23.6 | 6.0 | 25.7 | 26.2 | 15.9 | 5 | 14 | 26 | |||||||||||||||||||
£ 43.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 5 l1 10 - 20 Material Stainless 1.4305 d2 5.5 d3 17.6 d4 23.6 l2 6.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 26 | ||||||||||||||||||||||||||||||||
| QR1804.M05-015-S | 5 | 15 - 25 | Stainless 1.4305 | 5.5 | 17.6 | 23.6 | 6.0 | 25.7 | 26.2 | 15.9 | 5 | 14 | 27 | |||||||||||||||||||
£ 43.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 5 l1 15 - 25 Material Stainless 1.4305 d2 5.5 d3 17.6 d4 23.6 l2 6.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 27 | ||||||||||||||||||||||||||||||||
| QR1804.M05-020-S | 5 | 20 - 30 | Stainless 1.4305 | 5.5 | 17.6 | 23.6 | 6.0 | 25.7 | 26.2 | 15.9 | 5 | 14 | 27 | |||||||||||||||||||
£ 45.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 5 l1 20 - 30 Material Stainless 1.4305 d2 5.5 d3 17.6 d4 23.6 l2 6.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 5 Shearing resistance, double
min.
kN 14 Weight
g 27 | ||||||||||||||||||||||||||||||||
| QR1804.M06-000-S | 6 | 0 - 10 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 25 | |||||||||||||||||||
£ 44.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 0 - 10 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 25 | ||||||||||||||||||||||||||||||||
| QR1804.M06-005-S | 6 | 5 - 15 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 26 | |||||||||||||||||||
£ 44.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 5 - 15 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 26 | ||||||||||||||||||||||||||||||||
| QR1804.M06-010-S | 6 | 10 - 20 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 27 | |||||||||||||||||||
£ 44.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 10 - 20 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 27 | ||||||||||||||||||||||||||||||||
| QR1804.M06-015-S | 6 | 15 - 25 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 28 | |||||||||||||||||||
£ 44.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 15 - 25 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 28 | ||||||||||||||||||||||||||||||||
| QR1804.M06-020-S | 6 | 20 - 30 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 29 | |||||||||||||||||||
£ 46.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 20 - 30 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 29 | ||||||||||||||||||||||||||||||||
| QR1804.M06-025-S | 6 | 25 - 35 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 30 | |||||||||||||||||||
£ 46.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 25 - 35 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 30 | ||||||||||||||||||||||||||||||||
| QR1804.M06-030-S | 6 | 30 - 40 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 31 | |||||||||||||||||||
£ 46.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 30 - 40 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 31 | ||||||||||||||||||||||||||||||||
| QR1804.M06-035-S | 6 | 35 - 45 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 32 | |||||||||||||||||||
£ 46.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 35 - 45 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 32 | ||||||||||||||||||||||||||||||||
| QR1804.M06-040-S | 6 | 40 - 50 | Stainless 1.4305 | 7.0 | 17.6 | 23.6 | 7.0 | 25.7 | 26.2 | 15.9 | 6 | 21 | 33 | |||||||||||||||||||
£ 46.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 l1 40 - 50 Material Stainless 1.4305 d2 7.0 d3 17.6 d4 23.6 l2 7.0 l3 25.7 l4 26.2 l5 15.9 Loc'n hole
tol. H11 6 Shearing resistance, double
min.
kN 21 Weight
g 33 | ||||||||||||||||||||||||||||||||
| QR1804.M08-010-S | 8 | 10 - 20 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 57 | |||||||||||||||||||
£ 46.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 10 - 20 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 57 | ||||||||||||||||||||||||||||||||
| QR1804.M08-015-S | 8 | 15 - 25 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 58 | |||||||||||||||||||
£ 46.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 15 - 25 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 58 | ||||||||||||||||||||||||||||||||
| QR1804.M08-020-S | 8 | 20 - 30 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 60 | |||||||||||||||||||
£ 49.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 20 - 30 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 60 | ||||||||||||||||||||||||||||||||
| QR1804.M08-025-S | 8 | 25 - 35 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 62 | |||||||||||||||||||
£ 49.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 25 - 35 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 62 | ||||||||||||||||||||||||||||||||
| QR1804.M08-030-S | 8 | 30 - 40 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 64 | |||||||||||||||||||
£ 49.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 30 - 40 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 64 | ||||||||||||||||||||||||||||||||
| QR1804.M08-035-S | 8 | 35 - 45 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 66 | |||||||||||||||||||
£ 49.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 35 - 45 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 66 | ||||||||||||||||||||||||||||||||
| QR1804.M08-040-S | 8 | 40 - 50 | Stainless 1.4305 | 9.6 | 23.0 | 27.6 | 8.2 | 31.2 | 33.1 | 18.0 | 8 | 38 | 68 | |||||||||||||||||||
£ 49.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 l1 40 - 50 Material Stainless 1.4305 d2 9.6 d3 23.0 d4 27.6 l2 8.2 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 8 Shearing resistance, double
min.
kN 38 Weight
g 68 | ||||||||||||||||||||||||||||||||
| QR1804.M10-010-S | 10 | 10 - 20 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 63 | |||||||||||||||||||
£ 57.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 10 - 20 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 63 | ||||||||||||||||||||||||||||||||
| QR1804.M10-015-S | 10 | 15 - 25 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 66 | |||||||||||||||||||
£ 57.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 15 - 25 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 66 | ||||||||||||||||||||||||||||||||
| QR1804.M10-020-S | 10 | 20 - 30 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 69 | |||||||||||||||||||
£ 59.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 20 - 30 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 69 | ||||||||||||||||||||||||||||||||
| QR1804.M10-025-S | 10 | 25 - 35 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 72 | |||||||||||||||||||
£ 59.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 25 - 35 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 72 | ||||||||||||||||||||||||||||||||
| QR1804.M10-030-S | 10 | 30 - 40 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 75 | |||||||||||||||||||
£ 59.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 30 - 40 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 75 | ||||||||||||||||||||||||||||||||
| QR1804.M10-035-S | 10 | 35 - 45 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 78 | |||||||||||||||||||
£ 59.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 35 - 45 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 78 | ||||||||||||||||||||||||||||||||
| QR1804.M10-040-S | 10 | 40 - 50 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 81 | |||||||||||||||||||
£ 59.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 40 - 50 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 81 | ||||||||||||||||||||||||||||||||
| QR1804.M10-050-S | 10 | 50 - 60 | Stainless 1.4305 | 12.0 | 23.0 | 27.6 | 9.6 | 31.2 | 33.1 | 18.0 | 10 | 60 | 87 | |||||||||||||||||||
£ 61.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 l1 50 - 60 Material Stainless 1.4305 d2 12.0 d3 23.0 d4 27.6 l2 9.6 l3 31.2 l4 33.1 l5 18.0 Loc'n hole
tol. H11 10 Shearing resistance, double
min.
kN 60 Weight
g 87 | ||||||||||||||||||||||||||||||||
| QR1804.M12-015-S | 12 | 15 - 25 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 123 | |||||||||||||||||||
£ 60.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 15 - 25 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 123 | ||||||||||||||||||||||||||||||||
| QR1804.M12-020-S | 12 | 20 - 30 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 127 | |||||||||||||||||||
£ 62.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 20 - 30 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 127 | ||||||||||||||||||||||||||||||||
| QR1804.M12-025-S | 12 | 25 - 35 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 131 | |||||||||||||||||||
£ 62.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 25 - 35 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 131 | ||||||||||||||||||||||||||||||||
| QR1804.M12-030-S | 12 | 30 - 40 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 135 | |||||||||||||||||||
£ 62.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 30 - 40 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 135 | ||||||||||||||||||||||||||||||||
| QR1804.M12-035-S | 12 | 35 - 45 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 140 | |||||||||||||||||||
£ 62.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 35 - 45 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 140 | ||||||||||||||||||||||||||||||||
| QR1804.M12-040-S | 12 | 40 - 50 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 144 | |||||||||||||||||||
£ 62.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 40 - 50 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 144 | ||||||||||||||||||||||||||||||||
| QR1804.M12-050-S | 12 | 50 - 60 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 152 | |||||||||||||||||||
£ 63.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 50 - 60 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 152 | ||||||||||||||||||||||||||||||||
| QR1804.M12-060-S | 12 | 60 - 70 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 161 | |||||||||||||||||||
£ 63.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 60 - 70 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 161 | ||||||||||||||||||||||||||||||||
| QR1804.M12-070-S | 12 | 70 - 80 | Stainless 1.4305 | 14.5 | 29.0 | 34.6 | 10.6 | 36.7 | 39.5 | 21.8 | 12 | 87 | 169 | |||||||||||||||||||
£ 65.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 l1 70 - 80 Material Stainless 1.4305 d2 14.5 d3 29.0 d4 34.6 l2 10.6 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 12 Shearing resistance, double
min.
kN 87 Weight
g 169 | ||||||||||||||||||||||||||||||||
| QR1804.M16-020-S | 16 | 20 - 30 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 159 | |||||||||||||||||||
£ 86.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 20 - 30 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 159 | ||||||||||||||||||||||||||||||||
| QR1804.M16-025-S | 16 | 25 - 35 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 166 | |||||||||||||||||||
£ 86.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 25 - 35 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 166 | ||||||||||||||||||||||||||||||||
| QR1804.M16-030-S | 16 | 30 - 40 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 174 | |||||||||||||||||||
£ 86.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 30 - 40 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 174 | ||||||||||||||||||||||||||||||||
| QR1804.M16-035-S | 16 | 35 - 45 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 182 | |||||||||||||||||||
£ 86.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 35 - 45 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 182 | ||||||||||||||||||||||||||||||||
| QR1804.M16-040-S | 16 | 40 - 50 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 189 | |||||||||||||||||||
£ 86.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 40 - 50 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 189 | ||||||||||||||||||||||||||||||||
| QR1804.M16-050-S | 16 | 50 - 60 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 205 | |||||||||||||||||||
£ 90.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 50 - 60 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 205 | ||||||||||||||||||||||||||||||||
| QR1804.M16-060-S | 16 | 60 - 70 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 220 | |||||||||||||||||||
£ 90.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 60 - 70 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 220 | ||||||||||||||||||||||||||||||||
| QR1804.M16-070-S | 16 | 70 - 80 | Stainless 1.4305 | 19.0 | 29.0 | 34.6 | 14.0 | 36.7 | 39.5 | 21.8 | 16 | 155 | 235 | |||||||||||||||||||
£ 94.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 l1 70 - 80 Material Stainless 1.4305 d2 19.0 d3 29.0 d4 34.6 l2 14.0 l3 36.7 l4 39.5 l5 21.8 Loc'n hole
tol. H11 16 Shearing resistance, double
min.
kN 155 Weight
g 235 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Pin: stainless steel 1.4305 (AISI 303).
Ball: stainless steel 1.3541
Spring: stainless steel.
Adj. Grip: thermoplastic, grey/black.
Technical Notes
Pressing = unlocking.
Releasing = locking.
Unique design; adj.grip offers up to 10mm of clamping stroke on pin length l1 after installation.
Temperature resistance -30°C to +80°C.
For quick fastening and locking of frequently repeated connections, with additional clamping capacity of up to 10mm stroke.
Tips
For lanyards & retaining cables see part no.LA1066. Easy install locating bushes available see part no.LA1310.
Important Notes
*Shearing resistance similar to DIN 50141.
Product Datasheets
Application images
This content is not visible because of your cookie settings.
Teknipart
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 9969
sales@teknipart.co.uk
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 9969
sales@teknipart.co.uk
Route via Google Maps
Company registration no: 00496138
VAT no.: GB 408154022
