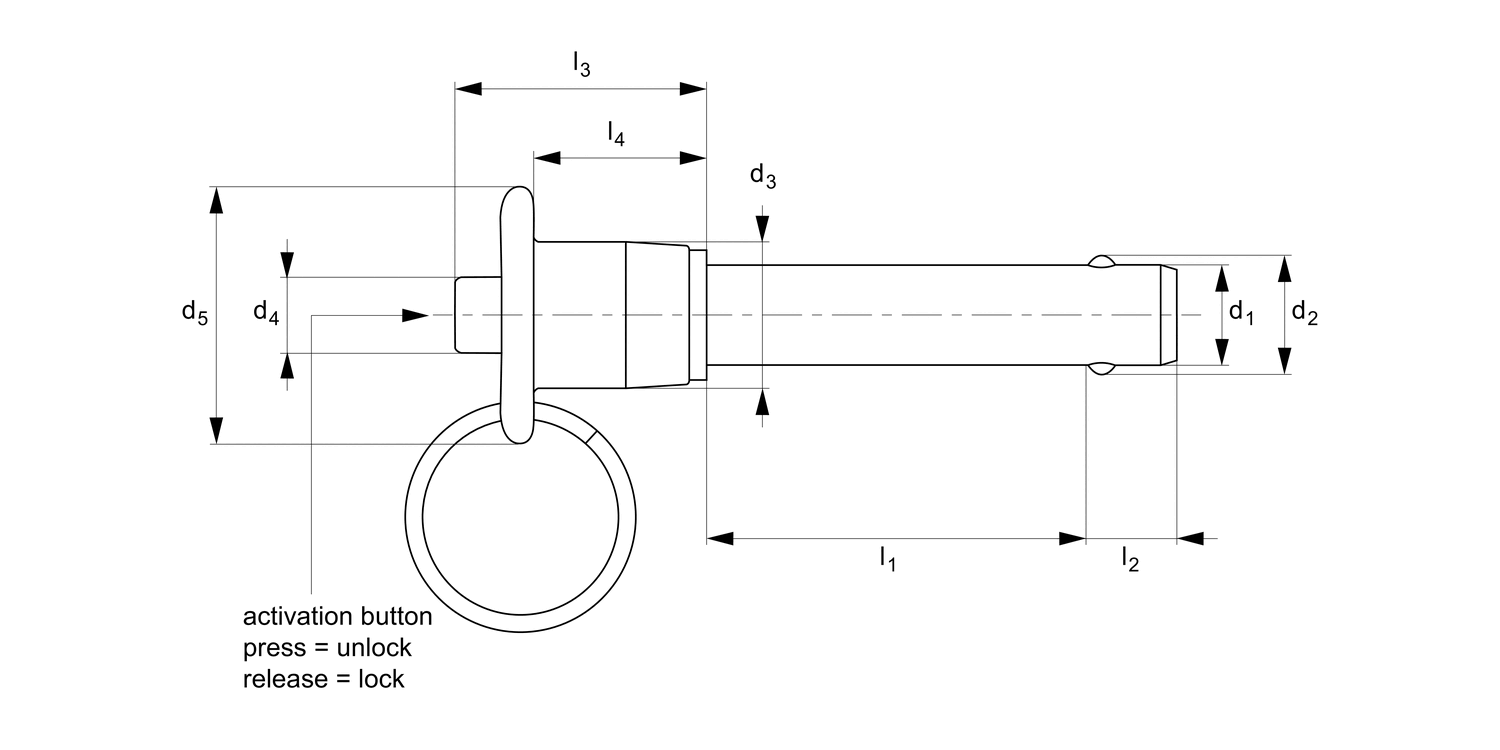

QR1274 Quick Release Pins - Inch - B-handle

stainless pin - stainless handle, material: Stainless steel

Download product datasheet

Alternative products you may wish to consider

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-050-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3/4

QR1274.I25-075-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1

QR1274.I25-100-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/4

QR1274.I25-125-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-150-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3/4

QR1274.I25-175-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-2

QR1274.I25-200-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 48.84 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-250-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 50.80 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3

QR1274.I25-300-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 50.80 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-350-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 56.19 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-4

QR1274.I25-400-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 56.19 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-050-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3/4

QR1274.I31-075-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1

QR1274.I31-100-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/4

QR1274.I31-125-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-150-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3/4

QR1274.I31-175-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-2

QR1274.I31-200-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-250-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 54.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3

QR1274.I31-300-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 54.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-350-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 56.28 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-4

QR1274.I31-400-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 56.28 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-050-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3/4

QR1274.I37-075-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1

QR1274.I37-100-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/4

QR1274.I37-125-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-150-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3/4

QR1274.I37-175-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-2

QR1274.I37-200-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-250-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 64.74 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3

QR1274.I37-300-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 64.74 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-350-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 67.43 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-4

QR1274.I37-400-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 67.43 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1

QR1274.I50-100-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 62.24 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/4

QR1274.I50-125-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-150-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-3/4

QR1274.I50-175-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-2

QR1274.I50-200-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-250-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-3

QR1274.I50-300-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-350-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-4

QR1274.I50-400-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s

QR1274.I50-450-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-5

QR1274.I50-500-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-550-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-6

QR1274.I50-600-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

6.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-050-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3/4

QR1274.I25-075-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1

QR1274.I25-100-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 39.55 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/4

QR1274.I25-125-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-150-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3/4

QR1274.I25-175-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 45.93 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-2

QR1274.I25-200-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 48.84 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-250-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 50.80 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-3

QR1274.I25-300-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 50.80 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-1/2

QR1274.I25-350-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 56.19 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/4 l1-4

QR1274.I25-400-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 56.19 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-050-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3/4

QR1274.I31-075-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1

QR1274.I31-100-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 43.49 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/4

QR1274.I31-125-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-150-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3/4

QR1274.I31-175-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-2

QR1274.I31-200-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.16 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-250-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 54.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-3

QR1274.I31-300-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 54.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-1/2

QR1274.I31-350-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 56.28 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-5/16 l1-4

QR1274.I31-400-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 56.28 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-050-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3/4

QR1274.I37-075-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1

QR1274.I37-100-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 47.34 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/4

QR1274.I37-125-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-150-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3/4

QR1274.I37-175-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-2

QR1274.I37-200-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 54.40 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-250-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 64.74 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-3

QR1274.I37-300-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 64.74 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-1/2

QR1274.I37-350-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 67.43 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-3/8 l1-4

QR1274.I37-400-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 67.43 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1

QR1274.I50-100-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 62.24 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/4

QR1274.I50-125-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-150-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-3/4

QR1274.I50-175-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-2

QR1274.I50-200-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-250-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-3

QR1274.I50-300-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-350-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-4

QR1274.I50-400-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s

QR1274.I50-450-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-5

QR1274.I50-500-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-1/2

QR1274.I50-550-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin button handle inch 300 s/s d1-1/2 l1-6

QR1274.I50-600-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

6.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

d₁ nom.

l₁ grip +0.02|-0.00

Material

d₁ max.

d₁ min.

d₂ ±0.005

d₃

d₄

d₅

l₂ +0.000|-0.030

l₃

l₄

Loc'n hole min.|max.

Pull out strength min. lb

Calc. double shear lb

QR1274.I25-050-S

1/4

0.50

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 39.55 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 39.55	0%
10-19	£ 35.60	10%
20-49	£ 33.62	15%
50-99	£ 31.64	20%
100+	£ 27.69	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-075-S

1/4

0.75

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 39.55 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 39.55	0%
10-19	£ 35.60	10%
20-49	£ 33.62	15%
50-99	£ 31.64	20%
100+	£ 27.69	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-100-S

1/4

1.00

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 39.55 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 39.55	0%
10-19	£ 35.60	10%
20-49	£ 33.62	15%
50-99	£ 31.64	20%
100+	£ 27.69	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-125-S

1/4

1.25

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 45.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 45.93	0%
10-19	£ 41.34	10%
20-49	£ 39.04	15%
50-99	£ 36.74	20%
100+	£ 32.15	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-150-S

1/4

1.50

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 45.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 45.93	0%
10-19	£ 41.34	10%
20-49	£ 39.04	15%
50-99	£ 36.74	20%
100+	£ 32.15	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-175-S

1/4

1.75

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 45.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 45.93	0%
10-19	£ 41.34	10%
20-49	£ 39.04	15%
50-99	£ 36.74	20%
100+	£ 32.15	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-200-S

1/4

2.00

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 48.84 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 48.84	0%
10-19	£ 43.96	10%
20-49	£ 41.52	15%
50-99	£ 39.07	20%
100+	£ 34.19	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-250-S

1/4

2.50

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 50.80 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.80	0%
10-19	£ 45.72	10%
20-49	£ 43.18	15%
50-99	£ 40.64	20%
100+	£ 35.56	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-300-S

1/4

3.00

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 50.80 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.80	0%
10-19	£ 45.72	10%
20-49	£ 43.18	15%
50-99	£ 40.64	20%
100+	£ 35.56	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-350-S

1/4

3.50

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 56.19 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 56.19	0%
10-19	£ 50.57	10%
20-49	£ 47.76	15%
50-99	£ 44.95	20%
100+	£ 39.33	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I25-400-S

1/4

4.00

304 SS

,2485

,2470

0.289

0.47

0.23

0.81

0.290

0.92

0.63

,2500/,2540

230

2200

£ 56.19 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 56.19	0%
10-19	£ 50.57	10%
20-49	£ 47.76	15%
50-99	£ 44.95	20%
100+	£ 39.33	30%

d₁ nom.

1/4

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1274.I31-050-S

5/16

0.50

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 43.49 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.49	0%
10-19	£ 39.14	10%
20-49	£ 36.97	15%
50-99	£ 34.79	20%
100+	£ 30.45	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-075-S

5/16

0.75

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 43.49 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.49	0%
10-19	£ 39.14	10%
20-49	£ 36.97	15%
50-99	£ 34.79	20%
100+	£ 30.45	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-100-S

5/16

1.00

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 43.49 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.49	0%
10-19	£ 39.14	10%
20-49	£ 36.97	15%
50-99	£ 34.79	20%
100+	£ 30.45	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-125-S

5/16

1.25

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 51.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.16	0%
10-19	£ 46.05	10%
20-49	£ 43.49	15%
50-99	£ 40.93	20%
100+	£ 35.81	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-150-S

5/16

1.50

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 51.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.16	0%
10-19	£ 46.05	10%
20-49	£ 43.49	15%
50-99	£ 40.93	20%
100+	£ 35.81	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-175-S

5/16

1.75

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 51.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.16	0%
10-19	£ 46.05	10%
20-49	£ 43.49	15%
50-99	£ 40.93	20%
100+	£ 35.81	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-200-S

5/16

2.00

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 51.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.16	0%
10-19	£ 46.05	10%
20-49	£ 43.49	15%
50-99	£ 40.93	20%
100+	£ 35.81	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-250-S

5/16

2.50

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 54.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.77	0%
10-19	£ 49.29	10%
20-49	£ 46.55	15%
50-99	£ 43.81	20%
100+	£ 38.34	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-300-S

5/16

3.00

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 54.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.77	0%
10-19	£ 49.29	10%
20-49	£ 46.55	15%
50-99	£ 43.81	20%
100+	£ 38.34	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-350-S

5/16

3.50

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 56.28 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 56.28	0%
10-19	£ 50.66	10%
20-49	£ 47.84	15%
50-99	£ 45.03	20%
100+	£ 39.40	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I31-400-S

5/16

4.00

304 SS

,3110

,3095

0.375

0.47

0.23

0.81

0.330

0.92

0.63

,3125/,3165

510

3500

£ 56.28 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 56.28	0%
10-19	£ 50.66	10%
20-49	£ 47.84	15%
50-99	£ 45.03	20%
100+	£ 39.40	30%

d₁ nom.

5/16

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.81

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

0.63

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1274.I37-050-S

3/8

0.50

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 47.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.34	0%
10-19	£ 42.60	10%
20-49	£ 40.24	15%
50-99	£ 37.87	20%
100+	£ 33.14	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-075-S

3/8

0.75

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 47.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.34	0%
10-19	£ 42.60	10%
20-49	£ 40.24	15%
50-99	£ 37.87	20%
100+	£ 33.14	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-100-S

3/8

1.00

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 47.34 per unit (click for quantity discounts)

Ready to despatch 13
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.34	0%
10-19	£ 42.60	10%
20-49	£ 40.24	15%
50-99	£ 37.87	20%
100+	£ 33.14	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-125-S

3/8

1.25

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 54.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.40	0%
10-19	£ 48.96	10%
20-49	£ 46.24	15%
50-99	£ 43.52	20%
100+	£ 38.08	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-150-S

3/8

1.50

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 54.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.40	0%
10-19	£ 48.96	10%
20-49	£ 46.24	15%
50-99	£ 43.52	20%
100+	£ 38.08	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-175-S

3/8

1.75

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 54.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.40	0%
10-19	£ 48.96	10%
20-49	£ 46.24	15%
50-99	£ 43.52	20%
100+	£ 38.08	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-200-S

3/8

2.00

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 54.40 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 54.40	0%
10-19	£ 48.96	10%
20-49	£ 46.24	15%
50-99	£ 43.52	20%
100+	£ 38.08	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-250-S

3/8

2.50

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 64.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 64.74	0%
10-19	£ 58.26	10%
20-49	£ 55.03	15%
50-99	£ 51.79	20%
100+	£ 45.32	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-300-S

3/8

3.00

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 64.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 64.74	0%
10-19	£ 58.26	10%
20-49	£ 55.03	15%
50-99	£ 51.79	20%
100+	£ 45.32	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-350-S

3/8

3.50

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 67.43 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 67.43	0%
10-19	£ 60.69	10%
20-49	£ 57.32	15%
50-99	£ 53.95	20%
100+	£ 47.20	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I37-400-S

3/8

4.00

304 SS

,3735

,3720

0.440

0.56

0.29

1.00

0.365

1.01

0.70

,3750/,3790

575

4500

£ 67.43 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 67.43	0%
10-19	£ 60.69	10%
20-49	£ 57.32	15%
50-99	£ 53.95	20%
100+	£ 47.20	30%

d₁ nom.

3/8

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

1.00

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

0.70

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1274.I50-100-S

1/2

1.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 62.24 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 62.24	0%
10-19	£ 56.02	10%
20-49	£ 52.90	15%
50-99	£ 49.79	20%
100+	£ 43.57	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-125-S

1/2

1.25

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-150-S

1/2

1.50

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-175-S

1/2

1.75

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-200-S

1/2

2.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-250-S

1/2

2.50

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 82.50 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 82.50	0%
10-19	£ 74.25	10%
20-49	£ 70.13	15%
50-99	£ 66.00	20%
100+	£ 57.75	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-300-S

1/2

3.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 82.50 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 82.50	0%
10-19	£ 74.25	10%
20-49	£ 70.13	15%
50-99	£ 66.00	20%
100+	£ 57.75	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-350-S

1/2

3.50

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 92.64 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 92.64	0%
10-19	£ 83.38	10%
20-49	£ 78.74	15%
50-99	£ 74.11	20%
100+	£ 64.85	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-400-S

1/2

4.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 92.64 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 92.64	0%
10-19	£ 83.38	10%
20-49	£ 78.74	15%
50-99	£ 74.11	20%
100+	£ 64.85	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-450-S

1/2

4.50

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 102.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 102.77	0%
10-19	£ 92.49	10%
20-49	£ 87.35	15%
50-99	£ 82.21	20%
100+	£ 71.94	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-500-S

1/2

5.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 102.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 102.77	0%
10-19	£ 92.49	10%
20-49	£ 87.35	15%
50-99	£ 82.21	20%
100+	£ 71.94	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-550-S

1/2

5.50

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 112.89 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 112.89	0%
10-19	£ 101.60	10%
20-49	£ 95.96	15%
50-99	£ 90.31	20%
100+	£ 79.02	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1274.I50-600-S

1/2

6.00

304 SS

,4985

,4970

0.594

0.72

0.42

1.37

0.460

1.27

0.85

,5000/,5050

1160

11500

£ 112.89 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 112.89	0%
10-19	£ 101.60	10%
20-49	£ 95.96	15%
50-99	£ 90.31	20%
100+	£ 79.02	30%

d₁ nom.

1/2

l₁ grip +0.02|-0.00

6.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

1.37

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

0.85

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

Technical & Application

Material

Pin: stainless steel, AISI 304 (DIN 1.4301) or AISI 303 (DIN 1.4305), passivated. Tensile strength 500 N/mm² min. RoHS compliant.
Handle: stainless steel, AISI 303 (DIN 1.4305), passivated.
Actuator button: stainless steel, AIAI 303 (DIN 1.4305), passivated.
Internal spindle, balls and split ring (supplied); from stainless steel.

Technical Notes

Pressing = unlocking.
Releasing = locking.
Temperature range -30°C to +150°C
Supplied with split ring.

Tips

For quick fastening and locking frequently repeated connections.
For lanyards & retaining cables see part nos. L to LA1224. For easy install locating bushes and end caps see part nos. LA1260 to LA1355.

Product Datasheets

QR1274 Quick Release Pins - Inch - B-handleJuly 4, 2025, 1:27 PM / 78.91 kB

Button HandleJuly 4, 2025, 1:27 PM / 2.35 MB

Quick Release PinsJuly 4, 2025, 1:30 PM / 19.86 MB

Quick Release PinsJuly 4, 2025, 1:29 PM / 19.86 MB

Quick Release PinsJuly 4, 2025, 1:28 PM / 41.66 MB
