Index Plunger - Lever
locking - coarse thread
SL1112 Index Plungers - Lever Grip
locking - coarse thread, material: Free cutting steel

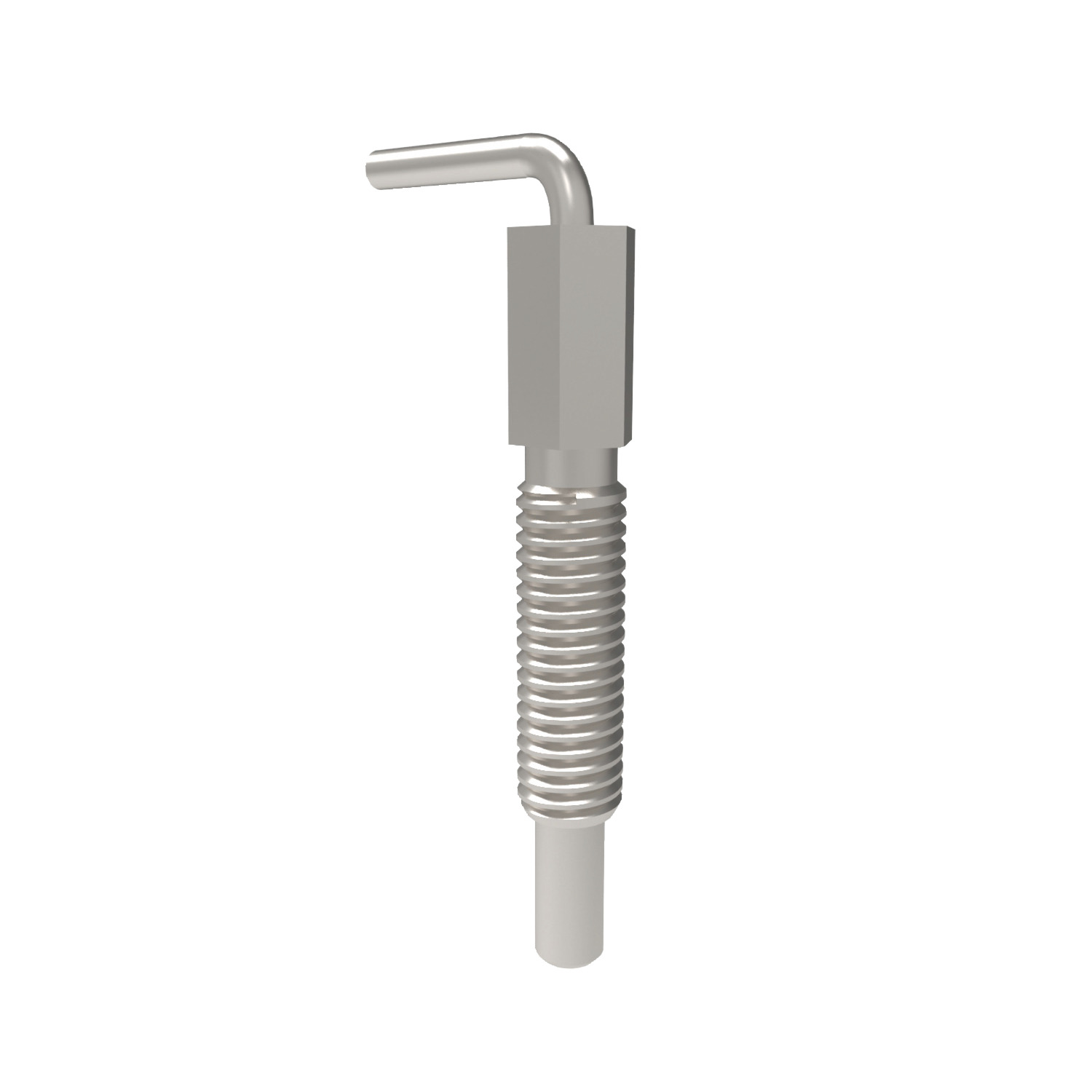

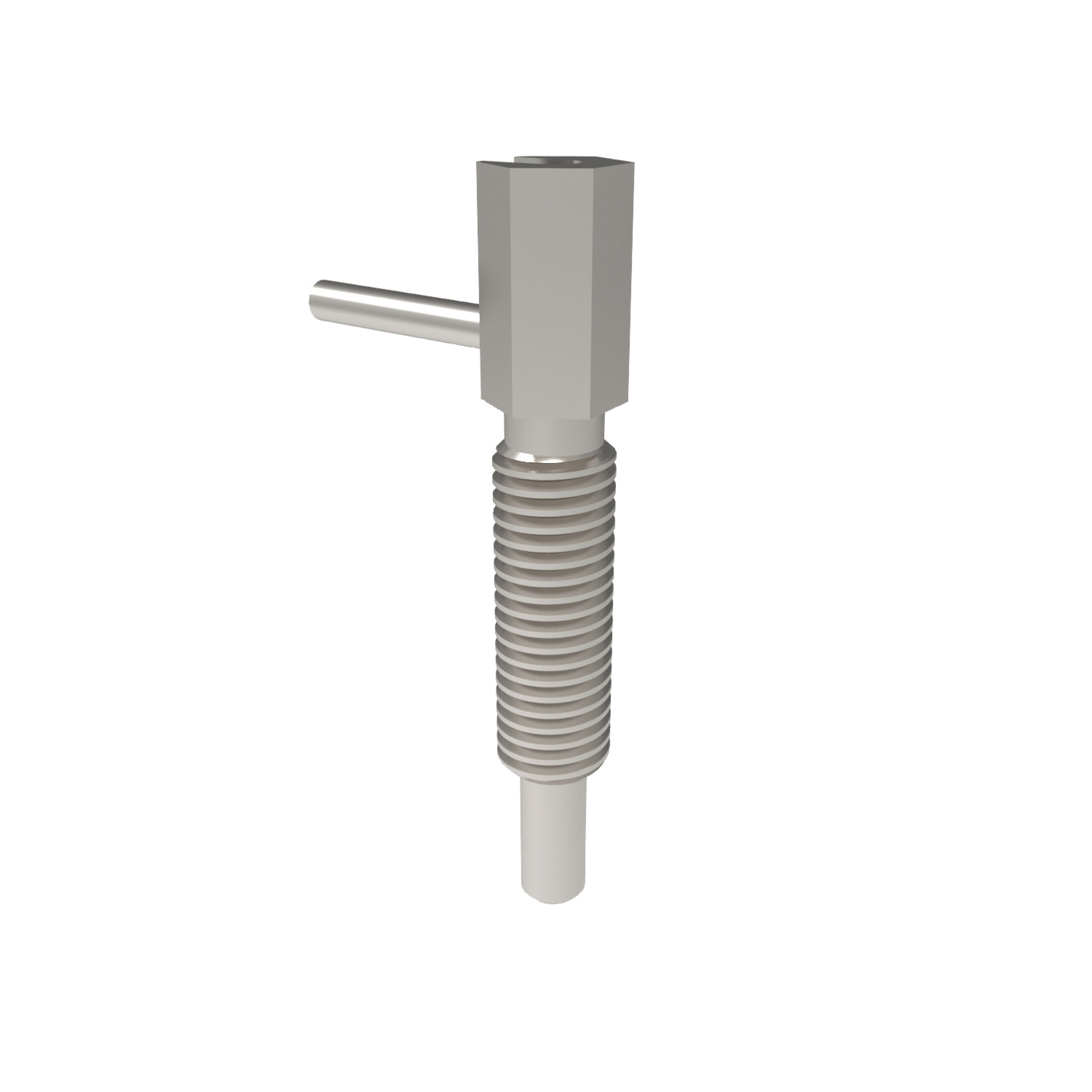

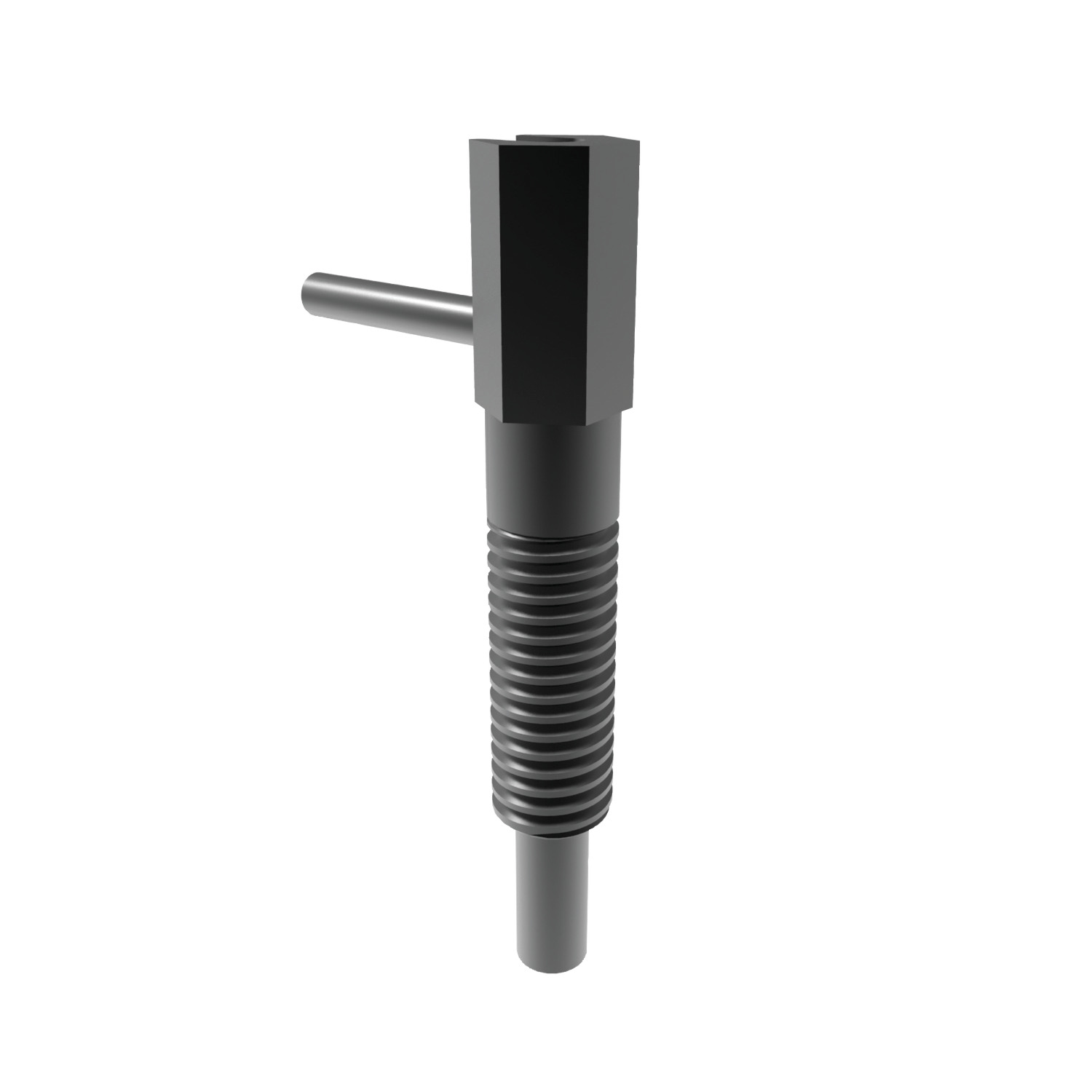

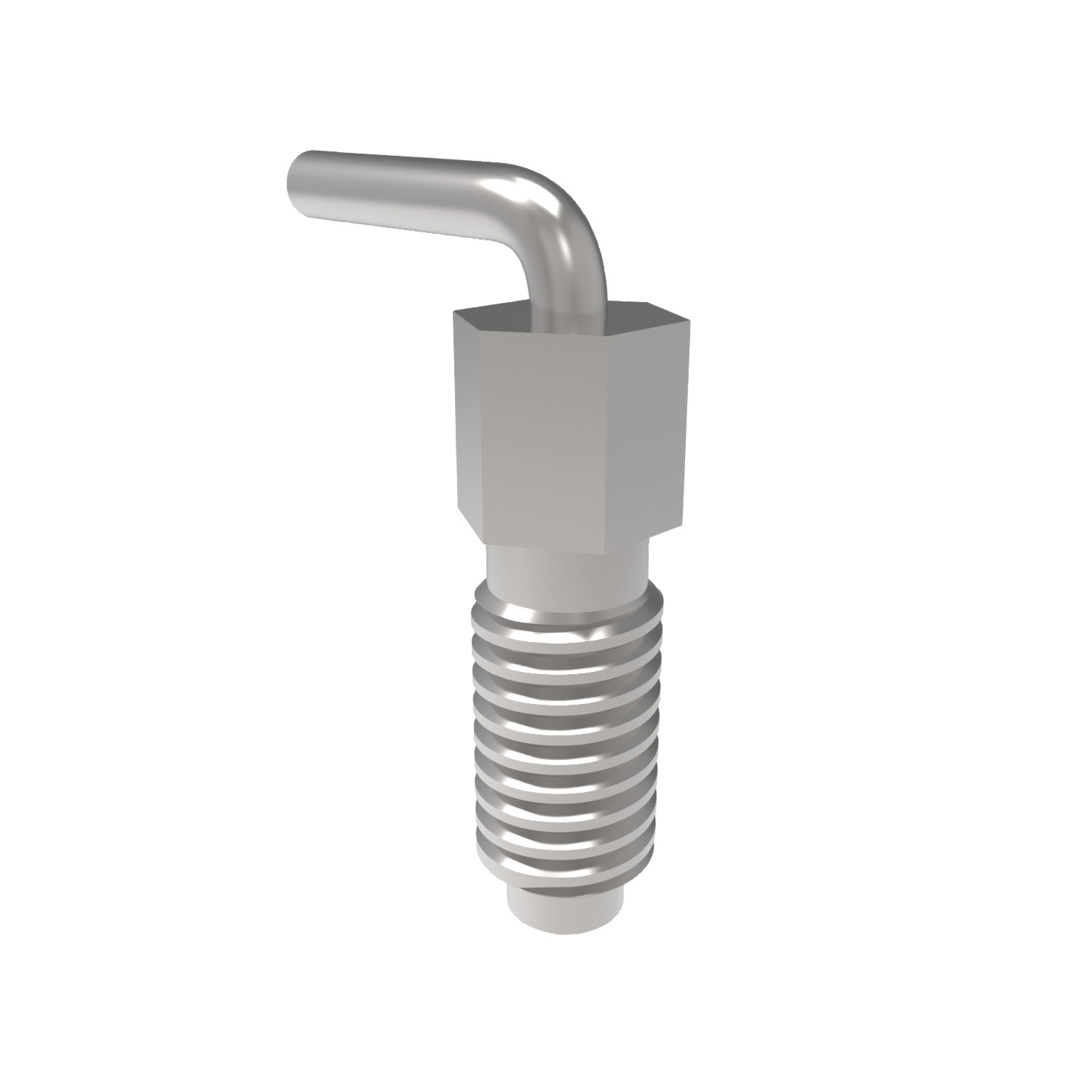

Alternative products you may wish to consider
Type
Locking
d1
4
d2
M 6x1,00
d3
2.3
l1
41.5
l2
20.0
l3
17.0
l4
12.0
l5
15.5
s
9.5
A/F
6
Spring load F1
≈
N
3.0
Spring load F2
≈
N
10.0
Tightening torque
max.
Nm
1.6
Weight
g
6
£ 12.78 per unit (click for quantity discounts)
Type
Locking
d1
5
d2
M 8x1,25
d3
3.0
l1
54.0
l2
27.0
l3
24.0
l4
15.0
l5
19.2
s
12.0
A/F
8
Spring load F1
≈
N
3.5
Spring load F2
≈
N
13.5
Tightening torque
max.
Nm
4.5
Weight
g
14
£ 12.51 per unit (click for quantity discounts)
Type
Locking
d1
6
d2
M10x1,50
d3
3.5
l1
65.0
l2
33.5
l3
30.0
l4
17.5
l5
22.9
s
14.0
A/F
10
Spring load F1
≈
N
4.0
Spring load F2
≈
N
16.0
Tightening torque
max.
Nm
10.0
Weight
g
26
£ 14.00 per unit (click for quantity discounts)
Type
Locking
d1
8
d2
M12x1,75
d3
4.7
l1
73.0
l2
31.8
l3
28.0
l4
22.2
l5
31.2
s
19.0
A/F
12
Spring load F1
≈
N
4.0
Spring load F2
≈
N
22.0
Tightening torque
max.
Nm
13.0
Weight
g
55
£ 15.05 per unit (click for quantity discounts)
Type
Locking
d1
10
d2
M16x2,00
d3
4.7
l1
102.5
l2
50.5
l3
44.5
l4
27.0
l5
32.7
s
25.0
A/F
16
Spring load F1
≈
N
4.0
Spring load F2
≈
N
23.0
Tightening torque
max.
Nm
42.0
Weight
g
103
£ 17.93 per unit (click for quantity discounts)
Type
d1
d2
d3
l1
l2
l3
l4
l5
s
A/F
Spring load F1
≈
N
Spring load F2
≈
N
Tightening torque
max.
Nm
Weight
g
| Price & Availability | Article | Type | d1 | d2 | d3 | l1 | l2 | l3 | l4 | l5 | s | A/F | Spring load F1 ≈ N | Spring load F2 ≈ N | Tightening torque max. Nm | Weight g | ||||||||||||||||||
| SL1112.M06-004-C | Locking | 4 | M 6x1,00 | 2.3 | 41.5 | 20.0 | 17.0 | 12.0 | 15.5 | 9.5 | 6 | 3.0 | 10.0 | 1.6 | 6 | |||||||||||||||||||
£ 12.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking d1 4 d2 M 6x1,00 d3 2.3 l1 41.5 l2 20.0 l3 17.0 l4 12.0 l5 15.5 s 9.5 A/F 6 Spring load F1
≈
N 3.0 Spring load F2
≈
N 10.0 Tightening torque
max.
Nm 1.6 Weight
g 6 | ||||||||||||||||||||||||||||||||||
| SL1112.M08-005-C | Locking | 5 | M 8x1,25 | 3.0 | 54.0 | 27.0 | 24.0 | 15.0 | 19.2 | 12.0 | 8 | 3.5 | 13.5 | 4.5 | 14 | |||||||||||||||||||
£ 12.51 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking d1 5 d2 M 8x1,25 d3 3.0 l1 54.0 l2 27.0 l3 24.0 l4 15.0 l5 19.2 s 12.0 A/F 8 Spring load F1
≈
N 3.5 Spring load F2
≈
N 13.5 Tightening torque
max.
Nm 4.5 Weight
g 14 | ||||||||||||||||||||||||||||||||||
| SL1112.M10-006-C | Locking | 6 | M10x1,50 | 3.5 | 65.0 | 33.5 | 30.0 | 17.5 | 22.9 | 14.0 | 10 | 4.0 | 16.0 | 10.0 | 26 | |||||||||||||||||||
£ 14.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking d1 6 d2 M10x1,50 d3 3.5 l1 65.0 l2 33.5 l3 30.0 l4 17.5 l5 22.9 s 14.0 A/F 10 Spring load F1
≈
N 4.0 Spring load F2
≈
N 16.0 Tightening torque
max.
Nm 10.0 Weight
g 26 | ||||||||||||||||||||||||||||||||||
| SL1112.M12-008-C | Locking | 8 | M12x1,75 | 4.7 | 73.0 | 31.8 | 28.0 | 22.2 | 31.2 | 19.0 | 12 | 4.0 | 22.0 | 13.0 | 55 | |||||||||||||||||||
£ 15.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking d1 8 d2 M12x1,75 d3 4.7 l1 73.0 l2 31.8 l3 28.0 l4 22.2 l5 31.2 s 19.0 A/F 12 Spring load F1
≈
N 4.0 Spring load F2
≈
N 22.0 Tightening torque
max.
Nm 13.0 Weight
g 55 | ||||||||||||||||||||||||||||||||||
| SL1112.M16-010-C | Locking | 10 | M16x2,00 | 4.7 | 102.5 | 50.5 | 44.5 | 27.0 | 32.7 | 25.0 | 16 | 4.0 | 23.0 | 42.0 | 103 | |||||||||||||||||||
£ 17.93 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking d1 10 d2 M16x2,00 d3 4.7 l1 102.5 l2 50.5 l3 44.5 l4 27.0 l5 32.7 s 25.0 A/F 16 Spring load F1
≈
N 4.0 Spring load F2
≈
N 23.0 Tightening torque
max.
Nm 42.0 Weight
g 103 | ||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: free cutting steel, zinc plated.
Pin: steel, galvanised.
Lever: steel, galvanised.
Technical Notes
Pull back and turn lever 180º to retract pin. To enable pin to be held in retracted position, secure lever in notched catch on plunger body.
For applications where high precision is not requried.
Coarse thread.
Temperature resistance up to 250ºC
Lock nuts sold separately. See product 65690.
Tips
Spring loads* = statistical average.
