Shoulder Washers
HomeProductsScrews & WashersNylon FastenersNylonShoulder WashersN0427.N0

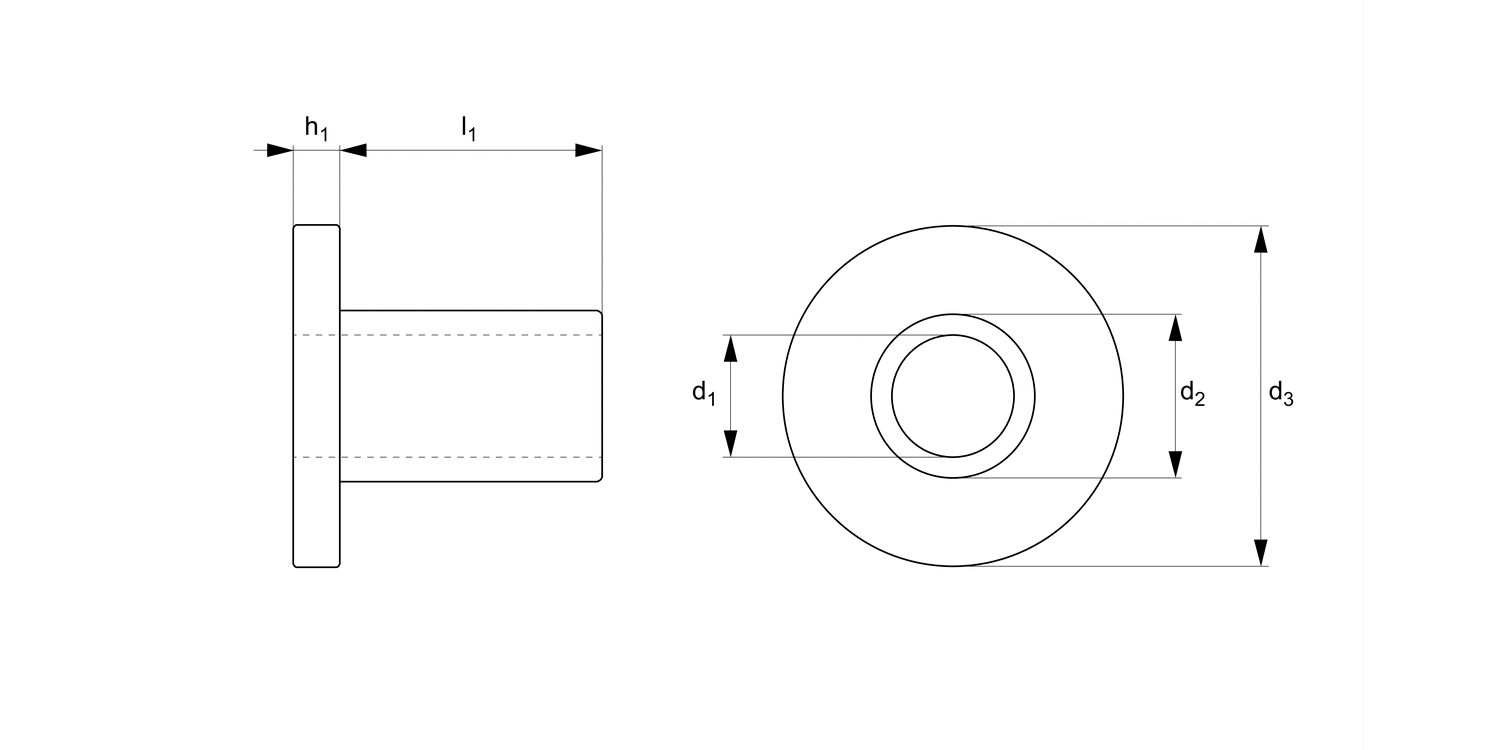

N0427.N0 Shoulder Washer

Standard, material: Nylon
N0427.N0 Shoulder Washer
N0427.N0 Shoulder Washer
Download product datasheet

Alternative products you may wish to consider

N0427.N0 - Shoulder Washer
Standard Shoulder Washer
nylon shoulder
N6060.60N.1 - Shoulder Washer i/d 3,0 - 6,5
Shoulder Washers
Nylon Ø3,0 - Ø6,5
N6060.60N.2 - Shoulder Washer i/d 8,0 - 10,0
Shoulder Washers
Nylon Ø8,0 - Ø10,0
N6060.60N.3 - Shoulder Washer i/d 10,2 - 12,5
Shoulder Washers
Nylon Ø10,2 - Ø12,5
N6060.60N.4 - Shoulder Washer i/d 14,0 - 20,0
Shoulder Washers
Nylon Ø14,0 - Ø20,0
N0427.030-007 Shoulder Washer Nylon M3 Standard Nylon Shoulder Washers 7.11 Long ID = 3.56, OD = 4.32, L = 7.11, WASHER = 11.43 X 1.19
Shoulder Washer Nylon M3 Standard Nylon Shoulder Washers 7.11 Long ID = 3.56, OD = 4.32, L = 7.11, WASHER = 11.43 X 1.19

N0427.030-007

d1
3.56
d2
4.32
d3
11.43
h
1.19
l
7.16
£ 9.41 per 100 units (click for quantity discounts)
N0427.030-006 Shoulder Washer Nylon M3 Standard Nylon Shoulder Washers 5.55 Long ID = 3.56, OD = 5.94, L = 5.55, WASHERS 7.49 X 0.79
Shoulder Washer Nylon M3 Standard Nylon Shoulder Washers 5.55 Long ID = 3.56, OD = 5.94, L = 5.55, WASHERS 7.49 X 0.79

N0427.030-006

d1
3.56
d2
5.94
d3
7.49
h
0.79
l
5.55
£ 11.50 per 100 units (click for quantity discounts)
N0427.040-002 Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 1.59 Long 4.06mm id x 4.93mm od x 1.59mm long washer 7.62mm od x 1.19mm thk
Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 1.59 Long 4.06mm id x 4.93mm od x 1.59mm long washer 7.62mm od x 1.19mm thk

N0427.040-002

d1
4.06
d2
4.93
d3
7.62
h
1.19
l
1.59
£ 7.32 per 100 units (click for quantity discounts)
N0427.040-010 Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 10.32 Long
Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 10.32 Long

N0427.040-010

d1
4.34
d2
6.35
d3
12.95
h
1.59
l
10.32
£ 5.23 per 100 units (click for quantity discounts)
N0427.040-011 Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 9.53 Long ID = 4.39, OD = 5.21, L = 9.53, WASHER = 8.74 X 1.59 THK
Shoulder Washer Nylon M4 Standard Nylon Shoulder Washers 9.53 Long ID = 4.39, OD = 5.21, L = 9.53, WASHER = 8.74 X 1.59 THK

N0427.040-011

d1
4.39
d2
5.21
d3
8.74
h
1.59
l
9.53
£ 11.50 per 100 units (click for quantity discounts)
N0427.050-011 Shoulder Washer Nylon M5 Standard Nylon Shoulder Washers 9.53 Long 5.08mm id x 6.60mm od x 9.53mm long 10.13mm od x 1.59mm thk
Shoulder Washer Nylon M5 Standard Nylon Shoulder Washers 9.53 Long 5.08mm id x 6.60mm od x 9.53mm long 10.13mm od x 1.59mm thk

N0427.050-011

d1
5.08
d2
6.60
d3
10.13
h
1.59
l
9.53
£ 13.59 per 100 units (click for quantity discounts)
N0427.050-005 Shoulder Washer Nylon M5 Standard Nylon Shoulder Washers 4.75 Long 5.08mm id x 7.92mm od x 4.75mm long 12.57mm x 1.65mm head thickness
Shoulder Washer Nylon M5 Standard Nylon Shoulder Washers 4.75 Long 5.08mm id x 7.92mm od x 4.75mm long 12.57mm x 1.65mm head thickness

N0427.050-005

d1
5.08
d2
7.92
d3
12.57
h
1.65
l
4.75
£ 11.50 per 100 units (click for quantity discounts)
N0427.060-014 Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 14.29 Long 6.48mm x 9.53mm x 14.29mm long Washer 13.97mm x 1.59mm thk
Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 14.29 Long 6.48mm x 9.53mm x 14.29mm long Washer 13.97mm x 1.59mm thk

N0427.060-014

d1
6.48
d2
9.53
d3
13.97
h
1.59
l
14.29
£ 11.50 per 100 units (click for quantity discounts)
N0427.060-002 Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 2.38 Long 6.53mm x 8.71mm x 2.38mm long 12.83mm od x 1.59mm thk
Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 2.38 Long 6.53mm x 8.71mm x 2.38mm long 12.83mm od x 1.59mm thk

N0427.060-002

d1
6.53
d2
8.71
d3
12.83
h
1.59
l
2.38
£ 18.81 per 100 units (click for quantity discounts)
N0427.060-006 Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 9.53 Long 6.61mm x 7.90mm x 9.53mm long 13.09mm od x 1.59mm thk
Shoulder Washer Nylon M6 Standard Nylon Shoulder Washers 9.53 Long 6.61mm x 7.90mm x 9.53mm long 13.09mm od x 1.59mm thk

N0427.060-006

d1
6.63
d2
7.93
d3
13.03
h
1.59
l
9.53
£ 10.45 per 100 units (click for quantity discounts)
N0427.080-010 Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 10.03 Long 8.18mm x 10.92mm x 10.03mm long washer 18.8mm x 1.65mm thk
Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 10.03 Long 8.18mm x 10.92mm x 10.03mm long washer 18.8mm x 1.65mm thk

N0427.080-010

d1
8.18
d2
10.92
d3
18.80
h
1.65
l
10.03
£ 28.22 per 100 units (click for quantity discounts)
N0427.080-006 Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 5.55 Long ID = 8.26, OD = 9.53, L = 5.55, WASHER = 11.89 X 1.19 THK
Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 5.55 Long ID = 8.26, OD = 9.53, L = 5.55, WASHER = 11.89 X 1.19 THK

N0427.080-006

d1
8.26
d2
9.53
d3
11.89
h
1.19
l
5.55
£ 18.81 per 100 units (click for quantity discounts)
N0427.080-001 Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 1.19 Long 8.51mm id x 9.40mm od x 1.19mm long 14.28mm od x 0.61mm thk
Shoulder Washer Nylon M8 Standard Nylon Shoulder Washers 1.19 Long 8.51mm id x 9.40mm od x 1.19mm long 14.28mm od x 0.61mm thk

N0427.080-001

d1
8.51
d2
9.40
d3
14.28
h
0.61
l
1.19
£ 12.54 per 100 units (click for quantity discounts)
N0427.100-013 Shoulder Washer Nylon M10 Standard Nylon Shoulder Washers 13.49 Long 10.31mm id x 11.93mm od x 13.49mm long 24.03mm od x 1.98mm thk
Shoulder Washer Nylon M10 Standard Nylon Shoulder Washers 13.49 Long 10.31mm id x 11.93mm od x 13.49mm long 24.03mm od x 1.98mm thk

N0427.100-013

d1
10.31
d2
11.93
d3
24.03
h
1.98
l
13.49
£ 38.67 per 100 units (click for quantity discounts)
N0427.100-011 Shoulder Washer Nylon M10 Standard Nylon Shoulder Washers 10.67 Long 10.67mm x 11.94mm x 10.67mm long 18.03mm x 1.90mm thk
Shoulder Washer Nylon M10 Standard Nylon Shoulder Washers 10.67 Long 10.67mm x 11.94mm x 10.67mm long 18.03mm x 1.90mm thk

N0427.100-011

d1
10.67
d2
11.94
d3
18.03
h
1.90
l
10.67
£ 15.68 per 100 units (click for quantity discounts)
N0427.120-008 Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 7.94 Long 12.7mm id x 14.22m od x 7.94mm long under head 18.92mm od x 0.79mm thk
Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 7.94 Long 12.7mm id x 14.22m od x 7.94mm long under head 18.92mm od x 0.79mm thk

N0427.120-008

d1
12.70
d2
14.30
d3
18.92
h
0.79
l
7.94
£ 21.95 per 100 units (click for quantity discounts)
N0427.120-005 Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 4.76 Long ID = 12.95, OD = 15.88, L = 4.76, WASHER = 19.06 X 1.59 THK
Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 4.76 Long ID = 12.95, OD = 15.88, L = 4.76, WASHER = 19.06 X 1.59 THK

N0427.120-005

d1
12.95
d2
15.95
d3
19.06
h
1.59
l
4.76
£ 8.36 per 100 units (click for quantity discounts)
N0427.120-010 Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 9.53 Long 12.95mm id x 16.08mm od x 9.53mm long under head 22.22mm od x 3.17mm thk
Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 9.53 Long 12.95mm id x 16.08mm od x 9.53mm long under head 22.22mm od x 3.17mm thk

N0427.120-010

d1
12.95
d2
16.08
d3
22.22
h
3.17
l
9.53
£ 15.68 per 100 units (click for quantity discounts)
N0427.130-007 Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 7.14 Long ID = 13.08, OD = 19.10, L = 7.14, WASHER = 28.07 X 3.18 THK
Shoulder Washer Nylon M12 Standard Nylon Shoulder Washers 7.14 Long ID = 13.08, OD = 19.10, L = 7.14, WASHER = 28.07 X 3.18 THK

N0427.130-007

d1
13.08
d2
19.10
d3
28.07
h
3.18
l
7.14
£ 55.39 per 100 units (click for quantity discounts)
N0427.160-013 Shoulder Washer Nylon M16 Standard Nylon Shoulder Washers 12.70 Long 16.13mm x 19.05mm x 12.7mm long Washer 22.23mm od x 1.59mm thk
Shoulder Washer Nylon M16 Standard Nylon Shoulder Washers 12.70 Long 16.13mm x 19.05mm x 12.7mm long Washer 22.23mm od x 1.59mm thk

N0427.160-013

d1
16.13
d2
19.05
d3
22.23
h
1.59
l
12.70
£ 43.89 per 100 units (click for quantity discounts)
