N0500.HP Cap Head Hexagon Socket

Hygienic
N0500.HP Cap Head Hexagon Socket
N0500.HP Cap Head Hexagon Socket
Download product datasheet

Alternative products you may wish to consider

N0500.HP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
N0500.MP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
N0500.NP - Cap Head Hexagon Socket
Cap Head Hexagon Socket
Natural PEEK
N0501.NP - Hexagonal Head Set Screw
Hexagonal Head Set Screw
Natural PEEK
N0502.NP - Hexagon Nuts
Hexagon nuts
Natural PEEK
N0503.NP - Female-Female Hexagon Spacers
Female-Female Hexagon Spacers
Natural PEEK
N0504.NP - Male-Female Hexagonal Spacers
Male-Female Hexagonal Spacers
Hexagonal
N0507.NP - Set Screws
Set Screws
Natural PEEK
N0508.NP - Ultra Low Head Cap Screws
Machine Screws
Ultra Low Head
N0509.NP - Torx Low Cap Head Screws
Low cap head screws
TX
N0510.NP - Washers
Washers
Natural PEEK
N0511.NP - Low Cap Head Hex Socket Screws
Low cap head screws
Hex Socket
N0512.NP - Slotted Cheese Head Screw
Cheese Head Screw
Head Screw
N0513.NP - Torx Ultra Low Head Screws
Ultra low head screws
Hexalobular
N0514.NP - Countersunk Hexagon Head Screws
Countersunk Hex Screws
Natural PEEK
N0515.NP - Torx Countersunk Head Screws
Countersunk Head Screws
TX
N0520.NP - Torx Pan Head Screws
Pan Head Screws
TX
N0530.NP - Cap Head Vented Screws
Cap Head
Vented
N0500.030-008-HP Cap head hexagon socket M3x8 PEEK PEEK (Blue)
Cap head hexagon socket M3x8 PEEK PEEK (Blue)

N0500.030-008-HP

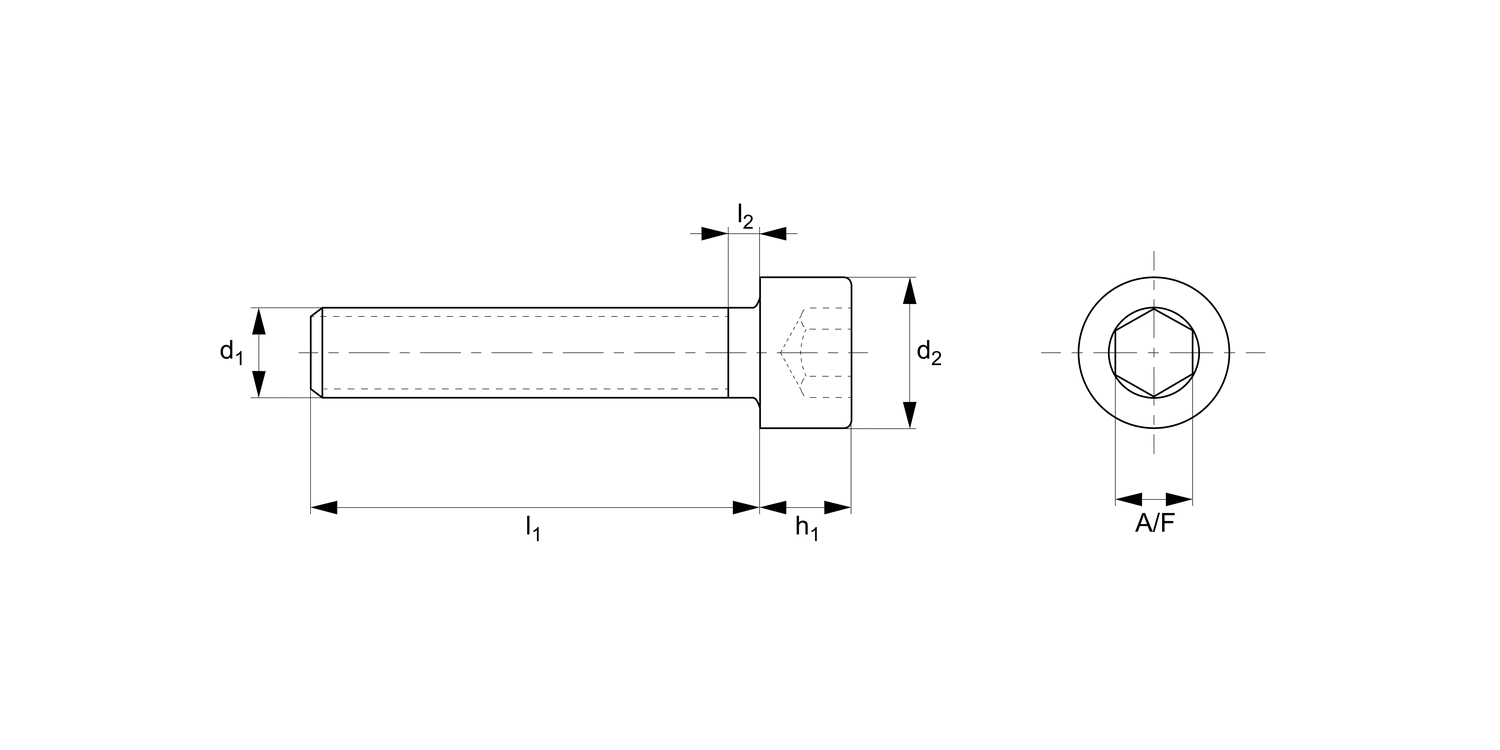

d1
M 3
l1 +/- 0.2
8
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-010-HP Cap head hexagon socket M3x10 PEEK PEEK (Blue)
Cap head hexagon socket M3x10 PEEK PEEK (Blue)

N0500.030-010-HP

d1
M 3
l1 +/- 0.2
10
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-012-HP Cap head hexagon socket M3x12 PEEK PEEK (Blue)
Cap head hexagon socket M3x12 PEEK PEEK (Blue)

N0500.030-012-HP

d1
M 3
l1 +/- 0.2
12
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-015-HP Cap head hexagon socket M3x15 PEEK PEEK (Blue)
Cap head hexagon socket M3x15 PEEK PEEK (Blue)

N0500.030-015-HP

d1
M 3
l1 +/- 0.2
15
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-020-HP Cap head hexagon socket M3x20 PEEK PEEK (Blue)
Cap head hexagon socket M3x20 PEEK PEEK (Blue)

N0500.030-020-HP

d1
M 3
l1 +/- 0.2
20
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-025-HP Cap head hexagon socket M3x25 PEEK PEEK (Blue)
Cap head hexagon socket M3x25 PEEK PEEK (Blue)

N0500.030-025-HP

d1
M 3
l1 +/- 0.2
25
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.040-008-HP Cap head hexagon socket M4x8 PEEK PEEK (Blue)
Cap head hexagon socket M4x8 PEEK PEEK (Blue)

N0500.040-008-HP

d1
M 4
l1 +/- 0.2
8
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-010-HP Cap head hexagon socket M4x10 PEEK PEEK (Blue)
Cap head hexagon socket M4x10 PEEK PEEK (Blue)

N0500.040-010-HP

d1
M 4
l1 +/- 0.2
10
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-012-HP Cap head hexagon socket M4x12 PEEK PEEK (Blue)
Cap head hexagon socket M4x12 PEEK PEEK (Blue)

N0500.040-012-HP

d1
M 4
l1 +/- 0.2
12
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-015-HP Cap head hexagon socket M4x15 PEEK PEEK (Blue)
Cap head hexagon socket M4x15 PEEK PEEK (Blue)

N0500.040-015-HP

d1
M 4
l1 +/- 0.2
15
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-020-HP Cap head hexagon socket M4x20 PEEK PEEK (Blue)
Cap head hexagon socket M4x20 PEEK PEEK (Blue)

N0500.040-020-HP

d1
M 4
l1 +/- 0.2
20
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-025-HP Cap head hexagon socket M4x25 PEEK PEEK (Blue)
Cap head hexagon socket M4x25 PEEK PEEK (Blue)

N0500.040-025-HP

d1
M 4
l1 +/- 0.2
25
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.050-008-HP Cap head hexagon socket M5x8 PEEK PEEK (Blue)
Cap head hexagon socket M5x8 PEEK PEEK (Blue)

N0500.050-008-HP

d1
M 5
l1 +/- 0.2
8
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-010-HP Cap head hexagon socket M5x10 PEEK PEEK (Blue)
Cap head hexagon socket M5x10 PEEK PEEK (Blue)

N0500.050-010-HP

d1
M 5
l1 +/- 0.2
10
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-012-HP Cap head hexagon socket M5x12 PEEK PEEK (Blue)
Cap head hexagon socket M5x12 PEEK PEEK (Blue)

N0500.050-012-HP

d1
M 5
l1 +/- 0.2
12
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-015-HP Cap head hexagon socket M5x15 PEEK PEEK (Blue)
Cap head hexagon socket M5x15 PEEK PEEK (Blue)

N0500.050-015-HP

d1
M 5
l1 +/- 0.2
15
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-020-HP Cap head hexagon socket M5x20 PEEK PEEK (Blue)
Cap head hexagon socket M5x20 PEEK PEEK (Blue)

N0500.050-020-HP

d1
M 5
l1 +/- 0.2
20
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-025-HP Cap head hexagon socket M5x25 PEEK PEEK (Blue)
Cap head hexagon socket M5x25 PEEK PEEK (Blue)

N0500.050-025-HP

d1
M 5
l1 +/- 0.2
25
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-030-HP Cap head hexagon socket M5x30 PEEK PEEK (Blue)
Cap head hexagon socket M5x30 PEEK PEEK (Blue)

N0500.050-030-HP

d1
M 5
l1 +/- 0.2
30
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.060-010-HP Cap head hexagon socket M6x10 PEEK PEEK (Blue)
Cap head hexagon socket M6x10 PEEK PEEK (Blue)

N0500.060-010-HP

d1
M 6
l1 +/- 0.2
10
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-012-HP Cap head hexagon socket M6x12 PEEK PEEK (Blue)
Cap head hexagon socket M6x12 PEEK PEEK (Blue)

N0500.060-012-HP

d1
M 6
l1 +/- 0.2
12
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-015-HP Cap head hexagon socket M6x15 PEEK PEEK (Blue)
Cap head hexagon socket M6x15 PEEK PEEK (Blue)

N0500.060-015-HP

d1
M 6
l1 +/- 0.2
15
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-020-HP Cap head hexagon socket M6x20 PEEK PEEK (Blue)
Cap head hexagon socket M6x20 PEEK PEEK (Blue)

N0500.060-020-HP

d1
M 6
l1 +/- 0.2
20
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-025-HP Cap head hexagon socket M6x25 PEEK PEEK (Blue)
Cap head hexagon socket M6x25 PEEK PEEK (Blue)

N0500.060-025-HP

d1
M 6
l1 +/- 0.2
25
l2 max.
2.0
d2
10.0
h1
6
A/F
5.5
N0500.060-030-HP Cap head hexagon socket M6x30 PEEK PEEK (Blue)
Cap head hexagon socket M6x30 PEEK PEEK (Blue)

N0500.060-030-HP

d1
M 6
l1 +/- 0.2
30
l2 max.
2.0
d2
10.0
h1
6
A/F
5.5
N0500.080-020-HP Cap head hexagon socket M8x20 PEEK PEEK (Blue)
Cap head hexagon socket M8x20 PEEK PEEK (Blue)

N0500.080-020-HP

d1
M 8
l1 +/- 0.2
20
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-025-HP Cap head hexagon socket M8x25 PEEK PEEK (Blue)
Cap head hexagon socket M8x25 PEEK PEEK (Blue)

N0500.080-025-HP

d1
M 8
l1 +/- 0.2
25
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-030-HP Cap head hexagon socket M8x30 PEEK PEEK (Blue)
Cap head hexagon socket M8x30 PEEK PEEK (Blue)

N0500.080-030-HP

d1
M 8
l1 +/- 0.2
30
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-035-HP Cap head hexagon socket M8x35 PEEK PEEK (Blue)
Cap head hexagon socket M8x35 PEEK PEEK (Blue)

N0500.080-035-HP

d1
M 8
l1 +/- 0.2
35
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.030-008-HP Cap head hexagon socket M3x8 PEEK PEEK (Blue)
Cap head hexagon socket M3x8 PEEK PEEK (Blue)

N0500.030-008-HP

d1
M 3
l1 +/- 0.2
8
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-010-HP Cap head hexagon socket M3x10 PEEK PEEK (Blue)
Cap head hexagon socket M3x10 PEEK PEEK (Blue)

N0500.030-010-HP

d1
M 3
l1 +/- 0.2
10
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-012-HP Cap head hexagon socket M3x12 PEEK PEEK (Blue)
Cap head hexagon socket M3x12 PEEK PEEK (Blue)

N0500.030-012-HP

d1
M 3
l1 +/- 0.2
12
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-015-HP Cap head hexagon socket M3x15 PEEK PEEK (Blue)
Cap head hexagon socket M3x15 PEEK PEEK (Blue)

N0500.030-015-HP

d1
M 3
l1 +/- 0.2
15
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-020-HP Cap head hexagon socket M3x20 PEEK PEEK (Blue)
Cap head hexagon socket M3x20 PEEK PEEK (Blue)

N0500.030-020-HP

d1
M 3
l1 +/- 0.2
20
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.030-025-HP Cap head hexagon socket M3x25 PEEK PEEK (Blue)
Cap head hexagon socket M3x25 PEEK PEEK (Blue)

N0500.030-025-HP

d1
M 3
l1 +/- 0.2
25
l2 max.
1.0
d2
5.5
h1
3
A/F
2.5
N0500.040-008-HP Cap head hexagon socket M4x8 PEEK PEEK (Blue)
Cap head hexagon socket M4x8 PEEK PEEK (Blue)

N0500.040-008-HP

d1
M 4
l1 +/- 0.2
8
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-010-HP Cap head hexagon socket M4x10 PEEK PEEK (Blue)
Cap head hexagon socket M4x10 PEEK PEEK (Blue)

N0500.040-010-HP

d1
M 4
l1 +/- 0.2
10
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-012-HP Cap head hexagon socket M4x12 PEEK PEEK (Blue)
Cap head hexagon socket M4x12 PEEK PEEK (Blue)

N0500.040-012-HP

d1
M 4
l1 +/- 0.2
12
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-015-HP Cap head hexagon socket M4x15 PEEK PEEK (Blue)
Cap head hexagon socket M4x15 PEEK PEEK (Blue)

N0500.040-015-HP

d1
M 4
l1 +/- 0.2
15
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-020-HP Cap head hexagon socket M4x20 PEEK PEEK (Blue)
Cap head hexagon socket M4x20 PEEK PEEK (Blue)

N0500.040-020-HP

d1
M 4
l1 +/- 0.2
20
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.040-025-HP Cap head hexagon socket M4x25 PEEK PEEK (Blue)
Cap head hexagon socket M4x25 PEEK PEEK (Blue)

N0500.040-025-HP

d1
M 4
l1 +/- 0.2
25
l2 max.
1.4
d2
7.0
h1
4
A/F
3.0
N0500.050-008-HP Cap head hexagon socket M5x8 PEEK PEEK (Blue)
Cap head hexagon socket M5x8 PEEK PEEK (Blue)

N0500.050-008-HP

d1
M 5
l1 +/- 0.2
8
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-010-HP Cap head hexagon socket M5x10 PEEK PEEK (Blue)
Cap head hexagon socket M5x10 PEEK PEEK (Blue)

N0500.050-010-HP

d1
M 5
l1 +/- 0.2
10
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-012-HP Cap head hexagon socket M5x12 PEEK PEEK (Blue)
Cap head hexagon socket M5x12 PEEK PEEK (Blue)

N0500.050-012-HP

d1
M 5
l1 +/- 0.2
12
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-015-HP Cap head hexagon socket M5x15 PEEK PEEK (Blue)
Cap head hexagon socket M5x15 PEEK PEEK (Blue)

N0500.050-015-HP

d1
M 5
l1 +/- 0.2
15
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-020-HP Cap head hexagon socket M5x20 PEEK PEEK (Blue)
Cap head hexagon socket M5x20 PEEK PEEK (Blue)

N0500.050-020-HP

d1
M 5
l1 +/- 0.2
20
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-025-HP Cap head hexagon socket M5x25 PEEK PEEK (Blue)
Cap head hexagon socket M5x25 PEEK PEEK (Blue)

N0500.050-025-HP

d1
M 5
l1 +/- 0.2
25
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.050-030-HP Cap head hexagon socket M5x30 PEEK PEEK (Blue)
Cap head hexagon socket M5x30 PEEK PEEK (Blue)

N0500.050-030-HP

d1
M 5
l1 +/- 0.2
30
l2 max.
1.6
d2
8.5
h1
5
A/F
4.0
N0500.060-010-HP Cap head hexagon socket M6x10 PEEK PEEK (Blue)
Cap head hexagon socket M6x10 PEEK PEEK (Blue)

N0500.060-010-HP

d1
M 6
l1 +/- 0.2
10
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-012-HP Cap head hexagon socket M6x12 PEEK PEEK (Blue)
Cap head hexagon socket M6x12 PEEK PEEK (Blue)

N0500.060-012-HP

d1
M 6
l1 +/- 0.2
12
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-015-HP Cap head hexagon socket M6x15 PEEK PEEK (Blue)
Cap head hexagon socket M6x15 PEEK PEEK (Blue)

N0500.060-015-HP

d1
M 6
l1 +/- 0.2
15
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-020-HP Cap head hexagon socket M6x20 PEEK PEEK (Blue)
Cap head hexagon socket M6x20 PEEK PEEK (Blue)

N0500.060-020-HP

d1
M 6
l1 +/- 0.2
20
l2 max.
2.0
d2
10.0
h1
6
A/F
5.0
N0500.060-025-HP Cap head hexagon socket M6x25 PEEK PEEK (Blue)
Cap head hexagon socket M6x25 PEEK PEEK (Blue)

N0500.060-025-HP

d1
M 6
l1 +/- 0.2
25
l2 max.
2.0
d2
10.0
h1
6
A/F
5.5
N0500.060-030-HP Cap head hexagon socket M6x30 PEEK PEEK (Blue)
Cap head hexagon socket M6x30 PEEK PEEK (Blue)

N0500.060-030-HP

d1
M 6
l1 +/- 0.2
30
l2 max.
2.0
d2
10.0
h1
6
A/F
5.5
N0500.080-020-HP Cap head hexagon socket M8x20 PEEK PEEK (Blue)
Cap head hexagon socket M8x20 PEEK PEEK (Blue)

N0500.080-020-HP

d1
M 8
l1 +/- 0.2
20
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-025-HP Cap head hexagon socket M8x25 PEEK PEEK (Blue)
Cap head hexagon socket M8x25 PEEK PEEK (Blue)

N0500.080-025-HP

d1
M 8
l1 +/- 0.2
25
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-030-HP Cap head hexagon socket M8x30 PEEK PEEK (Blue)
Cap head hexagon socket M8x30 PEEK PEEK (Blue)

N0500.080-030-HP

d1
M 8
l1 +/- 0.2
30
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0
N0500.080-035-HP Cap head hexagon socket M8x35 PEEK PEEK (Blue)
Cap head hexagon socket M8x35 PEEK PEEK (Blue)

N0500.080-035-HP

d1
M 8
l1 +/- 0.2
35
l2 max.
2.5
d2
13.0
h1
8
A/F
6.0

d1
l1 +/- 0.2
l2 max.
d2
h1
A/F
Price & AvailabilityArticled1l1 +/- 0.2l2 max.d2h1A/F
N0500.030-008-HPM 381.05.532.5
N0500.030-010-HPM 3101.05.532.5
N0500.030-012-HPM 3121.05.532.5
N0500.030-015-HPM 3151.05.532.5
N0500.030-020-HPM 3201.05.532.5
N0500.030-025-HPM 3251.05.532.5
N0500.040-008-HPM 481.47.043.0
N0500.040-010-HPM 4101.47.043.0
N0500.040-012-HPM 4121.47.043.0
N0500.040-015-HPM 4151.47.043.0
N0500.040-020-HPM 4201.47.043.0
N0500.040-025-HPM 4251.47.043.0
N0500.050-008-HPM 581.68.554.0
N0500.050-010-HPM 5101.68.554.0
N0500.050-012-HPM 5121.68.554.0
N0500.050-015-HPM 5151.68.554.0
N0500.050-020-HPM 5201.68.554.0
N0500.050-025-HPM 5251.68.554.0
N0500.050-030-HPM 5301.68.554.0
N0500.060-010-HPM 6102.010.065.0
N0500.060-012-HPM 6122.010.065.0
N0500.060-015-HPM 6152.010.065.0
N0500.060-020-HPM 6202.010.065.0
N0500.060-025-HPM 6252.010.065.5
N0500.060-030-HPM 6302.010.065.5
N0500.080-020-HPM 8202.513.086.0
N0500.080-025-HPM 8252.513.086.0
N0500.080-030-HPM 8302.513.086.0
N0500.080-035-HPM 8352.513.086.0

Technical & Application

Material

Polyether ether ketone (PEEK). Blue.

A high performance plastic with very good durability and wear resistance. PEEK has excellent chemical resistance and performs well at temperatures up to 260°C.

Tensile strength ~116N/mm².

Technical Notes

Manufactured for industries with a hygienic requirement, these products are made with an X-Ray opaque or metal detectable filler, in blue, for optical detection.

For medical industry applications, we can offer these products in a variant of PEEK which is refined for biocompatibilty.

Natural PEEK is used in the aerospace and chemical industries.

Product Datasheets

N0500.HP Cap Head Hexagon SocketMay 16, 2025, 2:30 PM / 68.41 kB
PEEK FastenersMay 16, 2025, 2:30 PM / 745.25 kB
Other PlasticsJanuary 3, 2025, 3:34 PM / 700.86 kB
Nylon FastenersJanuary 3, 2025, 3:34 PM / 3.16 MB
Screws & WashersJanuary 3, 2025, 3:33 PM / 5.25 MB

This content is not visible because of your cookie settings.


Contact
Teknipart
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 9969
sales@teknipart.co.uk
Route via Google Maps

Company registration no: 00496138
VAT no.: GB 408154022

Information
FAQNewsTechnical ReferenceSee our Fasteners in Focus
Follow us
© 2025 Teknipart
Contact
Teknipart

Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 9969
