MS/NAS Grade Mini
metric, 303 s/s non-locking

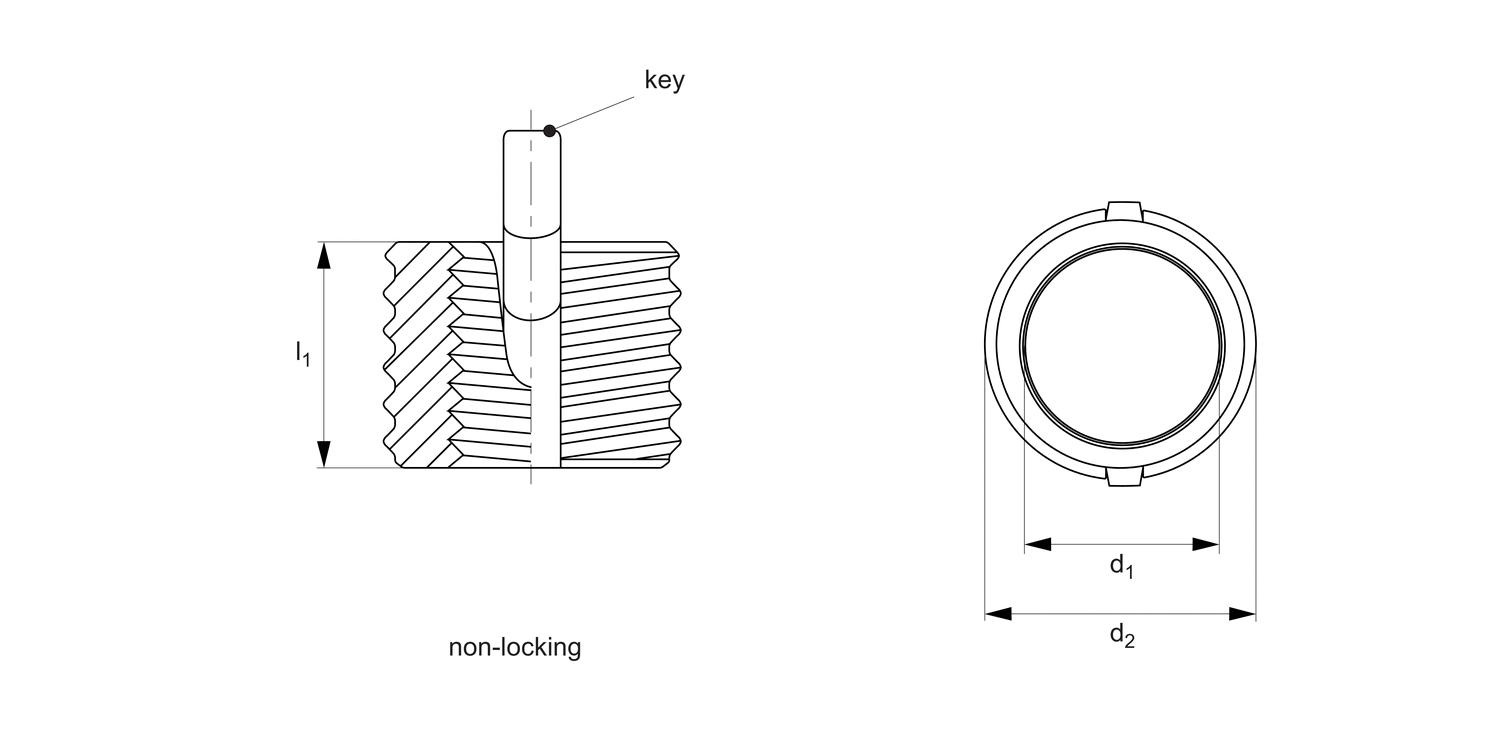

TR1600 Threaded Insert MS/NAS - Mini - Metric
303 stainless steel - non-locking - MS/NAS grade
Alternative products you may wish to consider
Type
NL
d1
tol. 4H 6H
M 2x0,4
Thread type d1
Coarse
d2
tol. 4h
M 4x0,7
Thread type d2
Coarse
l1
3.00
Inst. c'sink hole size
+0.25|-0.00
4.1
Inst. tap drill size
+0.080|-0.025
3.4
Inst. tap to depth
min.
4.0
Inst. thread tap
tol. 6H
M 4x0,7
Inst. tool ref. TR1710
.0820
Removal drill size
2.8
Removal drill depth
2.00
Type
NL
d1
tol. 4H 6H
M2,5x0,45
Thread type d1
Coarse
d2
tol. 4h
M4,5x0,75
Thread type d2
Coarse
l1
3.81
Inst. c'sink hole size
+0.25|-0.00
4.6
Inst. tap drill size
+0.080|-0.025
3.9
Inst. tap to depth
min.
5.0
Inst. thread tap
tol. 6H
M4,5x0,75
Inst. tool ref. TR1710
.0830
Removal drill size
3.0
Removal drill depth
2.00
£ 22.95 per unit (click for quantity discounts)
Type
NL
d1
tol. 4H 6H
M 3x0,5
Thread type d1
Coarse
d2
tol. 4h
M 5x0,8
Thread type d2
Coarse
l1
4.25
Inst. c'sink hole size
+0.25|-0.00
5.1
Inst. tap drill size
+0.080|-0.025
4.4
Inst. tap to depth
min.
5.5
Inst. thread tap
tol. 6H
M 5x0,8
Inst. tool ref. TR1710
.0840
Removal drill size
3.5
Removal drill depth
2.25
£ 13.08 per unit (click for quantity discounts)
Type
NL
d1
tol. 4H 6H
M 4x0,7
Thread type d1
Coarse
d2
tol. 4h
M 6x0,75
Thread type d2
Fine
l1
5.25
Inst. c'sink hole size
+0.25|-0.00
6.1
Inst. tap drill size
+0.080|-0.025
5.5
Inst. tap to depth
min.
6.5
Inst. thread tap
tol. 6H
M 6x0,75
Inst. tool ref. TR1710
.0860
Removal drill size
4.6
Removal drill depth
2.50
£ 17.09 per unit (click for quantity discounts)
Type
d1
tol. 4H 6H
Thread type d1
d2
tol. 4h
Thread type d2
l1
Inst. c'sink hole size
+0.25|-0.00
Inst. tap drill size
+0.080|-0.025
Inst. tap to depth
min.
Inst. thread tap
tol. 6H
Inst. tool ref. TR1710
Removal drill size
Removal drill depth
| Price & Availability | Article | Type | d1 tol. 4H 6H | Thread type d1 | d2 tol. 4h | Thread type d2 | l1 | Inst. c'sink hole size +0.25|-0.00 | Inst. tap drill size +0.080|-0.025 | Inst. tap to depth min. | Inst. thread tap tol. 6H | Inst. tool ref. TR1710 | Removal drill size | Removal drill depth | ||||||||||||||||||||||||
| TR1600.76382 | NL | M 2x0,4 | Coarse | M 4x0,7 | Coarse | 3.00 | 4.1 | 3.4 | 4.0 | M 4x0,7 | .0820 | 2.8 | 2.00 | |||||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type NL d1
tol. 4H 6H M 2x0,4 Thread type d1 Coarse d2
tol. 4h M 4x0,7 Thread type d2 Coarse l1 3.00 Inst. c'sink hole size
+0.25|-0.00 4.1 Inst. tap drill size
+0.080|-0.025 3.4 Inst. tap to depth
min. 4.0 Inst. thread tap
tol. 6H M 4x0,7 Inst. tool ref. TR1710 .0820 Removal drill size 2.8 Removal drill depth 2.00 | ||||||||||||||||||||||||||||||||||||||
| TR1600.76383 | NL | M2,5x0,45 | Coarse | M4,5x0,75 | Coarse | 3.81 | 4.6 | 3.9 | 5.0 | M4,5x0,75 | .0830 | 3.0 | 2.00 | |||||||||||||||||||||||||
£ 22.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type NL d1
tol. 4H 6H M2,5x0,45 Thread type d1 Coarse d2
tol. 4h M4,5x0,75 Thread type d2 Coarse l1 3.81 Inst. c'sink hole size
+0.25|-0.00 4.6 Inst. tap drill size
+0.080|-0.025 3.9 Inst. tap to depth
min. 5.0 Inst. thread tap
tol. 6H M4,5x0,75 Inst. tool ref. TR1710 .0830 Removal drill size 3.0 Removal drill depth 2.00 | ||||||||||||||||||||||||||||||||||||||
| TR1600.76384 | NL | M 3x0,5 | Coarse | M 5x0,8 | Coarse | 4.25 | 5.1 | 4.4 | 5.5 | M 5x0,8 | .0840 | 3.5 | 2.25 | |||||||||||||||||||||||||
£ 13.08 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type NL d1
tol. 4H 6H M 3x0,5 Thread type d1 Coarse d2
tol. 4h M 5x0,8 Thread type d2 Coarse l1 4.25 Inst. c'sink hole size
+0.25|-0.00 5.1 Inst. tap drill size
+0.080|-0.025 4.4 Inst. tap to depth
min. 5.5 Inst. thread tap
tol. 6H M 5x0,8 Inst. tool ref. TR1710 .0840 Removal drill size 3.5 Removal drill depth 2.25 | ||||||||||||||||||||||||||||||||||||||
| TR1600.76386 | NL | M 4x0,7 | Coarse | M 6x0,75 | Fine | 5.25 | 6.1 | 5.5 | 6.5 | M 6x0,75 | .0860 | 4.6 | 2.50 | |||||||||||||||||||||||||
£ 17.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type NL d1
tol. 4H 6H M 4x0,7 Thread type d1 Coarse d2
tol. 4h M 6x0,75 Thread type d2 Fine l1 5.25 Inst. c'sink hole size
+0.25|-0.00 6.1 Inst. tap drill size
+0.080|-0.025 5.5 Inst. tap to depth
min. 6.5 Inst. thread tap
tol. 6H M 6x0,75 Inst. tool ref. TR1710 .0860 Removal drill size 4.6 Removal drill depth 2.50 | ||||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Inserts - 303 CRES.
Keys - 302 CRES.
Passivated. Dry film lubrication on self-locking inserts only.
Technical Notes
All dimensions in millimetres.
Internal threads: to Fed. Std. H28/21, MJ Form
General tolerances -
+/- 0,25mm, unless specified.
Tap drill hole tolerances -
6,9 to 10,8 = +0,100/-0,025
12,8 and over = +0,130/-0,025
NL = Non-Locking type.
Tips
Order installation tool separately, as identified by "Inst. Tool ref." in table.
Important Notes
Four locking keys on internal threads M6 and over. Two locking keys on internal threads smaller than M6.
Installation (Inst.) drill size, counter sink, thread tap and thread depth as specified in table.
Removal (Rem.) drill size and drill depth as specified in table.
