Surface Mount - Leaf
screw mount - plastic

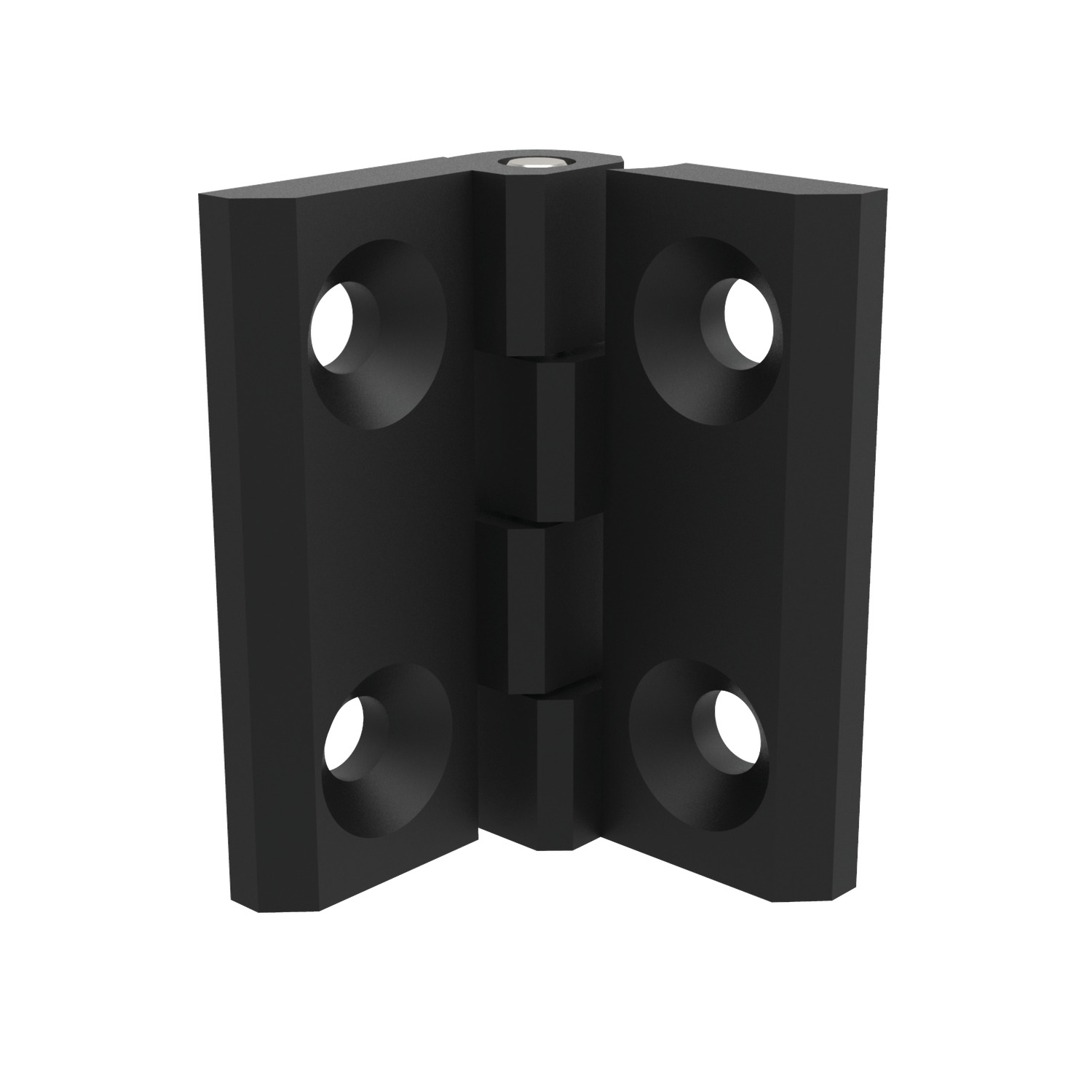

HH0012 Surface Mount - Leaf Hinges
screw mount - polyamide, material: Polyamide

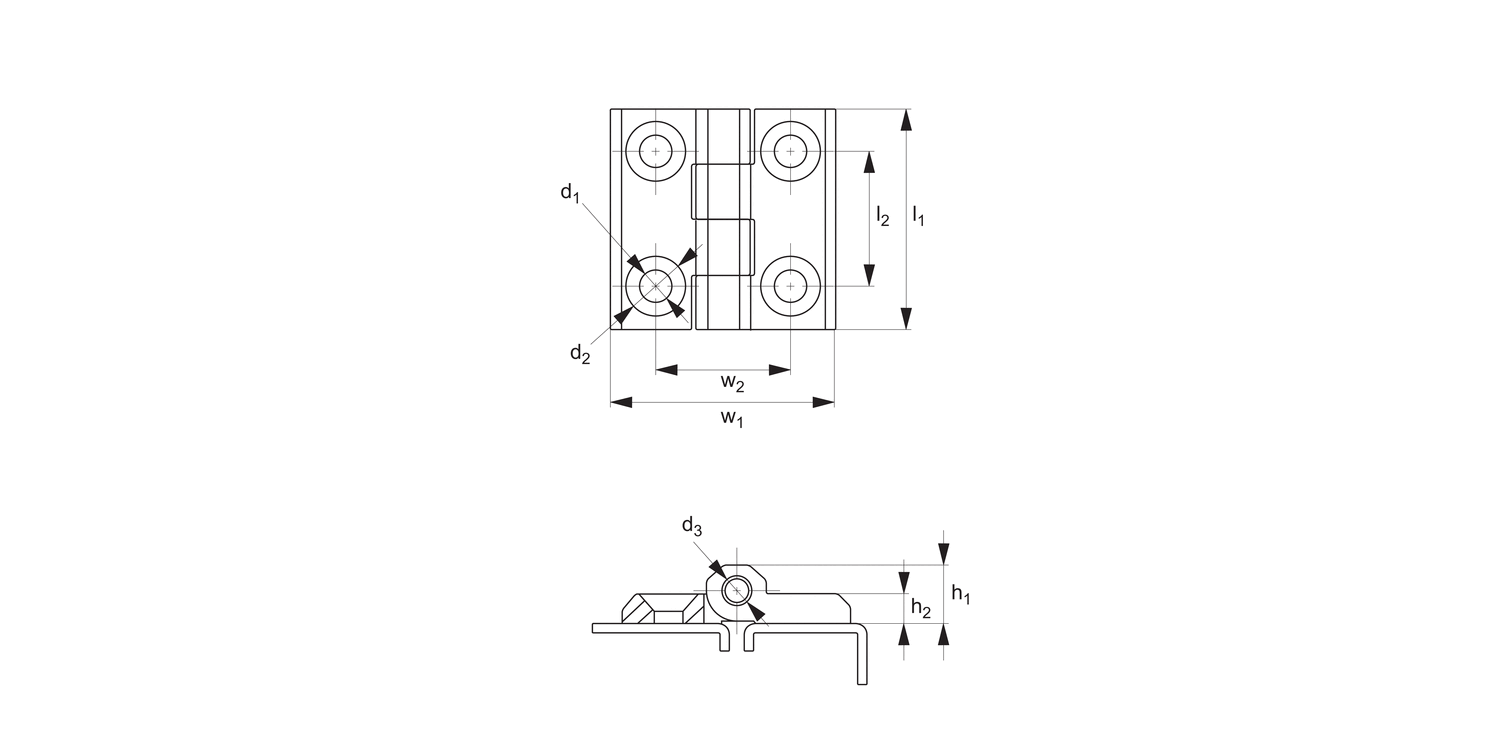

Order No.
HH0012.M0040
Size
40 x 40
h1
9.8
h2
5
l2
25
w1
40
w2
25
Fx
kN
-
Fy
kN
-
d1
10.5
d2
5.3
d3
6
£ 1.54 per unit (click for quantity discounts)
Ready to despatch 213
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 1.54 | 0% |
| 20-49 | £ 1.39 | 10% |
| 50-99 | £ 1.31 | 15% |
| 100-499 | £ 1.16 | 25% |
| 500+ | £ 1.00 | 35% |
Technical & Application
Material
Body: polyamide.
Pin: steel, nickel plated.
Technical Notes
For plain/flush mounted doors, as well as electrical panels and covers. Opening angle 180°.
