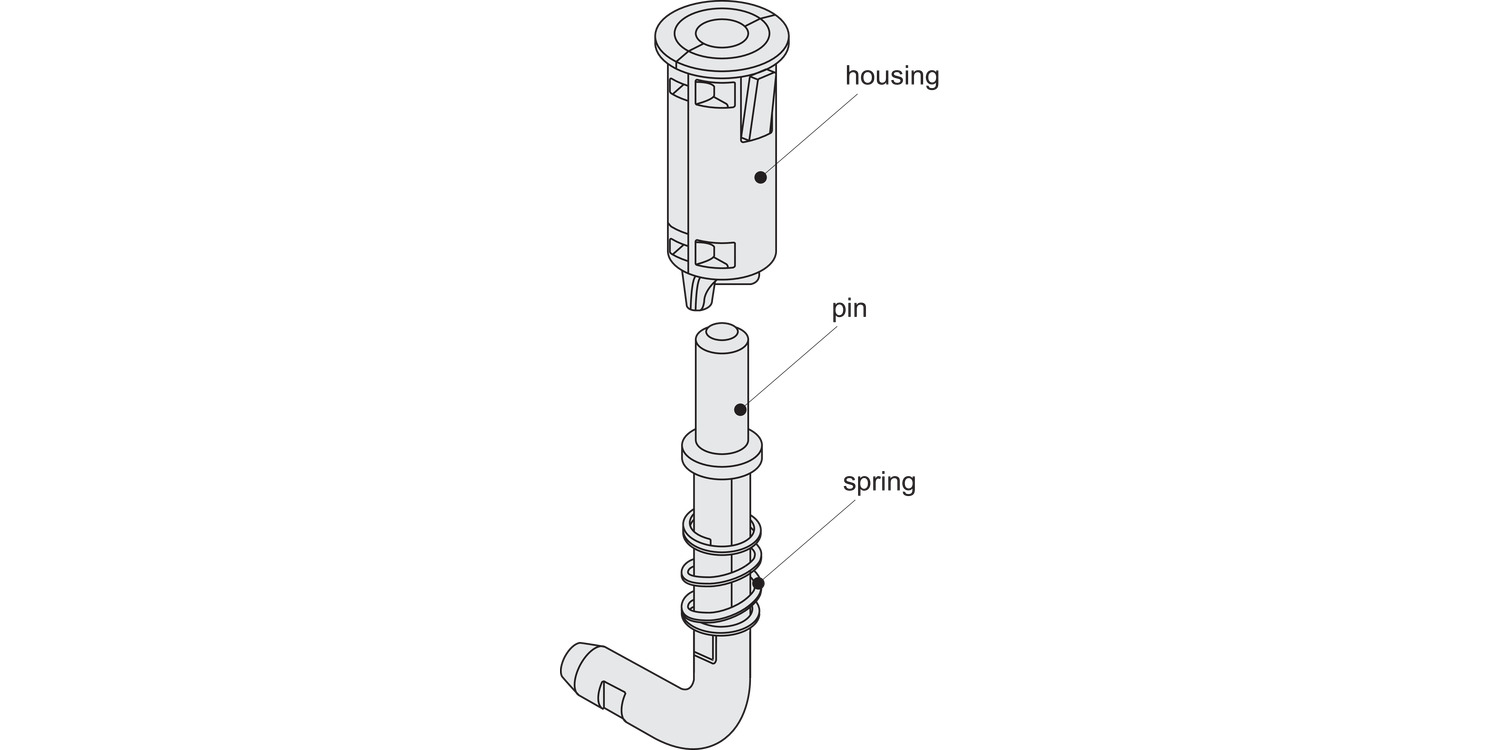

HH0900 End Mount Concealed Pivot Hinge

spring loaded - snap fit - polyamide, material: Steel
HH0900 End Mount Concealed Pivot Hinge
HH0900 End Mount Concealed Pivot Hinge
Download product datasheet

Alternative products you may wish to consider

HH0010 - Surface Mount - Leaf Hinges
Surface Mount - Leaf
screw mount - zinc
HH0012 - Surface Mount - Leaf Hinges
Surface Mount - Leaf
screw mount - plastic
HH0020 - Surface Mount - Leaf Hinges
Surface Mount - Leaf
screw mount - s/s
HH0100 - Surface Mount - Leaf Hinges
Surface Mount - Leaf
integrated stud mount - zinc
HH0102 - Surface Mount - Leaf Hinges
Surface Mount
intergrated stud mount
HH0410 - Corner Hinge - 24 to 26mm Door Return
Corner Hinge
cut out and counter sunk screw
HH0420 - Corner Hinge - 17mm Door Return
Corner Hinge
cut out and countersunk screw
HH0700 - Concealed Pivot Hinges - Lift Off
Concealed Pivot Hinges
weld and countersunk screw
HH0710 - Concealed Pivot Hinges - Lift Off
Concealed Pivot Hinges
weld and countersunk screw
HH0720 - Concealed Pivot Hinges - Lift Off
Concealed Pivot Hinges
weld and oval head screw
HH0730 - Concealed Pivot Hinges - Lift Off
Concealed Pivot Hinges
weld and oval head screw
HH0900 - End Mount Concealed Pivot Hinge
End Mount Conceal. Piv
spring loaded - snap fit
HH1200 - Lift-Off Hinges - Off-Set
Lift-Off Hinges
off-set - screw mounting - s/s
HH1210 - Lift-Off Hinges - Off-Set
Lift-Off Hinges
off-set - bolt-on - zinc
HH1215 - Cabinet Hinges
Cabinet Hinges
HH1220 - Lift-Off Hinges - In Line
Lift-Off Hinges
in-line hinges - bolt-on
HH0400 - Corner Hinge - 19-24mm Door Return
Corner Hinge
cut-out and locking screw
HH0750 - End Mount Concealed Pivot Hinge
End Mount Conceal. Piv
screw or weld-on
HH0900.M0005 End Mount Conceal. Piv spring loaded - snap fit
End Mount Conceal. Piv spring loaded - snap fit

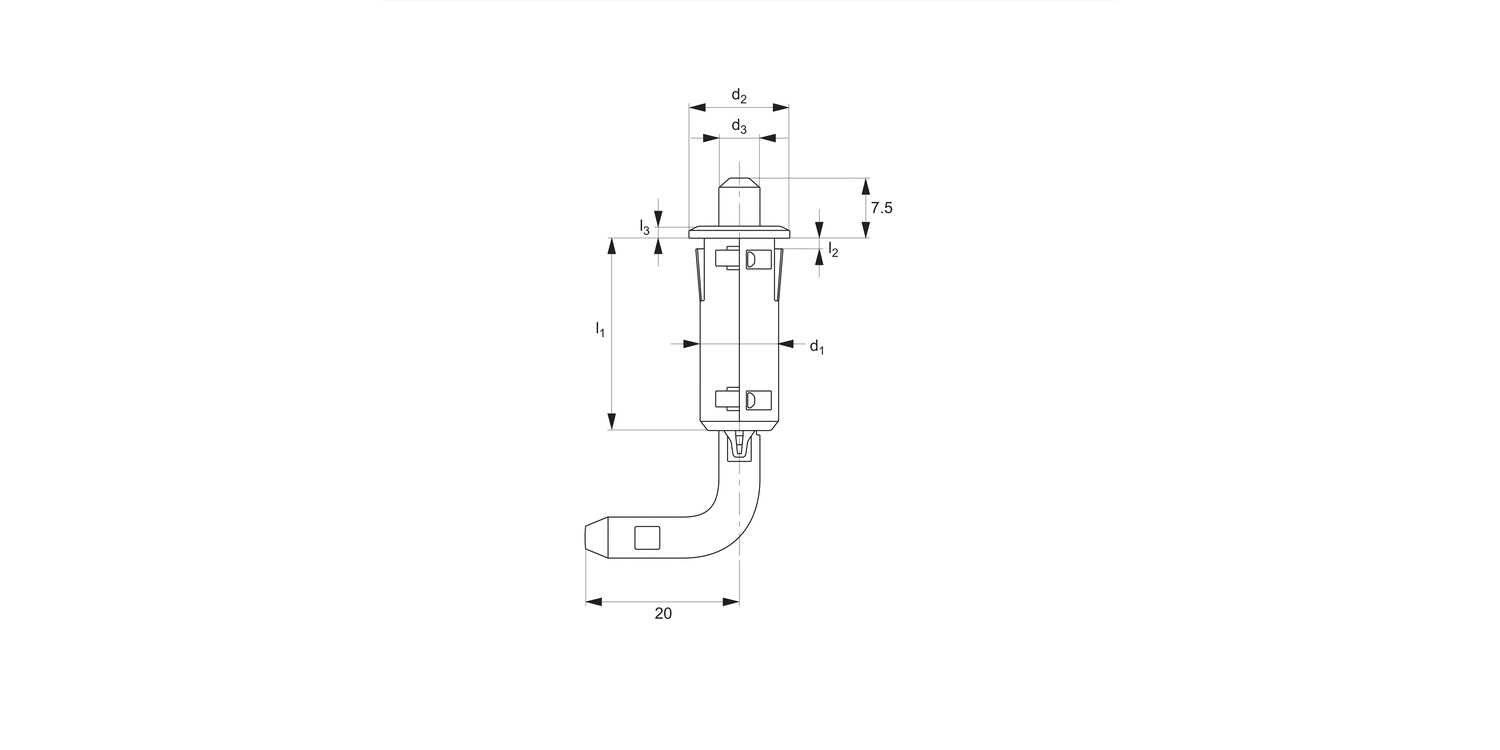

HH0900.M0005

l1
24.5
d1
10
d2
13
d3
5
l2
7.5
l3
1.5
£ 1.89 per unit (click for quantity discounts)
HH0900.M0005 End Mount Conceal. Piv spring loaded - snap fit
End Mount Conceal. Piv spring loaded - snap fit

HH0900.M0005

l1
24.5
d1
10
d2
13
d3
5
l2
7.5
l3
1.5
£ 1.89 per unit (click for quantity discounts)

l1
d1
d2
d3
l2
l3
Price & AvailabilityArticlel1d1d2d3l2l3
HH0900.M000524.5101357.51.5

Technical & Application

Material

Body: polyamide, black PA 6 GRF30.
Pin: stainless steel.
Latch: die cast zinc, white zinc plated.

Technical Notes

For sheet metal doors, cabinets and machinery covers. Clip fix for easy assembly.
Pull back pin lever, hinge pin is retracted. Release pin lever and hinge pin springs back. Opening angle 180°.

Tips

Spring loaded feature of hinge enables easy assembly and disassembly of panel/door, ideal for maintenance covers.
Max. opening angle 110°.

Product Datasheets

HH0900 End Mount Concealed Pivot HingeJanuary 3, 2025, 3:23 PM / 114.32 kB
HingesJanuary 3, 2025, 3:33 PM / 869.88 kB
Stays & HingesJanuary 3, 2025, 3:33 PM / 1.08 MB
Stays & HingesJanuary 3, 2025, 3:33 PM / 842.62 kB
Access HardwareJanuary 3, 2025, 3:33 PM / 3.33 MB

Application images

hh0900 application images

This content is not visible because of your cookie settings.
