Surface Mount - Leaf
screw mount - zinc

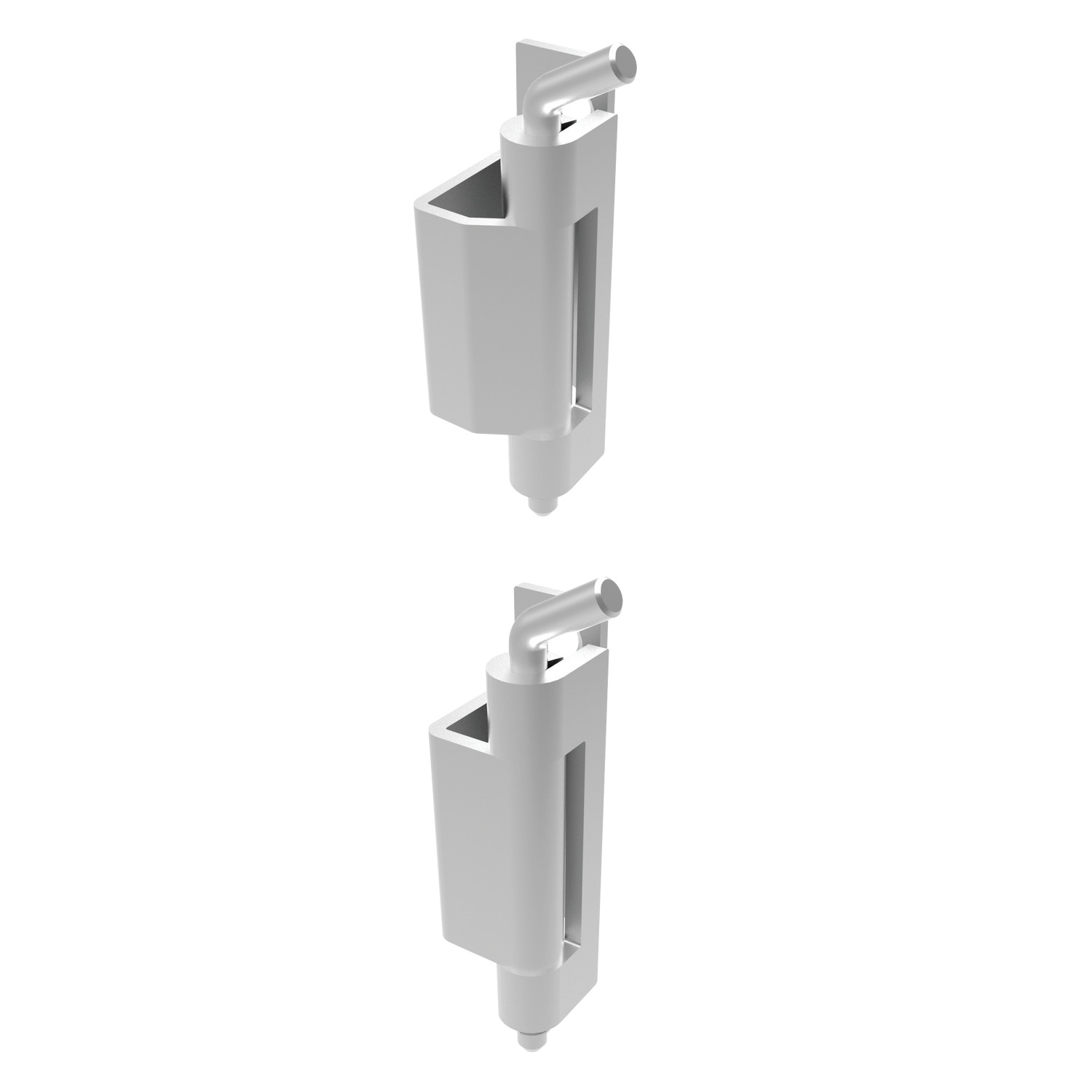

HH0700 Concealed Pivot Hinges - Lift Off
22-25mm door return - weld and countersunk screw, material: Steel
Order No.
HH0700.M0022
Door return
25
Size
59 x 21 x 22
Fx
N
120
Fy
N
310
mc
min.
4.5
ts thickness
2.5
£ 11.10 per unit (click for quantity discounts)
Ready to despatch 55
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 11.10 | 0% |
| 20-49 | £ 9.99 | 10% |
| 50-99 | £ 9.44 | 15% |
| 100-499 | £ 8.33 | 25% |
| 500+ | £ 7.22 | 35% |
Technical & Application
Material
Body & hinge: steel, white zinc plated.
Technical Notes

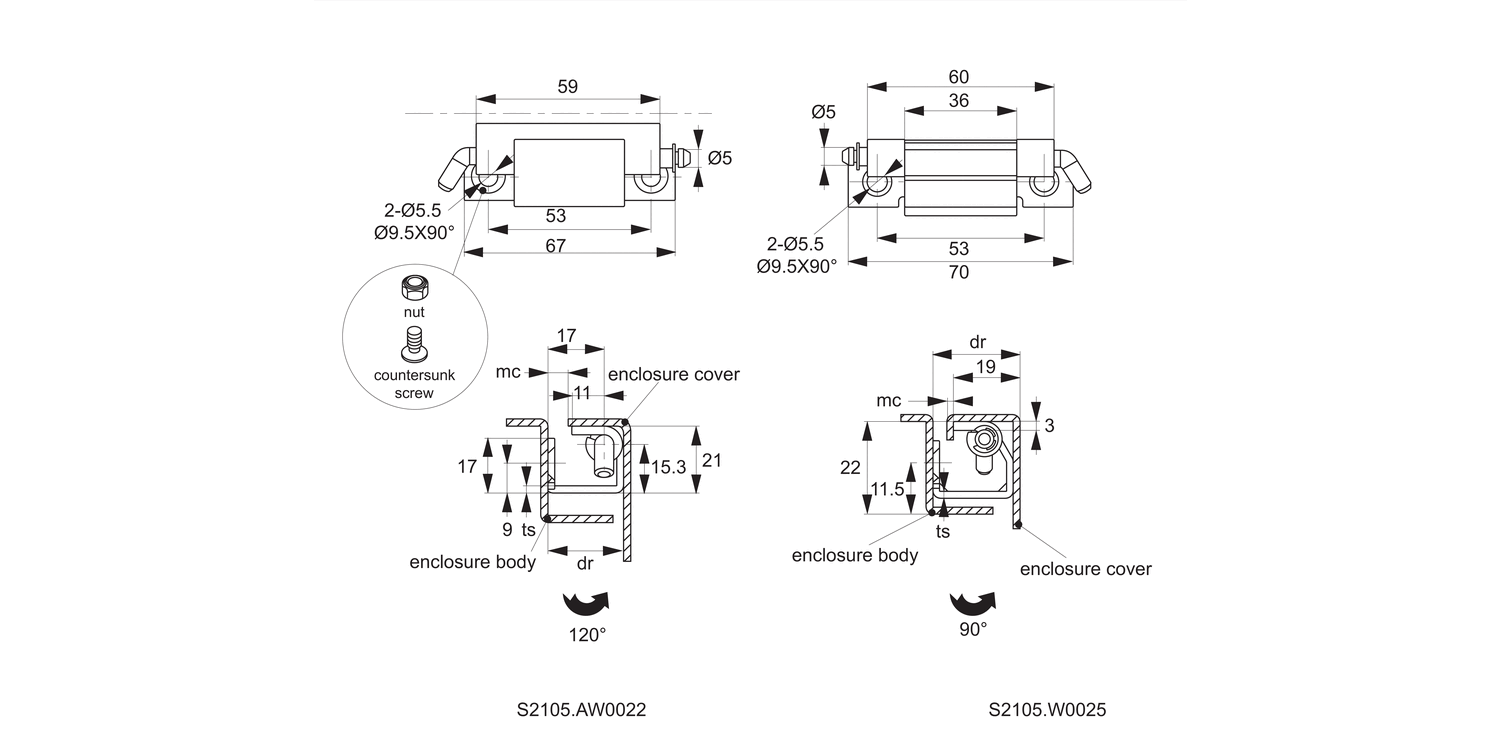

Suited to sheet metal and machine enclosures with 22-25mm door return. Main body mounted via two M5 screws. Hinge plate either welded or screwed to enclosure body.
Removable hinge pin enables easy installation and is held in place via circlip.
Max. opening angle 120° or 90°.
Important Notes
dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
Product Datasheets

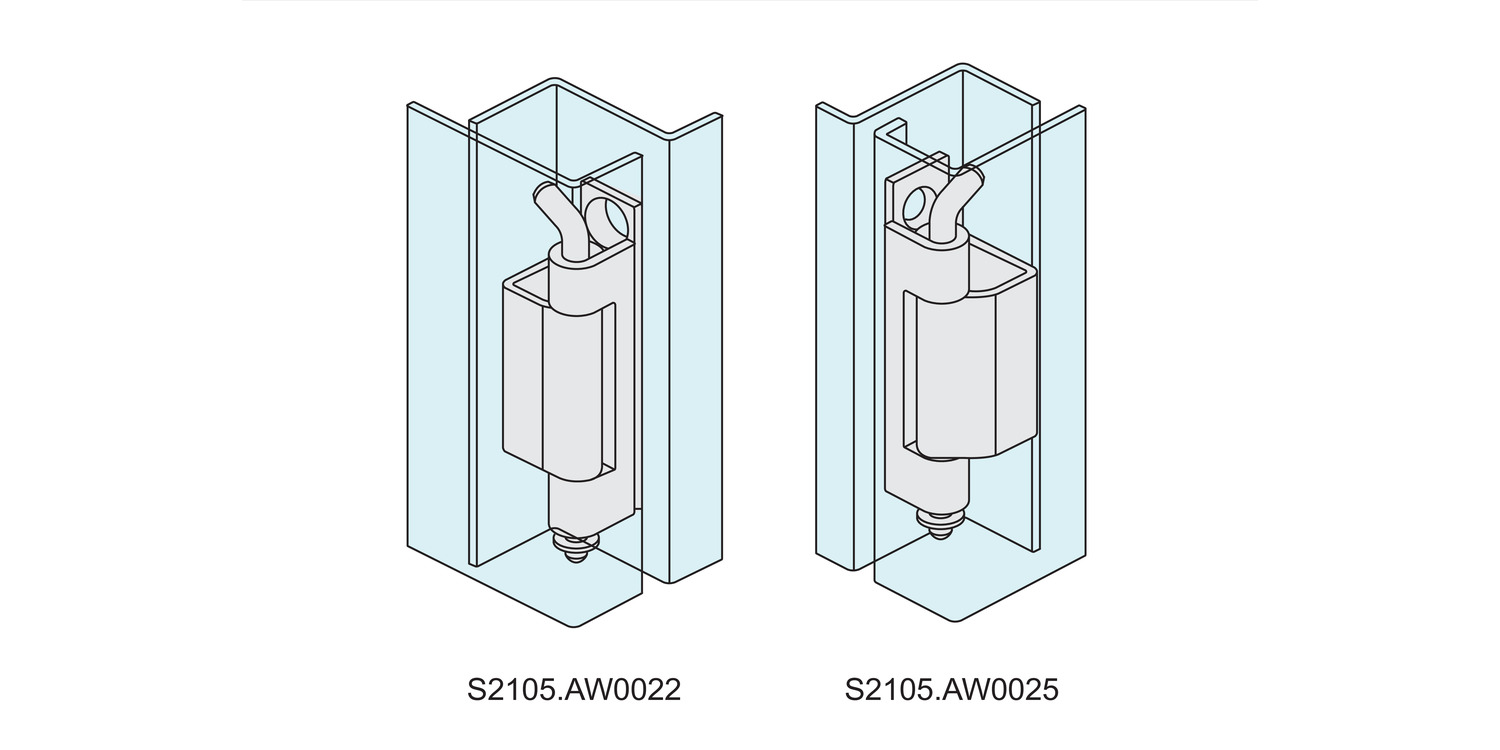

Application images
