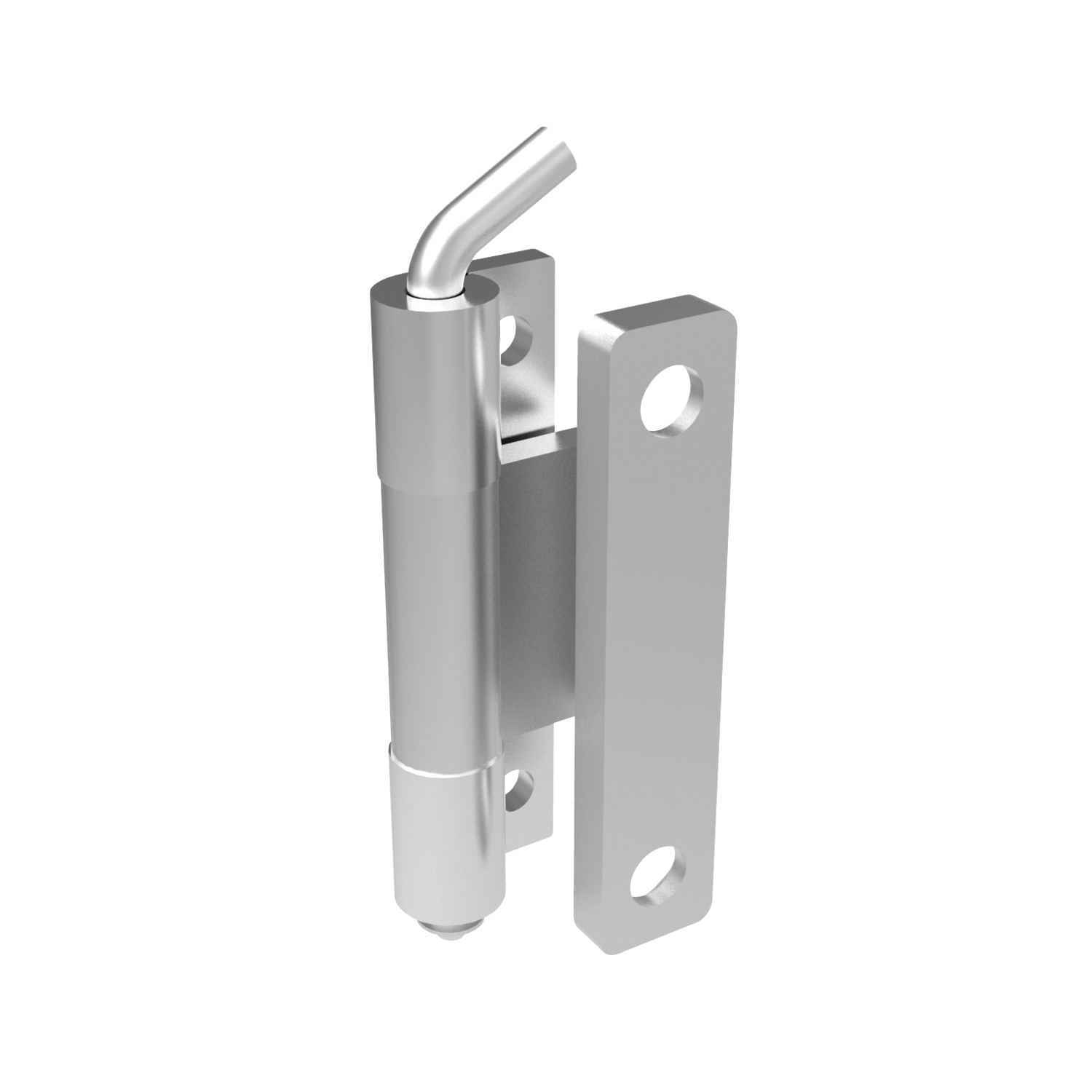

HH0710 Concealed Pivot Hinges - Lift Off

Name: HH0710.M0024
Brand: WC
SKU: HH0710.M0024
Price: 11.51 EUR
Availability: InStock

23mm door return - weld and countersunk screw, material: Steel

Article properties

Order No.

HH0710.M0024

Door return

23.8

Size

65 x 23 x 20,2

F_x N

900

F_y N

700

mc min.

ts panel thickness

See full product selection

£ 11.51 per unit (click for quantity discounts)

Ready to despatch 40
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 11.51	0%
20-49	£ 10.36	10%
50-99	£ 9.78	15%
100-499	£ 8.63	25%
500+	£ 7.48	35%

Download product datasheet

Technical & Application

Material

Hinge & pin: steel, white zinc plated.

Technical Notes

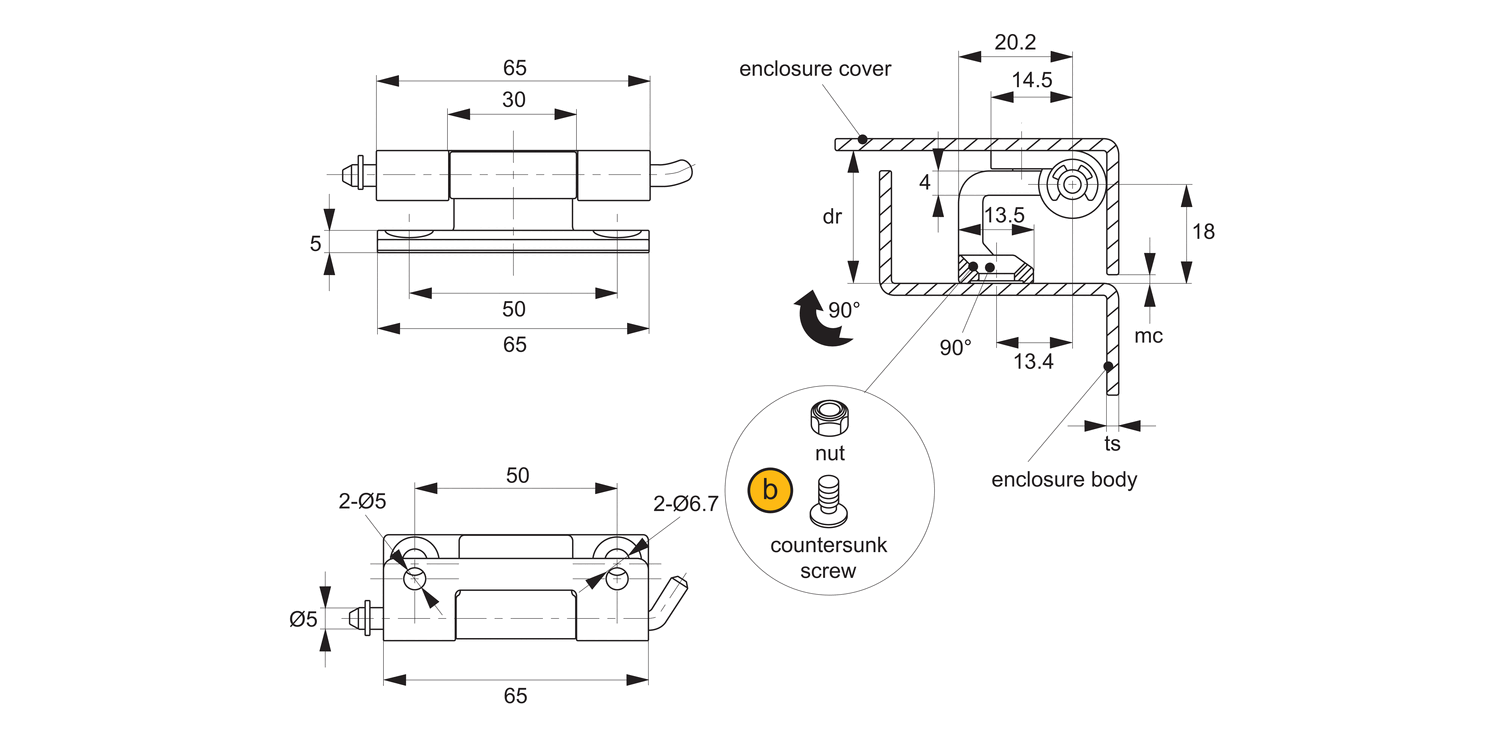

Suited to sheet metal and machine enclosures with 23mm door return. When the gap between the door and frame is 2mm, opening angle is 90°.
Main body mounted via M6 screws, hinge plate either welded or screwed to enclosure with M5 screws. Removable hinge pin enables easy installation and is held in place via circlip. Opening angle 180°.

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
