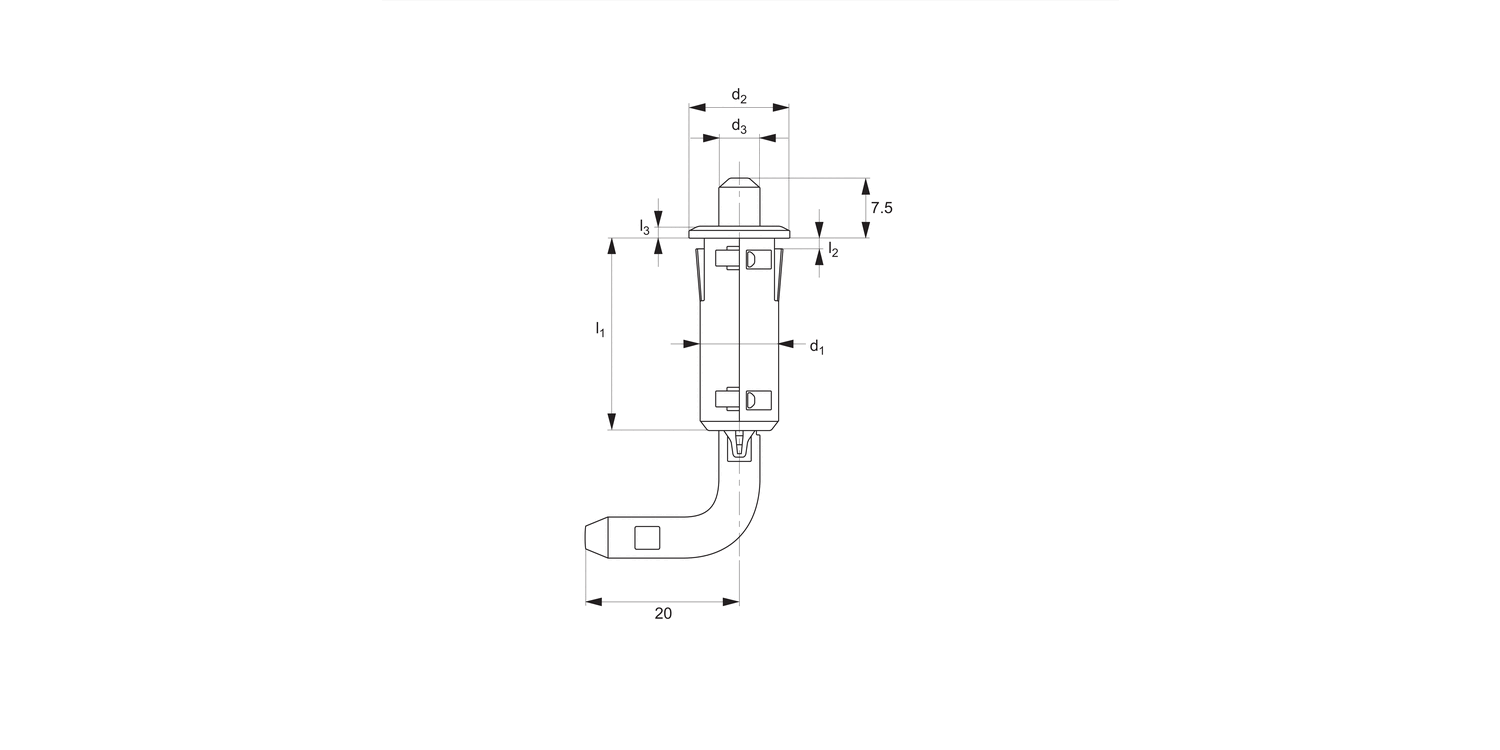

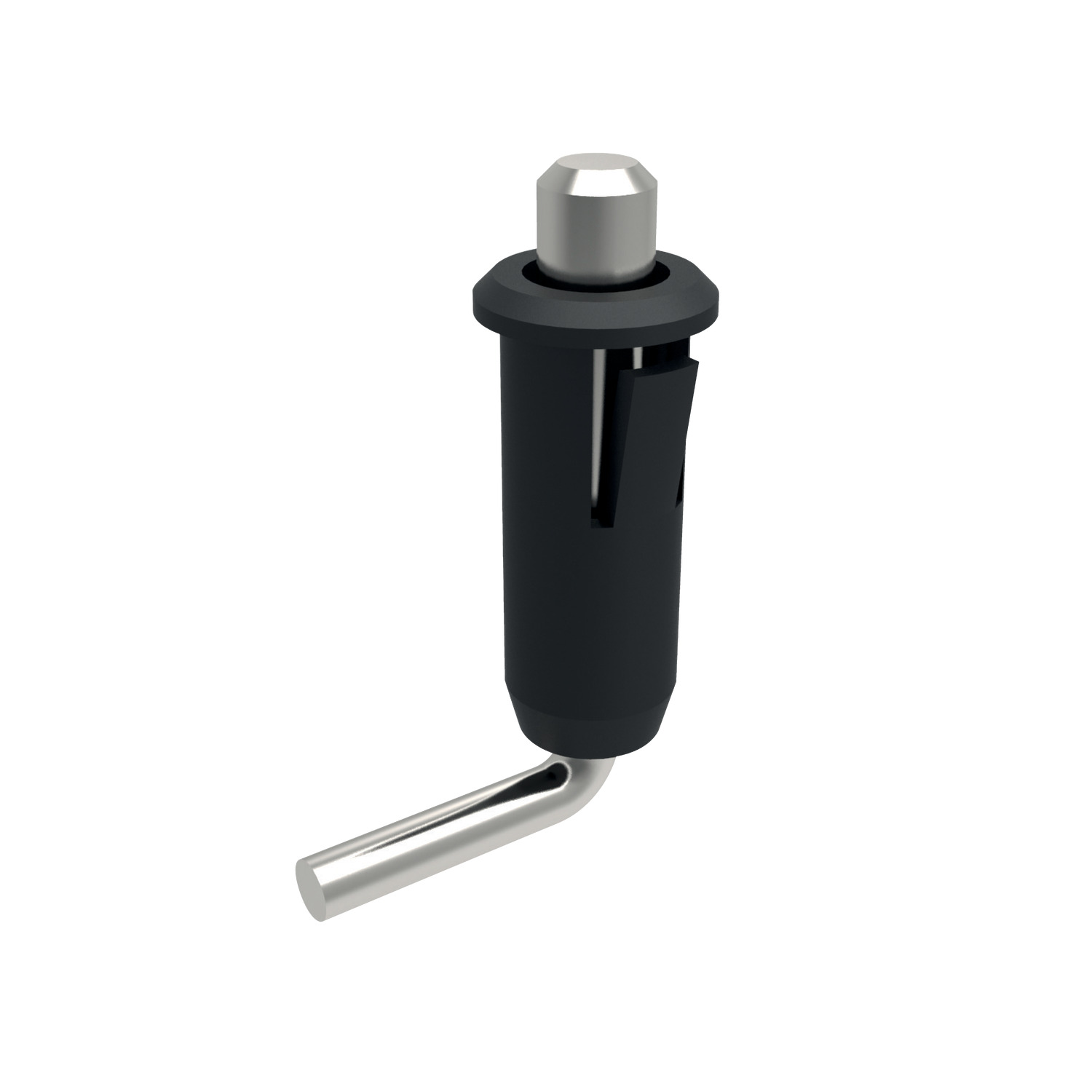

HH0900 End Mount Concealed Pivot Hinge
spring loaded - snap fit - polyamide, material: Steel
£ 1.89 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 1.89 | 0% |
| 20-49 | £ 1.70 | 10% |
| 50-99 | £ 1.61 | 15% |
| 100-499 | £ 1.42 | 25% |
| 500+ | £ 1.23 | 35% |
Technical & Application
Material
Body: polyamide, black PA 6 GRF30.
Pin: stainless steel.
Latch: die cast zinc, white zinc plated.
Technical Notes
For sheet metal doors, cabinets and machinery covers. Clip fix for easy assembly.
Pull back pin lever, hinge pin is retracted. Release pin lever and hinge pin springs back. Opening angle 180°.
Tips
Spring loaded feature of hinge enables easy assembly and disassembly of panel/door, ideal for maintenance covers.
Max. opening angle 110°.
