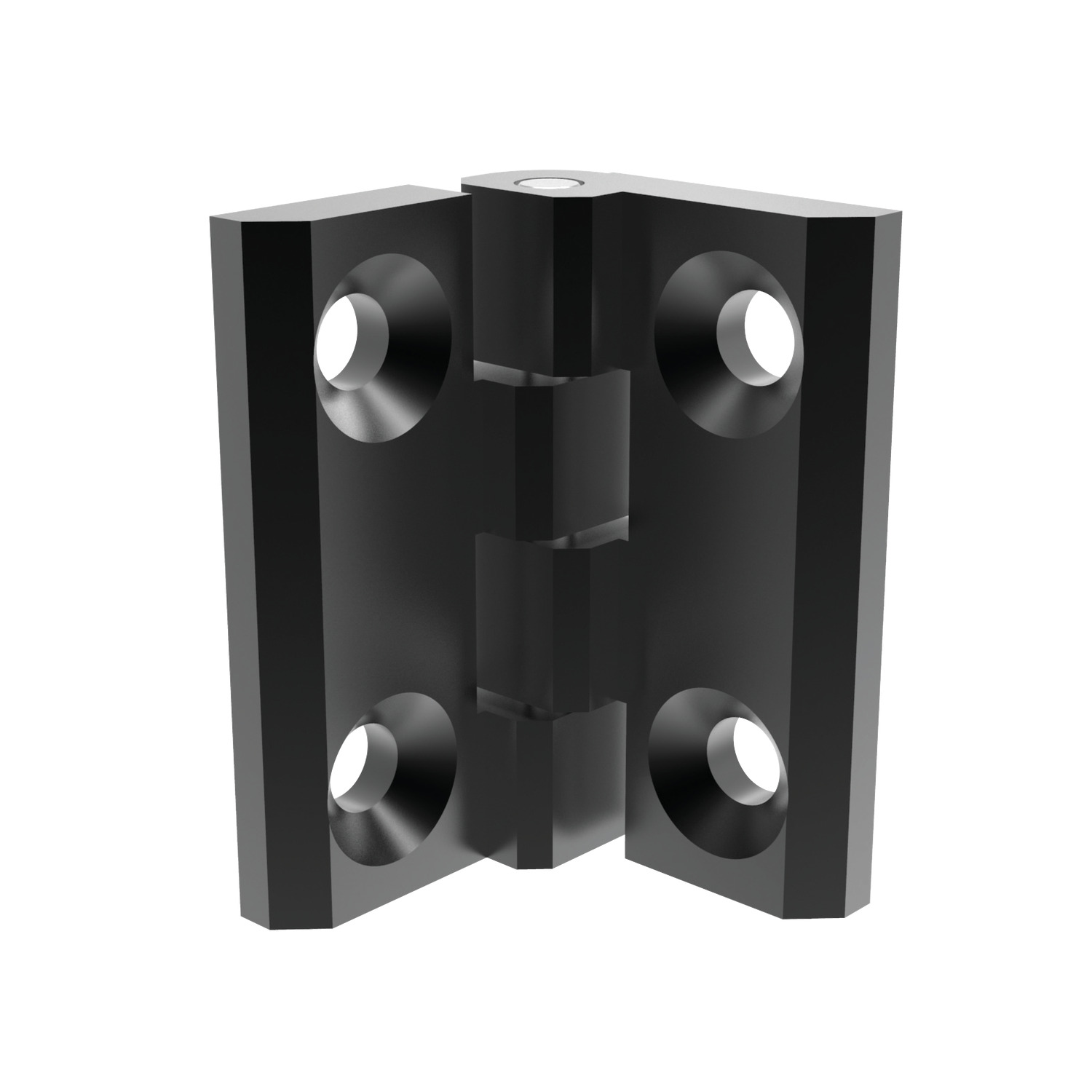

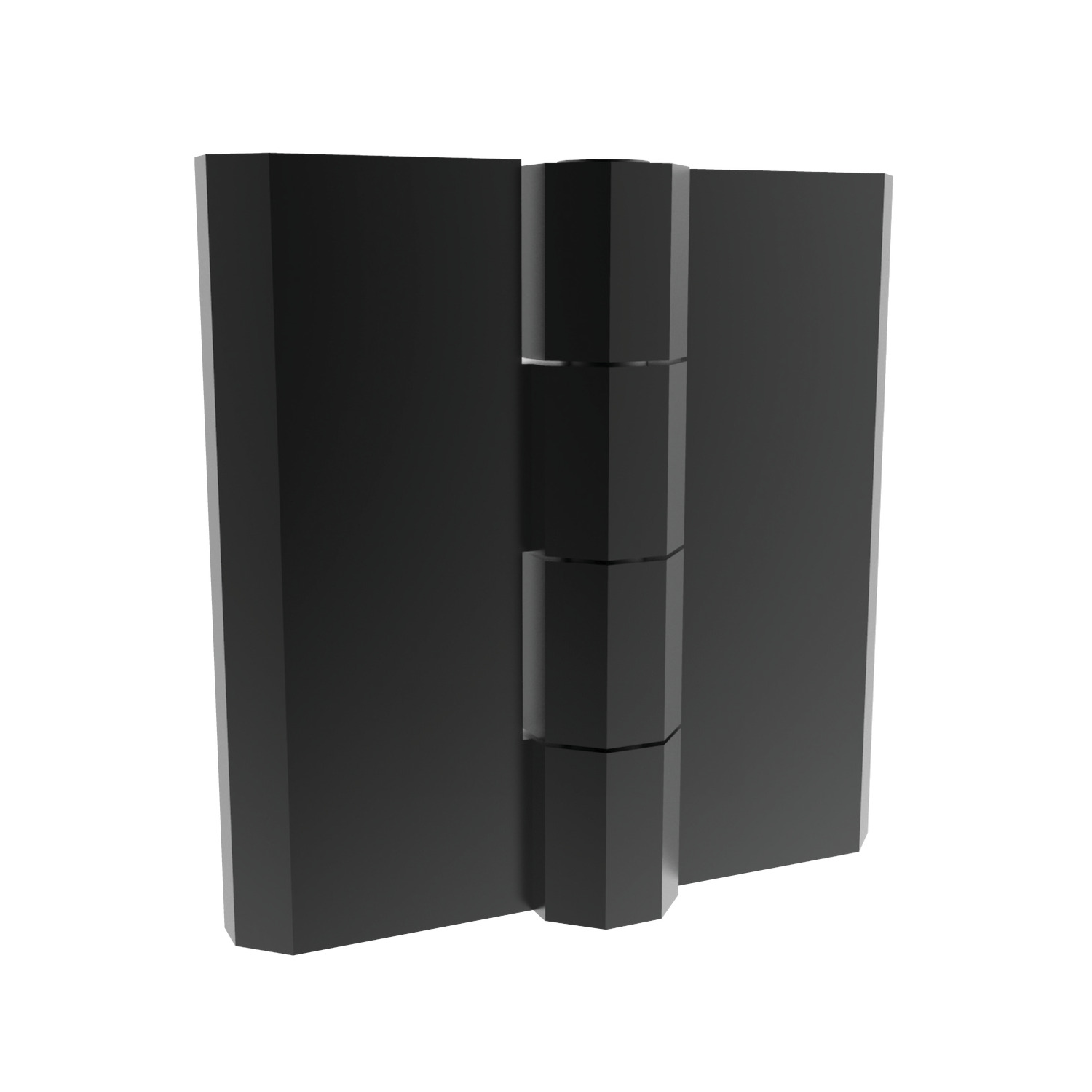

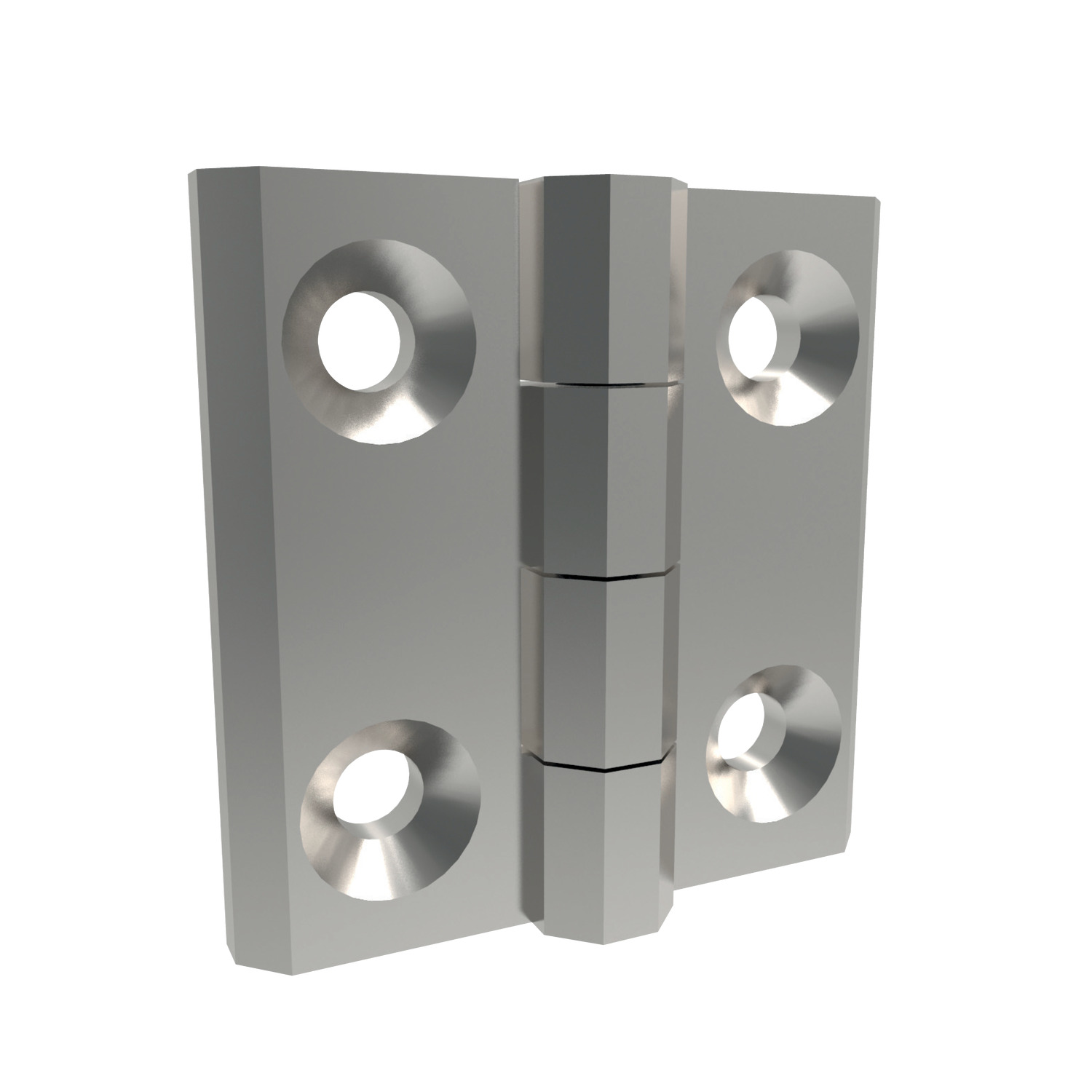

Surface Mount - Leaf
screw mount - zinc
HH1210 Lift-Off Hinges - Off-Set
bolt-on - zinc, material: Die cast zinc
Order No.
HH1210.M0125
Type
One
Hand
Left
l1
64.0
w1
32.5
d1
M 5
h1
17.5
h2
10.0
l2
19
l3
-
l4
51
l5
6.5
w2
17.5
w3
-
Fx
N
490
£ 3.18 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 3.18 | 0% |
| 20-49 | £ 2.86 | 10% |
| 50-99 | £ 2.70 | 15% |
| 100-499 | £ 2.39 | 25% |
| 500+ | £ 2.07 | 35% |
Technical & Application
Material
Type one: Body: die cast zinc, black powder coated.
Bushing: polyamide.
Type two: Body: die cast zinc, black powder coated.
Natural unfinished available on request, subject to minimum order quantity.
Technical Notes
Lift off hinge for plain/flush mounted doors. Concealed mounting screws prevent external access to the hinge. Opening angle 180°.
Product Datasheets

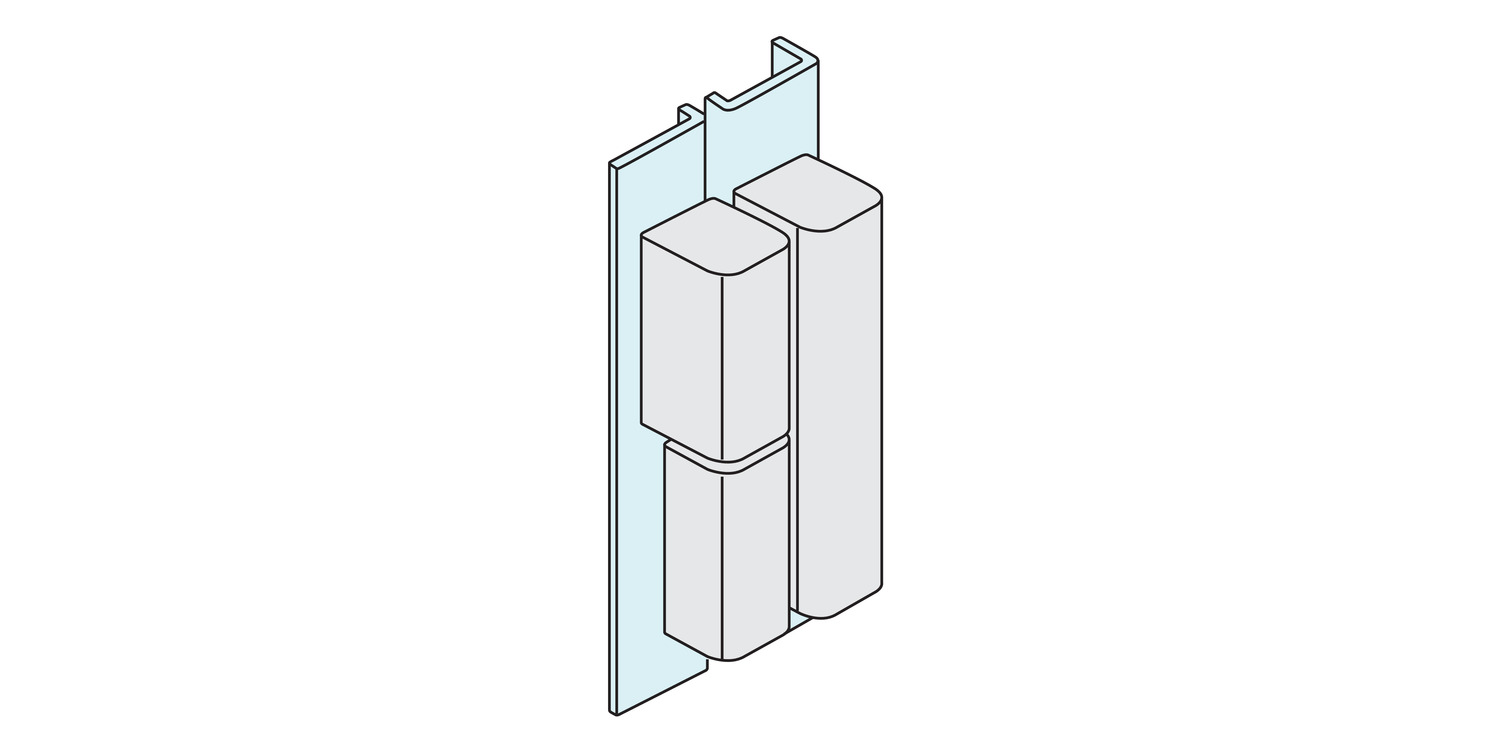

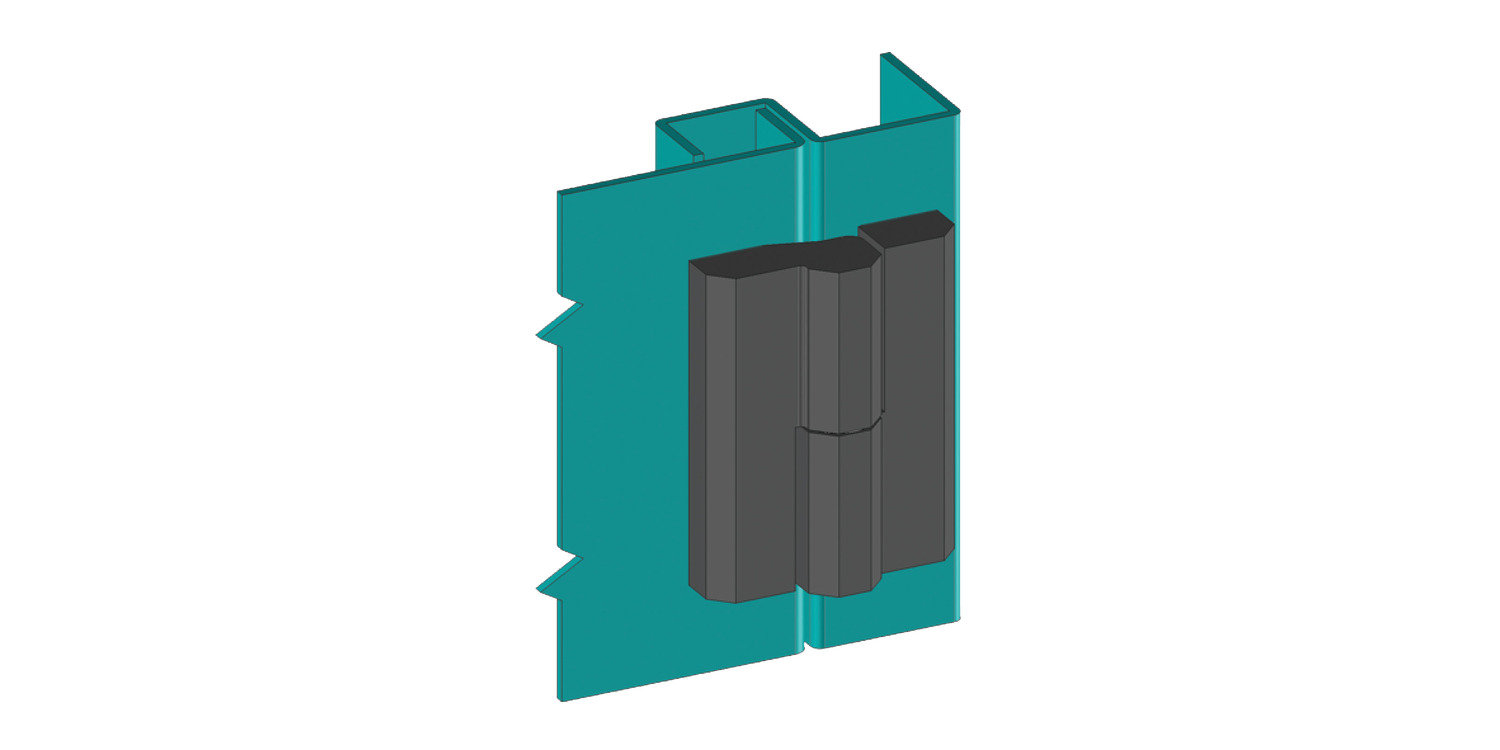

Application images
