End Caps - Metric
for QRP s/s
LA1350 End Caps - Metric - for Quick Relase Pins
stainless steel, material: Stainless steel
Order No.
LA1350.M12-P

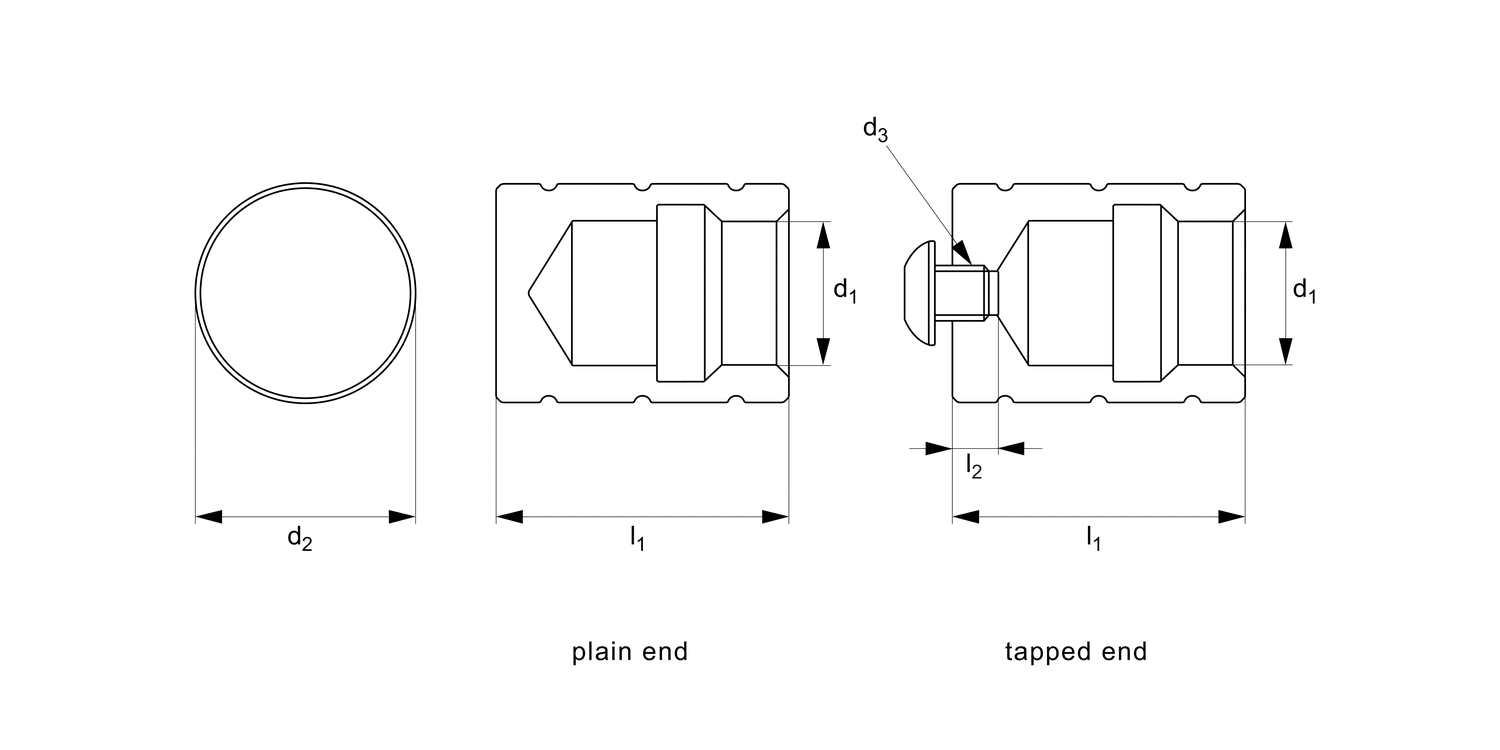

End type
Plain
d1 pin dia.
nom.
12
Grip length reduction
6
d2
19.05
d3
-
l1
25.40
l2
max.
-
£ 23.09 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 23.09 | 0% |
| 10-19 | £ 20.79 | 10% |
| 20-49 | £ 19.63 | 15% |
| 50-99 | £ 18.48 | 20% |
| 100+ | £ 16.17 | 30% |
Technical & Application
Material
Stainless steel, AISI 303
Technical Notes

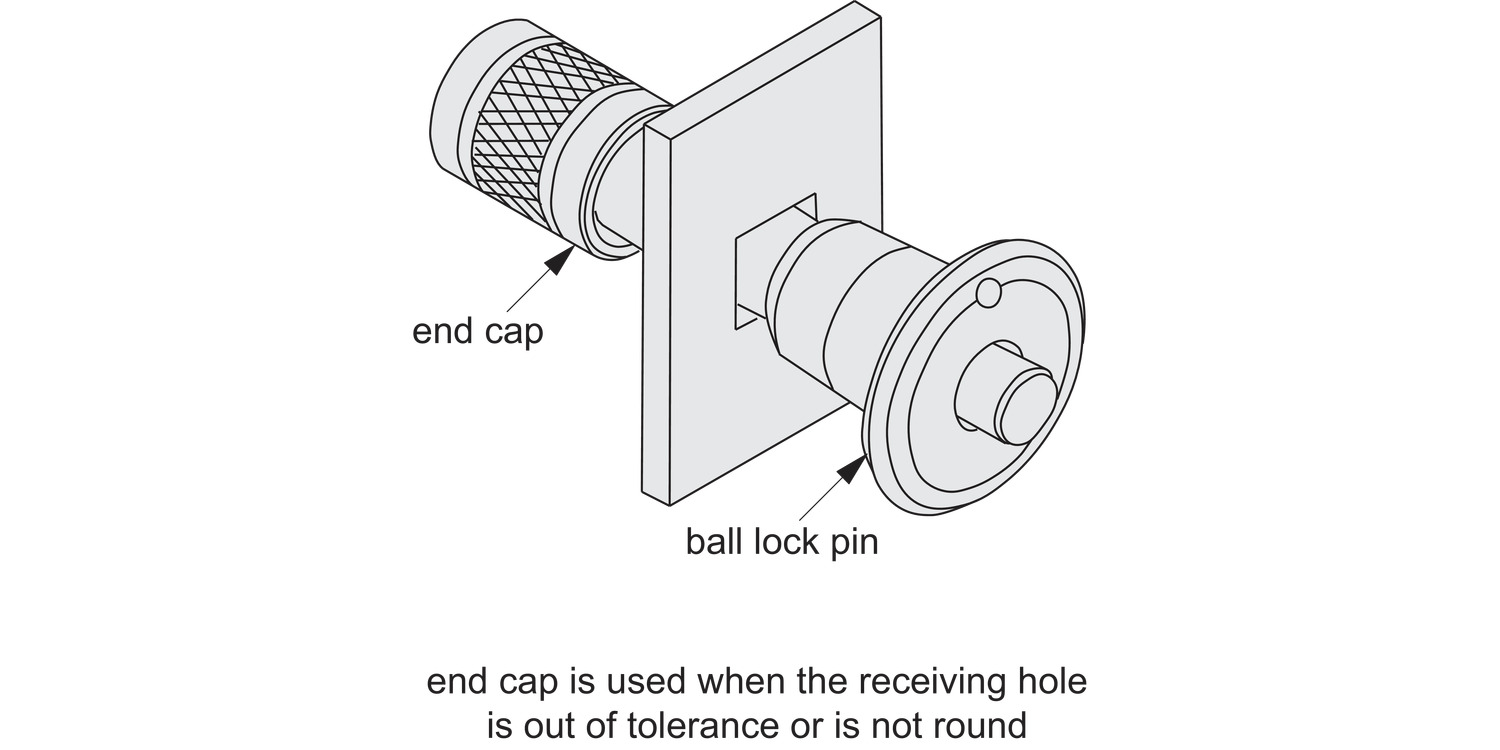

here the material receiving hole is out of tolerance or not round, end caps allow quick release pins still to be used to take advantage of quick component/material change. End caps with tapped end allow fixing of cap to application with lanyard, see part nos. L to LA1224, end caps are otherwise installed loose.
Important Notes
**When used, end cap reduces the usable grip length of quick release pin, refer to 'Grip length reduction' value in data table.
Product Datasheets
Application images
