Index Plunger - Lever
locking - coarse thread
SL1116 Spring Loaded Pin - Inch - Lever Handle
non-locking, material: Steel
Order No.
SL1116.I62-038-C

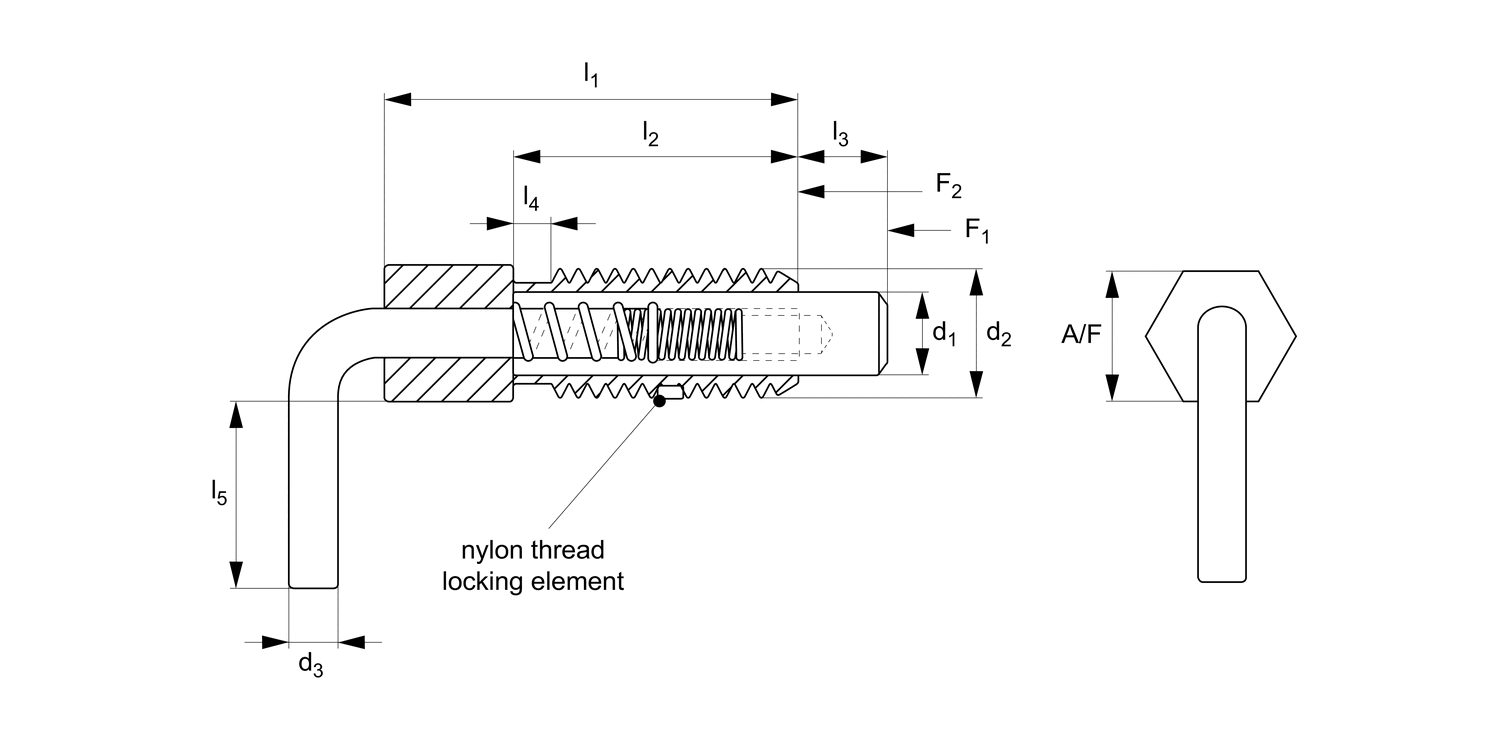

d1
0.38
d2
UNC
5/8-11
l1
3.05
l2
2.00
l3
1.00
l4
0.18
l5
1.00
d3
0.19
A/F
0.62
Spring force f1
lb
1.00
Spring force f2
lb
5.00
£ 25.93 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 25.93 | 0% |
| 10-14 | £ 23.34 | 10% |
| 15-24 | £ 22.04 | 15% |
| 25-49 | £ 20.74 | 20% |
| 50+ | £ 18.15 | 30% |
Technical & Application
Material
Body and pin: steel 12L14.
Technical Notes
Spring loaded pin is non-locking, pin simply springs back when lever released.
A nylon locking element on thread reduces chance of loosening of thread due to vibration etc.
Tips
For suitable locknut, see part no. SL1816.
