Index Plunger - Lever
locking - coarse thread

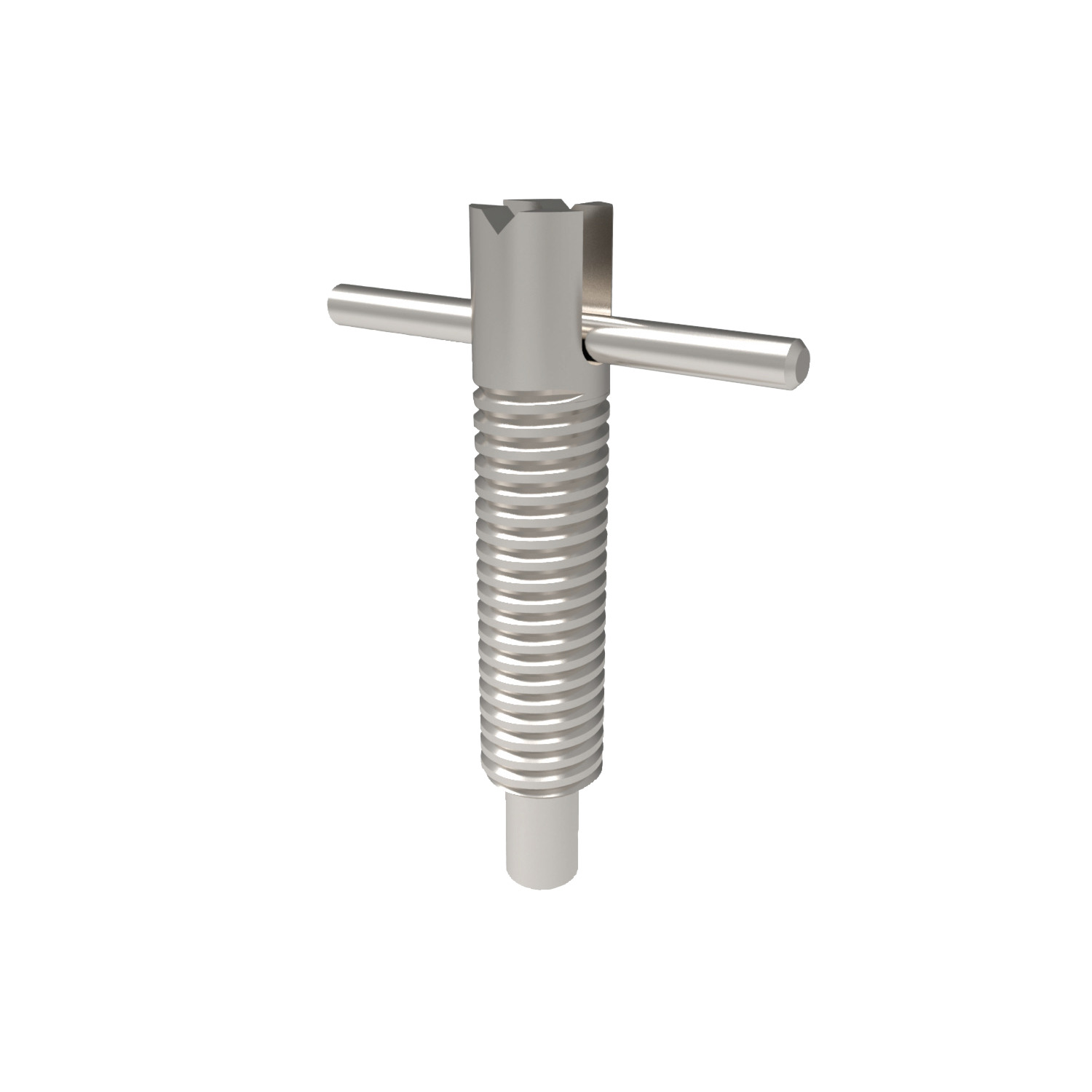

SL1318 Spring Loaded Pin - Inch - T-Handle
locking, material: Steel or stainless steel
Order No.
SL1318.I25-015-C
Material
Steel

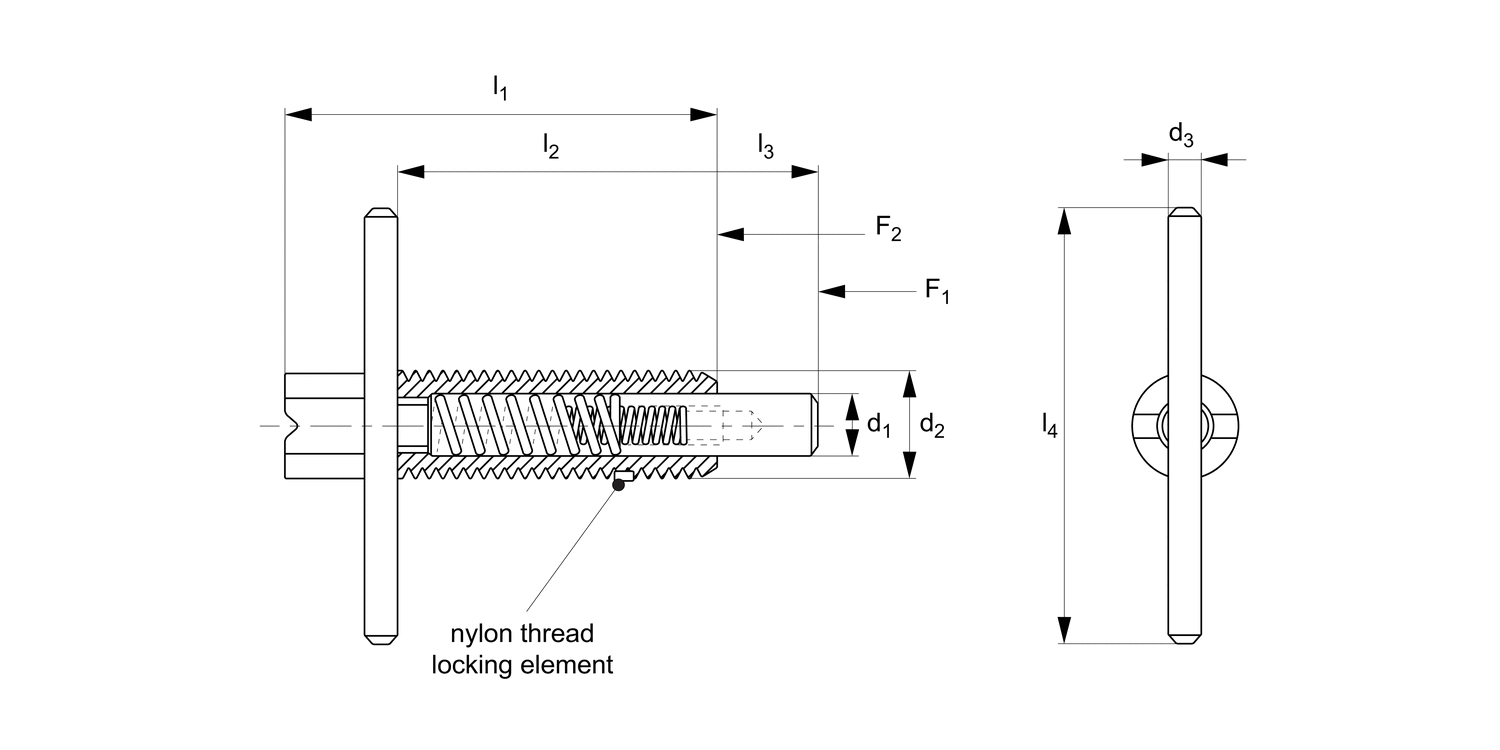

d1
0.15
d2
UNC
1/4-20
l1
1.14
l2
0.8
l3
0.250
l4
1.13
d3
0.13
Spring force f1
lb
1.0
Spring force f2
lb
2.5
£ 18.54 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 18.54 | 0% |
| 10-14 | £ 16.69 | 10% |
| 15-24 | £ 15.76 | 15% |
| 25-49 | £ 14.83 | 20% |
| 50+ | £ 12.98 | 30% |
Technical & Application
Material
Steel Type-
Body and pin: steel 12L14, zinc plate clear chromate finish.
Stainless Steel Type-
Body and pin: 300 series stainless steel.
Technical Notes
Spring loaded pin can be "locked" to enable pin to be held in retracted/ non-projecting position. Pull back t-handle lever, turn 90° to engage 'locking'.
T-handle provides easy to use handle for a more positive feel.
Tips
For suitable locknut, see part no. SL1816.
