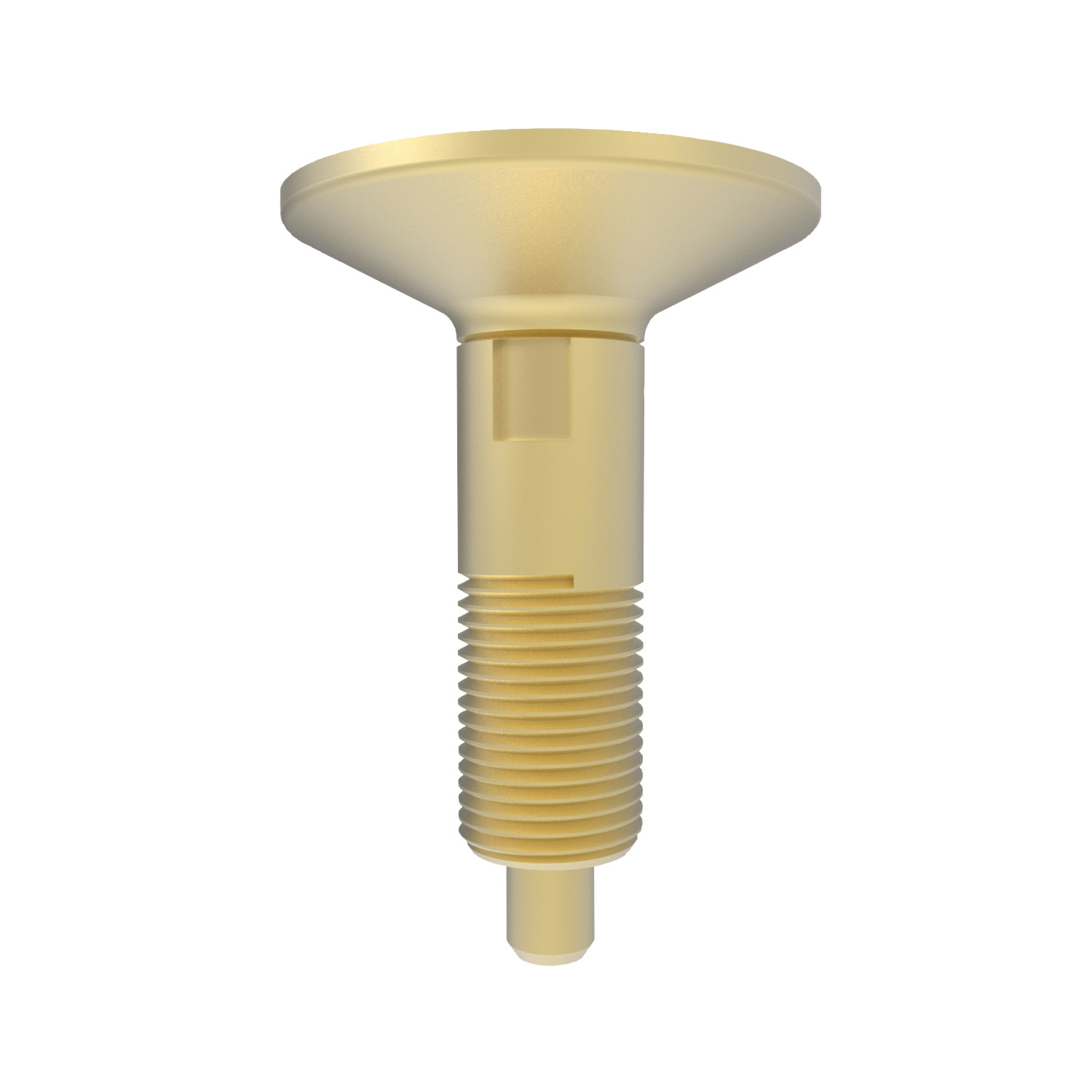

SL1419 Spring Loaded Pin - Inch - Pull Grip
locking - metal grip, material: Steel
Order No.
SL1419.I25-012-Z
Material
Steel

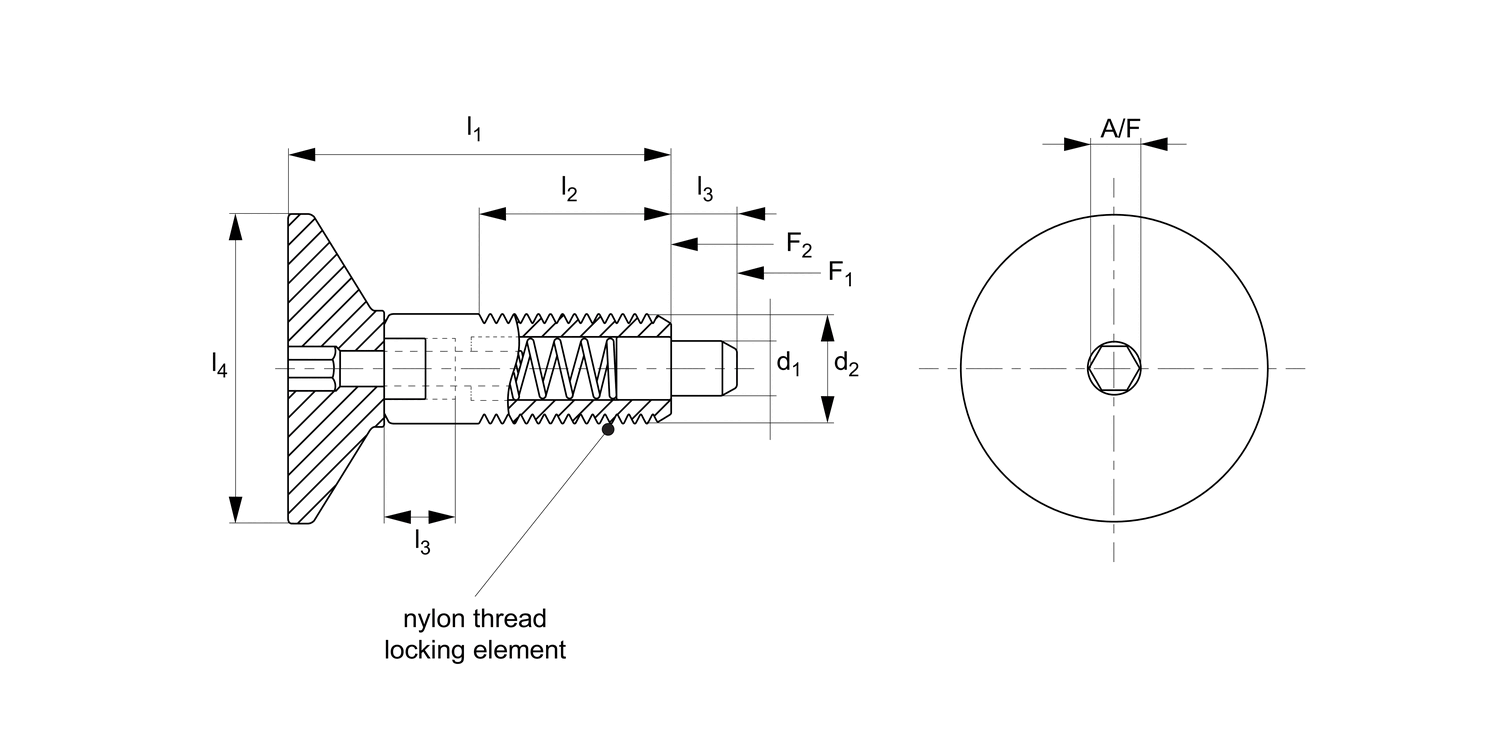

d1
0.123
d2
UNC
1/4-20
l1
0.805
l2
0.40
l3
0.125
l4
0.750
A/F
0.125
Spring force f1
lb
1
Spring force f2
lb
4
£ 14.61 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 14.61 | 0% |
| 10-14 | £ 13.15 | 10% |
| 15-24 | £ 12.42 | 15% |
| 25-49 | £ 11.69 | 20% |
| 50+ | £ 10.23 | 30% |
Technical & Application
Material
Body, Pin and Grip: Steel 12L14, zinc gold chromate finish.
Technical Notes
Spring loaded pin can be 'locked' to enable pin to be held in retracted/ non-projecting position. Pull back grip handle turn 90° to engage 'locking'.
A nylon locking element on thread reduces chance of loosening of thread due to vibration etc.
Tips
Metal grip has recessed hex to improve ease of installation.
For suitable locknut, see part no. SL1816.
