Cam Locks Flexi-Grip
fixed grip - zinc
CC2020 Cam Locks - Wing Handle
flexi-system - fixed grip - zinc, material: Die cast zinc/polyamide
Alternative products you may wish to consider
Body finish
Chrome
Key type
Keyed Alike
d1
30.5
h1
23.6
lh
18
£ 10.31 per unit (click for quantity discounts)
Body finish
Chrome
Key type
Keyed to Differ
d1
30.5
h1
23.6
lh
18
£ 10.31 per unit (click for quantity discounts)
Body finish
Black Coated
Key type
Keyed Alike
d1
30.5
h1
23.6
lh
18
£ 10.31 per unit (click for quantity discounts)
Body finish
Black Coated
Key type
Keyed to Differ
d1
30.5
h1
23.6
lh
18
£ 10.31 per unit (click for quantity discounts)
Body finish
Key type
d1
h1
lh
| Price & Availability | Article | Body finish | Key type | d1 | h1 | lh | ||||||||||||||||||
| CC2020.M0010 | Chrome | Keyed Alike | 30.5 | 23.6 | 18 | |||||||||||||||||||
£ 10.31 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us.
Body finish Chrome Key type Keyed Alike d1 30.5 h1 23.6 lh 18 | ||||||||||||||||||||||||
| CC2020.M0020 | Chrome | Keyed to Differ | 30.5 | 23.6 | 18 | |||||||||||||||||||
£ 10.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Body finish Chrome Key type Keyed to Differ d1 30.5 h1 23.6 lh 18 | ||||||||||||||||||||||||
| CC2020.M0310 | Black Coated | Keyed Alike | 30.5 | 23.6 | 18 | |||||||||||||||||||
£ 10.31 per unit (click for quantity discounts) Ready to despatch 403 Need more? Please call us.
Body finish Black Coated Key type Keyed Alike d1 30.5 h1 23.6 lh 18 | ||||||||||||||||||||||||
| CC2020.M0320 | Black Coated | Keyed to Differ | 30.5 | 23.6 | 18 | |||||||||||||||||||
£ 10.31 per unit (click for quantity discounts) Ready to despatch 37 Need more? Please call us.
Body finish Black Coated Key type Keyed to Differ d1 30.5 h1 23.6 lh 18 | ||||||||||||||||||||||||
Technical & Application
Material
Body & insert: die cast zinc, finished in chrome plate or black powder coating. Fitted with O'ring to provide IP54 rating.
Cylinder lock: die cast zinc, chrome plated. With dust cap to prevent material ingress.
Supplied with: Keys: two per lock.
Not supplied: CAM - order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.

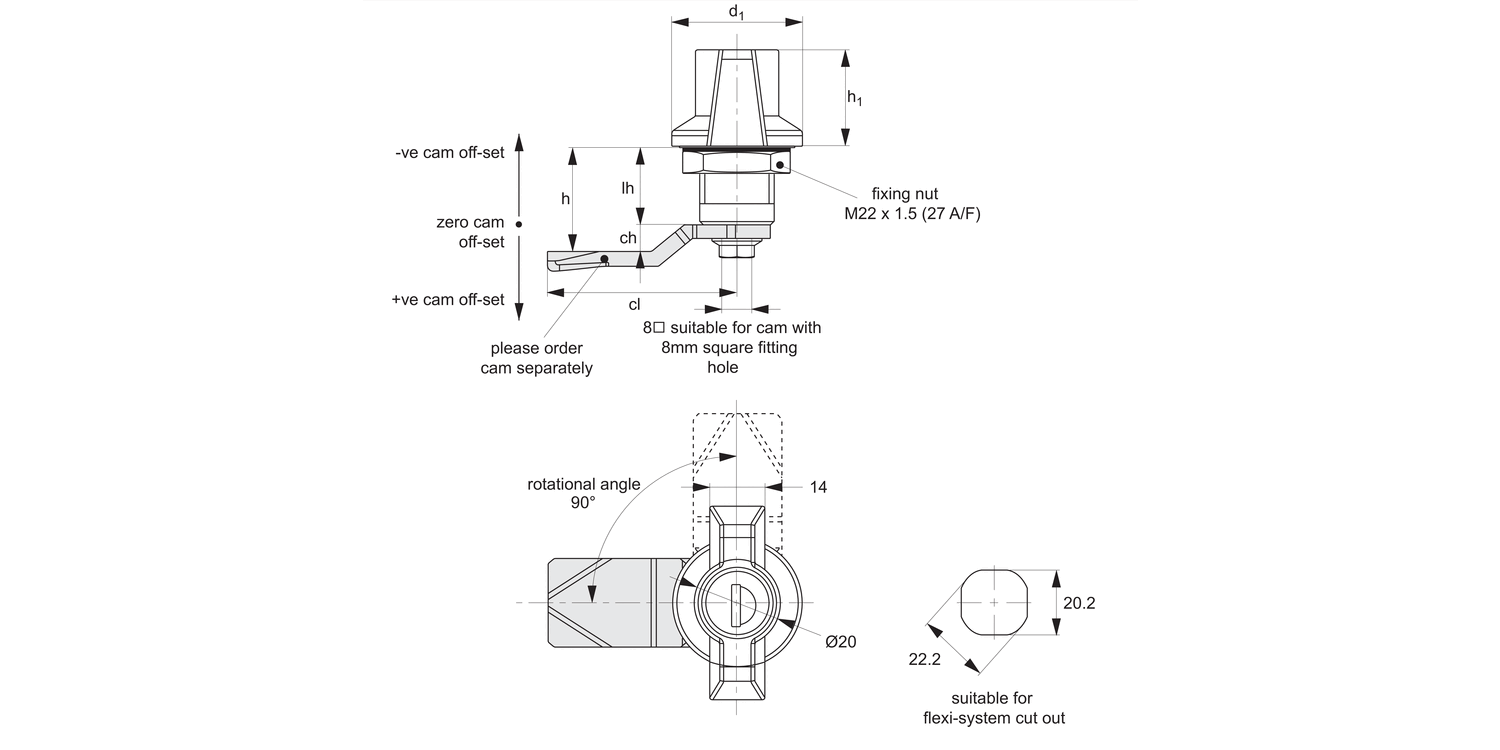

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Tips
Quarter turn opening or closing.
Wings act as actuation handle.
Universal left and right.
Important Notes
Sold subject to pack quantity.
