Cam Locks Flexi-Grip
fixed grip - zinc
CC2210 Cam Lock - Flexi System
L-handle - fixed grip, material: Die cast zinc/polyamide
Alternative products you may wish to consider
£ 11.30 per unit (click for quantity discounts)
£ 12.12 per unit (click for quantity discounts)
£ 11.30 per unit (click for quantity discounts)
£ 12.12 per unit (click for quantity discounts)
Body finish
Key type
d1
lh
| Price & Availability | Article | Body finish | Key type | d1 | lh | ||||||||||||||||||
| CC2210.M0110 | Chrome Plated | Keyed Alike | 32 | 18 | |||||||||||||||||||
£ 11.30 per unit (click for quantity discounts) Ready to despatch 21 Need more? Please call us.
Body finish Chrome Plated Key type Keyed Alike d1 32 lh 18 | |||||||||||||||||||||||
| CC2210.M0120 | Chrome Plated | Keyed to Differ | 32 | 18 | |||||||||||||||||||
£ 12.12 per unit (click for quantity discounts) Ready to despatch 73 Need more? Please call us.
Body finish Chrome Plated Key type Keyed to Differ d1 32 lh 18 | |||||||||||||||||||||||
| CC2210.M0310 | Black Coated | Keyed Alike | 32 | 18 | |||||||||||||||||||
£ 11.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Body finish Black Coated Key type Keyed Alike d1 32 lh 18 | |||||||||||||||||||||||
| CC2210.M0320 | Black Coated | Keyed to Differ | 32 | 18 | |||||||||||||||||||
£ 12.12 per unit (click for quantity discounts) Ready to despatch 47 Need more? Please call us.
Body finish Black Coated Key type Keyed to Differ d1 32 lh 18 | |||||||||||||||||||||||
Technical & Application
Material
Body: die cast zinc, finished in chrome plate or black powder coating.
Cylinder lock: die cast zinc, chrome plated.
Supplied With: Nut: steel, zinc plated. Keys: two per lock.
Not Supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "with projection" cam type to prevent cam rotating over 45º.

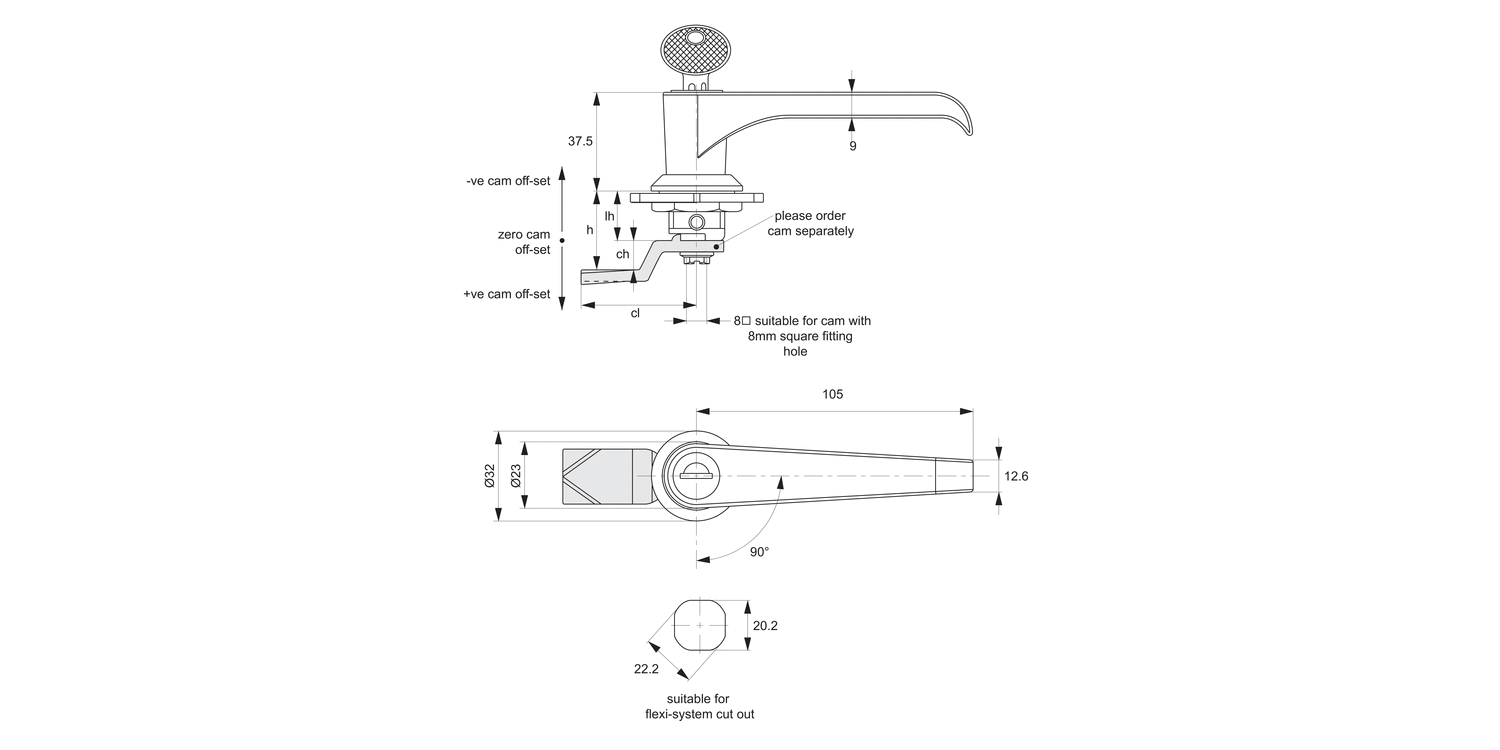

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Tips
Disc tumbler cylinder locks with stainless dust cap, to prevent material ingress. Universal left and right.
