QR1112 Quick Release Pins - Metric - L-handle

steel pin, material: Steel

Download product datasheet

Alternative products you may wish to consider

Ball Lock Pin
single acting, L-handle

Ball Lock Pin
single acting, L-handle

QRP Metric L-handle
steel pin

QRP Metric L-handle
17-4 PH s/s pin

QRP Inch L-handle
steel pin

QRP Inch L-handle
s/s pin

QRP Inch L-handle
17-4 PH s/s pin

Ball Lock Pins - Mushroom Handle
single acting - self-locking

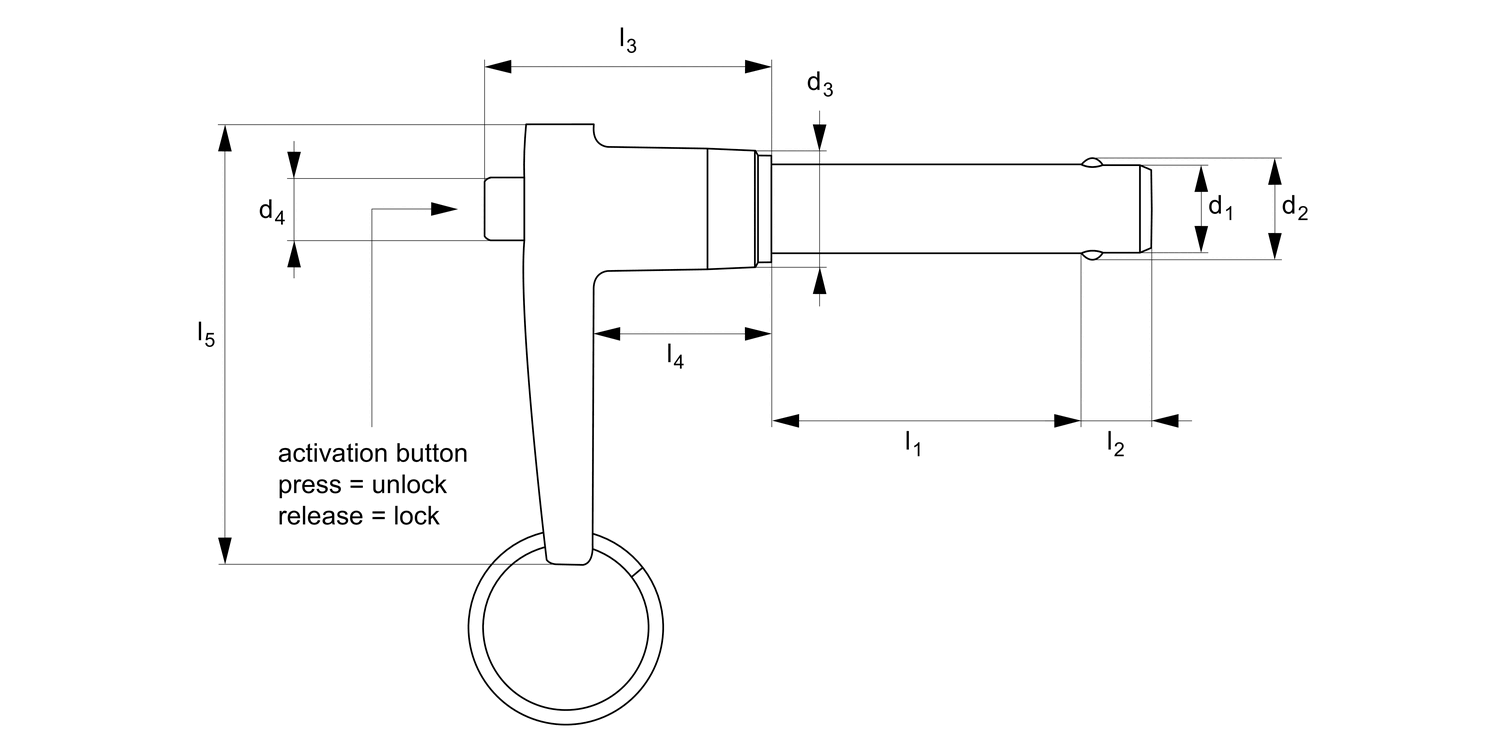

QR pin L handle metric 4130 steel d1-05 l1-010

QR1112.M05-010-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-015

QR1112.M05-015-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-020

QR1112.M05-020-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-025

QR1112.M05-025-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-030

QR1112.M05-030-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-035

QR1112.M05-035-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-040

QR1112.M05-040-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-045

QR1112.M05-045-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-050

QR1112.M05-050-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-060

QR1112.M05-060-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 45.61 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-070

QR1112.M05-070-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-080

QR1112.M05-080-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-090

QR1112.M05-090-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-100

QR1112.M05-100-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-010

QR1112.M06-010-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-015

QR1112.M06-015-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-020

QR1112.M06-020-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-025

QR1112.M06-025-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-030

QR1112.M06-030-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-035

QR1112.M06-035-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-040

QR1112.M06-040-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-045

QR1112.M06-045-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-050

QR1112.M06-050-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-060

QR1112.M06-060-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 45.61 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-070

QR1112.M06-070-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-080

QR1112.M06-080-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-090

QR1112.M06-090-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-100

QR1112.M06-100-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 56.12 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-010

QR1112.M08-010-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-015

QR1112.M08-015-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-020

QR1112.M08-020-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-025

QR1112.M08-025-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-030

QR1112.M08-030-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-035

QR1112.M08-035-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-040

QR1112.M08-040-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-045

QR1112.M08-045-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 49.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-050

QR1112.M08-050-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 49.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-060

QR1112.M08-060-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 52.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-070

QR1112.M08-070-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 55.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-080

QR1112.M08-080-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 55.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-090

QR1112.M08-090-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 62.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-100

QR1112.M08-100-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 62.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-015

QR1112.M10-015-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-020

QR1112.M10-020-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-025

QR1112.M10-025-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-030

QR1112.M10-030-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 48.47 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-035

QR1112.M10-035-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-040

QR1112.M10-040-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 48.47 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-045

QR1112.M10-045-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 53.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-050

QR1112.M10-050-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 53.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-060

QR1112.M10-060-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 56.55 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-070

QR1112.M10-070-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 59.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-080

QR1112.M10-080-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 59.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-090

QR1112.M10-090-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 67.36 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-100

QR1112.M10-100-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 70.02 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-020

QR1112.M12-020-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-025

QR1112.M12-025-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-030

QR1112.M12-030-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 58.75 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-035

QR1112.M12-035-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-040

QR1112.M12-040-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 58.75 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-045

QR1112.M12-045-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 65.27 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-050

QR1112.M12-050-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 65.27 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-060

QR1112.M12-060-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 68.53 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-070

QR1112.M12-070-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 71.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-080

QR1112.M12-080-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 71.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-090

QR1112.M12-090-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 81.60 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-100

QR1112.M12-100-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 84.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-025

QR1112.M16-025-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 71.36 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-030

QR1112.M16-030-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 69.82 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-035

QR1112.M16-035-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 73.68 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-040

QR1112.M16-040-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 69.82 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-045

QR1112.M16-045-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 77.56 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-050

QR1112.M16-050-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 77.56 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-060

QR1112.M16-060-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 81.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-070

QR1112.M16-070-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 85.32 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-080

QR1112.M16-080-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 85.32 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-090

QR1112.M16-090-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 96.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-100

QR1112.M16-100-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 96.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-010

QR1112.M05-010-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-015

QR1112.M05-015-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-020

QR1112.M05-020-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-025

QR1112.M05-025-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-030

QR1112.M05-030-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-035

QR1112.M05-035-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-040

QR1112.M05-040-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-045

QR1112.M05-045-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-050

QR1112.M05-050-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-060

QR1112.M05-060-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 45.61 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-070

QR1112.M05-070-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-080

QR1112.M05-080-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-090

QR1112.M05-090-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-05 l1-100

QR1112.M05-100-C

d₁ nom. dia.

5

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

4.96

d₁ min.

4.92

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

l₂ ±1.00

6

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

21.6

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-010

QR1112.M06-010-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-015

QR1112.M06-015-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 39.96 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-020

QR1112.M06-020-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-025

QR1112.M06-025-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 41.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-030

QR1112.M06-030-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-035

QR1112.M06-035-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-040

QR1112.M06-040-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-045

QR1112.M06-045-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-050

QR1112.M06-050-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 43.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-060

QR1112.M06-060-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 45.61 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-070

QR1112.M06-070-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-080

QR1112.M06-080-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 47.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-090

QR1112.M06-090-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 58.65 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-06 l1-100

QR1112.M06-100-C

d₁ nom. dia.

6

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

5.96

d₁ min.

5.92

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

l₂ ±1.00

7

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

31.69

£ 56.12 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-010

QR1112.M08-010-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

10

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-015

QR1112.M08-015-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-020

QR1112.M08-020-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-025

QR1112.M08-025-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 45.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-030

QR1112.M08-030-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-035

QR1112.M08-035-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-040

QR1112.M08-040-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 47.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-045

QR1112.M08-045-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 49.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-050

QR1112.M08-050-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 49.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-060

QR1112.M08-060-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 52.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-070

QR1112.M08-070-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 55.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-080

QR1112.M08-080-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 55.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-090

QR1112.M08-090-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 62.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-08 l1-100

QR1112.M08-100-C

d₁ nom. dia.

8

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

7.96

d₁ min.

7.92

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

l₂ ±1.00

8

l₃

30.7

l₄

19.3

l₅

46.7

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

56.71

£ 62.51 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-015

QR1112.M10-015-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

15

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-020

QR1112.M10-020-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-025

QR1112.M10-025-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-030

QR1112.M10-030-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 48.47 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-035

QR1112.M10-035-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 51.16 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-040

QR1112.M10-040-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 48.47 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-045

QR1112.M10-045-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 53.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-050

QR1112.M10-050-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 53.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-060

QR1112.M10-060-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 56.55 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-070

QR1112.M10-070-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 59.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-080

QR1112.M10-080-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 59.28 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-090

QR1112.M10-090-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 67.36 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-10 l1-100

QR1112.M10-100-C

d₁ nom. dia.

10

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

9.96

d₁ min.

9.92

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

l₂ ±1.00

9

l₃

34.8

l₄

22.1

l₅

54.1

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

88.98

£ 70.02 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-020

QR1112.M12-020-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

20

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-025

QR1112.M12-025-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-030

QR1112.M12-030-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 58.75 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-035

QR1112.M12-035-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 62.01 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-040

QR1112.M12-040-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 58.75 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-045

QR1112.M12-045-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 65.27 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-050

QR1112.M12-050-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 65.27 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-060

QR1112.M12-060-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 68.53 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-070

QR1112.M12-070-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 71.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-080

QR1112.M12-080-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 71.80 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-090

QR1112.M12-090-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 81.60 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-12 l1-100

QR1112.M12-100-C

d₁ nom. dia.

12

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

11.96

d₁ min.

11.92

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

l₂ ±1.00

10

l₃

40.6

l₄

25.4

l₅

60.2

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

128.05

£ 84.86 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-025

QR1112.M16-025-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

25

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 71.36 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-030

QR1112.M16-030-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

30

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 69.82 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-035

QR1112.M16-035-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

35

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 73.68 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-040

QR1112.M16-040-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

40

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 69.82 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-045

QR1112.M16-045-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

45

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 77.56 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-050

QR1112.M16-050-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

50

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 77.56 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-060

QR1112.M16-060-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

60

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 81.46 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-070

QR1112.M16-070-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

70

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 85.32 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-080

QR1112.M16-080-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

80

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 85.32 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-090

QR1112.M16-090-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

90

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 96.99 per unit (click for quantity discounts)

QR pin L handle metric 4130 steel d1-16 l1-100

QR1112.M16-100-C

d₁ nom. dia.

16

l₁ grip +0.50|-0.00

100

Material

4130 Steel

d₁ max.

15.96

d₁ min.

15.92

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

l₂ ±1.00

14

l₃

45.0

l₄

28.2

l₅

68.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

228.60

£ 96.99 per unit (click for quantity discounts)



Select all

d₁ nom. dia.

l₁ grip +0.50|-0.00

Material

d₁ max.

d₁ min.

d₂ ±0.25

d₃

d₄

l₂ ±1.00

l₃

l₄

l₅

Loc'n hole min.|max.

Pull out strength min. kN

Calc. double shear kN

Price & Availability	Article	d1 nom. dia.	l1 grip +0.50|-0.00	Material	d1 max.	d1 min.	d2 ±0.25	d3	d4	l2 ±1.00	l3	l4	l5	Loc'n hole min.|max.	Pull out strength min. kN	Calc. double shear kN
	QR1112.M05-010-C	5	10	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 39.96 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.96 0% 10-19 £ 35.96 10% 20-49 £ 33.97 15% 50-99 £ 31.97 20% 100+ £ 27.97 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 10 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-015-C	5	15	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 39.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.96 0% 10-19 £ 35.96 10% 20-49 £ 33.97 15% 50-99 £ 31.97 20% 100+ £ 27.97 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 15 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-020-C	5	20	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 41.28 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.28 0% 10-19 £ 37.15 10% 20-49 £ 35.09 15% 50-99 £ 33.02 20% 100+ £ 28.89 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 20 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-025-C	5	25	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 41.28 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.28 0% 10-19 £ 37.15 10% 20-49 £ 35.09 15% 50-99 £ 33.02 20% 100+ £ 28.89 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-030-C	5	30	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 43.46 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-035-C	5	35	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 43.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-040-C	5	40	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 43.46 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-045-C	5	45	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 43.46 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-050-C	5	50	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 43.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-060-C	5	60	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 45.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.61 0% 10-19 £ 41.05 10% 20-49 £ 38.77 15% 50-99 £ 36.49 20% 100+ £ 31.93 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-070-C	5	70	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 47.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.80 0% 10-19 £ 43.02 10% 20-49 £ 40.63 15% 50-99 £ 38.24 20% 100+ £ 33.46 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-080-C	5	80	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 47.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.80 0% 10-19 £ 43.02 10% 20-49 £ 40.63 15% 50-99 £ 38.24 20% 100+ £ 33.46 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-090-C	5	90	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 58.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.65 0% 10-19 £ 52.78 10% 20-49 £ 49.85 15% 50-99 £ 46.92 20% 100+ £ 41.05 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M05-100-C	5	100	4130 Steel	4.96	4.92	5.54	11.9	5.8	6	30.7	19.3	46.7	5,0/5,1	0.89	21.6
£ 58.65 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.65 0% 10-19 £ 52.78 10% 20-49 £ 49.85 15% 50-99 £ 46.92 20% 100+ £ 41.05 30% d1 nom. dia. 5 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 4.96 d1 min. 4.92 d2 ±0.25 5.54 d3 11.9 d4 5.8 l2 ±1.00 6 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 21.6 more info »
	QR1112.M06-010-C	6	10	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 39.96 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.96 0% 10-19 £ 35.96 10% 20-49 £ 33.97 15% 50-99 £ 31.97 20% 100+ £ 27.97 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 10 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-015-C	6	15	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 39.96 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.96 0% 10-19 £ 35.96 10% 20-49 £ 33.97 15% 50-99 £ 31.97 20% 100+ £ 27.97 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 15 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-020-C	6	20	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 41.28 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.28 0% 10-19 £ 37.15 10% 20-49 £ 35.09 15% 50-99 £ 33.02 20% 100+ £ 28.89 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 20 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-025-C	6	25	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 41.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.28 0% 10-19 £ 37.15 10% 20-49 £ 35.09 15% 50-99 £ 33.02 20% 100+ £ 28.89 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-030-C	6	30	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 43.46 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-035-C	6	35	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 43.46 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-040-C	6	40	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 43.46 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-045-C	6	45	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 43.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-050-C	6	50	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 43.46 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.46 0% 10-19 £ 39.12 10% 20-49 £ 36.94 15% 50-99 £ 34.77 20% 100+ £ 30.42 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-060-C	6	60	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 45.61 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.61 0% 10-19 £ 41.05 10% 20-49 £ 38.77 15% 50-99 £ 36.49 20% 100+ £ 31.93 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-070-C	6	70	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 47.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.80 0% 10-19 £ 43.02 10% 20-49 £ 40.63 15% 50-99 £ 38.24 20% 100+ £ 33.46 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-080-C	6	80	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 47.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.80 0% 10-19 £ 43.02 10% 20-49 £ 40.63 15% 50-99 £ 38.24 20% 100+ £ 33.46 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-090-C	6	90	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 58.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.65 0% 10-19 £ 52.78 10% 20-49 £ 49.85 15% 50-99 £ 46.92 20% 100+ £ 41.05 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M06-100-C	6	100	4130 Steel	5.96	5.92	6.99	11.9	5.8	7	30.7	19.3	46.7	6,0/6,1	1.02	31.69
£ 56.12 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 56.12 0% 10-19 £ 50.51 10% 20-49 £ 47.70 15% 50-99 £ 44.90 20% 100+ £ 39.28 30% d1 nom. dia. 6 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 5.96 d1 min. 5.92 d2 ±0.25 6.99 d3 11.9 d4 5.8 l2 ±1.00 7 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 31.69 more info »
	QR1112.M08-010-C	8	10	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 45.99 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.99 0% 10-19 £ 41.39 10% 20-49 £ 39.09 15% 50-99 £ 36.79 20% 100+ £ 32.19 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 10 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-015-C	8	15	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 45.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.99 0% 10-19 £ 41.39 10% 20-49 £ 39.09 15% 50-99 £ 36.79 20% 100+ £ 32.19 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 15 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-020-C	8	20	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 45.99 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.99 0% 10-19 £ 41.39 10% 20-49 £ 39.09 15% 50-99 £ 36.79 20% 100+ £ 32.19 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 20 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-025-C	8	25	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 45.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.99 0% 10-19 £ 41.39 10% 20-49 £ 39.09 15% 50-99 £ 36.79 20% 100+ £ 32.19 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-030-C	8	30	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 47.51 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.51 0% 10-19 £ 42.76 10% 20-49 £ 40.38 15% 50-99 £ 38.00 20% 100+ £ 33.25 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-035-C	8	35	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 47.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.51 0% 10-19 £ 42.76 10% 20-49 £ 40.38 15% 50-99 £ 38.00 20% 100+ £ 33.25 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-040-C	8	40	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 47.51 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.51 0% 10-19 £ 42.76 10% 20-49 £ 40.38 15% 50-99 £ 38.00 20% 100+ £ 33.25 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-045-C	8	45	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 49.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.99 0% 10-19 £ 44.99 10% 20-49 £ 42.49 15% 50-99 £ 39.99 20% 100+ £ 35.00 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-050-C	8	50	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 49.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.99 0% 10-19 £ 44.99 10% 20-49 £ 42.49 15% 50-99 £ 39.99 20% 100+ £ 35.00 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-060-C	8	60	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 52.51 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 52.51 0% 10-19 £ 47.26 10% 20-49 £ 44.63 15% 50-99 £ 42.01 20% 100+ £ 36.76 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-070-C	8	70	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 55.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 55.01 0% 10-19 £ 49.51 10% 20-49 £ 46.76 15% 50-99 £ 44.01 20% 100+ £ 38.51 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-080-C	8	80	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 55.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 55.01 0% 10-19 £ 49.51 10% 20-49 £ 46.76 15% 50-99 £ 44.01 20% 100+ £ 38.51 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-090-C	8	90	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 62.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.51 0% 10-19 £ 56.26 10% 20-49 £ 53.14 15% 50-99 £ 50.01 20% 100+ £ 43.76 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M08-100-C	8	100	4130 Steel	7.96	7.92	9.42	11.9	5.8	8	30.7	19.3	46.7	8,0/8,1	2.30	56.71
£ 62.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.51 0% 10-19 £ 56.26 10% 20-49 £ 53.14 15% 50-99 £ 50.01 20% 100+ £ 43.76 30% d1 nom. dia. 8 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 7.96 d1 min. 7.92 d2 ±0.25 9.42 d3 11.9 d4 5.8 l2 ±1.00 8 l3 30.7 l4 19.3 l5 46.7 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 56.71 more info »
	QR1112.M10-015-C	10	15	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 51.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.16 0% 10-19 £ 46.05 10% 20-49 £ 43.49 15% 50-99 £ 40.93 20% 100+ £ 35.81 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 15 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-020-C	10	20	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 51.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.16 0% 10-19 £ 46.05 10% 20-49 £ 43.49 15% 50-99 £ 40.93 20% 100+ £ 35.81 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 20 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-025-C	10	25	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 51.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.16 0% 10-19 £ 46.05 10% 20-49 £ 43.49 15% 50-99 £ 40.93 20% 100+ £ 35.81 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-030-C	10	30	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 48.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.47 0% 10-19 £ 43.62 10% 20-49 £ 41.20 15% 50-99 £ 38.77 20% 100+ £ 33.93 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-035-C	10	35	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 51.16 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.16 0% 10-19 £ 46.05 10% 20-49 £ 43.49 15% 50-99 £ 40.93 20% 100+ £ 35.81 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-040-C	10	40	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 48.47 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.47 0% 10-19 £ 43.62 10% 20-49 £ 41.20 15% 50-99 £ 38.77 20% 100+ £ 33.93 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-045-C	10	45	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 53.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.86 0% 10-19 £ 48.47 10% 20-49 £ 45.78 15% 50-99 £ 43.09 20% 100+ £ 37.70 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-050-C	10	50	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 53.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.86 0% 10-19 £ 48.47 10% 20-49 £ 45.78 15% 50-99 £ 43.09 20% 100+ £ 37.70 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-060-C	10	60	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 56.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 56.55 0% 10-19 £ 50.89 10% 20-49 £ 48.06 15% 50-99 £ 45.24 20% 100+ £ 39.58 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-070-C	10	70	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 59.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 59.28 0% 10-19 £ 53.35 10% 20-49 £ 50.39 15% 50-99 £ 47.43 20% 100+ £ 41.50 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-080-C	10	80	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 59.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 59.28 0% 10-19 £ 53.35 10% 20-49 £ 50.39 15% 50-99 £ 47.43 20% 100+ £ 41.50 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-090-C	10	90	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 67.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 67.36 0% 10-19 £ 60.62 10% 20-49 £ 57.26 15% 50-99 £ 53.89 20% 100+ £ 47.15 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M10-100-C	10	100	4130 Steel	9.96	9.92	11.86	14.2	7.4	9	34.8	22.1	54.1	10,0/10,1	2.56	88.98
£ 70.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 70.02 0% 10-19 £ 63.01 10% 20-49 £ 59.51 15% 50-99 £ 56.01 20% 100+ £ 49.01 30% d1 nom. dia. 10 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 9.96 d1 min. 9.92 d2 ±0.25 11.86 d3 14.2 d4 7.4 l2 ±1.00 9 l3 34.8 l4 22.1 l5 54.1 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 88.98 more info »
	QR1112.M12-020-C	12	20	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 62.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.01 0% 10-19 £ 55.81 10% 20-49 £ 52.71 15% 50-99 £ 49.61 20% 100+ £ 43.41 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 20 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-025-C	12	25	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 62.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.01 0% 10-19 £ 55.81 10% 20-49 £ 52.71 15% 50-99 £ 49.61 20% 100+ £ 43.41 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-030-C	12	30	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 58.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.75 0% 10-19 £ 52.87 10% 20-49 £ 49.94 15% 50-99 £ 47.00 20% 100+ £ 41.12 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-035-C	12	35	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 62.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.01 0% 10-19 £ 55.81 10% 20-49 £ 52.71 15% 50-99 £ 49.61 20% 100+ £ 43.41 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-040-C	12	40	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 58.75 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.75 0% 10-19 £ 52.87 10% 20-49 £ 49.94 15% 50-99 £ 47.00 20% 100+ £ 41.12 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-045-C	12	45	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 65.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.27 0% 10-19 £ 58.74 10% 20-49 £ 55.48 15% 50-99 £ 52.22 20% 100+ £ 45.69 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-050-C	12	50	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 65.27 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.27 0% 10-19 £ 58.74 10% 20-49 £ 55.48 15% 50-99 £ 52.22 20% 100+ £ 45.69 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-060-C	12	60	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 68.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.53 0% 10-19 £ 61.68 10% 20-49 £ 58.25 15% 50-99 £ 54.82 20% 100+ £ 47.97 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-070-C	12	70	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 71.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 71.80 0% 10-19 £ 64.62 10% 20-49 £ 61.03 15% 50-99 £ 57.44 20% 100+ £ 50.26 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-080-C	12	80	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 71.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 71.80 0% 10-19 £ 64.62 10% 20-49 £ 61.03 15% 50-99 £ 57.44 20% 100+ £ 50.26 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-090-C	12	90	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 81.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 81.60 0% 10-19 £ 73.44 10% 20-49 £ 69.36 15% 50-99 £ 65.28 20% 100+ £ 57.12 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M12-100-C	12	100	4130 Steel	11.96	11.92	14.45	18.3	10.7	10	40.6	25.4	60.2	12,0/12,1	5.16	128.05
£ 84.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 84.86 0% 10-19 £ 76.38 10% 20-49 £ 72.13 15% 50-99 £ 67.89 20% 100+ £ 59.41 30% d1 nom. dia. 12 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 11.96 d1 min. 11.92 d2 ±0.25 14.45 d3 18.3 d4 10.7 l2 ±1.00 10 l3 40.6 l4 25.4 l5 60.2 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 128.05 more info »
	QR1112.M16-025-C	16	25	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 71.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 71.36 0% 10-19 £ 64.23 10% 20-49 £ 60.66 15% 50-99 £ 57.09 20% 100+ £ 49.95 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 25 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-030-C	16	30	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 69.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.82 0% 10-19 £ 62.83 10% 20-49 £ 59.34 15% 50-99 £ 55.85 20% 100+ £ 48.87 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 30 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-035-C	16	35	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 73.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 73.68 0% 10-19 £ 66.31 10% 20-49 £ 62.63 15% 50-99 £ 58.95 20% 100+ £ 51.58 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 35 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-040-C	16	40	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 69.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.82 0% 10-19 £ 62.83 10% 20-49 £ 59.34 15% 50-99 £ 55.85 20% 100+ £ 48.87 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 40 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-045-C	16	45	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 77.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 77.56 0% 10-19 £ 69.80 10% 20-49 £ 65.93 15% 50-99 £ 62.05 20% 100+ £ 54.29 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 45 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-050-C	16	50	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 77.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 77.56 0% 10-19 £ 69.80 10% 20-49 £ 65.93 15% 50-99 £ 62.05 20% 100+ £ 54.29 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 50 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-060-C	16	60	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 81.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 81.46 0% 10-19 £ 73.31 10% 20-49 £ 69.24 15% 50-99 £ 65.17 20% 100+ £ 57.02 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 60 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-070-C	16	70	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 85.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 85.32 0% 10-19 £ 76.79 10% 20-49 £ 72.53 15% 50-99 £ 68.26 20% 100+ £ 59.73 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 70 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-080-C	16	80	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 85.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 85.32 0% 10-19 £ 76.79 10% 20-49 £ 72.53 15% 50-99 £ 68.26 20% 100+ £ 59.73 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 80 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-090-C	16	90	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 96.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 96.99 0% 10-19 £ 87.29 10% 20-49 £ 82.44 15% 50-99 £ 77.59 20% 100+ £ 67.89 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 90 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
	QR1112.M16-100-C	16	100	4130 Steel	15.96	15.92	19.00	23.9	13.7	14	45.0	28.2	68.3	16,0/16,1	9.21	228.60
£ 96.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 96.99 0% 10-19 £ 87.29 10% 20-49 £ 82.44 15% 50-99 £ 77.59 20% 100+ £ 67.89 30% d1 nom. dia. 16 l1 grip +0.50|-0.00 100 Material 4130 Steel d1 max. 15.96 d1 min. 15.92 d2 ±0.25 19.00 d3 23.9 d4 13.7 l2 ±1.00 14 l3 45.0 l4 28.2 l5 68.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 228.60 more info »
