QR1124 Quick Release Pins - Inch - L-handle

stainless pin, material: Stainless steel

Download product datasheet

Alternative products you may wish to consider

Ball Lock Pin
single acting, L-handle

Ball Lock Pin
single acting, L-handle

QRP Metric L-handle
steel pin

QRP Metric L-handle
17-4 PH s/s pin

QRP Inch L-handle
steel pin

QRP Inch L-handle
s/s pin

QRP Inch L-handle
17-4 PH s/s pin

Ball Lock Pins - Mushroom Handle
single acting - self-locking

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-050-S

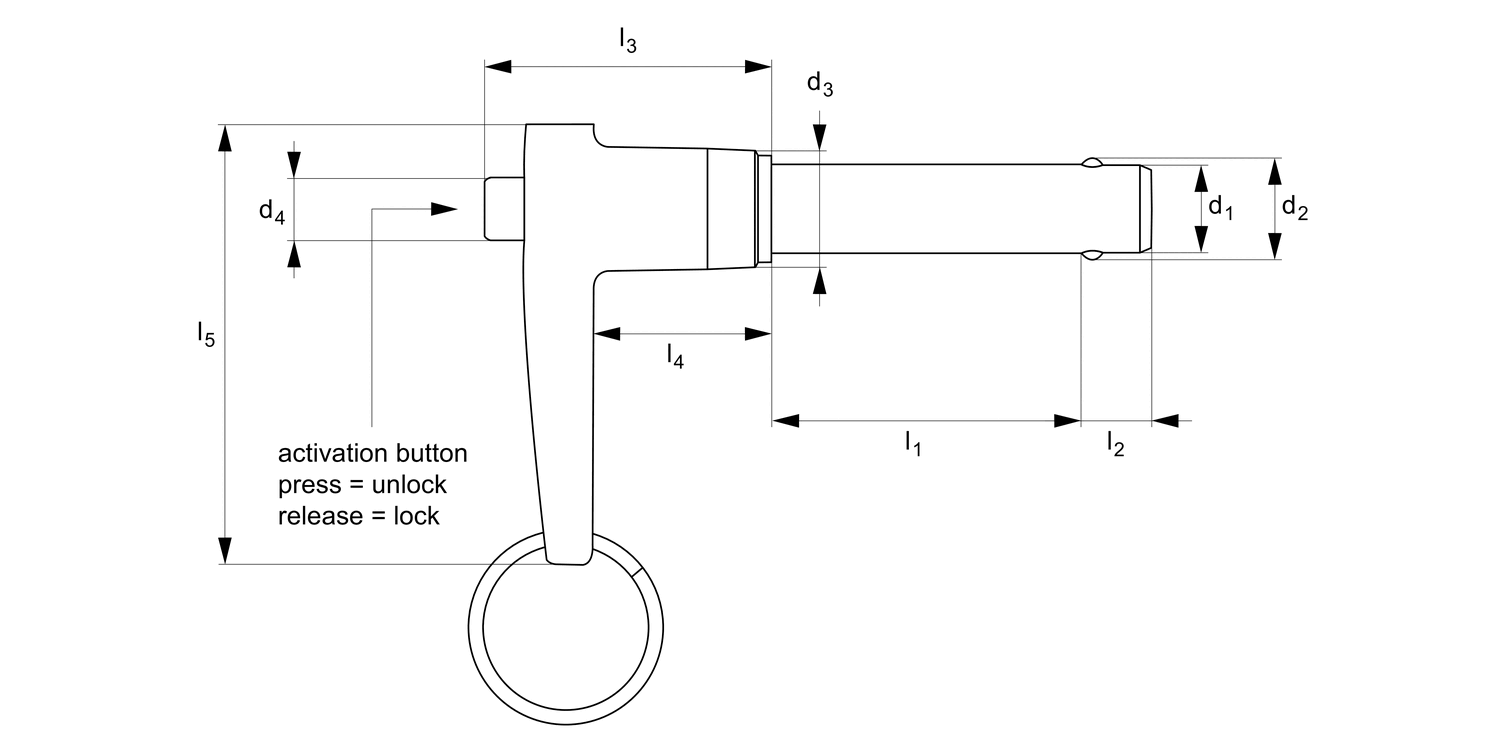

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3/4

QR1124.I25-075-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1

QR1124.I25-100-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/4

QR1124.I25-125-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-150-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3/4

QR1124.I25-175-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-2

QR1124.I25-200-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.40 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-250-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.20 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3

QR1124.I25-300-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.20 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-350-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-4

QR1124.I25-400-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-050-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3/4

QR1124.I31-075-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1

QR1124.I31-100-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/4

QR1124.I31-125-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-150-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3/4

QR1124.I31-175-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-2

QR1124.I31-200-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-250-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 48.87 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3

QR1124.I31-300-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-350-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-4

QR1124.I31-400-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-050-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3/4

QR1124.I37-075-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1

QR1124.I37-100-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/4

QR1124.I37-125-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-150-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3/4

QR1124.I37-175-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-2

QR1124.I37-200-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-250-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 57.73 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3

QR1124.I37-300-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 55.24 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-350-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 60.16 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-4

QR1124.I37-400-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 60.16 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1

QR1124.I50-100-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 56.60 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/4

QR1124.I50-125-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-150-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-3/4

QR1124.I50-175-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-2

QR1124.I50-200-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-250-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 75.03 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-3

QR1124.I50-300-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 75.03 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-350-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 80.63 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-4

QR1124.I50-400-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 84.26 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s

QR1124.I50-450-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 93.44 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-5

QR1124.I50-500-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 93.44 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-550-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.66 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-6

QR1124.I50-600-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

6.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 98.24 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-050-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3/4

QR1124.I25-075-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1

QR1124.I25-100-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 35.96 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/4

QR1124.I25-125-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-150-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3/4

QR1124.I25-175-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 41.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-2

QR1124.I25-200-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.40 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-250-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.20 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-3

QR1124.I25-300-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 44.20 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-1/2

QR1124.I25-350-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/4 l1-4

QR1124.I25-400-S

d₁ nom.

1/4

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,2485

d₁ min.

,2470

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.290

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-050-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3/4

QR1124.I31-075-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1

QR1124.I31-100-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/4

QR1124.I31-125-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-150-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3/4

QR1124.I31-175-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-2

QR1124.I31-200-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-250-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 48.87 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-3

QR1124.I31-300-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-1/2

QR1124.I31-350-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-5/16 l1-4

QR1124.I31-400-S

d₁ nom.

5/16

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3110

d₁ min.

,3095

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

l₂ +0.000|-0.030

0.330

l₃

1.21

l₄

0.76

l₅

1.84

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-050-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3/4

QR1124.I37-075-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

0.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1

QR1124.I37-100-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 42.22 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/4

QR1124.I37-125-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-150-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3/4

QR1124.I37-175-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-2

QR1124.I37-200-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 48.52 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-250-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 57.73 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-3

QR1124.I37-300-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 55.24 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-1/2

QR1124.I37-350-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 60.16 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-3/8 l1-4

QR1124.I37-400-S

d₁ nom.

3/8

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,3735

d₁ min.

,3720

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

l₂ +0.000|-0.030

0.365

l₃

1.37

l₄

0.87

l₅

2.13

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 60.16 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1

QR1124.I50-100-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 56.60 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/4

QR1124.I50-125-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.25

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-150-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-3/4

QR1124.I50-175-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

1.75

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-2

QR1124.I50-200-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 65.80 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-250-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

2.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 75.03 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-3

QR1124.I50-300-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 75.03 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-350-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

3.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 80.63 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-4

QR1124.I50-400-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 84.26 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s

QR1124.I50-450-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

4.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 93.44 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-5

QR1124.I50-500-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 93.44 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-1/2

QR1124.I50-550-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

5.50

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.66 per unit (click for quantity discounts)

QR pin L handle inch 300 s/s d1-1/2 l1-6

QR1124.I50-600-S

d₁ nom.

1/2

l₁ grip +0.02|-0.00

6.00

Material

304 SS

d₁ max.

,4985

d₁ min.

,4970

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

l₂ +0.000|-0.030

0.460

l₃

1.60

l₄

1.00

l₅

2.69

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 98.24 per unit (click for quantity discounts)



Select all

d₁ nom.

l₁ grip +0.02|-0.00

Material

d₁ max.

d₁ min.

d₂ ±0.005

d₃

d₄

l₂ +0.000|-0.030

l₃

l₄

l₅

Loc'n hole min.|max.

Pull out strength min. lb

Calc. double shear lb

Price & Availability	Article	d1 nom.	l1 grip +0.02|-0.00	Material	d1 max.	d1 min.	d2 ±0.005	d3	d4	l2 +0.000|-0.030	l3	l4	l5	Loc'n hole min.|max.	Pull out strength min. lb	Calc. double shear lb
	QR1124.I25-050-S	1/4	0.50	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 35.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 35.96 0% 10-19 £ 32.36 10% 20-49 £ 30.56 15% 50-99 £ 28.77 20% 100+ £ 25.17 30% d1 nom. 1/4 l1 grip +0.02|-0.00 0.50 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-075-S	1/4	0.75	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 35.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 35.96 0% 10-19 £ 32.36 10% 20-49 £ 30.56 15% 50-99 £ 28.77 20% 100+ £ 25.17 30% d1 nom. 1/4 l1 grip +0.02|-0.00 0.75 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-100-S	1/4	1.00	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 35.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 35.96 0% 10-19 £ 32.36 10% 20-49 £ 30.56 15% 50-99 £ 28.77 20% 100+ £ 25.17 30% d1 nom. 1/4 l1 grip +0.02|-0.00 1.00 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-125-S	1/4	1.25	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 41.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.74 0% 10-19 £ 37.56 10% 20-49 £ 35.48 15% 50-99 £ 33.39 20% 100+ £ 29.22 30% d1 nom. 1/4 l1 grip +0.02|-0.00 1.25 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-150-S	1/4	1.50	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 41.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.74 0% 10-19 £ 37.56 10% 20-49 £ 35.48 15% 50-99 £ 33.39 20% 100+ £ 29.22 30% d1 nom. 1/4 l1 grip +0.02|-0.00 1.50 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-175-S	1/4	1.75	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 41.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 41.74 0% 10-19 £ 37.56 10% 20-49 £ 35.48 15% 50-99 £ 33.39 20% 100+ £ 29.22 30% d1 nom. 1/4 l1 grip +0.02|-0.00 1.75 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-200-S	1/4	2.00	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 44.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 44.40 0% 10-19 £ 39.96 10% 20-49 £ 37.74 15% 50-99 £ 35.52 20% 100+ £ 31.08 30% d1 nom. 1/4 l1 grip +0.02|-0.00 2.00 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-250-S	1/4	2.50	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 44.20 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 44.20 0% 10-19 £ 39.78 10% 20-49 £ 37.57 15% 50-99 £ 35.36 20% 100+ £ 30.94 30% d1 nom. 1/4 l1 grip +0.02|-0.00 2.50 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-300-S	1/4	3.00	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 44.20 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 44.20 0% 10-19 £ 39.78 10% 20-49 £ 37.57 15% 50-99 £ 35.36 20% 100+ £ 30.94 30% d1 nom. 1/4 l1 grip +0.02|-0.00 3.00 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-350-S	1/4	3.50	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 51.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.07 0% 10-19 £ 45.96 10% 20-49 £ 43.41 15% 50-99 £ 40.86 20% 100+ £ 35.75 30% d1 nom. 1/4 l1 grip +0.02|-0.00 3.50 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I25-400-S	1/4	4.00	304 SS	,2485	,2470	0.289	0.47	0.23	0.290	1.21	0.76	1.84	,2500/,2540	230	2200
£ 51.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.07 0% 10-19 £ 45.96 10% 20-49 £ 43.41 15% 50-99 £ 40.86 20% 100+ £ 35.75 30% d1 nom. 1/4 l1 grip +0.02|-0.00 4.00 Material 304 SS d1 max. ,2485 d1 min. ,2470 d2 ±0.005 0.289 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.290 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,2500/,2540 Pull out strength min. lb 230 Calc. double shear lb 2200 more info »
	QR1124.I31-050-S	5/16	0.50	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 40.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 40.57 0% 10-19 £ 36.51 10% 20-49 £ 34.48 15% 50-99 £ 32.45 20% 100+ £ 28.40 30% d1 nom. 5/16 l1 grip +0.02|-0.00 0.50 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-075-S	5/16	0.75	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 40.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 40.57 0% 10-19 £ 36.51 10% 20-49 £ 34.48 15% 50-99 £ 32.45 20% 100+ £ 28.40 30% d1 nom. 5/16 l1 grip +0.02|-0.00 0.75 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-100-S	5/16	1.00	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 40.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 40.57 0% 10-19 £ 36.51 10% 20-49 £ 34.48 15% 50-99 £ 32.45 20% 100+ £ 28.40 30% d1 nom. 5/16 l1 grip +0.02|-0.00 1.00 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-125-S	5/16	1.25	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 47.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.74 0% 10-19 £ 42.96 10% 20-49 £ 40.58 15% 50-99 £ 38.19 20% 100+ £ 33.41 30% d1 nom. 5/16 l1 grip +0.02|-0.00 1.25 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-150-S	5/16	1.50	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 47.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.74 0% 10-19 £ 42.96 10% 20-49 £ 40.58 15% 50-99 £ 38.19 20% 100+ £ 33.41 30% d1 nom. 5/16 l1 grip +0.02|-0.00 1.50 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-175-S	5/16	1.75	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 47.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.74 0% 10-19 £ 42.96 10% 20-49 £ 40.58 15% 50-99 £ 38.19 20% 100+ £ 33.41 30% d1 nom. 5/16 l1 grip +0.02|-0.00 1.75 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-200-S	5/16	2.00	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 47.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.74 0% 10-19 £ 42.96 10% 20-49 £ 40.58 15% 50-99 £ 38.19 20% 100+ £ 33.41 30% d1 nom. 5/16 l1 grip +0.02|-0.00 2.00 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-250-S	5/16	2.50	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 48.87 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.87 0% 10-19 £ 43.98 10% 20-49 £ 41.54 15% 50-99 £ 39.10 20% 100+ £ 34.21 30% d1 nom. 5/16 l1 grip +0.02|-0.00 2.50 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-300-S	5/16	3.00	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 51.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 51.07 0% 10-19 £ 45.96 10% 20-49 £ 43.41 15% 50-99 £ 40.86 20% 100+ £ 35.75 30% d1 nom. 5/16 l1 grip +0.02|-0.00 3.00 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-350-S	5/16	3.50	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 52.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 52.51 0% 10-19 £ 47.26 10% 20-49 £ 44.63 15% 50-99 £ 42.01 20% 100+ £ 36.76 30% d1 nom. 5/16 l1 grip +0.02|-0.00 3.50 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I31-400-S	5/16	4.00	304 SS	,3110	,3095	0.375	0.47	0.23	0.330	1.21	0.76	1.84	,3125/,3165	510	3500
£ 52.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 52.51 0% 10-19 £ 47.26 10% 20-49 £ 44.63 15% 50-99 £ 42.01 20% 100+ £ 36.76 30% d1 nom. 5/16 l1 grip +0.02|-0.00 4.00 Material 304 SS d1 max. ,3110 d1 min. ,3095 d2 ±0.005 0.375 d3 0.47 d4 0.23 l2 +0.000|-0.030 0.330 l3 1.21 l4 0.76 l5 1.84 Loc'n hole min.|max. ,3125/,3165 Pull out strength min. lb 510 Calc. double shear lb 3500 more info »
	QR1124.I37-050-S	3/8	0.50	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 42.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.22 0% 10-19 £ 38.00 10% 20-49 £ 35.89 15% 50-99 £ 33.77 20% 100+ £ 29.55 30% d1 nom. 3/8 l1 grip +0.02|-0.00 0.50 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-075-S	3/8	0.75	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 42.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.22 0% 10-19 £ 38.00 10% 20-49 £ 35.89 15% 50-99 £ 33.77 20% 100+ £ 29.55 30% d1 nom. 3/8 l1 grip +0.02|-0.00 0.75 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-100-S	3/8	1.00	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 42.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.22 0% 10-19 £ 38.00 10% 20-49 £ 35.89 15% 50-99 £ 33.77 20% 100+ £ 29.55 30% d1 nom. 3/8 l1 grip +0.02|-0.00 1.00 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-125-S	3/8	1.25	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 48.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.52 0% 10-19 £ 43.67 10% 20-49 £ 41.24 15% 50-99 £ 38.82 20% 100+ £ 33.96 30% d1 nom. 3/8 l1 grip +0.02|-0.00 1.25 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-150-S	3/8	1.50	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 48.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.52 0% 10-19 £ 43.67 10% 20-49 £ 41.24 15% 50-99 £ 38.82 20% 100+ £ 33.96 30% d1 nom. 3/8 l1 grip +0.02|-0.00 1.50 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-175-S	3/8	1.75	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 48.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.52 0% 10-19 £ 43.67 10% 20-49 £ 41.24 15% 50-99 £ 38.82 20% 100+ £ 33.96 30% d1 nom. 3/8 l1 grip +0.02|-0.00 1.75 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-200-S	3/8	2.00	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 48.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 48.52 0% 10-19 £ 43.67 10% 20-49 £ 41.24 15% 50-99 £ 38.82 20% 100+ £ 33.96 30% d1 nom. 3/8 l1 grip +0.02|-0.00 2.00 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-250-S	3/8	2.50	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 57.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 57.73 0% 10-19 £ 51.95 10% 20-49 £ 49.07 15% 50-99 £ 46.18 20% 100+ £ 40.41 30% d1 nom. 3/8 l1 grip +0.02|-0.00 2.50 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-300-S	3/8	3.00	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 55.24 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 55.24 0% 10-19 £ 49.72 10% 20-49 £ 46.95 15% 50-99 £ 44.19 20% 100+ £ 38.67 30% d1 nom. 3/8 l1 grip +0.02|-0.00 3.00 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-350-S	3/8	3.50	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 60.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 60.16 0% 10-19 £ 54.14 10% 20-49 £ 51.14 15% 50-99 £ 48.13 20% 100+ £ 42.11 30% d1 nom. 3/8 l1 grip +0.02|-0.00 3.50 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I37-400-S	3/8	4.00	304 SS	,3735	,3720	0.440	0.56	0.29	0.365	1.37	0.87	2.13	,3750/,3790	575	4500
£ 60.16 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 60.16 0% 10-19 £ 54.14 10% 20-49 £ 51.14 15% 50-99 £ 48.13 20% 100+ £ 42.11 30% d1 nom. 3/8 l1 grip +0.02|-0.00 4.00 Material 304 SS d1 max. ,3735 d1 min. ,3720 d2 ±0.005 0.440 d3 0.56 d4 0.29 l2 +0.000|-0.030 0.365 l3 1.37 l4 0.87 l5 2.13 Loc'n hole min.|max. ,3750/,3790 Pull out strength min. lb 575 Calc. double shear lb 4500 more info »
	QR1124.I50-100-S	1/2	1.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 56.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 56.60 0% 10-19 £ 50.94 10% 20-49 £ 48.11 15% 50-99 £ 45.28 20% 100+ £ 39.62 30% d1 nom. 1/2 l1 grip +0.02|-0.00 1.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-125-S	1/2	1.25	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 65.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.80 0% 10-19 £ 59.22 10% 20-49 £ 55.93 15% 50-99 £ 52.64 20% 100+ £ 46.06 30% d1 nom. 1/2 l1 grip +0.02|-0.00 1.25 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-150-S	1/2	1.50	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 65.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.80 0% 10-19 £ 59.22 10% 20-49 £ 55.93 15% 50-99 £ 52.64 20% 100+ £ 46.06 30% d1 nom. 1/2 l1 grip +0.02|-0.00 1.50 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-175-S	1/2	1.75	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 65.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.80 0% 10-19 £ 59.22 10% 20-49 £ 55.93 15% 50-99 £ 52.64 20% 100+ £ 46.06 30% d1 nom. 1/2 l1 grip +0.02|-0.00 1.75 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-200-S	1/2	2.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 65.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.80 0% 10-19 £ 59.22 10% 20-49 £ 55.93 15% 50-99 £ 52.64 20% 100+ £ 46.06 30% d1 nom. 1/2 l1 grip +0.02|-0.00 2.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-250-S	1/2	2.50	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 75.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 75.03 0% 10-19 £ 67.53 10% 20-49 £ 63.78 15% 50-99 £ 60.02 20% 100+ £ 52.52 30% d1 nom. 1/2 l1 grip +0.02|-0.00 2.50 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-300-S	1/2	3.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 75.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 75.03 0% 10-19 £ 67.53 10% 20-49 £ 63.78 15% 50-99 £ 60.02 20% 100+ £ 52.52 30% d1 nom. 1/2 l1 grip +0.02|-0.00 3.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-350-S	1/2	3.50	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 80.63 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 80.63 0% 10-19 £ 72.57 10% 20-49 £ 68.54 15% 50-99 £ 64.50 20% 100+ £ 56.44 30% d1 nom. 1/2 l1 grip +0.02|-0.00 3.50 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-400-S	1/2	4.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 84.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 84.26 0% 10-19 £ 75.83 10% 20-49 £ 71.62 15% 50-99 £ 67.41 20% 100+ £ 58.98 30% d1 nom. 1/2 l1 grip +0.02|-0.00 4.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-450-S	1/2	4.50	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 93.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 93.44 0% 10-19 £ 84.10 10% 20-49 £ 79.43 15% 50-99 £ 74.76 20% 100+ £ 65.41 30% d1 nom. 1/2 l1 grip +0.02|-0.00 4.50 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-500-S	1/2	5.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 93.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 93.44 0% 10-19 £ 84.10 10% 20-49 £ 79.43 15% 50-99 £ 74.76 20% 100+ £ 65.41 30% d1 nom. 1/2 l1 grip +0.02|-0.00 5.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-550-S	1/2	5.50	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 102.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 102.66 0% 10-19 £ 92.39 10% 20-49 £ 87.26 15% 50-99 £ 82.13 20% 100+ £ 71.86 30% d1 nom. 1/2 l1 grip +0.02|-0.00 5.50 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
	QR1124.I50-600-S	1/2	6.00	304 SS	,4985	,4970	0.594	0.72	0.42	0.460	1.60	1.00	2.69	,5000/,5050	1160	11500
£ 98.24 per unit (click for quantity discounts) Ready to despatch 23 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 98.24 0% 10-19 £ 88.42 10% 20-49 £ 83.50 15% 50-99 £ 78.59 20% 100+ £ 68.77 30% d1 nom. 1/2 l1 grip +0.02|-0.00 6.00 Material 304 SS d1 max. ,4985 d1 min. ,4970 d2 ±0.005 0.594 d3 0.72 d4 0.42 l2 +0.000|-0.030 0.460 l3 1.60 l4 1.00 l5 2.69 Loc'n hole min.|max. ,5000/,5050 Pull out strength min. lb 1160 Calc. double shear lb 11500 more info »
