QR1316 Quick Release Pins - Metric - R-handle

precipitation hardened stainless pin, material: Stainless steel

Download product datasheet

Alternative products you may wish to consider

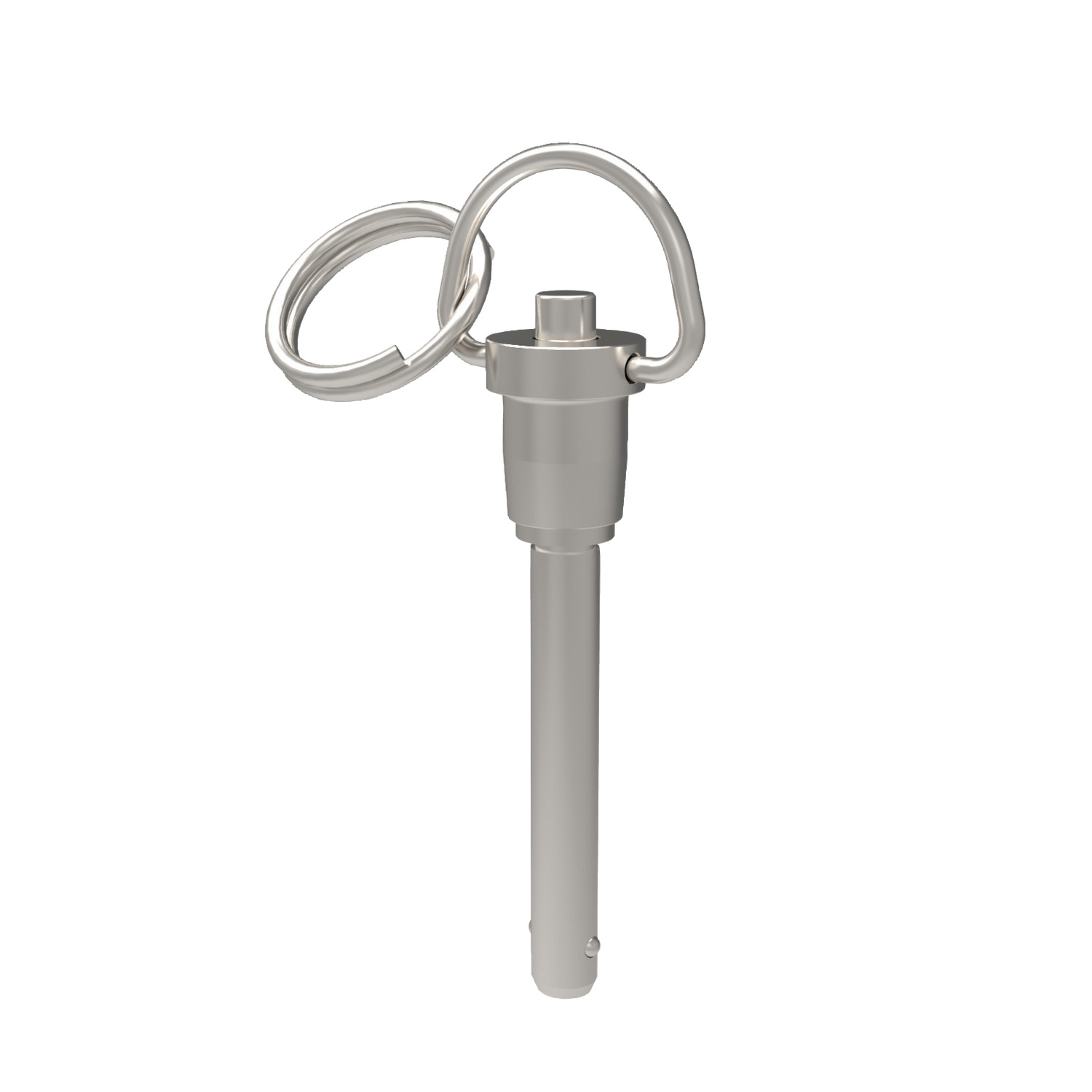

QRP Metric R-handle
steel pin

QRP Metric R-handle
17-4 PH s/s pin

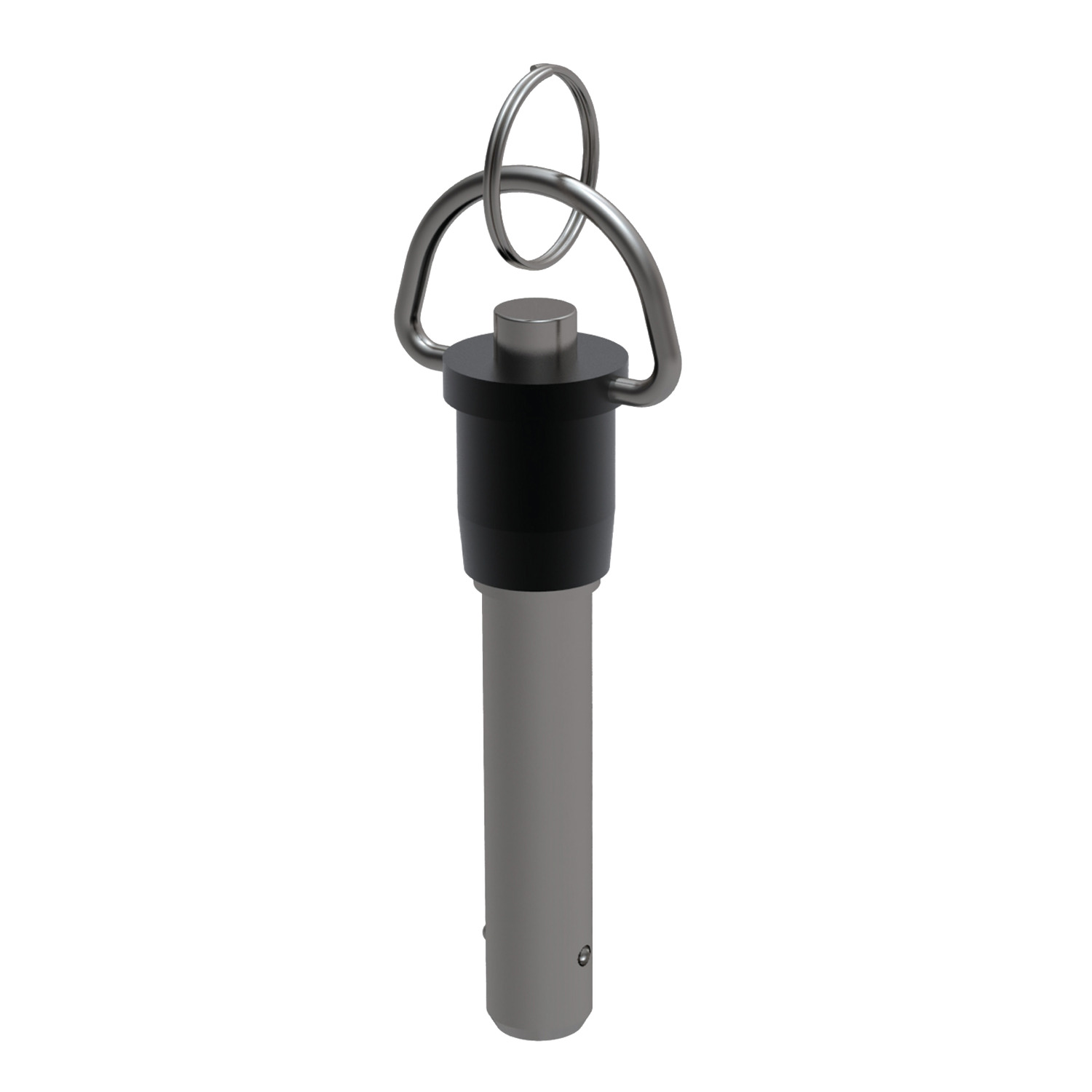

QRP Inch R-handle
steel pin

QRP Inch R-handle
s/s pin

QRP Inch R-handle
17-4 PH s/s pin

QRP Metric R-handle
17-4 PH s/s pin - s/s handle

QRP Inch R-handle
s/s pin - s/s handle

QRP Inch R-handle
17-4 PH s/s pin - s/s handle

QR pin ring handle metric 17-4 s/s d1-05 l1-010

QR1316.M05-010-T

Material

17-4 PH

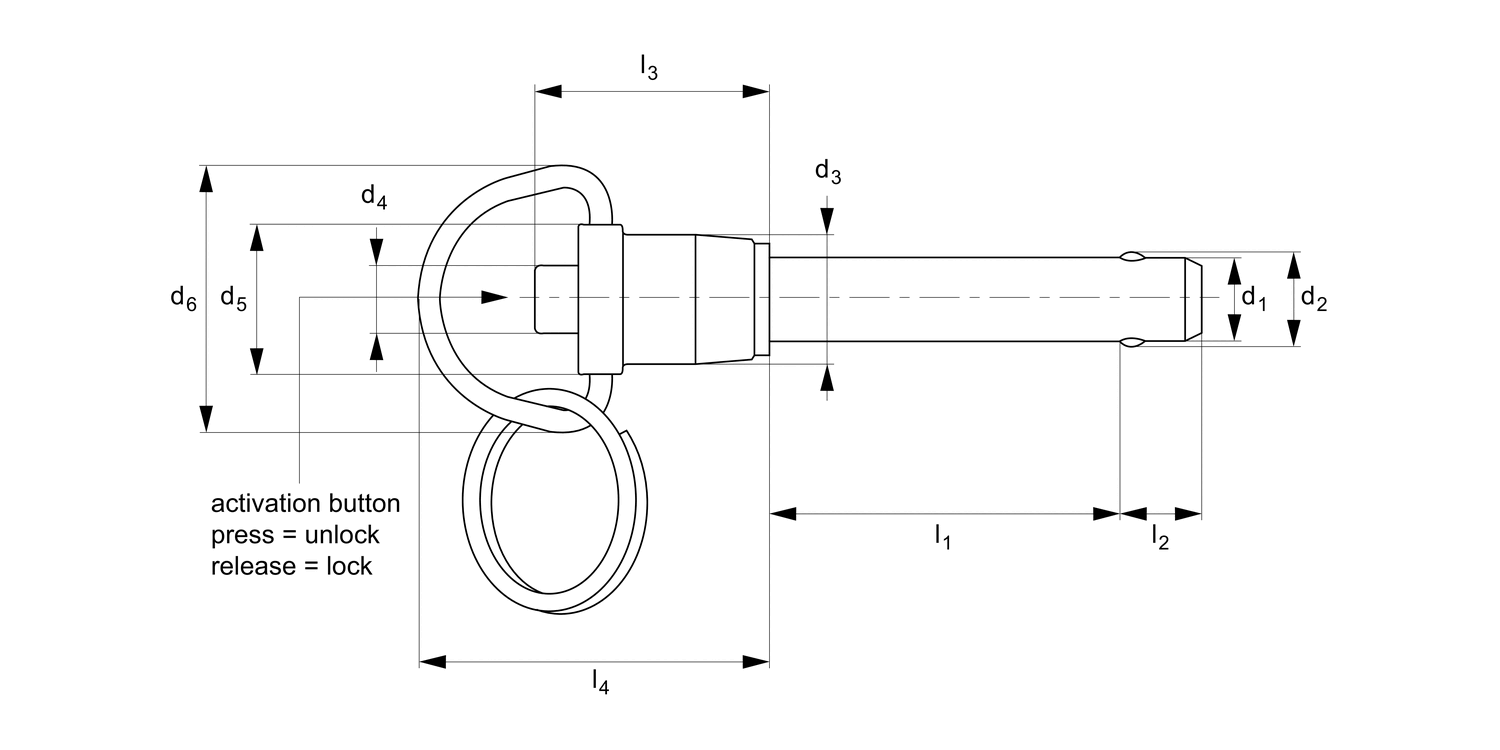

l₁ grip +0.5|-0.0

10

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-015

QR1316.M05-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-020

QR1316.M05-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-025

QR1316.M05-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-030

QR1316.M05-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-035

QR1316.M05-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-040

QR1316.M05-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-045

QR1316.M05-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-050

QR1316.M05-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-060

QR1316.M05-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 55.99 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-070

QR1316.M05-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 58.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-080

QR1316.M05-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 61.83 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-090

QR1316.M05-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-100

QR1316.M05-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-010

QR1316.M06-010-T

Material

17-4 PH

l₁ grip +0.5|-0.0

10

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-015

QR1316.M06-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-020

QR1316.M06-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-025

QR1316.M06-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-030

QR1316.M06-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-035

QR1316.M06-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-040

QR1316.M06-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-045

QR1316.M06-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-050

QR1316.M06-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-060

QR1316.M06-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 55.99 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-070

QR1316.M06-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 58.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-080

QR1316.M06-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 61.83 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-090

QR1316.M06-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-100

QR1316.M06-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-010

QR1316.M08-010-T

Material

17-4 PH

l₁ grip +0.5|-0.0

10

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-015

QR1316.M08-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-020

QR1316.M08-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-025

QR1316.M08-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-030

QR1316.M08-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-035

QR1316.M08-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-040

QR1316.M08-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-045

QR1316.M08-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 59.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-050

QR1316.M08-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 59.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-060

QR1316.M08-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 62.21 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-070

QR1316.M08-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 65.17 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-080

QR1316.M08-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 68.71 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-090

QR1316.M08-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 72.27 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-100

QR1316.M08-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 74.05 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-015

QR1316.M10-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-020

QR1316.M10-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-025

QR1316.M10-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 65.91 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-030

QR1316.M10-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-035

QR1316.M10-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-040

QR1316.M10-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-045

QR1316.M10-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 73.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-050

QR1316.M10-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 73.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-060

QR1316.M10-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 76.89 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-070

QR1316.M10-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 80.55 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-080

QR1316.M10-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 84.97 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-090

QR1316.M10-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 89.34 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-100

QR1316.M10-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 93.75 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-020

QR1316.M12-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 78.06 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-025

QR1316.M12-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 82.67 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-030

QR1316.M12-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-035

QR1316.M12-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-040

QR1316.M12-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-045

QR1316.M12-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 91.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-050

QR1316.M12-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 91.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-060

QR1316.M12-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 96.44 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-070

QR1316.M12-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 101.05 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-080

QR1316.M12-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 106.54 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-090

QR1316.M12-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 112.06 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-100

QR1316.M12-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 119.39 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-025

QR1316.M16-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 96.74 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-030

QR1316.M16-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-035

QR1316.M16-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-040

QR1316.M16-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-045

QR1316.M16-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 105.13 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-050

QR1316.M16-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 105.13 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-060

QR1316.M16-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 110.40 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-070

QR1316.M16-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 115.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-080

QR1316.M16-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 121.95 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-090

QR1316.M16-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 128.27 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-100

QR1316.M16-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 131.45 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-010

QR1316.M05-010-T

Material

17-4 PH

l₁ grip +0.5|-0.0

10

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-015

QR1316.M05-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-020

QR1316.M05-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-025

QR1316.M05-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-030

QR1316.M05-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-035

QR1316.M05-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-040

QR1316.M05-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-045

QR1316.M05-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-050

QR1316.M05-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-060

QR1316.M05-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 55.99 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-070

QR1316.M05-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 58.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-080

QR1316.M05-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 61.83 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-090

QR1316.M05-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-05 l1-100

QR1316.M05-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

4.96

d₁ min.

4.92

d₁ nom.

5

d₂ ±0.25

5.54

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

6

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

5,0/5,1

Pull out strength min. kN

0.89

Calc. double shear kN

24.4

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-010

QR1316.M06-010-T

Material

17-4 PH

l₁ grip +0.5|-0.0

10

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-015

QR1316.M06-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 47.98 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-020

QR1316.M06-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-025

QR1316.M06-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 49.04 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-030

QR1316.M06-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-035

QR1316.M06-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-040

QR1316.M06-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 50.63 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-045

QR1316.M06-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-050

QR1316.M06-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 53.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-060

QR1316.M06-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 55.99 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-070

QR1316.M06-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 58.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-080

QR1316.M06-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 61.83 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-090

QR1316.M06-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-06 l1-100

QR1316.M06-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

5.96

d₁ min.

5.92

d₁ nom.

6

d₂ ±0.25

6.99

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

7

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

6,0/6,1

Pull out strength min. kN

1.02

Calc. double shear kN

35.64

£ 69.30 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-010

QR1316.M08-010-T

Material

17-4 PH

l₁ grip +0.5|-0.0

10

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-015

QR1316.M08-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-020

QR1316.M08-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-025

QR1316.M08-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 50.36 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-030

QR1316.M08-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-035

QR1316.M08-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-040

QR1316.M08-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 54.50 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-045

QR1316.M08-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 59.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-050

QR1316.M08-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 59.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-060

QR1316.M08-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 62.21 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-070

QR1316.M08-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 65.17 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-080

QR1316.M08-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 68.71 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-090

QR1316.M08-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 72.27 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-08 l1-100

QR1316.M08-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

7.96

d₁ min.

7.92

d₁ nom.

8

d₂ ±0.25

9.42

d₃

11.9

d₄

5.8

d₅

15.0

d₆

29.5

l₂ ±1.00

8

l₃

23.4

l₄

36.8

Loc'n hole min.|max.

8,0/8,1

Pull out strength min. kN

2.30

Calc. double shear kN

63.80

£ 74.05 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-015

QR1316.M10-015-T

Material

17-4 PH

l₁ grip +0.5|-0.0

15

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-020

QR1316.M10-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-025

QR1316.M10-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 65.91 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-030

QR1316.M10-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-035

QR1316.M10-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-040

QR1316.M10-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 69.59 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-045

QR1316.M10-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 73.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-050

QR1316.M10-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 73.24 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-060

QR1316.M10-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 76.89 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-070

QR1316.M10-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 80.55 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-080

QR1316.M10-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 84.97 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-090

QR1316.M10-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 89.34 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-10 l1-100

QR1316.M10-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

9.96

d₁ min.

9.92

d₁ nom.

10

d₂ ±0.25

11.86

d₃

14.2

d₄

7.4

d₅

16.5

d₆

29.5

l₂ ±1.00

9

l₃

25.7

l₄

38.6

Loc'n hole min.|max.

10,0/10,1

Pull out strength min. kN

2.56

Calc. double shear kN

100.10

£ 93.75 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-020

QR1316.M12-020-T

Material

17-4 PH

l₁ grip +0.5|-0.0

20

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 78.06 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-025

QR1316.M12-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 82.67 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-030

QR1316.M12-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-035

QR1316.M12-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-040

QR1316.M12-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 87.25 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-045

QR1316.M12-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 91.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-050

QR1316.M12-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 91.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-060

QR1316.M12-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 96.44 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-070

QR1316.M12-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 101.05 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-080

QR1316.M12-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 106.54 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-090

QR1316.M12-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 112.06 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-12 l1-100

QR1316.M12-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

11.96

d₁ min.

11.92

d₁ nom.

12

d₂ ±0.25

14.45

d₃

18.3

d₄

10.7

d₅

20.6

d₆

36.3

l₂ ±1.00

10

l₃

32.3

l₄

47.8

Loc'n hole min.|max.

12,0/12,1

Pull out strength min. kN

5.16

Calc. double shear kN

144.06

£ 119.39 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-025

QR1316.M16-025-T

Material

17-4 PH

l₁ grip +0.5|-0.0

25

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 96.74 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-030

QR1316.M16-030-T

Material

17-4 PH

l₁ grip +0.5|-0.0

30

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-035

QR1316.M16-035-T

Material

17-4 PH

l₁ grip +0.5|-0.0

35

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-040

QR1316.M16-040-T

Material

17-4 PH

l₁ grip +0.5|-0.0

40

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 99.87 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-045

QR1316.M16-045-T

Material

17-4 PH

l₁ grip +0.5|-0.0

45

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 105.13 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-050

QR1316.M16-050-T

Material

17-4 PH

l₁ grip +0.5|-0.0

50

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 105.13 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-060

QR1316.M16-060-T

Material

17-4 PH

l₁ grip +0.5|-0.0

60

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 110.40 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-070

QR1316.M16-070-T

Material

17-4 PH

l₁ grip +0.5|-0.0

70

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 115.65 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-080

QR1316.M16-080-T

Material

17-4 PH

l₁ grip +0.5|-0.0

80

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 121.95 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-090

QR1316.M16-090-T

Material

17-4 PH

l₁ grip +0.5|-0.0

90

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 128.27 per unit (click for quantity discounts)

QR pin ring handle metric 17-4 s/s d1-16 l1-100

QR1316.M16-100-T

Material

17-4 PH

l₁ grip +0.5|-0.0

100

d₁ max.

15.96

d₁ min.

15.92

d₁ nom.

16

d₂ ±0.25

19.00

d₃

23.9

d₄

13.7

d₅

26.9

d₆

43.7

l₂ ±1.00

14

l₃

41.9

l₄

65.3

Loc'n hole min.|max.

16,0/16,1

Pull out strength min. kN

9.21

Calc. double shear kN

257.18

£ 131.45 per unit (click for quantity discounts)



Select all

Material

l₁ grip +0.5|-0.0

d₁ max.

d₁ min.

d₁ nom.

d₂ ±0.25

d₃

d₄

d₅

d₆

l₂ ±1.00

l₃

l₄

Loc'n hole min.|max.

Pull out strength min. kN

Calc. double shear kN

Price & Availability	Article	Material	l1 grip +0.5|-0.0	d1 max.	d1 min.	d1 nom.	d2 ±0.25	d3	d4	d5	d6	l2 ±1.00	l3	l4	Loc'n hole min.|max.	Pull out strength min. kN	Calc. double shear kN
	QR1316.M05-010-T	17-4 PH	10	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 47.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.98 0% 10-19 £ 43.18 10% 20-49 £ 40.78 15% 50-99 £ 38.38 20% 100+ £ 33.58 30% Material 17-4 PH l1 grip +0.5|-0.0 10 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-015-T	17-4 PH	15	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 47.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.98 0% 10-19 £ 43.18 10% 20-49 £ 40.78 15% 50-99 £ 38.38 20% 100+ £ 33.58 30% Material 17-4 PH l1 grip +0.5|-0.0 15 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-020-T	17-4 PH	20	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 49.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.04 0% 10-19 £ 44.14 10% 20-49 £ 41.69 15% 50-99 £ 39.23 20% 100+ £ 34.33 30% Material 17-4 PH l1 grip +0.5|-0.0 20 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-025-T	17-4 PH	25	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 49.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.04 0% 10-19 £ 44.14 10% 20-49 £ 41.69 15% 50-99 £ 39.23 20% 100+ £ 34.33 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-030-T	17-4 PH	30	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-035-T	17-4 PH	35	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-040-T	17-4 PH	40	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-045-T	17-4 PH	45	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 53.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.30 0% 10-19 £ 47.97 10% 20-49 £ 45.30 15% 50-99 £ 42.64 20% 100+ £ 37.31 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-050-T	17-4 PH	50	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 53.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.30 0% 10-19 £ 47.97 10% 20-49 £ 45.30 15% 50-99 £ 42.64 20% 100+ £ 37.31 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-060-T	17-4 PH	60	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 55.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 55.99 0% 10-19 £ 50.39 10% 20-49 £ 47.59 15% 50-99 £ 44.79 20% 100+ £ 39.19 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-070-T	17-4 PH	70	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 58.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.65 0% 10-19 £ 52.78 10% 20-49 £ 49.85 15% 50-99 £ 46.92 20% 100+ £ 41.05 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-080-T	17-4 PH	80	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 61.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 61.83 0% 10-19 £ 55.65 10% 20-49 £ 52.56 15% 50-99 £ 49.47 20% 100+ £ 43.28 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-090-T	17-4 PH	90	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 69.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.30 0% 10-19 £ 62.37 10% 20-49 £ 58.91 15% 50-99 £ 55.44 20% 100+ £ 48.51 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M05-100-T	17-4 PH	100	4.96	4.92	5	5.54	11.9	5.8	15.0	29.5	6	23.4	36.8	5,0/5,1	0.89	24.4
£ 69.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.30 0% 10-19 £ 62.37 10% 20-49 £ 58.91 15% 50-99 £ 55.44 20% 100+ £ 48.51 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 4.96 d1 min. 4.92 d1 nom. 5 d2 ±0.25 5.54 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 6 l3 23.4 l4 36.8 Loc'n hole min.|max. 5,0/5,1 Pull out strength min. kN 0.89 Calc. double shear kN 24.4 more info »
	QR1316.M06-010-T	17-4 PH	10	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 47.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.98 0% 10-19 £ 43.18 10% 20-49 £ 40.78 15% 50-99 £ 38.38 20% 100+ £ 33.58 30% Material 17-4 PH l1 grip +0.5|-0.0 10 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-015-T	17-4 PH	15	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 47.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.98 0% 10-19 £ 43.18 10% 20-49 £ 40.78 15% 50-99 £ 38.38 20% 100+ £ 33.58 30% Material 17-4 PH l1 grip +0.5|-0.0 15 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-020-T	17-4 PH	20	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 49.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.04 0% 10-19 £ 44.14 10% 20-49 £ 41.69 15% 50-99 £ 39.23 20% 100+ £ 34.33 30% Material 17-4 PH l1 grip +0.5|-0.0 20 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-025-T	17-4 PH	25	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 49.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 49.04 0% 10-19 £ 44.14 10% 20-49 £ 41.69 15% 50-99 £ 39.23 20% 100+ £ 34.33 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-030-T	17-4 PH	30	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-035-T	17-4 PH	35	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-040-T	17-4 PH	40	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 50.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.63 0% 10-19 £ 45.57 10% 20-49 £ 43.04 15% 50-99 £ 40.50 20% 100+ £ 35.44 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-045-T	17-4 PH	45	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 53.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.30 0% 10-19 £ 47.97 10% 20-49 £ 45.30 15% 50-99 £ 42.64 20% 100+ £ 37.31 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-050-T	17-4 PH	50	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 53.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.30 0% 10-19 £ 47.97 10% 20-49 £ 45.30 15% 50-99 £ 42.64 20% 100+ £ 37.31 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-060-T	17-4 PH	60	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 55.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 55.99 0% 10-19 £ 50.39 10% 20-49 £ 47.59 15% 50-99 £ 44.79 20% 100+ £ 39.19 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-070-T	17-4 PH	70	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 58.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 58.65 0% 10-19 £ 52.78 10% 20-49 £ 49.85 15% 50-99 £ 46.92 20% 100+ £ 41.05 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-080-T	17-4 PH	80	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 61.83 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 61.83 0% 10-19 £ 55.65 10% 20-49 £ 52.56 15% 50-99 £ 49.47 20% 100+ £ 43.28 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-090-T	17-4 PH	90	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 69.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.30 0% 10-19 £ 62.37 10% 20-49 £ 58.91 15% 50-99 £ 55.44 20% 100+ £ 48.51 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M06-100-T	17-4 PH	100	5.96	5.92	6	6.99	11.9	5.8	15.0	29.5	7	23.4	36.8	6,0/6,1	1.02	35.64
£ 69.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.30 0% 10-19 £ 62.37 10% 20-49 £ 58.91 15% 50-99 £ 55.44 20% 100+ £ 48.51 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 5.96 d1 min. 5.92 d1 nom. 6 d2 ±0.25 6.99 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 7 l3 23.4 l4 36.8 Loc'n hole min.|max. 6,0/6,1 Pull out strength min. kN 1.02 Calc. double shear kN 35.64 more info »
	QR1316.M08-010-T	17-4 PH	10	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 50.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.36 0% 10-19 £ 45.32 10% 20-49 £ 42.80 15% 50-99 £ 40.29 20% 100+ £ 35.25 30% Material 17-4 PH l1 grip +0.5|-0.0 10 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-015-T	17-4 PH	15	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 50.36 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.36 0% 10-19 £ 45.32 10% 20-49 £ 42.80 15% 50-99 £ 40.29 20% 100+ £ 35.25 30% Material 17-4 PH l1 grip +0.5|-0.0 15 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-020-T	17-4 PH	20	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 50.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.36 0% 10-19 £ 45.32 10% 20-49 £ 42.80 15% 50-99 £ 40.29 20% 100+ £ 35.25 30% Material 17-4 PH l1 grip +0.5|-0.0 20 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-025-T	17-4 PH	25	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 50.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 50.36 0% 10-19 £ 45.32 10% 20-49 £ 42.80 15% 50-99 £ 40.29 20% 100+ £ 35.25 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-030-T	17-4 PH	30	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 54.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 54.50 0% 10-19 £ 49.05 10% 20-49 £ 46.32 15% 50-99 £ 43.60 20% 100+ £ 38.15 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-035-T	17-4 PH	35	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 54.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 54.50 0% 10-19 £ 49.05 10% 20-49 £ 46.32 15% 50-99 £ 43.60 20% 100+ £ 38.15 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-040-T	17-4 PH	40	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 54.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 54.50 0% 10-19 £ 49.05 10% 20-49 £ 46.32 15% 50-99 £ 43.60 20% 100+ £ 38.15 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-045-T	17-4 PH	45	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 59.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 59.24 0% 10-19 £ 53.32 10% 20-49 £ 50.35 15% 50-99 £ 47.39 20% 100+ £ 41.47 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-050-T	17-4 PH	50	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 59.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 59.24 0% 10-19 £ 53.32 10% 20-49 £ 50.35 15% 50-99 £ 47.39 20% 100+ £ 41.47 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-060-T	17-4 PH	60	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 62.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.21 0% 10-19 £ 55.99 10% 20-49 £ 52.88 15% 50-99 £ 49.77 20% 100+ £ 43.55 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-070-T	17-4 PH	70	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 65.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.17 0% 10-19 £ 58.65 10% 20-49 £ 55.39 15% 50-99 £ 52.13 20% 100+ £ 45.62 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-080-T	17-4 PH	80	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 68.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 68.71 0% 10-19 £ 61.84 10% 20-49 £ 58.40 15% 50-99 £ 54.97 20% 100+ £ 48.10 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-090-T	17-4 PH	90	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 72.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 72.27 0% 10-19 £ 65.05 10% 20-49 £ 61.43 15% 50-99 £ 57.82 20% 100+ £ 50.59 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M08-100-T	17-4 PH	100	7.96	7.92	8	9.42	11.9	5.8	15.0	29.5	8	23.4	36.8	8,0/8,1	2.30	63.80
£ 74.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 74.05 0% 10-19 £ 66.64 10% 20-49 £ 62.94 15% 50-99 £ 59.24 20% 100+ £ 51.83 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 7.96 d1 min. 7.92 d1 nom. 8 d2 ±0.25 9.42 d3 11.9 d4 5.8 d5 15.0 d6 29.5 l2 ±1.00 8 l3 23.4 l4 36.8 Loc'n hole min.|max. 8,0/8,1 Pull out strength min. kN 2.30 Calc. double shear kN 63.80 more info »
	QR1316.M10-015-T	17-4 PH	15	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 62.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.24 0% 10-19 £ 56.02 10% 20-49 £ 52.90 15% 50-99 £ 49.79 20% 100+ £ 43.57 30% Material 17-4 PH l1 grip +0.5|-0.0 15 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-020-T	17-4 PH	20	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 62.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 62.24 0% 10-19 £ 56.02 10% 20-49 £ 52.90 15% 50-99 £ 49.79 20% 100+ £ 43.57 30% Material 17-4 PH l1 grip +0.5|-0.0 20 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-025-T	17-4 PH	25	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 65.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.91 0% 10-19 £ 59.32 10% 20-49 £ 56.02 15% 50-99 £ 52.73 20% 100+ £ 46.14 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-030-T	17-4 PH	30	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 69.59 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.59 0% 10-19 £ 62.63 10% 20-49 £ 59.15 15% 50-99 £ 55.67 20% 100+ £ 48.71 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-035-T	17-4 PH	35	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 69.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.59 0% 10-19 £ 62.63 10% 20-49 £ 59.15 15% 50-99 £ 55.67 20% 100+ £ 48.71 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-040-T	17-4 PH	40	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 69.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 69.59 0% 10-19 £ 62.63 10% 20-49 £ 59.15 15% 50-99 £ 55.67 20% 100+ £ 48.71 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-045-T	17-4 PH	45	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 73.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 73.24 0% 10-19 £ 65.92 10% 20-49 £ 62.26 15% 50-99 £ 58.60 20% 100+ £ 51.27 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-050-T	17-4 PH	50	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 73.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 73.24 0% 10-19 £ 65.92 10% 20-49 £ 62.26 15% 50-99 £ 58.60 20% 100+ £ 51.27 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-060-T	17-4 PH	60	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 76.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 76.89 0% 10-19 £ 69.20 10% 20-49 £ 65.36 15% 50-99 £ 61.51 20% 100+ £ 53.82 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-070-T	17-4 PH	70	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 80.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 80.55 0% 10-19 £ 72.49 10% 20-49 £ 68.47 15% 50-99 £ 64.44 20% 100+ £ 56.38 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-080-T	17-4 PH	80	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 84.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 84.97 0% 10-19 £ 76.47 10% 20-49 £ 72.22 15% 50-99 £ 67.98 20% 100+ £ 59.48 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-090-T	17-4 PH	90	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 89.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 89.34 0% 10-19 £ 80.40 10% 20-49 £ 75.94 15% 50-99 £ 71.47 20% 100+ £ 62.54 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M10-100-T	17-4 PH	100	9.96	9.92	10	11.86	14.2	7.4	16.5	29.5	9	25.7	38.6	10,0/10,1	2.56	100.10
£ 93.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 93.75 0% 10-19 £ 84.37 10% 20-49 £ 79.69 15% 50-99 £ 75.00 20% 100+ £ 65.62 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 9.96 d1 min. 9.92 d1 nom. 10 d2 ±0.25 11.86 d3 14.2 d4 7.4 d5 16.5 d6 29.5 l2 ±1.00 9 l3 25.7 l4 38.6 Loc'n hole min.|max. 10,0/10,1 Pull out strength min. kN 2.56 Calc. double shear kN 100.10 more info »
	QR1316.M12-020-T	17-4 PH	20	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 78.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 78.06 0% 10-19 £ 70.26 10% 20-49 £ 66.35 15% 50-99 £ 62.45 20% 100+ £ 54.64 30% Material 17-4 PH l1 grip +0.5|-0.0 20 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-025-T	17-4 PH	25	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 82.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 82.67 0% 10-19 £ 74.40 10% 20-49 £ 70.27 15% 50-99 £ 66.14 20% 100+ £ 57.87 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-030-T	17-4 PH	30	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 87.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 87.25 0% 10-19 £ 78.52 10% 20-49 £ 74.16 15% 50-99 £ 69.80 20% 100+ £ 61.07 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-035-T	17-4 PH	35	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 87.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 87.25 0% 10-19 £ 78.52 10% 20-49 £ 74.16 15% 50-99 £ 69.80 20% 100+ £ 61.07 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-040-T	17-4 PH	40	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 87.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 87.25 0% 10-19 £ 78.52 10% 20-49 £ 74.16 15% 50-99 £ 69.80 20% 100+ £ 61.07 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-045-T	17-4 PH	45	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 91.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 91.87 0% 10-19 £ 82.68 10% 20-49 £ 78.09 15% 50-99 £ 73.49 20% 100+ £ 64.31 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-050-T	17-4 PH	50	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 91.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 91.87 0% 10-19 £ 82.68 10% 20-49 £ 78.09 15% 50-99 £ 73.49 20% 100+ £ 64.31 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-060-T	17-4 PH	60	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 96.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 96.44 0% 10-19 £ 86.80 10% 20-49 £ 81.98 15% 50-99 £ 77.15 20% 100+ £ 67.51 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-070-T	17-4 PH	70	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 101.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 101.05 0% 10-19 £ 90.95 10% 20-49 £ 85.89 15% 50-99 £ 80.84 20% 100+ £ 70.74 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-080-T	17-4 PH	80	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 106.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 106.54 0% 10-19 £ 95.88 10% 20-49 £ 90.56 15% 50-99 £ 85.23 20% 100+ £ 74.58 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-090-T	17-4 PH	90	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 112.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 112.06 0% 10-19 £ 100.85 10% 20-49 £ 95.25 15% 50-99 £ 89.64 20% 100+ £ 78.44 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M12-100-T	17-4 PH	100	11.96	11.92	12	14.45	18.3	10.7	20.6	36.3	10	32.3	47.8	12,0/12,1	5.16	144.06
£ 119.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 119.39 0% 10-19 £ 107.45 10% 20-49 £ 101.48 15% 50-99 £ 95.51 20% 100+ £ 83.57 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 11.96 d1 min. 11.92 d1 nom. 12 d2 ±0.25 14.45 d3 18.3 d4 10.7 d5 20.6 d6 36.3 l2 ±1.00 10 l3 32.3 l4 47.8 Loc'n hole min.|max. 12,0/12,1 Pull out strength min. kN 5.16 Calc. double shear kN 144.06 more info »
	QR1316.M16-025-T	17-4 PH	25	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 96.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 96.74 0% 10-19 £ 87.06 10% 20-49 £ 82.23 15% 50-99 £ 77.39 20% 100+ £ 67.72 30% Material 17-4 PH l1 grip +0.5|-0.0 25 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-030-T	17-4 PH	30	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 99.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 99.87 0% 10-19 £ 89.88 10% 20-49 £ 84.89 15% 50-99 £ 79.90 20% 100+ £ 69.91 30% Material 17-4 PH l1 grip +0.5|-0.0 30 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-035-T	17-4 PH	35	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 99.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 99.87 0% 10-19 £ 89.88 10% 20-49 £ 84.89 15% 50-99 £ 79.90 20% 100+ £ 69.91 30% Material 17-4 PH l1 grip +0.5|-0.0 35 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-040-T	17-4 PH	40	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 99.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 99.87 0% 10-19 £ 89.88 10% 20-49 £ 84.89 15% 50-99 £ 79.90 20% 100+ £ 69.91 30% Material 17-4 PH l1 grip +0.5|-0.0 40 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-045-T	17-4 PH	45	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 105.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 105.13 0% 10-19 £ 94.61 10% 20-49 £ 89.36 15% 50-99 £ 84.10 20% 100+ £ 73.59 30% Material 17-4 PH l1 grip +0.5|-0.0 45 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-050-T	17-4 PH	50	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 105.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 105.13 0% 10-19 £ 94.61 10% 20-49 £ 89.36 15% 50-99 £ 84.10 20% 100+ £ 73.59 30% Material 17-4 PH l1 grip +0.5|-0.0 50 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-060-T	17-4 PH	60	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 110.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 110.40 0% 10-19 £ 99.36 10% 20-49 £ 93.84 15% 50-99 £ 88.32 20% 100+ £ 77.28 30% Material 17-4 PH l1 grip +0.5|-0.0 60 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-070-T	17-4 PH	70	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 115.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 115.65 0% 10-19 £ 104.09 10% 20-49 £ 98.30 15% 50-99 £ 92.52 20% 100+ £ 80.96 30% Material 17-4 PH l1 grip +0.5|-0.0 70 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-080-T	17-4 PH	80	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 121.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 121.95 0% 10-19 £ 109.76 10% 20-49 £ 103.66 15% 50-99 £ 97.56 20% 100+ £ 85.37 30% Material 17-4 PH l1 grip +0.5|-0.0 80 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-090-T	17-4 PH	90	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 128.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 128.27 0% 10-19 £ 115.45 10% 20-49 £ 109.03 15% 50-99 £ 102.62 20% 100+ £ 89.79 30% Material 17-4 PH l1 grip +0.5|-0.0 90 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
	QR1316.M16-100-T	17-4 PH	100	15.96	15.92	16	19.00	23.9	13.7	26.9	43.7	14	41.9	65.3	16,0/16,1	9.21	257.18
£ 131.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 131.45 0% 10-19 £ 118.31 10% 20-49 £ 111.73 15% 50-99 £ 105.16 20% 100+ £ 92.02 30% Material 17-4 PH l1 grip +0.5|-0.0 100 d1 max. 15.96 d1 min. 15.92 d1 nom. 16 d2 ±0.25 19.00 d3 23.9 d4 13.7 d5 26.9 d6 43.7 l2 ±1.00 14 l3 41.9 l4 65.3 Loc'n hole min.|max. 16,0/16,1 Pull out strength min. kN 9.21 Calc. double shear kN 257.18 more info »
