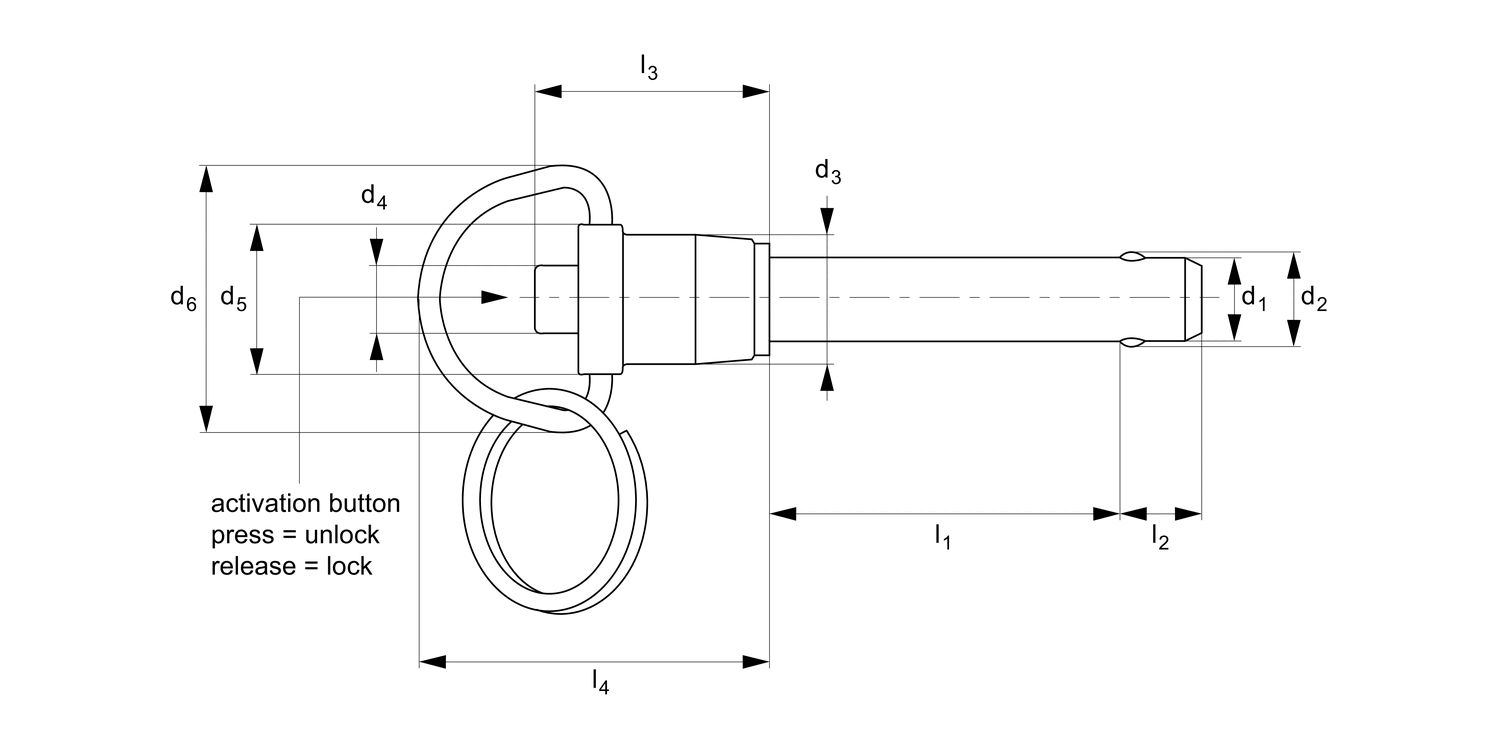

QR1374 Quick Release Pins - Inch - R-handle

stainless pin - stainless handle, material: Stainless steel

Download product datasheet

Alternative products you may wish to consider

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3/4

QR1374.I25-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1

QR1374.I25-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/4

QR1374.I25-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3/4

QR1374.I25-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-2

QR1374.I25-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 46.08 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 47.94 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3

QR1374.I25-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 47.94 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 52.98 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-4

QR1374.I25-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 52.98 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3/4

QR1374.I31-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1

QR1374.I31-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/4

QR1374.I31-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3/4

QR1374.I31-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-2

QR1374.I31-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3

QR1374.I31-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-4

QR1374.I31-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3/4

QR1374.I37-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1

QR1374.I37-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/4

QR1374.I37-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3/4

QR1374.I37-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-2

QR1374.I37-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 59.99 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3

QR1374.I37-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 59.99 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 62.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-4

QR1374.I37-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 62.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1

QR1374.I50-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/4

QR1374.I50-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-3/4

QR1374.I50-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-2

QR1374.I50-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-3

QR1374.I50-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-4

QR1374.I50-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-450-S

Material

304 SS

l₁ grip +0.02|-0.00

4.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-5

QR1374.I50-500-S

Material

304 SS

l₁ grip +0.02|-0.00

5.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-550-S

Material

304 SS

l₁ grip +0.02|-0.00

5.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-6

QR1374.I50-600-S

Material

304 SS

l₁ grip +0.02|-0.00

6.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3/4

QR1374.I25-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1

QR1374.I25-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 37.34 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/4

QR1374.I25-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3/4

QR1374.I25-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 43.33 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-2

QR1374.I25-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 46.08 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 47.94 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-3

QR1374.I25-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 47.94 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-1/2

QR1374.I25-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 52.98 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/4 l1-4

QR1374.I25-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

£ 52.98 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3/4

QR1374.I31-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1

QR1374.I31-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 40.57 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/4

QR1374.I31-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3/4

QR1374.I31-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-2

QR1374.I31-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 47.74 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-3

QR1374.I31-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 51.07 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-1/2

QR1374.I31-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-5/16 l1-4

QR1374.I31-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

£ 52.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-050-S

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3/4

QR1374.I37-075-S

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1

QR1374.I37-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 43.87 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/4

QR1374.I37-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3/4

QR1374.I37-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-2

QR1374.I37-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 50.39 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 59.99 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-3

QR1374.I37-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 59.99 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-1/2

QR1374.I37-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 62.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-3/8 l1-4

QR1374.I37-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

£ 62.51 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1

QR1374.I50-100-S

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 62.24 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/4

QR1374.I50-125-S

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-150-S

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-3/4

QR1374.I50-175-S

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-2

QR1374.I50-200-S

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 72.38 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-250-S

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-3

QR1374.I50-300-S

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 82.50 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-350-S

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-4

QR1374.I50-400-S

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 92.64 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-450-S

Material

304 SS

l₁ grip +0.02|-0.00

4.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-5

QR1374.I50-500-S

Material

304 SS

l₁ grip +0.02|-0.00

5.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 102.77 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-1/2

QR1374.I50-550-S

Material

304 SS

l₁ grip +0.02|-0.00

5.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

QR pin ring handle inch 300 s/s d1-1/2 l1-6

QR1374.I50-600-S

Material

304 SS

l₁ grip +0.02|-0.00

6.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

£ 112.89 per unit (click for quantity discounts)

Material

l₁ grip +0.02|-0.00

d₁ max.

d₁ min.

d₁ nom.

d₂ ±0.005

d₃

d₄

d₅

d₆

l₂ +0.000|-0.030

l₃

l₄

Loc'n hole min.|max.

Pull out strength min. lb

Calc. double shear lb

QR1374.I25-050-S

304 SS

0.50

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 37.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 37.34	0%
10-19	£ 33.60	10%
20-49	£ 31.74	15%
50-99	£ 29.87	20%
100+	£ 26.14	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-075-S

304 SS

0.75

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 37.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 37.34	0%
10-19	£ 33.60	10%
20-49	£ 31.74	15%
50-99	£ 29.87	20%
100+	£ 26.14	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-100-S

304 SS

1.00

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 37.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 37.34	0%
10-19	£ 33.60	10%
20-49	£ 31.74	15%
50-99	£ 29.87	20%
100+	£ 26.14	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-125-S

304 SS

1.25

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 43.33 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.33	0%
10-19	£ 38.99	10%
20-49	£ 36.83	15%
50-99	£ 34.66	20%
100+	£ 30.33	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-150-S

304 SS

1.50

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 43.33 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.33	0%
10-19	£ 38.99	10%
20-49	£ 36.83	15%
50-99	£ 34.66	20%
100+	£ 30.33	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-175-S

304 SS

1.75

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 43.33 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.33	0%
10-19	£ 38.99	10%
20-49	£ 36.83	15%
50-99	£ 34.66	20%
100+	£ 30.33	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-200-S

304 SS

2.00

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 46.08 per unit (click for quantity discounts)

Ready to despatch 5
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 46.08	0%
10-19	£ 41.48	10%
20-49	£ 39.17	15%
50-99	£ 36.87	20%
100+	£ 32.26	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-250-S

304 SS

2.50

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 47.94 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.94	0%
10-19	£ 43.15	10%
20-49	£ 40.75	15%
50-99	£ 38.36	20%
100+	£ 33.56	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-300-S

304 SS

3.00

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 47.94 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.94	0%
10-19	£ 43.15	10%
20-49	£ 40.75	15%
50-99	£ 38.36	20%
100+	£ 33.56	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-350-S

304 SS

3.50

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 52.98 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.98	0%
10-19	£ 47.68	10%
20-49	£ 45.03	15%
50-99	£ 42.39	20%
100+	£ 37.09	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I25-400-S

304 SS

4.00

,2485

,2470

1/4

0.289

0.47

0.23

0.59

1.16

0.290

0.92

1.45

,2500/,2540

230

2200

£ 52.98 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.98	0%
10-19	£ 47.68	10%
20-49	£ 45.03	15%
50-99	£ 42.39	20%
100+	£ 37.09	30%

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

2200

more info »

QR1374.I31-050-S

304 SS

0.50

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 40.57 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 40.57	0%
10-19	£ 36.51	10%
20-49	£ 34.48	15%
50-99	£ 32.45	20%
100+	£ 28.40	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-075-S

304 SS

0.75

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 40.57 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 40.57	0%
10-19	£ 36.51	10%
20-49	£ 34.48	15%
50-99	£ 32.45	20%
100+	£ 28.40	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-100-S

304 SS

1.00

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 40.57 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 40.57	0%
10-19	£ 36.51	10%
20-49	£ 34.48	15%
50-99	£ 32.45	20%
100+	£ 28.40	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-125-S

304 SS

1.25

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 47.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.74	0%
10-19	£ 42.96	10%
20-49	£ 40.58	15%
50-99	£ 38.19	20%
100+	£ 33.41	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-150-S

304 SS

1.50

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 47.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.74	0%
10-19	£ 42.96	10%
20-49	£ 40.58	15%
50-99	£ 38.19	20%
100+	£ 33.41	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-175-S

304 SS

1.75

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 47.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.74	0%
10-19	£ 42.96	10%
20-49	£ 40.58	15%
50-99	£ 38.19	20%
100+	£ 33.41	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-200-S

304 SS

2.00

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 47.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 47.74	0%
10-19	£ 42.96	10%
20-49	£ 40.58	15%
50-99	£ 38.19	20%
100+	£ 33.41	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-250-S

304 SS

2.50

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 51.07 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.07	0%
10-19	£ 45.96	10%
20-49	£ 43.41	15%
50-99	£ 40.86	20%
100+	£ 35.75	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-300-S

304 SS

3.00

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 51.07 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 51.07	0%
10-19	£ 45.96	10%
20-49	£ 43.41	15%
50-99	£ 40.86	20%
100+	£ 35.75	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-350-S

304 SS

3.50

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 52.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.51	0%
10-19	£ 47.26	10%
20-49	£ 44.63	15%
50-99	£ 42.01	20%
100+	£ 36.76	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I31-400-S

304 SS

4.00

,3110

,3095

5/16

0.375

0.47

0.23

0.59

1.16

0.330

0.92

1.45

,3125/,3165

510

3500

£ 52.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.51	0%
10-19	£ 47.26	10%
20-49	£ 44.63	15%
50-99	£ 42.01	20%
100+	£ 36.76	30%

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3110

d₁ min.

,3095

d₁ nom.

5/16

d₂ ±0.005

0.375

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.330

l₃

0.92

l₄

1.45

Loc'n hole min.|max.

,3125/,3165

Pull out strength min. lb

510

Calc. double shear lb

3500

more info »

QR1374.I37-050-S

304 SS

0.50

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 43.87 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.87	0%
10-19	£ 39.48	10%
20-49	£ 37.29	15%
50-99	£ 35.10	20%
100+	£ 30.71	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-075-S

304 SS

0.75

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 43.87 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.87	0%
10-19	£ 39.48	10%
20-49	£ 37.29	15%
50-99	£ 35.10	20%
100+	£ 30.71	30%

Material

304 SS

l₁ grip +0.02|-0.00

0.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-100-S

304 SS

1.00

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 43.87 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.87	0%
10-19	£ 39.48	10%
20-49	£ 37.29	15%
50-99	£ 35.10	20%
100+	£ 30.71	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-125-S

304 SS

1.25

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 50.39 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.39	0%
10-19	£ 45.35	10%
20-49	£ 42.83	15%
50-99	£ 40.31	20%
100+	£ 35.27	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-150-S

304 SS

1.50

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 50.39 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.39	0%
10-19	£ 45.35	10%
20-49	£ 42.83	15%
50-99	£ 40.31	20%
100+	£ 35.27	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-175-S

304 SS

1.75

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 50.39 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.39	0%
10-19	£ 45.35	10%
20-49	£ 42.83	15%
50-99	£ 40.31	20%
100+	£ 35.27	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-200-S

304 SS

2.00

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 50.39 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 50.39	0%
10-19	£ 45.35	10%
20-49	£ 42.83	15%
50-99	£ 40.31	20%
100+	£ 35.27	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-250-S

304 SS

2.50

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 59.99 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 59.99	0%
10-19	£ 53.99	10%
20-49	£ 50.99	15%
50-99	£ 47.99	20%
100+	£ 42.00	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-300-S

304 SS

3.00

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 59.99 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 59.99	0%
10-19	£ 53.99	10%
20-49	£ 50.99	15%
50-99	£ 47.99	20%
100+	£ 42.00	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-350-S

304 SS

3.50

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 62.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 62.51	0%
10-19	£ 56.26	10%
20-49	£ 53.14	15%
50-99	£ 50.01	20%
100+	£ 43.76	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I37-400-S

304 SS

4.00

,3735

,3720

3/8

0.440

0.56

0.29

0.65

1.16

0.365

1.01

1.52

,3750/,3790

575

4500

£ 62.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 62.51	0%
10-19	£ 56.26	10%
20-49	£ 53.14	15%
50-99	£ 50.01	20%
100+	£ 43.76	30%

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,3735

d₁ min.

,3720

d₁ nom.

3/8

d₂ ±0.005

0.440

d₃

0.56

d₄

0.29

d₅

0.65

d₆

1.16

l₂ +0.000|-0.030

0.365

l₃

1.01

l₄

1.52

Loc'n hole min.|max.

,3750/,3790

Pull out strength min. lb

575

Calc. double shear lb

4500

more info »

QR1374.I50-100-S

304 SS

1.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 62.24 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 62.24	0%
10-19	£ 56.02	10%
20-49	£ 52.90	15%
50-99	£ 49.79	20%
100+	£ 43.57	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-125-S

304 SS

1.25

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.25

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-150-S

304 SS

1.50

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-175-S

304 SS

1.75

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

Material

304 SS

l₁ grip +0.02|-0.00

1.75

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-200-S

304 SS

2.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 72.38 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 72.38	0%
10-19	£ 65.14	10%
20-49	£ 61.52	15%
50-99	£ 57.90	20%
100+	£ 50.66	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-250-S

304 SS

2.50

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 82.50 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 82.50	0%
10-19	£ 74.25	10%
20-49	£ 70.13	15%
50-99	£ 66.00	20%
100+	£ 57.75	30%

Material

304 SS

l₁ grip +0.02|-0.00

2.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-300-S

304 SS

3.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 82.50 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 82.50	0%
10-19	£ 74.25	10%
20-49	£ 70.13	15%
50-99	£ 66.00	20%
100+	£ 57.75	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-350-S

304 SS

3.50

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 92.64 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 92.64	0%
10-19	£ 83.38	10%
20-49	£ 78.74	15%
50-99	£ 74.11	20%
100+	£ 64.85	30%

Material

304 SS

l₁ grip +0.02|-0.00

3.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-400-S

304 SS

4.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 92.64 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 92.64	0%
10-19	£ 83.38	10%
20-49	£ 78.74	15%
50-99	£ 74.11	20%
100+	£ 64.85	30%

Material

304 SS

l₁ grip +0.02|-0.00

4.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-450-S

304 SS

4.50

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 102.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 102.77	0%
10-19	£ 92.49	10%
20-49	£ 87.35	15%
50-99	£ 82.21	20%
100+	£ 71.94	30%

Material

304 SS

l₁ grip +0.02|-0.00

4.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-500-S

304 SS

5.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 102.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 102.77	0%
10-19	£ 92.49	10%
20-49	£ 87.35	15%
50-99	£ 82.21	20%
100+	£ 71.94	30%

Material

304 SS

l₁ grip +0.02|-0.00

5.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-550-S

304 SS

5.50

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 112.89 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 112.89	0%
10-19	£ 101.60	10%
20-49	£ 95.96	15%
50-99	£ 90.31	20%
100+	£ 79.02	30%

Material

304 SS

l₁ grip +0.02|-0.00

5.50

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

QR1374.I50-600-S

304 SS

6.00

,4985

,4970

1/2

0.594

0.72

0.42

0.81

1.43

0.460

1.27

1.88

,5000/,5050

1160

11500

£ 112.89 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 112.89	0%
10-19	£ 101.60	10%
20-49	£ 95.96	15%
50-99	£ 90.31	20%
100+	£ 79.02	30%

Material

304 SS

l₁ grip +0.02|-0.00

6.00

d₁ max.

,4985

d₁ min.

,4970

d₁ nom.

1/2

d₂ ±0.005

0.594

d₃

0.72

d₄

0.42

d₅

0.81

d₆

1.43

l₂ +0.000|-0.030

0.460

l₃

1.27

l₄

1.88

Loc'n hole min.|max.

,5000/,5050

Pull out strength min. lb

1160

Calc. double shear lb

11500

more info »

Technical & Application

Material

Pin: stainless steel, AISI 304 (DIN 1.4301) or AISI 303 (DIN 1.4305), passivated. Tensile strength 500 N/mm² min. RoHS compliant.
Handle: stainless steel, AISI 303 (DIN 1.4305), passivated.
Actuator button: stainless steel, AIAI 303 (DIN 1.4305), passivated.
Internal spindle, balls and split ring (supplied); from stainless steel.

Technical Notes

Pressing = unlocking.
Releasing = locking.
Temperature range -30°C to +150°C
Supplied with split ring.

Tips

For quick fastening and locking frequently repeated connections.
For lanyards & retaining cables see part nos. L to LA1224. For easy install locating bushes and end caps see part nos. LA1260 to LA1355.

Product Datasheets

QR1374 Quick Release Pins - Inch - R-handleJuly 4, 2025, 1:27 PM / 81.94 kB

Ring HandleJuly 4, 2025, 1:31 PM / 2.35 MB

Quick Release PinsJuly 4, 2025, 1:30 PM / 19.86 MB

Quick Release PinsJuly 4, 2025, 1:29 PM / 19.86 MB

Quick Release PinsJuly 4, 2025, 1:28 PM / 41.66 MB
