CC2010 Cam Locks - Flexi-System

Name: CC2010.M0330
Brand: WC
SKU: CC2010.M0330
Price: 3.44 EUR
Availability: InStock

fixed grip - zinc, material: Die cast zinc/polyamide

Article properties

Order No.

CC2010.M0330

Type

Two

Body finish

Black Coated

Key type

Euro

d₁

30.0

h₁

See full product selection

£ 3.44 per unit (click for quantity discounts)

Ready to despatch 245
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 3.44	0%
20-49	£ 3.10	10%
50-99	£ 2.92	15%
100-499	£ 2.58	25%
500+	£ 2.24	35%

Download product datasheet

Technical & Application

Material

Type one & Two: Body: die cast zinc, finished in chrome plate or black powder coating.
Cylinder lock: die cast zinc, chrome plated.
Type Three: Body: polyamide.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Not supplied: CAM - order separately.

Technical Notes

Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.

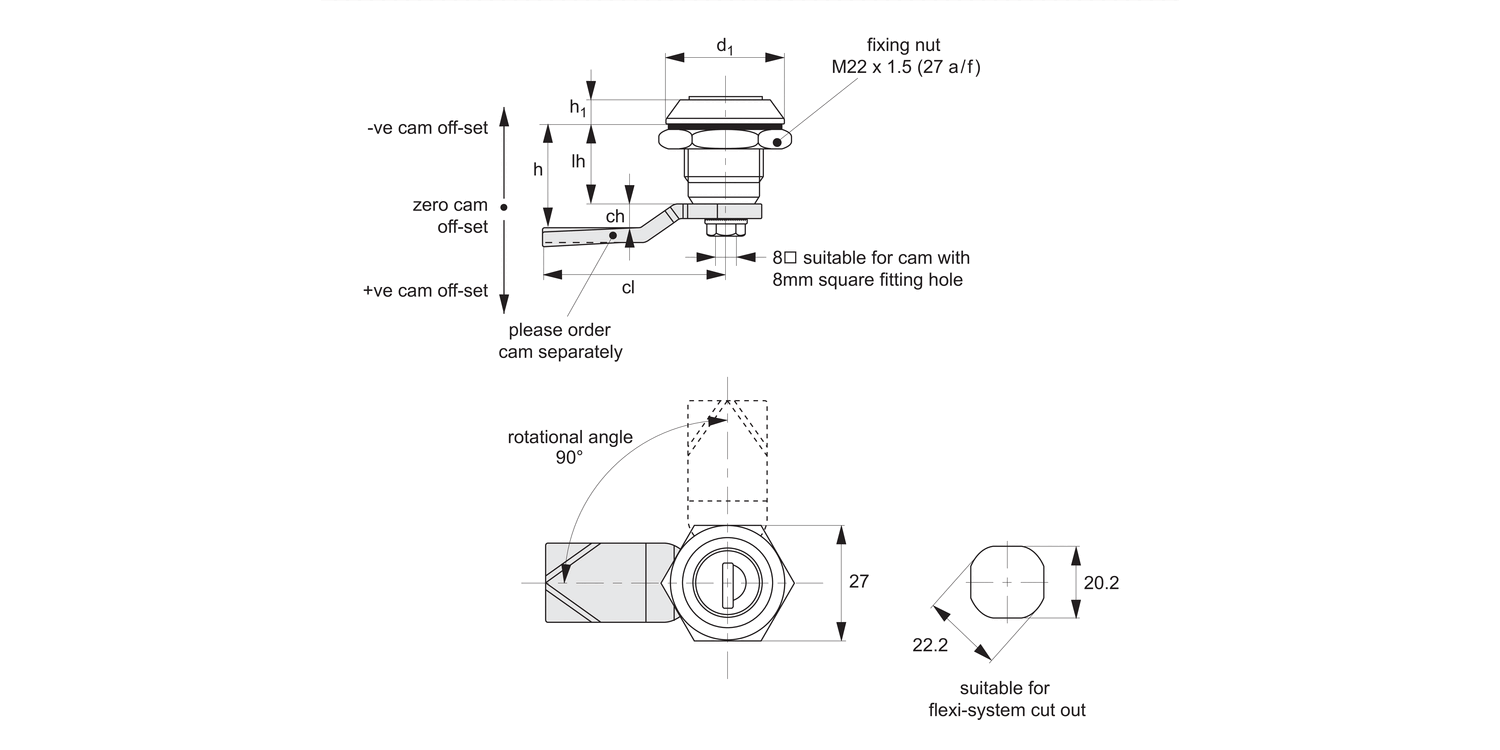

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
