Cam Locks Flexi-Grip
fixed grip - zinc

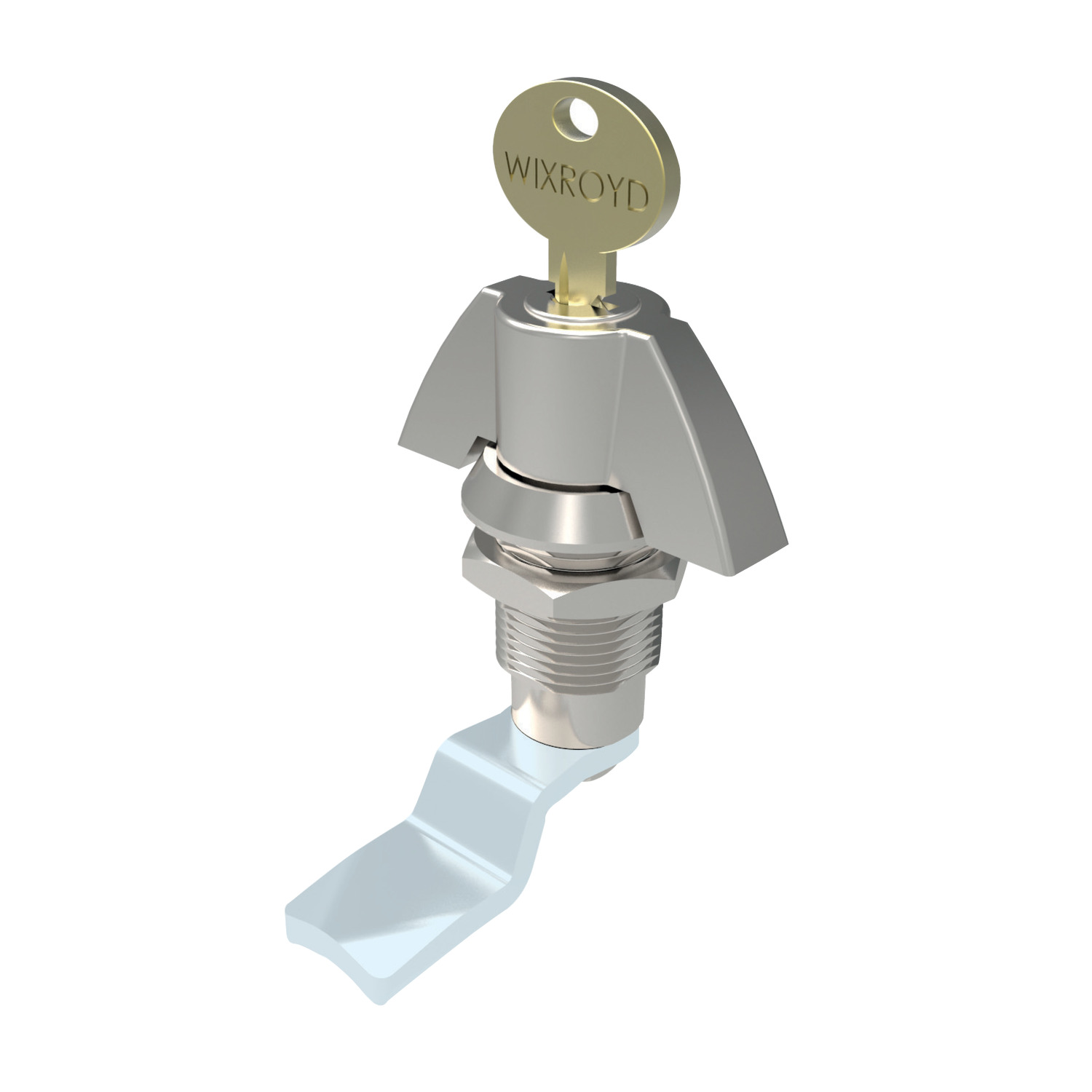

CC2060 Mini Cam Locks
wing handle - fixed grip - zinc, material: Die cast zinc
Order No.
CC2060.M0010
Key type
Keyed Alike
Type
Type One
Body finish
Chrome Plated
b
14.5
lh
13.0
£ 3.64 per unit (click for quantity discounts)
Ready to despatch 225
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 3.64 | 0% |
| 20-49 | £ 3.28 | 10% |
| 50-99 | £ 3.09 | 15% |
| 100-499 | £ 2.73 | 25% |
| 500+ | £ 2.37 | 35% |
Technical & Application
Material
Black painted ZDC housing and handle, white zinc plated cam.
Supplied with: Keys: two per lock. Nut - steel, zinc plated.
Not supplied: CAM - order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0050. Select "with projection" cam type to prevent cam rotating over 45º.

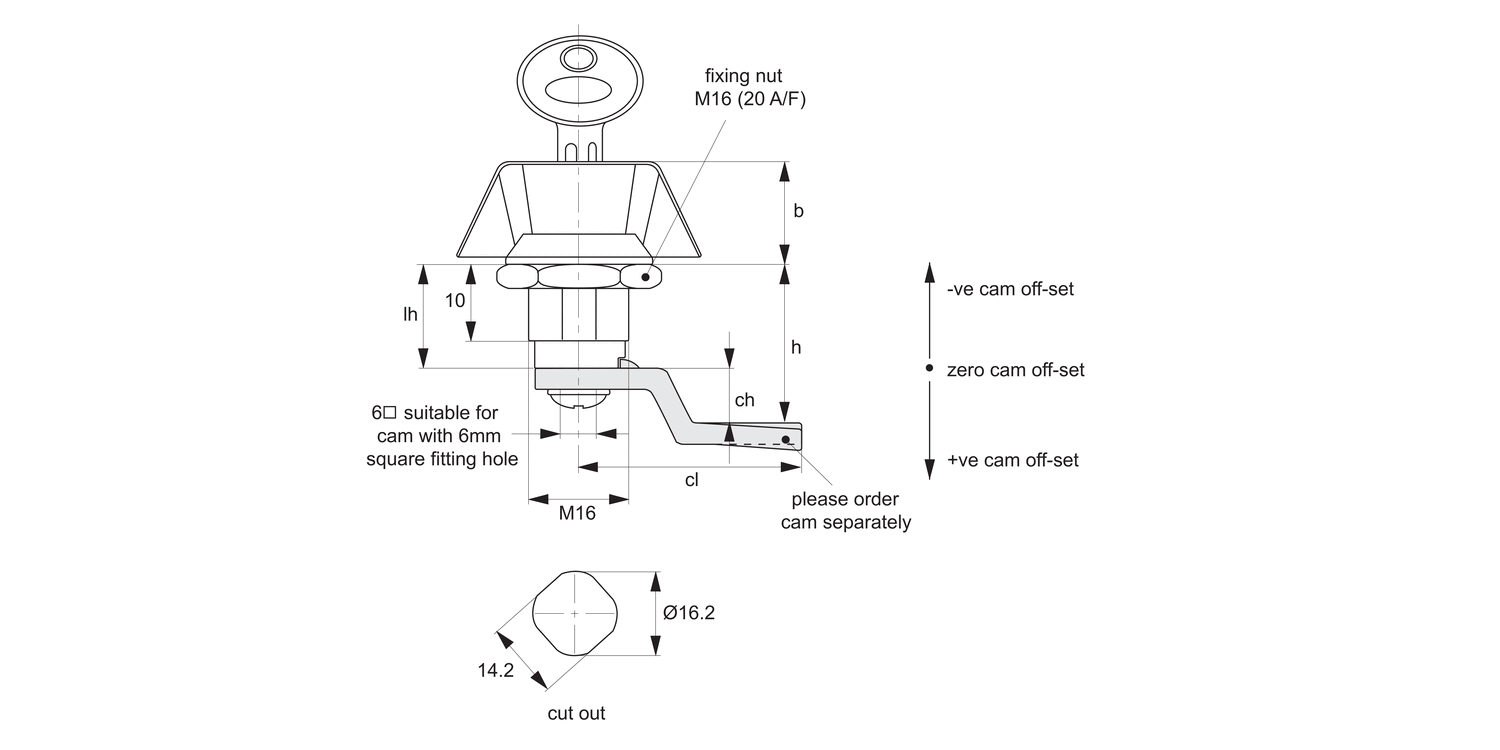

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Important Notes
Sold subject to pack quantity.
