Cam Locks Flexi-Grip
fixed grip - zinc

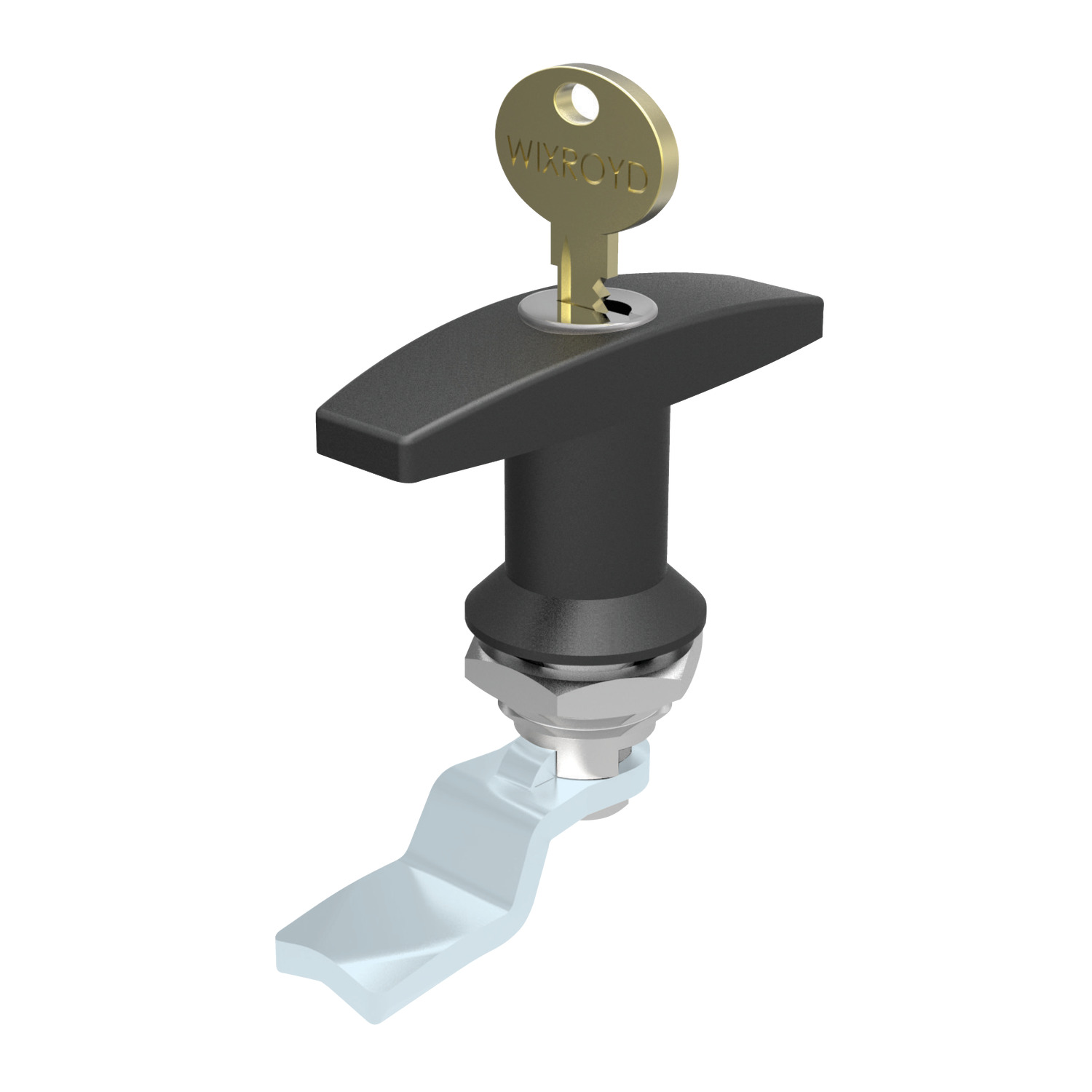

CC2200 Cam Locks - Flexi-System
T-handle - fixed grip, material: Die cast zinc/polyamide
Order No.
CC2200.M0310
Body finish
Black Coated
Key type
Keyed Alike
w1
78
h1
37
lh
18
£ 8.90 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 8.90 | 0% |
| 20-49 | £ 8.01 | 10% |
| 50-99 | £ 7.57 | 15% |
| 100-499 | £ 6.68 | 25% |
| 500+ | £ 5.79 | 35% |
Technical & Application
Material
Type one & two: Body: die cast zinc. Finished in chrome plate or black powder coating.
Cylinder lock: die cast zinc, chrome plated. IP65/NEMA 4 rated.
Supplied with: Nut: steel, zinc plated.
Sealing washer: PU & Rubber.
Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "with projection" cam type to prevent cam rotating over 45º.

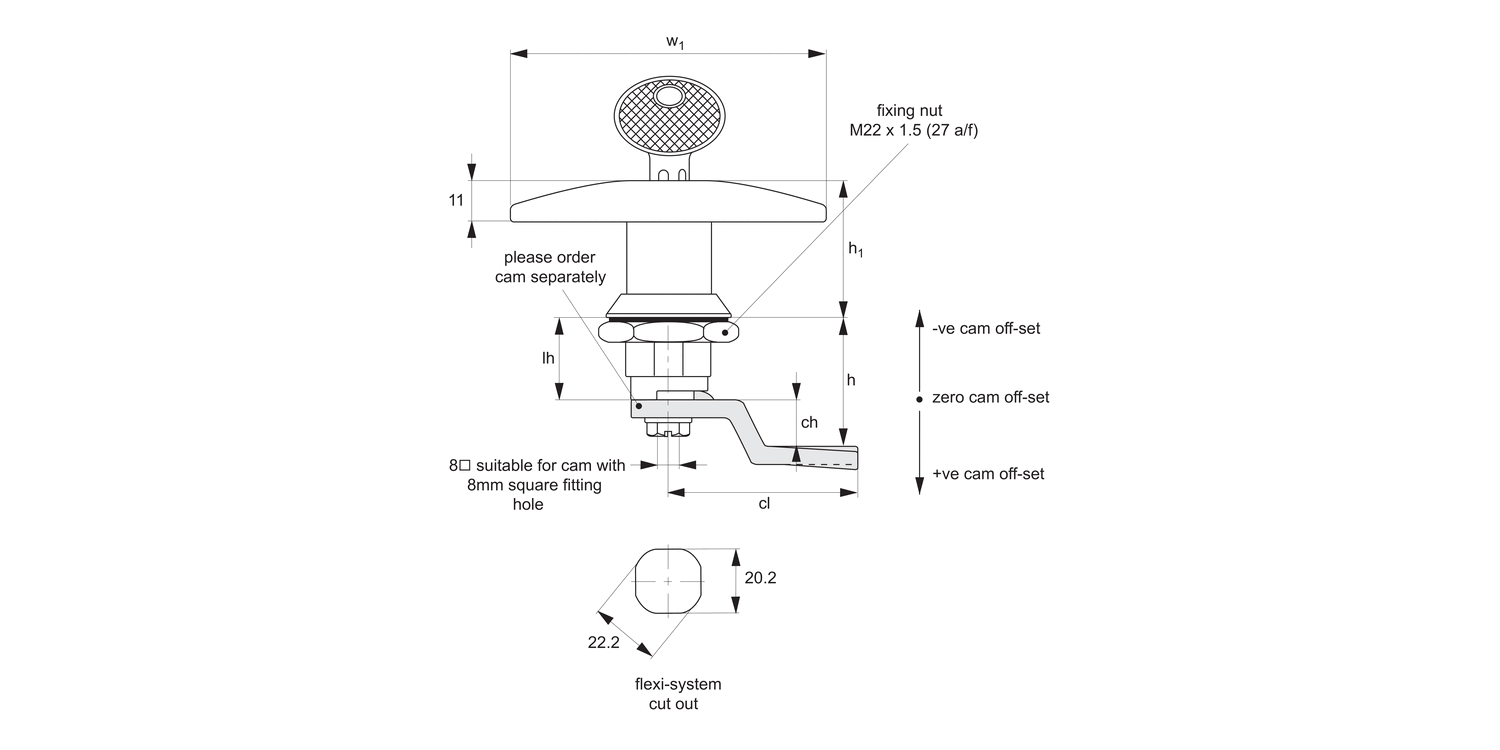

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
