QR1376 Quick Release Pins - Inch - R-handle

Name: QR1376.I25-175-T
Brand: WC
SKU: QR1376.I25-175-T
Price: 52.8248 EUR
Availability: OutOfStock

precipitation hardened stainless pin - stainless handle, material: Stainless steel

Article properties

Order No.

QR1376.I25-175-T

Material

17-4 PH

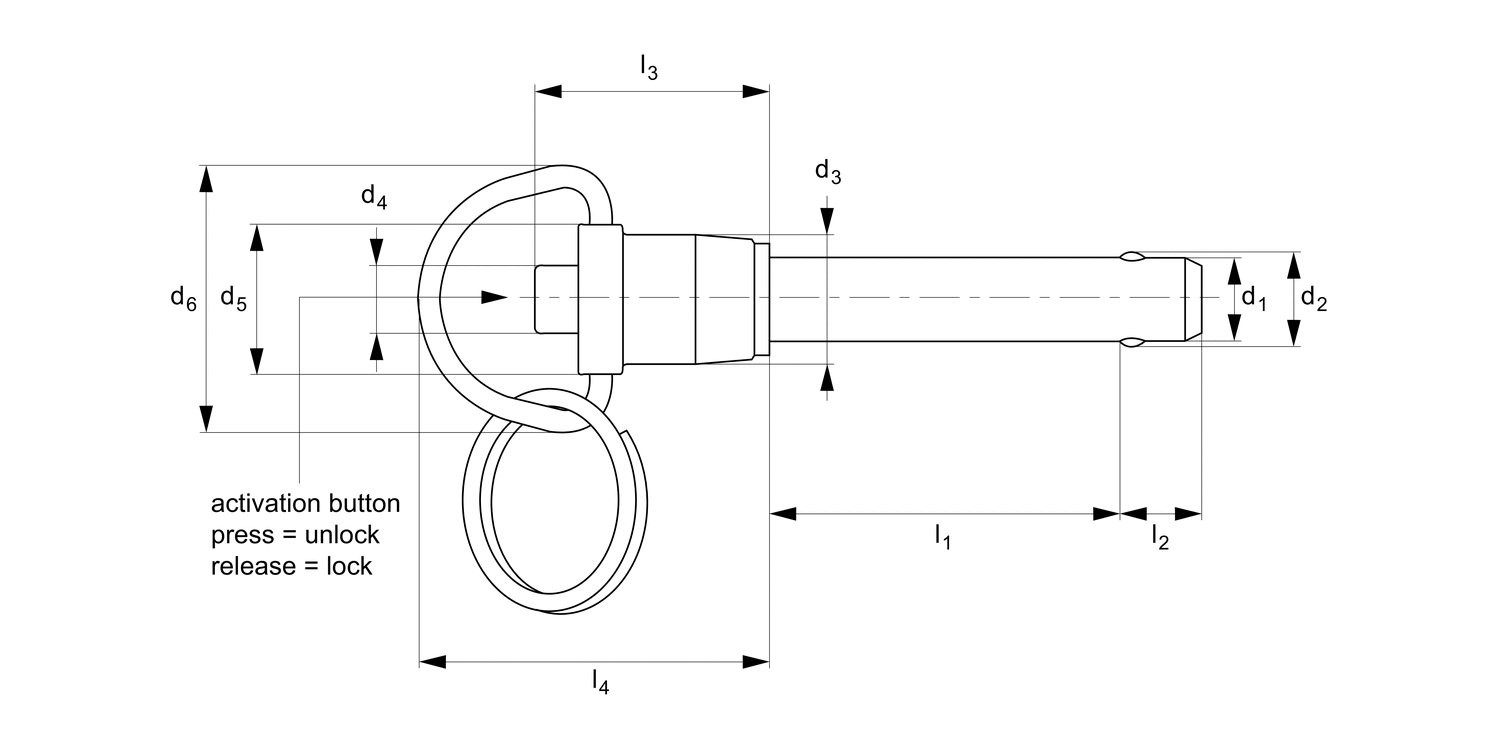

l₁ grip +0.02|-0.00

1.75

d₁ max.

,2485

d₁ min.

,2470

d₁ nom.

1/4

d₂ ±0.005

0.289

d₃

0.47

d₄

0.23

d₅

0.59

d₆

1.16

l₂ +0.000|-0.030

0.290

l₃

0.92

l₄

0.76

Loc'n hole min.|max.

,2500/,2540

Pull out strength min. lb

230

Calc. double shear lb

9200

See full product selection

£ 52.82 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 52.82	0%
10-19	£ 47.54	10%
20-49	£ 44.90	15%
50-99	£ 42.26	20%
100+	£ 36.98	30%

Download product datasheet

Technical & Application

Material

Pin: stainless steel 17-4PH (DIN 1.4542, AISI 630), precipitation hardened, passivated. Tensile strength 1,300 N/mm² min. HRC 40. RoHS compliant.
Handle: stainless steel, AISI 303 (DIN 1.4305), passivated.
Actuator button: stainless steel, AIAI 303 (DIN 1.4305), passivated.
Internal spindle, balls and split ring (supplied); from stainless steel.

Technical Notes

Pressing = unlocking.
Releasing = locking.
Temperature range -30°C to +150°C
Supplied with split ring.

Tips

For quick fastening and locking frequently repeated connections.
For lanyards & retaining cables see part nos. L to LA1224. For easy install locating bushes and end caps see part nos. LA1260 to LA1355.
