CC0410 Cam Latches - Flexi-System
insert driver - fixed grip - plastic, material: Polyamide
Alternative products you may wish to consider

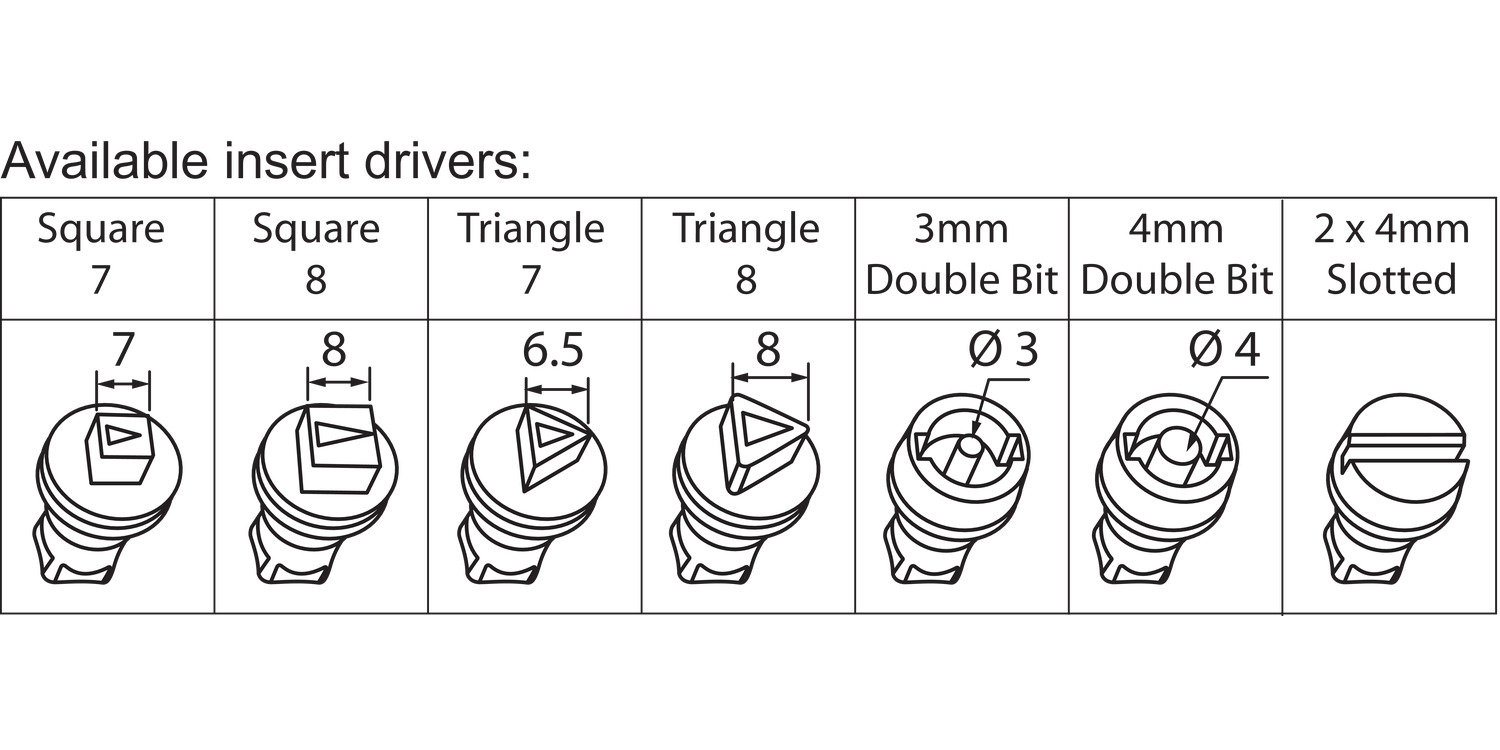

Insert driver
Square 7
d1
28
h1
6
lh
18
£ 2.24 per unit (click for quantity discounts)
Insert driver
Square 8
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
Triangle 7
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
Triangle 8
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
3mm Double Bit
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
4mm Double Bit
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
Slotted (2x4)
d1
28
h1
6
lh
18
£ 2.03 per unit (click for quantity discounts)
Insert driver
d1
h1
lh
| Price & Availability | Article | Insert driver | d1 | h1 | lh | ||||||||||||||||||||||||
| CC0410.M0010 | Square 7 | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.24 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Insert driver Square 7 d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0020 | Square 8 | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Insert driver Square 8 d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0040 | Triangle 7 | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 190 Need more? Please call us.
Insert driver Triangle 7 d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0050 | Triangle 8 | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 51 Need more? Please call us.
Insert driver Triangle 8 d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0060 | 3mm Double Bit | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 181 Need more? Please call us.
Insert driver 3mm Double Bit d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0070 | 4mm Double Bit | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Insert driver 4mm Double Bit d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
| CC0410.M0080 | Slotted (2x4) | 28 | 6 | 18 | |||||||||||||||||||||||||
£ 2.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Insert driver Slotted (2x4) d1 28 h1 6 lh 18 | |||||||||||||||||||||||||||||
Technical & Application
Material
Body: polyamide plastic, black.
Insert: zinc alloy, black coated. Fitted with O'ring to achieve IP54 rating. Internal spring provides 1,5mm torsion.
Supplied with: Nut: steel, zinc plated.
Sealing washer: PU & Rubber.
Not supplied: CAM nor KEY - order separately.
Technical Notes
Order cam and key separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.
Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Keys: see CC0010.
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Important Notes
An inexpensive alternative to stainless steel, where water or other solutions may cause corrosion.
Sold subject to pack quantity.
