CC0034 Single Point Cams - Steel
for adjustable grip mini compression cam latches - and, material: Steel
Alternative products you may wish to consider
Type
+ve offset
ch
0
cl
23
l
10
ts
2.8
Where lh = 22,5 min. h =
22.5
£ 0.56 per unit (click for quantity discounts)
Type
+ve offset
ch
1
cl
23
l
10
ts
2.8
Where lh = 22,5 min. h =
23.5
£ 0.53 per unit (click for quantity discounts)
Type
+ve offset
ch
4
cl
23
l
10
ts
2.8
Where lh = 22,5 min. h =
26.5
£ 0.56 per unit (click for quantity discounts)
Type
+ve offset
ch
7
cl
23
l
10
ts
2.8
Where lh = 22,5 min. h =
29.5
£ 0.56 per unit (click for quantity discounts)
£ 0.56 per unit (click for quantity discounts)
£ 0.56 per unit (click for quantity discounts)
£ 0.65 per unit (click for quantity discounts)
£ 0.65 per unit (click for quantity discounts)
£ 0.65 per unit (click for quantity discounts)
Type
ch
cl
l
ts
Where lh = 22,5 min. h =
| Price & Availability | Article | Type | ch | cl | l | ts | Where lh = 22,5 min. h = | |||||||||||||||||||||
| CC0034.M0300 | +ve offset | 0 | 23 | 10 | 2.8 | 22.5 | ||||||||||||||||||||||
£ 0.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type +ve offset ch 0 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 22.5 | ||||||||||||||||||||||||||||
| CC0034.M0301 | +ve offset | 1 | 23 | 10 | 2.8 | 23.5 | ||||||||||||||||||||||
£ 0.53 per unit (click for quantity discounts) Ready to despatch 1751 Need more? Please call us.
Type +ve offset ch 1 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 23.5 | ||||||||||||||||||||||||||||
| CC0034.M0303 | +ve offset | 4 | 23 | 10 | 2.8 | 26.5 | ||||||||||||||||||||||
£ 0.56 per unit (click for quantity discounts) Ready to despatch 177 Need more? Please call us.
Type +ve offset ch 4 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 26.5 | ||||||||||||||||||||||||||||
| CC0034.M0307 | +ve offset | 7 | 23 | 10 | 2.8 | 29.5 | ||||||||||||||||||||||
£ 0.56 per unit (click for quantity discounts) Ready to despatch 26 Need more? Please call us.
Type +ve offset ch 7 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 29.5 | ||||||||||||||||||||||||||||
| CC0034.M0310 | +ve offset | 10 | 23 | 10 | 2.8 | 32.5 | ||||||||||||||||||||||
£ 0.56 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Type +ve offset ch 10 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 32.5 | ||||||||||||||||||||||||||||
| CC0034.M0313 | +ve offset | 13 | 23 | 10 | 2.8 | 35.5 | ||||||||||||||||||||||
£ 0.56 per unit (click for quantity discounts) Ready to despatch 46 Need more? Please call us.
Type +ve offset ch 13 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 35.5 | ||||||||||||||||||||||||||||
| CC0034.M0316 | +ve offset | 16 | 23 | 10 | 2.8 | 38.5 | ||||||||||||||||||||||
£ 0.65 per unit (click for quantity discounts) Ready to despatch 212 Need more? Please call us.
Type +ve offset ch 16 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 38.5 | ||||||||||||||||||||||||||||
| CC0034.M0320 | +ve offset | 20 | 23 | 10 | 2.8 | 42.5 | ||||||||||||||||||||||
£ 0.65 per unit (click for quantity discounts) Ready to despatch 29 Need more? Please call us.
Type +ve offset ch 20 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 42.5 | ||||||||||||||||||||||||||||
| CC0034.M0323 | +ve offset | 23 | 23 | 10 | 2.8 | 45.5 | ||||||||||||||||||||||
£ 0.65 per unit (click for quantity discounts) Ready to despatch 39 Need more? Please call us.
Type +ve offset ch 23 cl 23 l 10 ts 2.8 Where lh = 22,5 min. h = 45.5 | ||||||||||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated.
Technical Notes
Use formula to calculate ch (required cam off-set), and select from product table below;
ch =h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

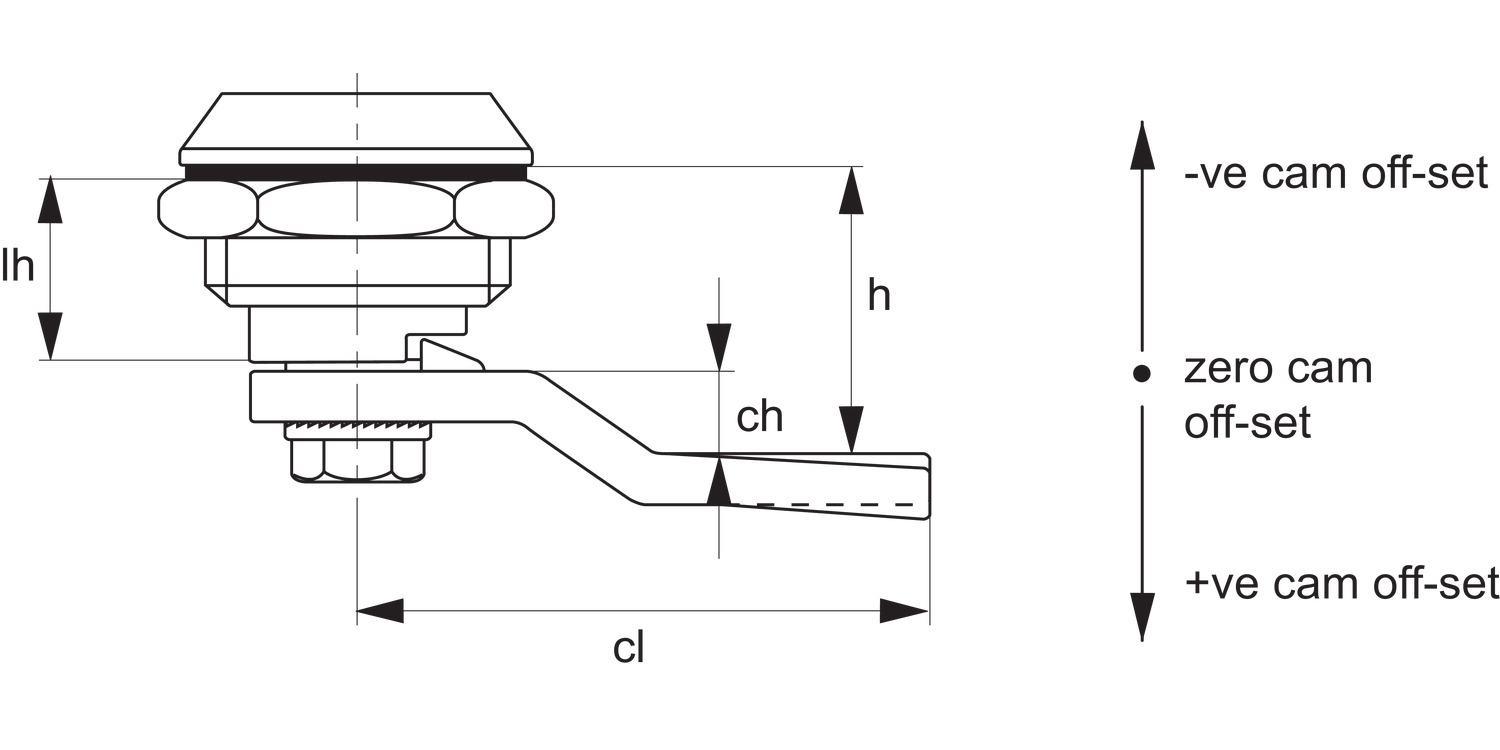

Refer to installation drawing above.
Important Notes
Suitable for adjustable grip mini compression cam latches A1660 and A1666. See cam selection chart for specific latch/lock suitability.
Sold subject to pack quantity.
Installation hole is rectangular 6mmx4mm.
Please note due to design of the single point cam, it is not possible to use +ve offset cam in reverse/upside down as it results in a clash with the body of the cam latch- making it inoperable.
